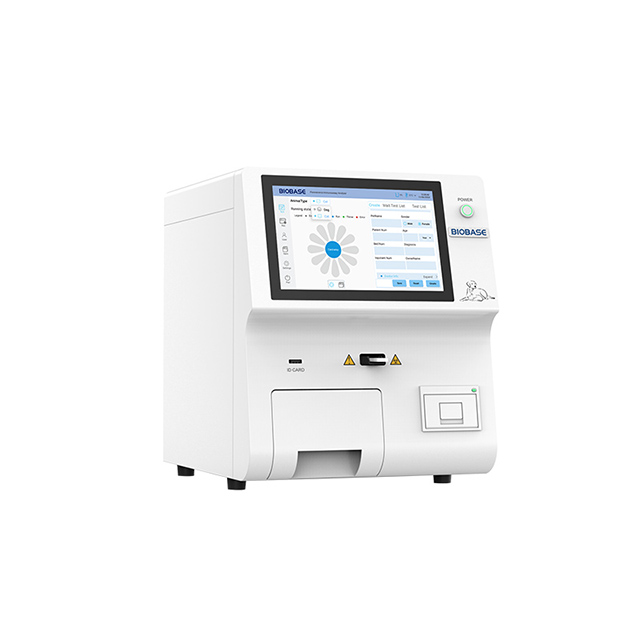

BIOBASE Fluorescence Immunoassay Analyzer BKP2000
Available in stock
BIOBASE Fluorescence Immunoassay Analyzer BKP2000 is a BIOBASE product for professional laboratory, medical, research, or industrial use. Contact Scientific China for configuration, certification, MOQ, availability, and quotation.
SKU: BIOBASE-1590C9E59C
Category: Fluorescence Immunoassay Analyzer
Brand: BIOBASE
Report Abuse
Scientific China
Store
Scientific China
Store
Additional information
| Product Category | Clinical&Analytical Instrument > Fluorescence Immunoassay Analyzer |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description
BIOBASE Fluorescence Immunoassay Analyzer BKP2000
Product overview
BKP2000 multi-channel dry fluorescence immunoassay analyzer, 12 independent incubation channels, automatic induction of reagent card insertion, automatic printing of test results, and automatic card loss. The 10.1-inch LCD screen has a better visual experience. It is mainly composed of an optical detection module(fluorescence), a scanning module, a data processing module, a liquid crystal display module, an incubation module, an information acquisition module(ID card reader), a power supply, and a printer.
Key features
- Product Description
Applications
- Clinical laboratories and diagnostic workflows
- Blood banks and transfusion services
- Clinical, analytical, screening, or diagnostic laboratory workflows using the selected configuration
Technical specifications
- Product Description
- Brochure
Application:
It is suitable for in vitro diagnostic tests in central laboratories, outpatient/emergency laboratories, clinical departments, physical examination centers and scientific research laboratories of medical institutions.
Features:
1. 12 independent constant temperature incubation channels, which can detect 12 different items at the same time.
2. Automatic induction of reagent card insertion, automatic printing of test results, and automatic card loss.
3. Built-in thermal printer, can also be connected to an external printer.
4. 10.1-inch large LCD screen with a resolution of 1024*600 or more, the visual experience is better.
5. The high and low temperature alarm can be set.
6. The operation is convenient, the data is automatically read, and the single detection time is less than 10s.
|
Model |
BKP2000 |
|
Excitation Light Source |
LED |
|
Wavelength |
Excitation wavelength λ0=365nm Detection wavelength λ1=615nm |
|
Detection Channel |
1 |
|
Incubation Position |
12 |
|
Sample Type |
Serum, plasma, whole blood and urine, etc |
|
Detection Mode |
Supports multiple items in one card |
|
Testing Speed |
＜10s/test |
|
Repeatability |
CV≤5% |
|
Stability |
σ≤±8% |
|
Linear Correlation |
(r)≥0.98 |
|
Accuracy |
Δn≤±8% |
|
Display |
10.1-inch color touch screen |
|
Language |
Chinese, English, Spanish, Other languages can be customized |
|
Interface |
RS232, USB, Ethernet port |
|
Printer |
Built-in thermal printer |
|
Power Supply |
100~240V, 50/60Hz |
|
External Size(L*W*H)mm |
333*418*408 |
|
Net Weight(kg) |
17 |
|
Package Size(L*W*H)mm |
600*520*687 |
|
Gross Weight(kg) |
36.5 |
Note: Equipped with 5 CRP tests cards for installation and testing.
Download: 47-48 Fluorescence Immunoassay Analyzer BKP1000&BKP2000.jpg
Product video
An official product video is attached through the WooCommerce product-video metadata.
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
