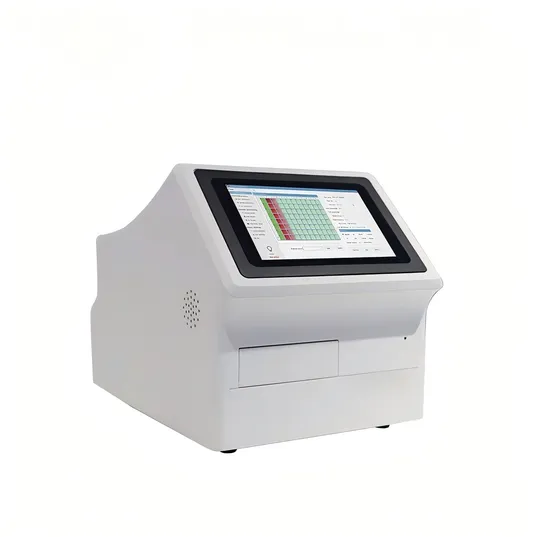

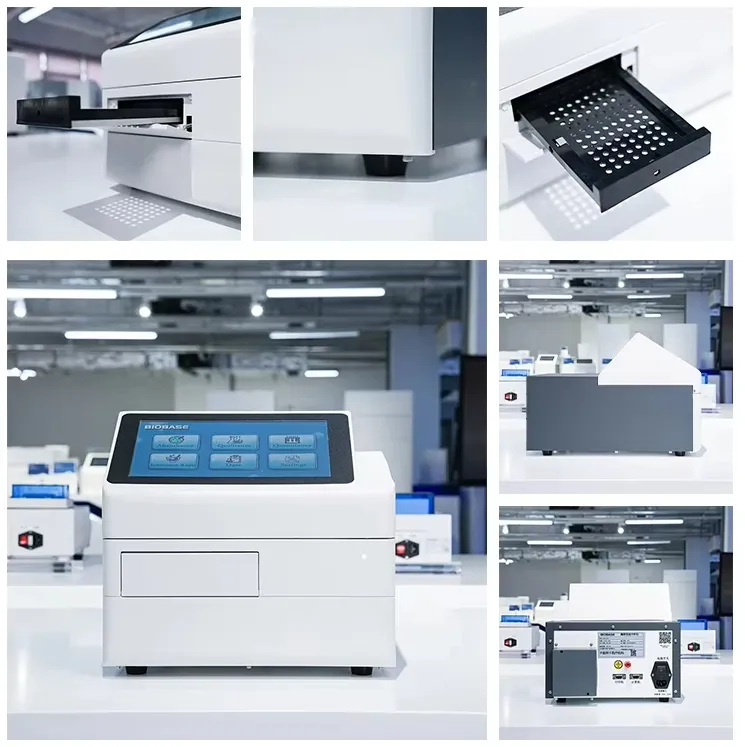

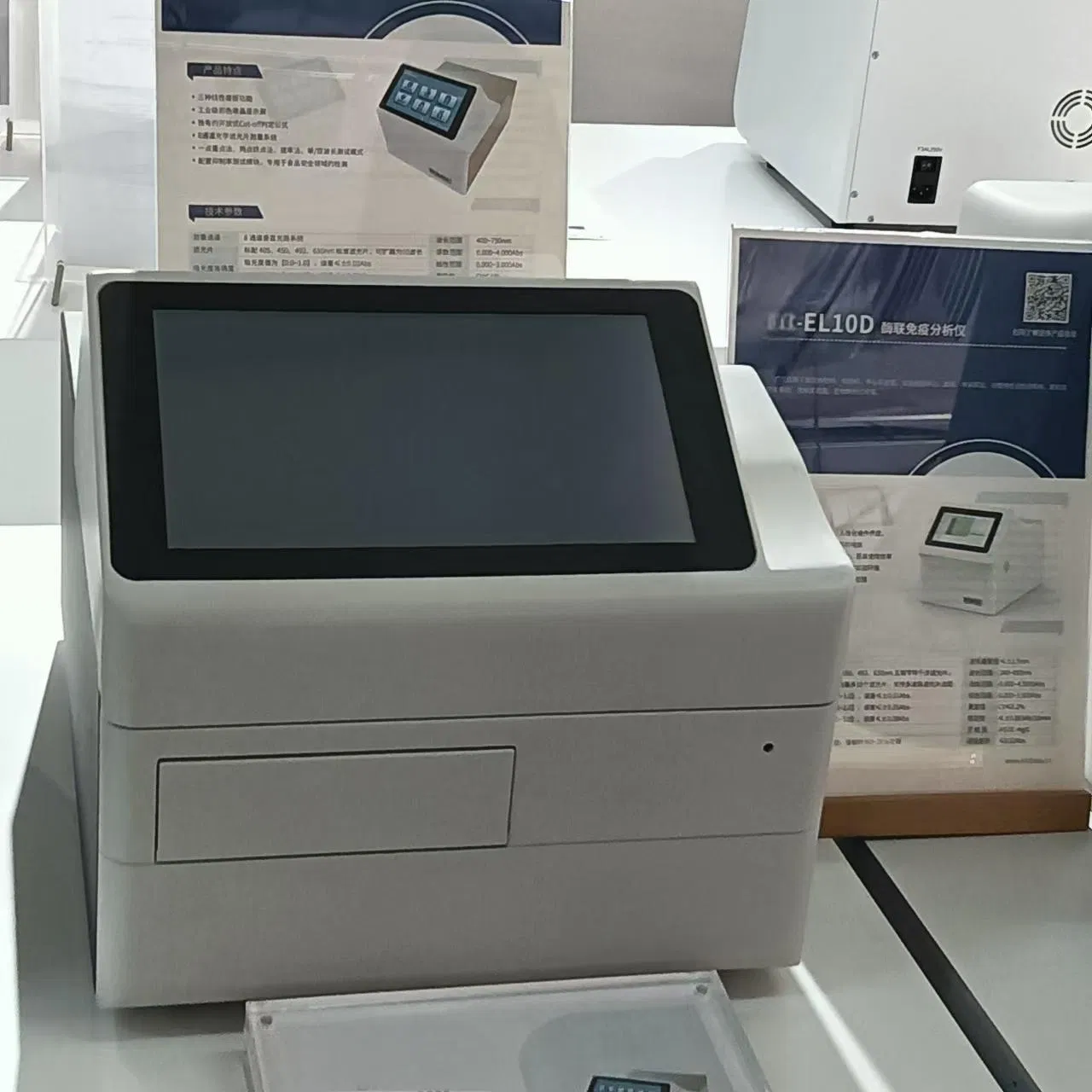

ELISA Microplate Reader for Clinical and Laboratory Diagnostics

The ELISA Microplate Reader (HW-EL10C) is a high-precision analytical instrument designed for quantitative immunoassay analysis in clinical laboratories, research institutes, hospitals, and biotechnology facilities. Engineered with an advanced 8-channel vertical optical system, this ELISA reader delivers fast, reliable absorbance measurements for enzyme-linked immunosorbent assays and other biochemical tests.

With a wavelength range of 400–800 nm and standard filters at 405 nm, 450 nm, and 492 nm, the instrument ensures accurate optical detection across a wide range of diagnostic applications. The reader supports 96-well microplates, enabling high-throughput testing while maintaining excellent repeatability and stability. Its high-speed scanning capability allows a full plate to be read in as little as 7 seconds, making it ideal for laboratories requiring rapid and efficient sample analysis.

The device features a 10.1-inch touch-screen interface, providing intuitive operation and real-time visualization of test results. Powered by a high-performance ARM processor and precision analog-to-digital conversion technology, the system offers superior measurement accuracy, low signal noise, and dependable performance even in demanding laboratory environments.

With a reading range of 0.000–4.000 Abs, sensitivity of ≥0.01 mg/L, and repeatability of CV ≤1.0%, the ELISA Microplate Reader ensures reliable quantitative analysis for applications such as disease diagnostics, vaccine development, pharmaceutical testing, and biomedical research.

Built to meet international quality standards including CE, FDA, ISO13485, and EEC certifications, this ELISA reader provides laboratories with a dependable solution for high-throughput immunoassay detection.
