Cedrec FA1004B External Calibration Analytical Balance

Cedrec FA1004B External Calibration Analytical Balance, is a precision weighing instrument engineered to deliver accurate and reliable performance for laboratory, educational, and industrial applications. This advanced balance combines sophisticated sensor technology with user-friendly features to meet the demanding requirements of modern analytical environments.

Designed for versatility and precision, the FA1004B is ideally suited for sample preparation, formulation, quality control testing, and general laboratory weighing tasks requiring high readability and consistent results.

Key Technical Specifications:

• Model No.: FA1004B

• Weighing Range: 0-100g

• Readability: 0.1mg (0.0001g)

• Accuracy Class: Class II

• Stabilization Time: ≤4 seconds

• Scale Pan Size: φ80 mm

• Calibration Method: External calibration

• Display: Large, blue-backlit LCD (120 x 55mm)

• Net Weight: 7.5 kg

• Dimensions (W x D x H): 360 x 220 x 350 mm

• Workspace Height: 220 mm

• Power Supply: 220V/50Hz

• Certifications: CE, RoHS

Advanced Technology and Design Features:

1. Precision Sensor Technology: Incorporates advanced sensor software technology developed in collaboration with the German STL Institute, ensuring exceptional stability, repeatability, and long-term reliability of machine performance.

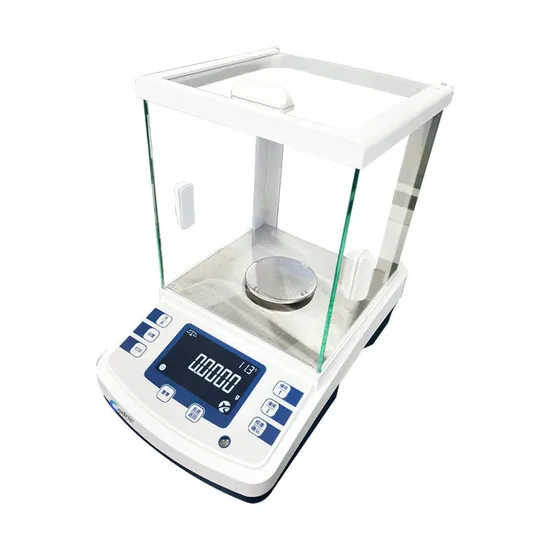

2. Anti-Static Protection: Features a four-sided, anti-static coated glass windshield that effectively shields the weighing chamber from external static interference. This ensures a clear field of view and prevents electrostatic charges from affecting measurement accuracy, particularly important in low-humidity environments.

3. High-Visibility Display: Large, blue-backlit LCD screen (120 x 55mm) provides clear, easy-to-read weight values and comprehensive display functions, reducing eye fatigue during extended use.

4. Data Connectivity: Built-in RS232 standard interface allows for optional connection to external devices, including:

   • Thermal or dot matrix printers for documentation

   • Computers for data logging and analysis

   • LIMS (Laboratory Information Management Systems)

5. Multi-Unit Conversion: Convenient unit conversion functionality enables weighing in multiple units, including grams, carats, and ounces, accommodating diverse application requirements.

6. External Calibration: External calibration method using standard masses allows for verification and adjustment of accuracy by the user, ensuring traceability and compliance with quality standards.

Construction and Design:

• Housing Material: Durable, high-quality plastic construction

• Color: Professional white finish

• Windshield: Anti-static coated glass on all four sides

• Weighing Pan: Stainless steel, φ80 mm

• Workspace: Generous 220mm internal height accommodates taller vessels and containers

Model Variants:

Applications:

• Analytical chemistry laboratories

• Pharmaceutical quality control

• Educational institutions and universities

• Research and development facilities

• Food and beverage testing

• Environmental analysis

• Formulation and compounding

Regulatory Compliance & Quality Assurance:

The FA1004B is manufactured in ISO-accredited facilities and holds CE and RoHS certifications, confirming compliance with stringent European safety and environmental standards. With a production capacity of 50,000 units, Cedrec ensures consistent quality control and reliable supply.

Customization Options:

• OEM/ODM/OBM: Available upon request

• Minimum Order Quantity: 1 Unit

• Customized specifications: Supported

• Branding: Custom trademark options available

Packaging Details:

• Transport Package Dimensions: 500 x 600 x 930 mm

• Packaging Type: Standard export carton

• Trademark: Cedrec

• Origin: China

For detailed pricing, technical specifications, or to discuss your specific weighing requirements, please contact our sales team.
