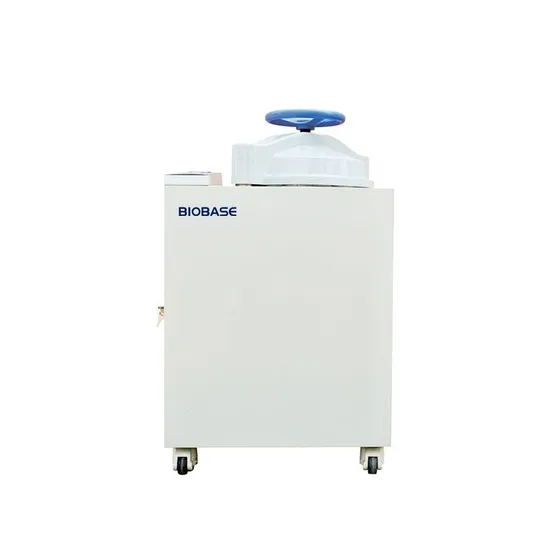

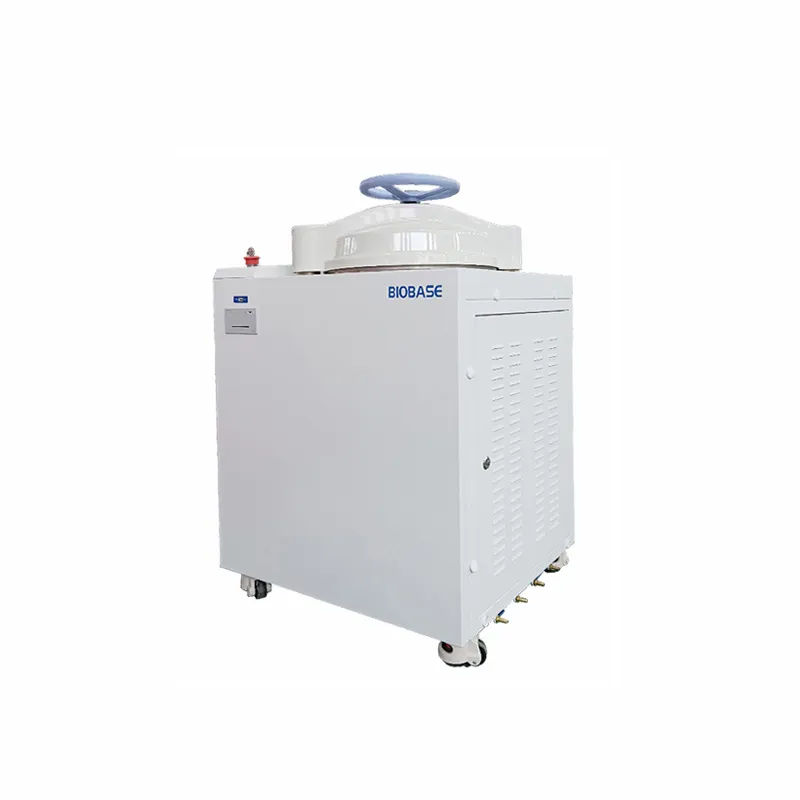

BKQ-B100II Automatic Vertical Steam Pressure Autoclave Sterilizer

BIOBASE presents the BKQ-B100II Automatic Vertical Steam Pressure Autoclave Sterilizer, a high-performance sterilization solution engineered to meet the exacting standards of medical, laboratory, and research facilities. This advanced unit combines robust stainless steel construction with intelligent microprocessor control to deliver reliable, efficient, and safe sterilization cycles.

Designed for versatility and precision, the BKQ-B100II is ideally suited for sterilizing surgical instruments, laboratory glassware, culture media, pharmaceuticals, and biohazardous waste. Its vertical configuration optimizes floor space while providing ample chamber capacity for high-volume processing requirements.

Key Technical Specifications:

• Model No.: BKQ-B100II

• Capacity: 100 Liters

• Chamber Size (Diameter x Depth): φ386 x 874 mm

• Chamber Material: SUS304 Stainless Steel

• Designed Pressure: 0.28 MPa

• Designed Temperature: 150°C

• Working Pressure: 0.22 MPa

• Working Temperature Range: 105~136°C

• Temperature Display Accuracy: ±0.1°C

• Timing Range: 0~999 minutes

• Power Consumption: 5.2 kW

• Power Supply: AC 220V ±10%, 50/60Hz

• Gross Weight: 125 kg

• Warranty: Standard manufacturer warranty

Advanced Sterilization Technology

The BKQ-B100II incorporates state-of-the-art features to ensure optimal sterilization outcomes:

1. Intelligent Control System: Equipped with a microcomputer processor and LCD display for precise cycle management, real-time parameter monitoring, and intuitive user interface operation.

2. Dynamic Pulse Exhaust: Programmable dynamic pulse exhaust (0-9 times) at temperatures ranging from 105-134°C ensures complete air removal from the chamber and load, guaranteeing steam penetration and sterilization efficacy even for porous materials and hollow instruments.

3. Comprehensive Safety Protocols: The system includes multiple safety features:

   • Ultra-high temperature alarm

   • Over-pressure protection

   • Automatic power-off in case of abnormal conditions

   • Door lock safety system preventing opening under pressure

4. Data Management: Built-in sterilization information recording and printing functionality enables complete traceability and documentation for quality assurance and regulatory compliance. Each cycle can be recorded for permanent record-keeping.

5. Programmable Cycles: Flexible programming options include:

   • Sterilization cycles with customizable temperature and time parameters

   • Dissolution temperature range: 60~100°C (programmable)

   • Temperature holding range: 40~60°C (programmable) for media preparation

Construction and Design Excellence

• Chamber Material: High-grade SUS304 stainless steel ensures corrosion resistance, durability, and easy cleaning.

• Insulation: Efficient thermal insulation minimizes heat loss and energy consumption while maintaining safe external surface temperatures.

• Sealing System: Reliable door sealing mechanism prevents steam leakage and ensures consistent pressure maintenance throughout cycles.

• Finish: Smooth, polished surfaces facilitate sanitation and prevent bacterial accumulation.

Included Accessories:

• Stainless steel baskets: 2 pieces

• Installation and operation manual

• Power cord

• Print paper and printer accessories

Regulatory Compliance & Quality Assurance

Manufactured in ISO-accredited facilities, the BKQ-B100II holds necessary certifications confirming compliance with international medical device standards. With a production capacity of 5,000 units per year, BIOBASE ensures consistent quality control and reliable supply chain management for global customers.

Applications:

• Hospitals and surgical centers

• Microbiology and biomedical laboratories

• Pharmaceutical manufacturing facilities

• Veterinary clinics

• Dental clinics

• Research institutions

• Food and beverage quality control laboratories

Dimensions & Packaging:

• External Dimensions (W x D x H): 640 x 550 x 1270 mm

• Packing Dimensions (W x D x H): 750 x 745 x 1450 mm

• Transport Package: Heavy-duty wooden box for secure international shipping

• Trademark: BIOBASE

• Origin: China

For detailed pricing, technical specifications, or to discuss your specific sterilization requirements, please contact our sales team.
