LabTech H150-1000 Recirculating Water Chiller, 115V
Available in stock
Combining operational excellence and technological expertise with an intimate understanding of customer needs, LabTech offers the H150-1000 recirculating water chiller to ensure accurate and constant cooling conditions for instrumentation. The chiller is provided with a touchscreen... Contact Scientific China for configuration, availability, MOQ and quotation.
Scientific China
Store
Additional information
| Product Category | Sample Prep. Instruments / Laboratory Equipment / Water Chiller |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description
LabTech H150-1000 Recirculating Water Chiller, 115V
Product overview
Combining operational excellence and technological expertise with an intimate understanding of customer needs, LabTech offers the H150-1000 recirculating water chiller to ensure accurate and constant cooling conditions for instrumentation.

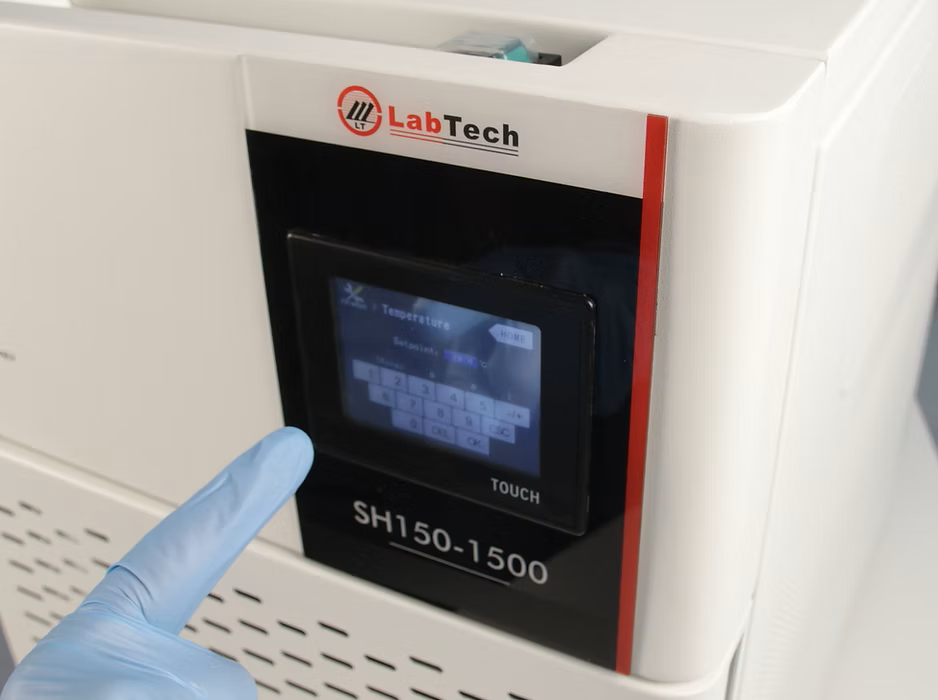

The chiller is provided with a touchscreen display to monitor and control instrument temperature from 8-35°C and is designed to operate on 115V/60Hz with a standard 115V US plug for use with similar electrical requirements. It has a PID Temperature control mode to provide Temperature Stability at +/-0.1℃ with efficient compressor cooling. Cooling capacity for the unit is 1000W at 25℃ and is ideal for use with rotary evaporation, reflux extraction and AA/ICP applications. The H150-1000 has a pump capacity of 6.4L/min and a max pressure of 60psi for external circulation. The liquid circuit pressure is monitored and controlled via analog pressure indicator.
Furthermore, the unit is provided with a liquid level indicator for maximum safety of operations. The chiller has a built in drain to easily remove the liquid from the internal reservoir and water connections are located on the rear side.
Key features
Part No. LW1000
Temp. Range 8℃～35℃
Temp. Stability ±0.1℃
Temp. Control Mode PID
Cooling Capacity 1000W
Pump Flow 6.4L/min
L×W×H 22×15×21 inches
Weight 112 lbs
Power Supply 115V,60Hz
Applications
Environmental
Used as a complementary cooling solution for environmental laboratory analytical instruments such as AA, ICP, ICP-MS, Kjeldahl nitrogen analyzers, as well as commonly used laboratory equipment like molecular pumps and diffusion pumps.
Food & Beverage
Used as a complementary cooling solution for the food industry’s fat extractors, analytical instruments such as AA, ICP, ICP-MS, Kjeldahl nitrogen analyzers, and commonly used laboratory equipment including molecular pumps and diffusion pumps.
Pharmaceutical
Used as a complementary cooling solution for pharmaceutical industry equipment such as extraction units, fermenters, and reactors.
Medical
Used as a complementary cooling solution for medical industry equipment such as glove boxes and laser devices.
Semiconductor Analysis
Used as a complementary cooling solution for the semiconductor industry’s medium-sized lasers, inductively coupled plasma mass spectrometers (ICP-MS), and other related equipment.
Disease Control
Used as a complementary cooling solution for disease control laboratories, supporting analytical instruments such as AA, ICP, ICP-MS, Kjeldahl nitrogen analyzers, as well as commonly used laboratory equipment like molecular pumps and diffusion pumps.
Environmental
Food & Beverage
Pharmaceutical
Medical
Semiconductor Analysis
Disease Control
Technical specifications
| Brand | LabTech |
|---|---|
| Product name | LabTech H150-1000 Recirculating Water Chiller, 115V |
| Product category | Sample Prep. Instruments / Laboratory Equipment / Water Chiller |
| Configuration | Model, capacity, dimensions, power supply, compatible accessories and other specifications must be confirmed for the selected configuration. |
Ordering and configuration
Contact Scientific China to confirm the exact model, configuration, accessories, consumables, electrical requirements, minimum order quantity, lead time, shipping terms, warranty and formal quotation.
