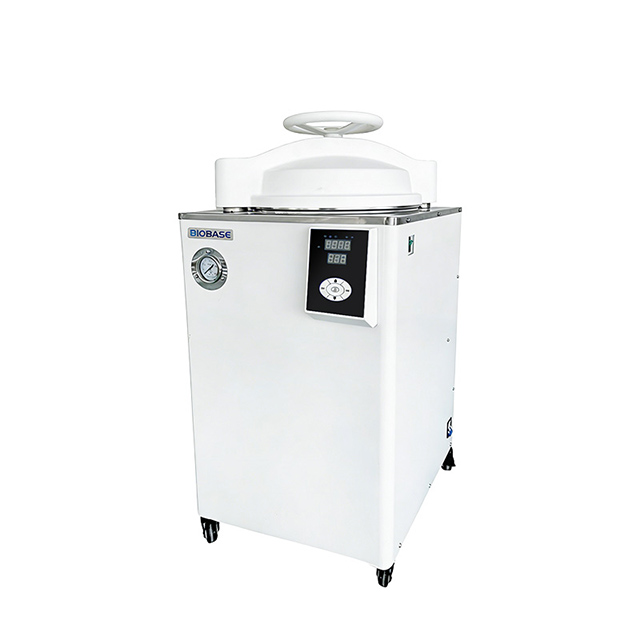

BIOBASE Vertical Autoclave BKQ-B50J BKQ-B75J BKQ-B100J BKQ-B120J

New

BIOBASE Vertical Autoclave BKQ-B50J BKQ-B75J BKQ-B100J BKQ-B120J

Name: BIOBASE Vertical Autoclave BKQ-B50J BKQ-B75J BKQ-B100J BKQ-B120J - Scientificchina.com
SKU: BIOBASE-0091CD604D

Available in stock

Features

BIOBASE Vertical Autoclave BKQ-B50J BKQ-B75J BKQ-B100J BKQ-B120J is a BIOBASE product for professional laboratory, medical, research, or industrial use. Contact Scientific China for configuration, certification, MOQ, availability, and quotation.

Compare

SKU: BIOBASE-0091CD604D Category: Autoclave Brand: BIOBASE

Scientific China

Store

Scientific China

Store

People Also Viewed

Shipping

Additional information

Product Category	Disinfection & Sterilization > Autoclave

Questions & Answers

Product Enquiry

Description

BIOBASE Vertical Autoclave BKQ-B50J BKQ-B75J BKQ-B100J BKQ-B120J

Product overview

The Vertical Autoclave is a fully automatic high-pressure steam sterilizer with built-in heating, requiring no external steam source. An SCM controller manages the entire sterilization cycle — heating, sterilizing, and exhausting — without manual intervention. It features a self-expanding silicone sealing ring for superior sealing performance and long service life. An independent maintenance window allows convenient servicing, while an optional printer records the complete sterilization process.

Key features

Product Description

Applications

Sterilization and infection-control workflows
Sterilization, disinfection, and infection-control workflows

Technical specifications

Product Description
Brochure

Features：

1. Equipped with an independent maintenance window for convenient servicing.

2. No external steam source required; adopts built-in heating mode.

3. Diverse programs: unwrapped program, packing program, rubber program, dressing program and custom programs.

4. Self-expanding silicone sealing ring with excellent sealing performance and long service life.

5. Single-chip microcomputer (SCM) automatically controls the process, including heating, sterilization, and exhaust, with no manual intervention required.

6. Optional printer for recording the entire sterilization process.

Technical Parameters:

Model	BKQ-B50J	BKQ-B75J	BKQ-B100J	BKQ-B120J
Capacity	50L	75L	100L	120L
Designed Pressure	0.28Mpa
Working Pressure	0.23Mpa
Designed Temp.	150℃
Working Temp.	105～136℃
Temp. Precision	±0.1℃
Chamber Material	304 stainless steel
Chamber Size	Φ372*515mm	Φ372*700mm	Φ372*930mm	Φ372*1110mm
Basket	φ350*355mm, 1pc	φ350*255mm, 2pcs	φ350*355mm, 2pcs	φ350255mm, 2pcs; φ350355mm, 1pc
Noise	≤65dB
Altitude	≤2700m
Standard Accessory	Basket
Optional Accessories	Printer, stainless steel appearance
Consumption	3.5KW	3.8KW
Power Supply	AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) Wiring method: air switch
External Size(WDH)	525590950mm	5255901085mm	5255901320mm	5255901485mm
Net Weight	64kg	66kg	74kg	88kg
Package Size(WDH)	7507451100mm	7507451240mm	7507451450mm	7507451500mm
Gross Weight	104kg	114kg	127kg	142kg

Download:14(1) Vertical Autoclave & Vertical Autoclave.jpg

Ordering and configuration

Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
