BIOBASE Vertical Autoclave BKQ-B II - Image 2

New

in Autoclave

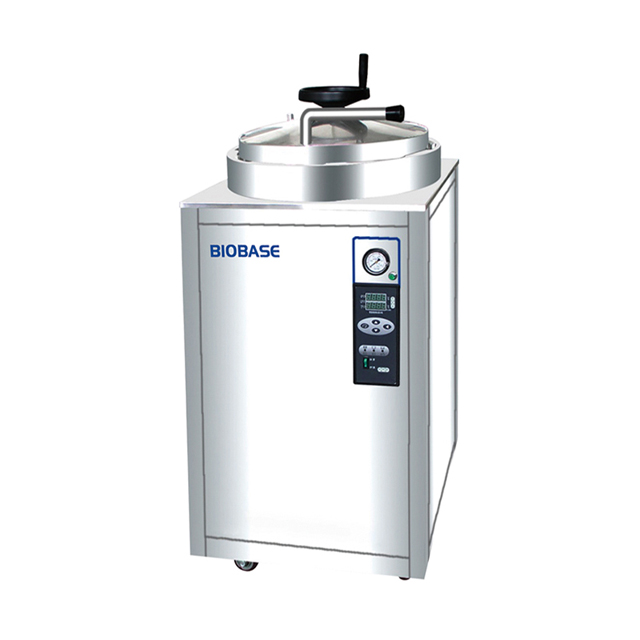

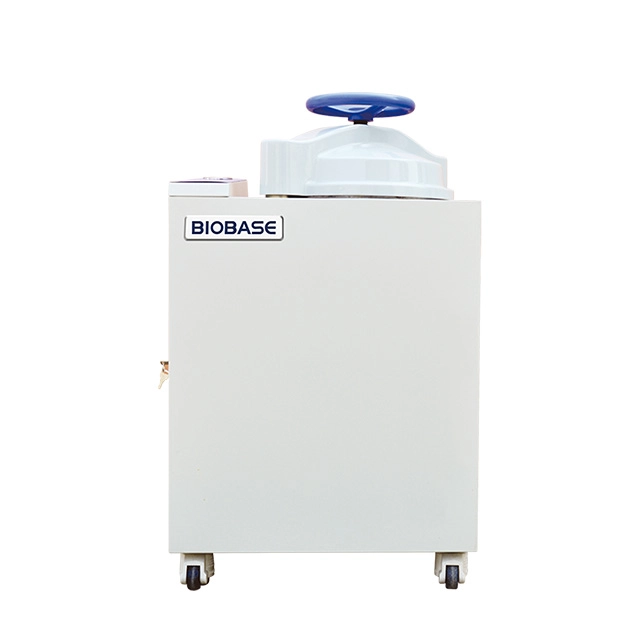

BIOBASE Vertical Autoclave BKQ-B II

Name: BIOBASE Vertical Autoclave BKQ-B II - Scientificchina.com
SKU: BIOBASE-E4042CEF25

Available in stock

Features

BIOBASE Vertical Autoclave BKQ-B II is a BIOBASE product for professional laboratory, medical, research, or industrial use. Contact Scientific China for configuration, certification, MOQ, availability, and quotation.

Compare

SKU: BIOBASE-E4042CEF25 Category: Autoclave Brand: BIOBASE

Scientific China

Store

Scientific China

Store

People Also Viewed

Shipping

Additional information

Product Category	Disinfection & Sterilization > Autoclave

Questions & Answers

Product Enquiry

Description

BIOBASE Vertical Autoclave BKQ-B II

Product overview

Application: It is widely used in laboratories, inspection departments, food processing enterprises, etc. for sterilization of equipment and medical waste. It uses gravity displacement to discharge the cold air in the sterilization chamber to ensure the sterilization effect.

Key features

Vertical Autoclave—BKQ-B II
Brochures

Applications

Water quality and environmental testing
Food safety and quality-control laboratories
Sterilization and infection-control workflows
Temperature-controlled storage of laboratory, medical, pharmaceutical, or biological materials
Sterilization, disinfection, and infection-control workflows

Technical specifications

Vertical Autoclave—BKQ-B II
Brochures

Features:

1. The hand wheel slides to open the door, which is fast and labor-saving.

2. Casters facilitate the movement of the equipment.

3. It has a fast maintenance window, and the electrical part does not need to remove the cover for maintenance.

4. Steam generation method: heating inside the main body, no external steam source is required.

5. Self-expanding silicone sealing ring has good sealing effect and long service life. It is molded with transparent medical silicone.

6. Real-time detection and display of the temperature in the sterilization chamber, with a display accuracy of 0.1℃.

7. The LED digital tube displays temperature, time, alarm code and the indicator light shows the current operating status.

8. Using gravity displacement and positive pressure pulsating exhaust method to discharge the cold air in the load and sterilization room.

9. Optional printer to record the temperature during sterilization.

10. Inner water tank: Standard for BKQ-B50/75/100/120II; Optional for BKQ-B150/200(II).

11. A variety of programs

There are exposed program, packaging program, rubber program, dressing program, liquid program, liquid customization, solid customization.

Technical Parameters:

Model	BKQ-B50II	BKQ-B75II	BKQ-B100II	BKQ-B120II	BKQ-B150(II)	BKQ-B200(II)
Capacity	50L	75L	100L	120L	150L	200L
Designed Pressure	0.28MPa	0.3MPa
Working Pressure	0.23MPa	0.217MPa
Designed Temp.	150℃	137℃
Working Temp.	105~136℃	50~134℃
Temp. Precision	0.1℃
Chamber Material	S30408
Chamber Size	φ386*514mm	φ386*695mm	φ386*875mm	φ386*1055mm	φ500*760mm	φ500*1000mm
Basket/ Mesh Bottom Basket/ Bucket	φ365*360mm, 1pc	φ365*265mm, 2pcs	φ365*360mm, 2pcs	φ365360mm, 1pc φ365265mm , 2pcs	φ470*230mm, 3pcs	φ470*230mm , 4pcs
Noise	≤65dB
Altitude	≤2700m
Standard Accessory	Basket	Basket
Optional Accessories	Printer, mesh bottom basket, bucket	Printer
Consumption	4.4KW	4.7KW	5.2KW	5.2KW	6KW
Power Supply	AC220V, 50/60Hz（Standard）；AC110V, 50/60Hz（Optional）； Wiring method：Air switch	AC380V,50/60Hz（Standard）；AC220V,50/60Hz（Optional） Wiring method：Air switch
External Size(WDH)	640550980mm	6405501080mm	6405501280mm	6405501380mm	6307001400mm	6307001600mm
Net Weight	87kg	95kg	105kg	122kg	162kg	180kg
Package Size(WDH)	7507451100mm	7507451240mm	7507451450mm	7507451540mm	7608001530mm	7608001720mm
Gross Weight	104kg	114kg	127kg	142kg	213kg	238kg

Download: 17-18 Vertical Autoclave.jpg

Product video

An official product video is attached through the WooCommerce product-video metadata.

Ordering and configuration

Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
