BIOBASE UV Sterilization Cabinet 200L
Available in stock
BIOBASE UV Sterilization Cabinet 200L is a BIOBASE product for professional laboratory, medical, research, or industrial use. Contact Scientific China for configuration, certification, MOQ, availability, and quotation.
Scientific China
Store
Additional information
| Product Category | Disinfection & Sterilization > Sterilizer |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description

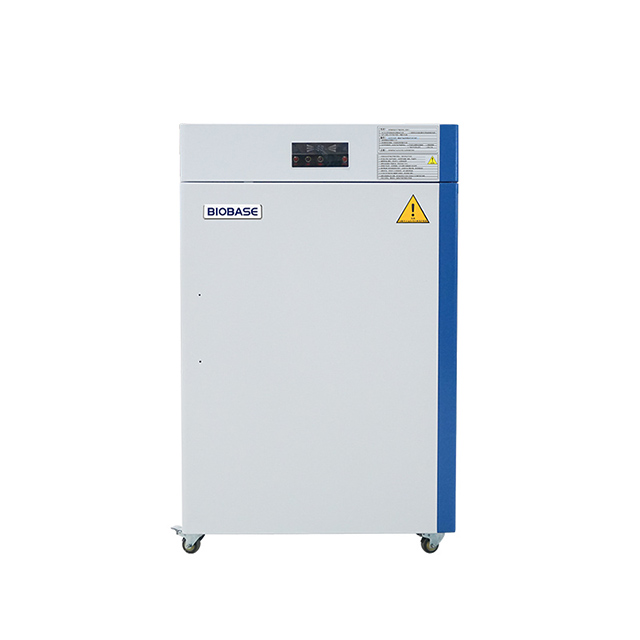

BIOBASE UV Sterilization Cabinet 200L
Product overview
Application: Suitable for items that are not resistant to high temperatures, glass sugar porcelain cups, ceramics, production supplies, currency, non-woven fabric, composite paper, cleaning appliances, tableware, towels, clothes, shoes, packaging materials and other products. The use of three-sided high intensity sterilization, the use of ultraviolet and ozone synergistic sterilization, ozone disinfects areas not exposed to UV rays, kill the surface of the virus or bacteria.
Key features
- Product Description
Applications
- Sterilization and infection-control workflows
- Sterilization, disinfection, and infection-control workflows
Technical specifications
- Product Description
- Brochure
|
Model |
BJPX-SVO200 |
BJPX-SV200 |
|
Capacity |
200L |
|
|
Type |
With ozone |
Without ozone |
|
UV Ray Wavelength |
253.7/184.9nm |
253.7nm |
|
Sterilization Way |
2 sides of UV ray+1 side of ozone |
3 sides of UVC UV ray |
| UV Lamp Material |
Quartz glass |
|
| Altitude | ＜2000m | |
| Shelf | 500*520mm, standard 2pcs, can be optional | |
| Standard Accessories | Shelf*2,doorknob*1, UV lamp*4，Ozone UV lamp*2 | Shelf*2,doorknob*1, UV lamp*6 |
| Consumption | 120W | |
| Power Supply |
AC220V, 50/60Hz (Standard); AC110V, 50/60Hz (Optional, external transformer) |
|
| Internal Size | 518*523*778mm | |
| External Size(W*D*H) |
750*663*1200mm |
|
| Net Weight | 81kg | |
|
Package Size(W*D*H) |
875*788*1365mm |
|
|
Gross Weight |
100kg |
Recommended UV Exposure Time:
|
Microorganism Species |
Exposure Dose |
Exposure Time |
|
Bacterial Propagules |
≥10000μW.s/cm2 |
10min |
|
Bacterial Spores |
≥100000μW.s/cm2 |
10min |
|
Virus |
10000μW.s/cm2≤Exposure Dose≤100000μW.s/cm2 |
10min |
|
Fungal Spores |
General Exposure Dose≤100000μW.s/cm2 Special Exposure Dose up to 600000μW.s/cm2 |
60min |
|
When the target microorganism is unknown |
≥100000μW.s/cm2 |
10min |
Remarks: The suitable temperature range for ultraviolet disinfection is 20℃~40℃. If the temperature is too high or too low, the disinfection effect will be affected, and the disinfection time can be appropriately extended.
Download: 33-34 UV Sterilization Cabinet & Glass bead sterilizer .jpg
Product video
An official product video is attached through the WooCommerce product-video metadata.
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
