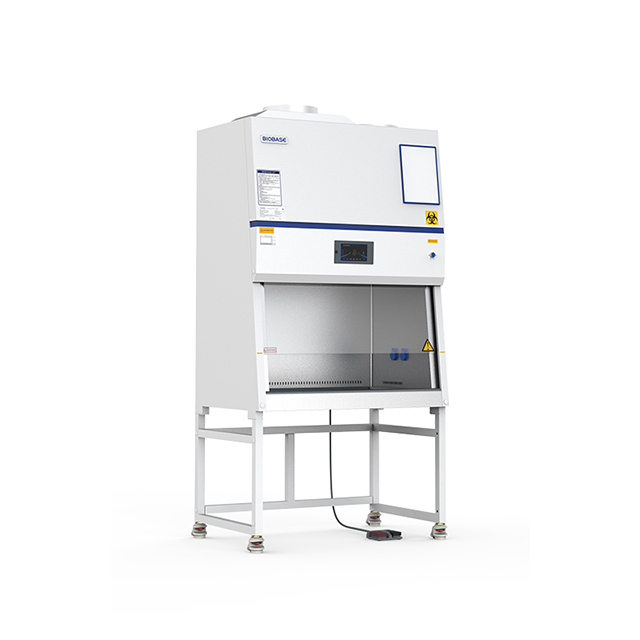

BIOBASE Pro Series Class II B2 Biological Safety Cabinet
Available in stock
BIOBASE Pro Series Class II B2 Biological Safety Cabinet is a BIOBASE product for professional laboratory, medical, research, or industrial use. Contact Scientific China for configuration, certification, MOQ, availability, and quotation.
Scientific China
Store
Additional information
| Product Category | Air Protection Products > Biological Safety Cabinet |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description
BIOBASE Pro Series Class II B2 Biological Safety Cabinet
Product overview
Biosafety cabinet is a box-type air purification negative pressure safety device that can prevent the aerosol escape of some dangerous or unknown biological particles in the process of experimental operation. It is widely used in scientific research, teaching, clinical testing and production in the fields of microbiology, genetic engineering and biological products, and is the most basic safety protection equipment in the first-level protective barrier of laboratory biosafety.
Key features
- Product Description
- Brochures
Applications
- Clinical laboratories and diagnostic workflows
- Research, medical, and industrial laboratories
- Water quality and environmental testing
- Temperature-controlled storage of laboratory, medical, pharmaceutical, or biological materials
- Air-protection, containment, clean-air, or controlled laboratory work
Technical specifications
- Product Description
- Brochures
Features:
1. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.
2. The power-on password can be set to prevent mis-operation by irrelevant personnel.
3. Automatically adjust the wind speed.
4. Power-failure memory, restore the state before power-failure, and have a visual reminder to alarm.
5. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.
6. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.
Technical Parameters:
Model | BSC-1100IIB2-Pro | BSC-1500IIB2-Pro | BSC-1800IIB2-Pro | |
External Size(W*D*H) | 1100*750*2255mm | 1500*770*2290mm | 1875*795*2280mm | |
Internal Size(W*D*H) | 940*600*655mm | 1350*600*660mm | 1700*600*660mm | |
Tested Opening | Safety height 200mm(8″) | |||
Max Opening | 420mm(17″) | 500mm(20″) | 480mm(20″) | |
Inflow Velocity | 0.53±0.025m/s | |||
Down Flow Velocity | 0.33±0.025m/s | |||
ULPA Filter | Two, 99.9995% efficiency at 0.12μm, filter life indicator | |||
Front Window | Motorized, two-layer laminated toughened glass≥6mm, anti UV | |||
Noise | ≤ 67dB | |||
UV Lamp | 30W*1 | 40W*1 | 40W*1 | |
UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination | ||||
Illuminating Lamp | LED lamp | |||
12W*2 | 16W*2 | 16W*2 | ||
Illumination | ≥1000Lux | |||
Consumption | 800W | 1300W | 1400W | |
Waterproof Sockets | Two, total load of two sockets: 500W | |||
Display | 7 inch touch screen display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time, etc | |||
Control System | Microprocessor | |||
Airflow System | 0% air re-circulation, 100% air exhaust | |||
Alarm | Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm | |||
Exhaust Duct | 4 meters PVC duct, Diameter: 300mm | |||
Material | Work Zone: 304 stainless steel | |||
Main Body: Cold-rolled steel with anti-bacteria powder coating | ||||
Work Surface Height | 750mm(Size can be customized according to requirements) | |||
Caster | Footmaster caster | |||
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |||
Standard Accessory | LED lamp*2, UV lamp*2, base stand, remote control, foot switch, exhaust blower, exhaust duct, drain valve, waterproof sockets*2, pipe strap*2 | |||
Optional Accessory | 1. Water and gas tap, Electric height adjustable base stand. 2. APP networking remote control. 3. 485/232/USB data transfer function, supporting data monitoring and export. 4. LED fluorescent lamp brightness adjustment function. 5. Base bracket with manual or electric height adjustment function. 6. Manual lifting front window function. 7. Manual automatic lifting front window function. 8. EC fan. | |||
Package | Main Body | 1250*980*1765mm | 1640*980*1825mm | 2000*1040*1895mm |
Exhaust Blower(W*D*H) | 920*790*690mm | 920*790*790mm | 920*790*840mm | |
Gross Weight | 265kg; 50kg | 325kg; 56kg | 420kg; 60kg |
Download: 34-35 Pro Series Class II B2 Biological Safety Cabinet.jpg
Product video
An official product video is attached through the WooCommerce product-video metadata.
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
