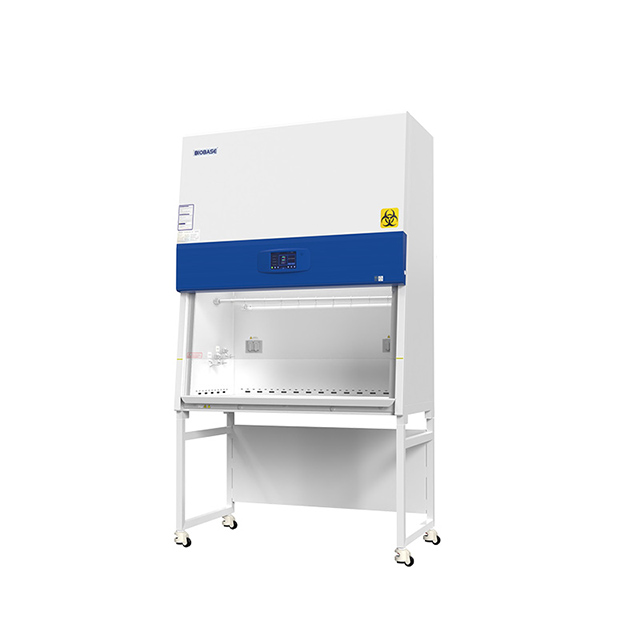

BIOBASE NSF Certified Class II A2 Biological Safety Cabinet
Available in stock
BIOBASE NSF Certified Class II A2 Biological Safety Cabinet is a BIOBASE product for professional laboratory, medical, research, or industrial use. Contact Scientific China for configuration, certification, MOQ, availability, and quotation.
Scientific China
Store
Additional information
| Product Category | Air Protection Products > Biological Safety Cabinet |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description
BIOBASE NSF Certified Class II A2 Biological Safety Cabinet
Product overview
The NSF Certified Class II Biosafety Cabinet is a top-tier laboratory safety enclosure designed to provide maximum protection for operators, samples, and the environment when working with moderate-risk biological agents.
Key features
- Product Description
Applications
- Research, medical, and industrial laboratories
- Water quality and environmental testing
- Sterilization and infection-control workflows
- Temperature-controlled storage of laboratory, medical, pharmaceutical, or biological materials
- Air-protection, containment, clean-air, or controlled laboratory work
Technical specifications
- Product Description
- Brochure
Features:
1. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.
2. The power-on password can be set to prevent mis-operation by irrelevant personnel.
3. Automatically adjust the wind speed.
4. Power-failure memory, restore the state before power-failure, and have a visual reminder to alarm.
5. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.
6. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.
7. The rear of the operating area is equipped with anti-paper dust structure to prevent paper scraps from entering the air duct cavity.
|
Model |
BSC-4FA2 |
BSC-3FA2-GL BSC-3FA2-NA |
BSC-4FA2-GL BSC-4FA2-NA |
BSC-6FA2-GL BSC-6FA2-NA |
|
|
External Size(W*D*H) |
1383*775*2220mm |
1087*775*2220mm |
1383*775*2220mm |
1873*775*2240mm |
|
|
Internal Size(W*D*H) |
1210*600*660mm |
910*600*660mm |
1210*600*660mm |
1700*600*660mm |
|
|
Work Surface Height |
762mm |
762mm |
762mm |
782mm |
|
|
Max Opening |
470mm |
||||
|
Tested Opening |
Safety height 200mm(8″) |
Safety height 254mm(10″) |
|||
|
Airflow Volume |
Inflow |
462m³/h(272cfm) |
445m³/h(259cfm) |
587m³/h(346cfm) |
824m³/h(485cfm) |
|
Down Flow |
65%: 863m³/h(507cfm) |
60%: 649m³/h(382cfm) |
60%: 863m³/h(507cfm) |
60%: 1212m³/h(713cfm) |
|
|
Exhaust |
35%: 462m³/h(272cfm) |
40%: 445m³/h(259cfm) |
40%: 587m³/h(346cfm) |
40%: 824m³/h(485cfm) |
|
|
Front Window |
Motorized. Two-layer laminated toughened glass≥6mm. Anti UV |
||||
|
ULPA Filter |
Two, 99.995% efficiency at 0.12μm, filter life indicator |
||||
|
Filter Guard Type |
Aluminum alloy frame, glass fiber fiter paper |
||||
|
Noise |
NSF 49≤67dB |
||||
|
Illumination |
≥1000Lux |
||||
|
Display |
Color touch screen |
||||
|
Waterproof Socket |
Two, total consumption: ≤500W |
||||
|
Tap |
Water tap*1, Gas tap *1 |
||||
|
Ground Resistance |
≤ 0.10Ω |
||||
|
Power Supply |
AC230V, 50/60Hz; AC115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 |
||||
|
Consumption |
500W |
400W |
500W |
700W |
|
|
Alarm |
Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm |
||||
|
Motor |
EC motor, 115V&230V acceptable, speed adjustable, high efficiency and low power consumption |
||||
|
Material |
Working area: 304 stainless steel |
||||
|
UV Lamp |
30W |
20W |
30W |
40W |
|
|
Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination |
|||||
|
Illuminating Lamp |
20W*2 |
10W*2 |
20W*2 |
23W*2 |
|
|
LED lamp |
|||||
|
Standard Accessory |
LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve Waterproof sockets*2, Stainless Steel IV Bar with 10 hooks, Remote control |
||||
|
Optional Accessory |
Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand |
||||
|
Package Size(W*D*H) |
1540*1080*1900mm |
1240*1060*1900mm |
1540*1080*1900mm |
2020*1080*1900mm |
|
|
Gross Weight |
330kg |
280kg |
330kg |
410kg |
Download: 09-10 NSF Certified Class II A2 Biological Safety Cabinet.jpg
Product video
An official product video is attached through the WooCommerce product-video metadata.
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
