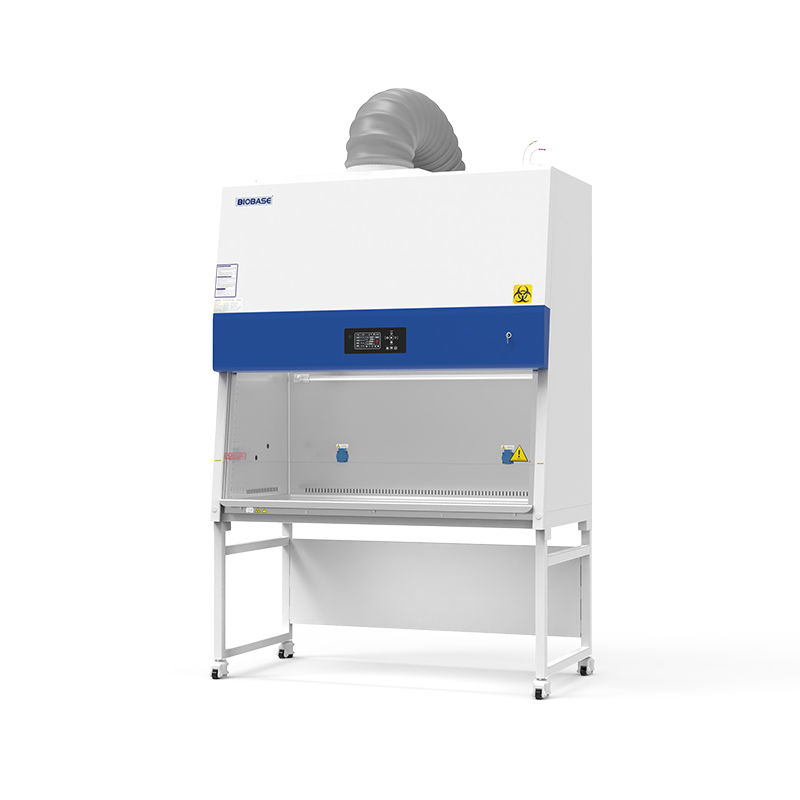

BIOBASE AC Series Class II B2 Biological Safety Cabinet B2-X
Product overview
The AC Series Class II B2 Biological Safety Cabinet is a high-performance containment unit designed for laboratories handling hazardous biological materials and chemical compounds. Unlike traditional Class II cabinets, the B2 model provides 100% total exhaust, ensuring that all potentially harmful air is completely expelled from the laboratory, making it ideal for applications requiring both biological and chemical safety.
Key features
- Product Description
Applications
- Research, medical, and industrial laboratories
- Water quality and environmental testing
- Temperature-controlled storage of laboratory, medical, pharmaceutical, or biological materials
- Air-protection, containment, clean-air, or controlled laboratory work
Technical specifications
- Product Description
- Brochure
Features:
1. 4.7-inch color display: real-time and clearer display of various values and appointment timing function.
2. The power-on password can be set to prevent mis-operation by irrelevant personnel.
3. Automatically adjust the wind speed.
4. Power-failure memory, restore the state before power-failure, and have a visual reminder to alarm.
5. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.
6. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.
7. The rear of the operating area is equipped with anti-paper dust structure to prevent paper scraps from entering the air duct cavity.
|
Model |
BSC-1100IIB2-X |
BSC-1300IIB2-X |
BSC-1500IIB2-X |
BSC-1800IIB2-X |
|
|
External Size(W*D*H) |
1100*775*2250mm |
1300*775*2250mm |
1500*775*2250mm |
1800*775*2250mm |
|
|
Internal Size(W*D*H) |
940*600*660mm |
1150*600*660mm |
1350*600*660mm |
1625*600*660mm |
|
|
Tested Opening |
Safety height 200mm(8″) |
||||
|
Max Opening |
480mm |
||||
|
Inflow Velocity |
0.53±0.025m/s |
||||
|
Downflow Velocity |
0.33±0.025m/s |
||||
|
ULPA Filter |
Two, 99.9995% efficiency at 0.12μm, filter life indicator |
||||
|
Front Window |

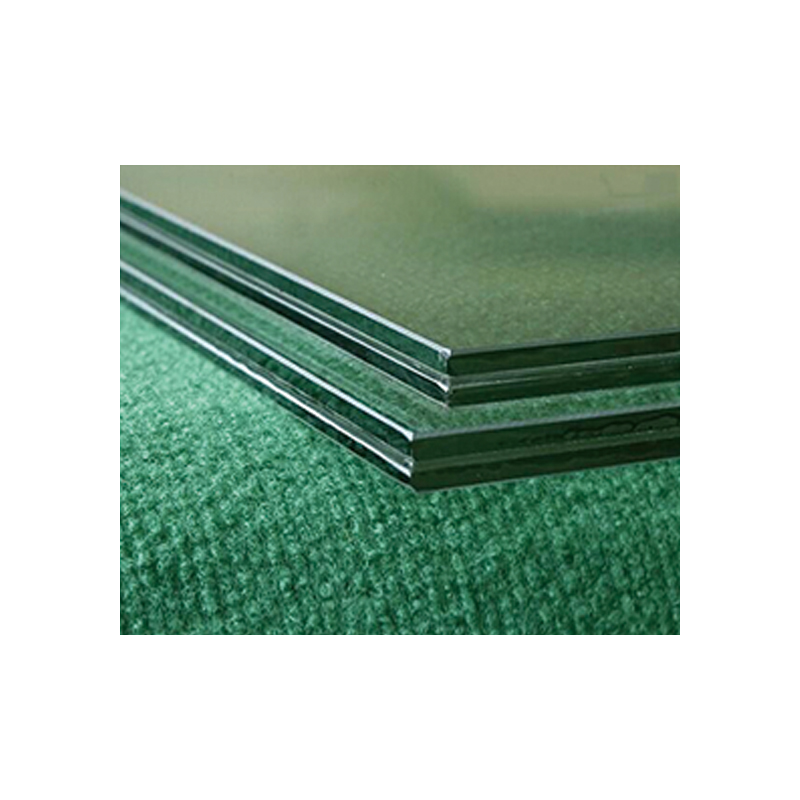

Motorized. Two-layer laminated toughened glass≥6mm. Anti UV |
||||
|
Noise |
≤65dB |
||||
|
UV Lamp |
30W*1 |
30W*1 |
40W*1 |
40W*1 |
|
|
UV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination |
|||||
|
LED Lamp |
12W*2 |
14W*2 |
16W*2 |
16W*2 |
|
|
Illumination |
≥1000Lux |
||||
|
Consumption |
1300W |
1300W |
1300W |
1300W |
|
|
Waterproof Socket |
Two, total load of two sockets: 500W |
||||
|
Display |
LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. |
||||
|
Control System |
Microprocessor |
||||
|
Airflow System |
0% air recirculation, 100% air exhaust |
||||
|
Visual and Audio Alarm |
Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm, abnormal power failure |
||||
|
Material |

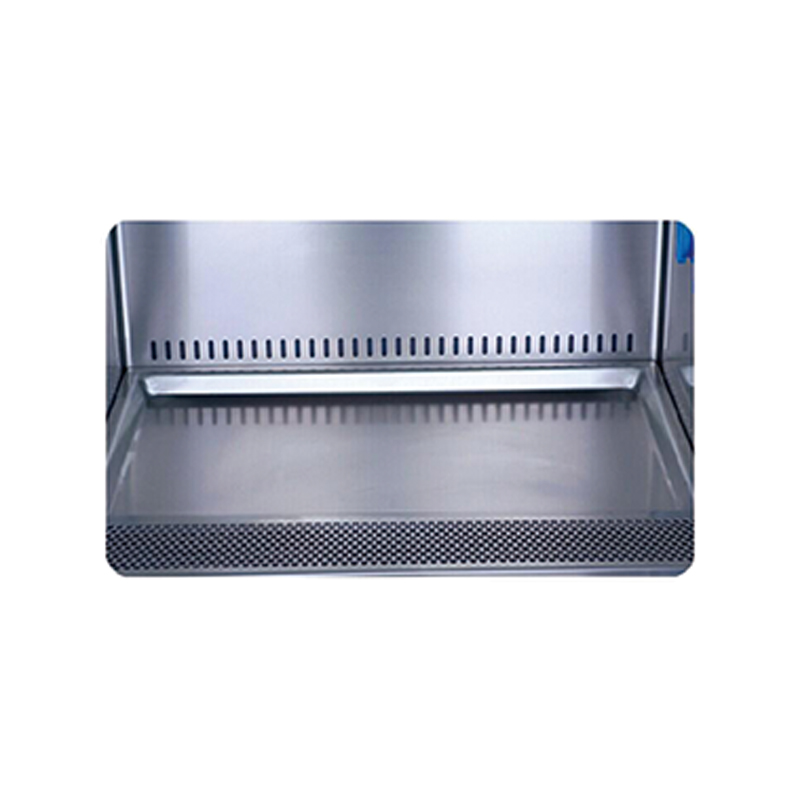

Work Zone: 304 stainless steel |
||||
|
Main Body: Cold-rolled steel with anti-bacteria powder coating |
|||||
|
Work Surface Height |
770mm(can be customized) |
800mm(Can be customized) |
|||
|
Caster |
Footmaster caster |
||||
|
Power Supply |
AC220V, 50/60Hz; 110V, 60Hz |
||||
|
Standard Accessory |

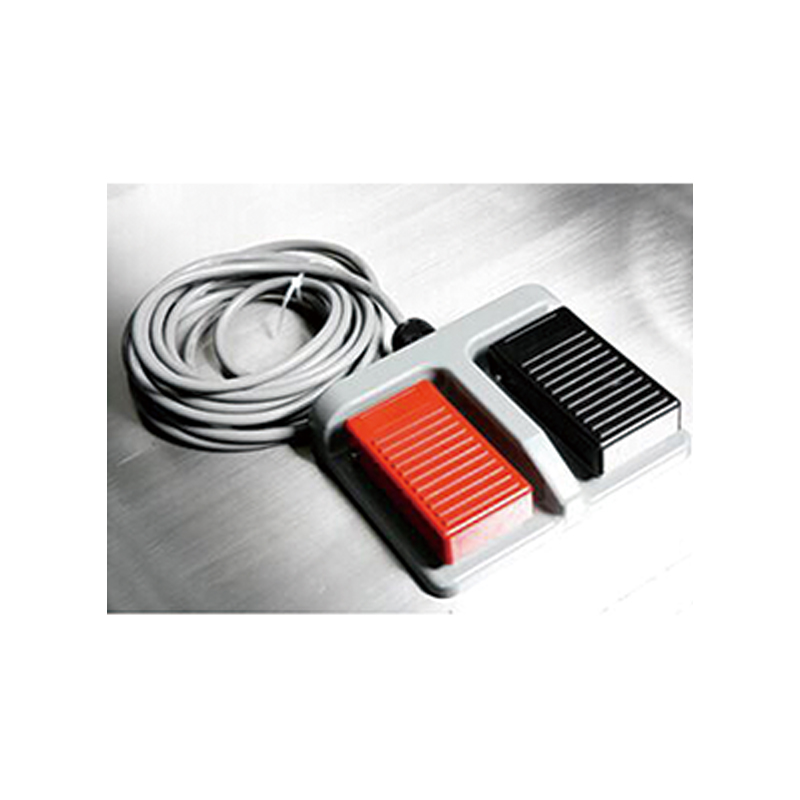

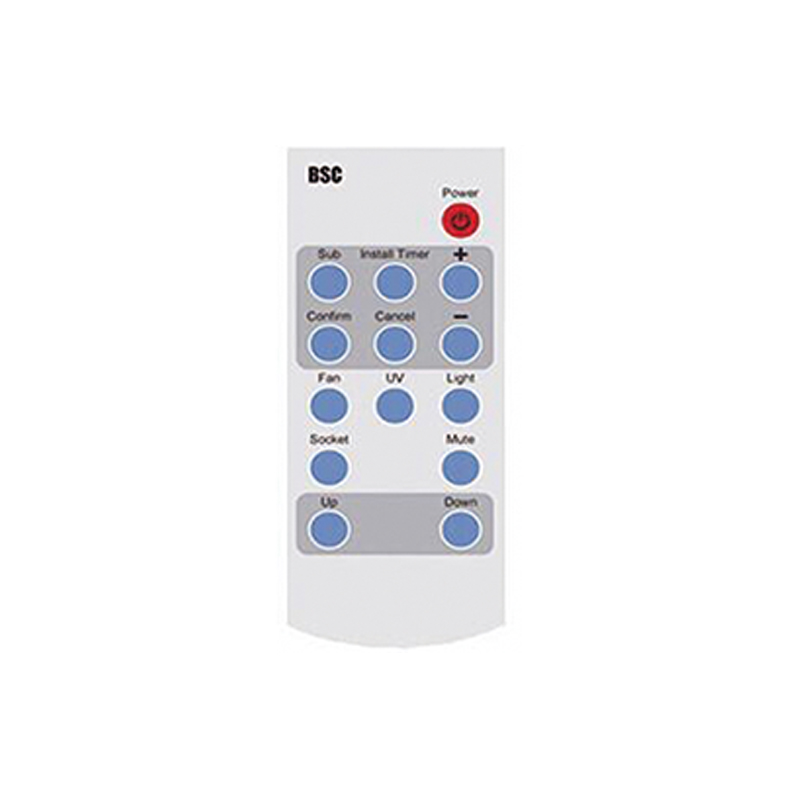

LED lamp 2pcs, UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof socket 2pcs, Exhaust blower, Exhaust duct |
||||
|
Optional Accessory |
Water and gas tap, Electric height adjustable base stand, Armrest |
||||
|
Gross Weight |
275kg; 58kg |
320kg; 63kg |
340kg; 63kg |
390kg; 72kg |
|
|
Package |
Main Body Exhaust Blower(W*D*H) |
1230*990*1840mm |
1430*990*1840mm |
1630*990*1840mm |
1930*990*1840mm |
|
930*800*700mm |
930*860*740mm |
930*860*740mm |
930*860*740mm |
Download: 32-33 AC Series Class II B2 Biological Safety Cabinet BSC-1100 II B2-X & BSC-1300 II B2-X & BSC-1500 II B2-X & BSC-1800 II B2-X.jpg
Ordering and configuration
Contact Scientific China to confirm the exact BIOBASE model, required capacity and performance, included and optional accessories, power supply, applicable certifications, installation conditions, minimum order quantity, current quotation, lead time, warranty, training, and international delivery terms.
