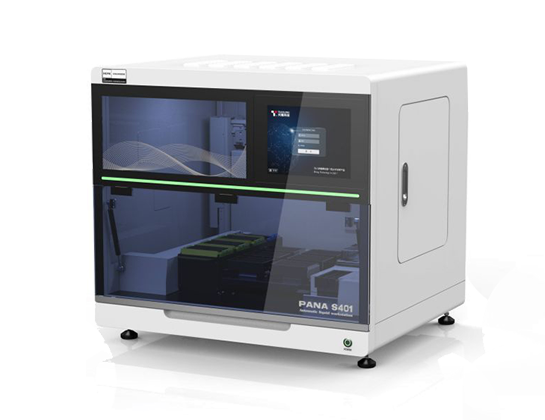

PANA S401 Automated Liquid Handling System

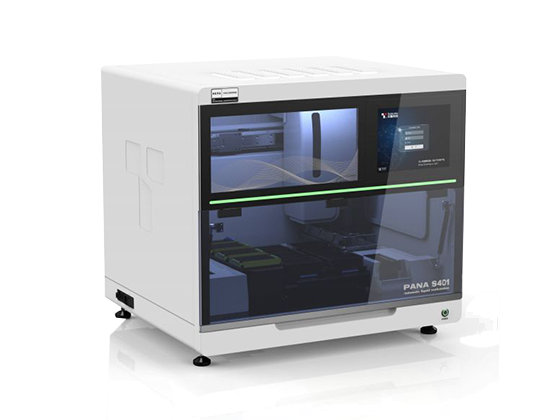

PANA S401 Automated Liquid Handling System - Image 2

New

PANA S401 Automated Liquid Handling System

Name: PANA S401 Automated Liquid Handling System - Scientific China
SKU: TIANLONG-PANA-S401-AUTOMATED-LIQUID-HANDLING-SYSTEM

Available in stock

Features

Tianlong Automated Liquid Handling System -PANA S401 is designed as an important tool for PCR setup, which automates tedious, error-prone manual tasks and provides consistent sample mixing and excellent pipetting performance to standardize your results. Tianlong PANA S401 Automated Liquid Handling System together with the automated nucleic acid extraction and real-time PCR system, a fully automated, high-throughput, and standardized process of…

SKU: TIANLONG-PANA-S401-AUTOMATED-LIQUID-HANDLING-SYSTEM Category: Laboratory Automation Tags: Laboratory Automation, laboratory products, Molecular Diagnostics, Tianlong Brand: Tianlong

Scientific China

Store

Scientific China

Store

People Also Viewed

Shipping

Additional information

Manufacturer	Tianlong
Model	PANA S401
Sample Loading Channels	4 loading channels
Throughput	96 samples, up to 768 samples per one go
Pipetting Volume	5-1000μL
Tip Volume	5-50 μL, 50-1000μL
Performance	Below 15μL: accuracy: A≤2%, repeatability: CV≤3.0% 15μL-50μL: accuracy: A ≤1.5%, repeatability: CV≤1.5% Above 50μL: accuracy: A≤1.0%, repeatability: CV≤1.2%
Liquid Level Detection	Pressure-sensing level detection; Aspiration with the liquid level to ensure accuracy
Operating System	Bilingual interface in Chinese/English
Connectivity	USB 2.0
Overall Size	735mm(W)x860mm(L)x800mm(H)
Instrument Weight	103kg (net)
Power Supply	AC 100-240V, 50/60Hz 600VA
Compatible Consumables	Compatible with 0.1mL/0.2mL 8-tube strips, 96-well PCR plates
Operating Environment	Temperature: 15°C-35°C, humidity:≤70%
Certificate	IVDR CE RoHS

Questions & Answers

Product Enquiry

Description

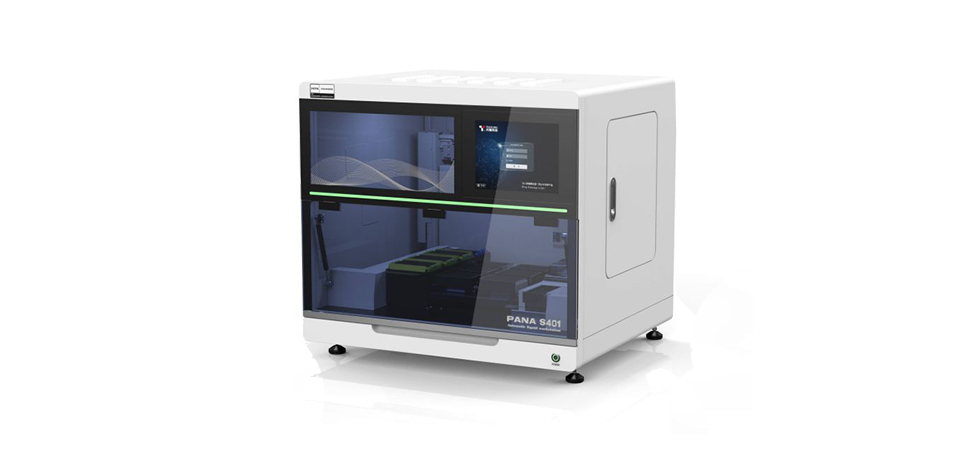

PANA S401 Automated Liquid Handling System

Why choose the PANA S401 Automated Liquid Handling System?

Precise PCR Setup: Automated PCR setup,4 channel , up to 768 samples per setup Optimized efficiency and standardized procedures: Provide consistent sample mixing and excellent pipetting performance to standardize your results Highly compatible with various PCR kits: Compatible with regular PCR tubes, PCR strip tubes and PCR plates Excellent anti-contamination measures: Minimized contamination measures like directional exhaust with HEPA filters, internal negative pressure system User-friendly: Starting preparation programs with just one click, multiple setups for different tests in one run

Technical specifications

Model	PANA S401
Sample Loading Channels	4 loading channels
Certificate	CE; CB
Throughput	96 samples, up to 768 samples per one go
Pipetting Volume	5-1000μL
Tip Volume	5-50 μL, 50-1000μL
Performance	Below 15μL: accuracy: A≤2%, repeatability: CV≤3.0% 15μL-50μL: accuracy: A ≤1.5%, repeatability: CV≤1.5% Above 50μL: accuracy: A≤1.0%, repeatability: CV≤1.2%
Liquid Level Detection	Pressure-sensing level detection; Aspiration with the liquid level to ensure accuracy
Compatible Consumables	Compatible with 0.1mL/0.2mL 8-tube strips, 96-well plates
Operating System	Bilingual interface in Chinese/English
Connectivity	USB 2.0
Overall Size	735mm(W)x860mm(L)x800mm(H)
Instrument Weight	103kg (net)
Operating Environment	Temperature: 15°C-35°C, humidity:35%-70%RH
Power Supply	AC 100-240V, 50/60Hz 600VA
Compatible Consumables	Compatible with 0.1mL/0.2mL 8-tube strips, 96-well PCR plates
Operating Environment	Temperature: 15°C-35°C, humidity:≤70%
Certificate	IVDR CE RoHS

Applications

Suitable for professional laboratories, hospitals, diagnostic centers, research facilities, and other qualified users requiring laboratory automation.
