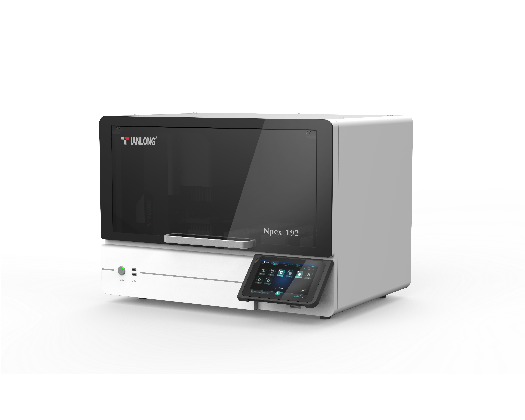

Npex 192 Automatic Nucleic Acid Extractor

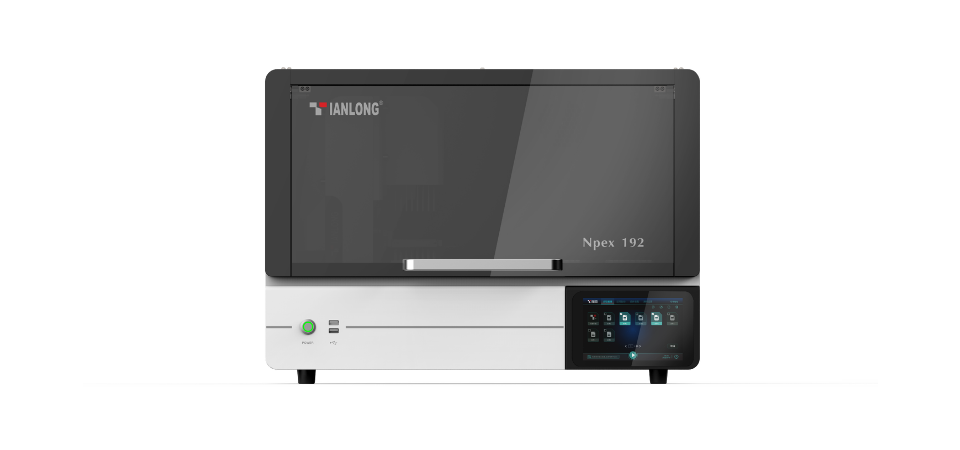

Npex 192 Automatic Nucleic Acid Extractor - Image 2

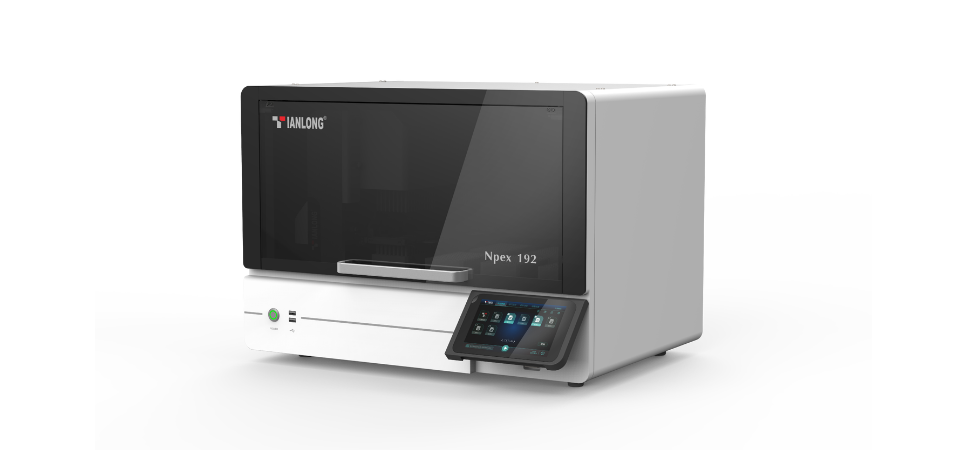

Npex 192 Automatic Nucleic Acid Extractor - Image 3

New

Npex 192 Automatic Nucleic Acid Extractor

Name: Npex 192 Automatic Nucleic Acid Extractor - Scientific China
SKU: TIANLONG-NPEX-192-AUTOMATIC-NUCLEIC-ACID-EXTRACTOR

Available in stock

Features

Tianlong Npex 192 is an automated nucleic acid extraction system that utilizes the proven magnetic bead method to extract highly purified nucleic acid from various samples . Npex 192 automated nucleic acid extractor can complete nucleic acid extraction of 192 samples in 12 min , making an ultra-high throughput and high efficiency. The combination of easy-to-use instruments with preloaded protocols selection, and magnetic bead-based sample…

SKU: TIANLONG-NPEX-192-AUTOMATIC-NUCLEIC-ACID-EXTRACTOR Category: Nucleic Acid Extraction Systems Tags: laboratory products, Molecular Diagnostics, Nucleic Acid Extraction Systems, Tianlong Brand: Tianlong

Scientific China

Store

Scientific China

Store

People Also Viewed

Shipping

Additional information

Manufacturer	Tianlong
Model	Npex 192
Throughput	1 ~ 192
Processing Volume	30~1000μl
Compatible Consumables	96 deep-well-plate (1 ml reaction volume); Vertical mixing sleeve
Magnetic Bead Residue	≤ 1%
Temperature Control Range	Temperature control separately for lysis and elution. Temperature ranges from room temperature to 120°C.
Vertical Mixing	8 gears adjustable
Operating Language	Built-in bilingual (Chinese and English) operating languages.
Operation Mode	7-inch color LCD touch screen operation
Protocol Management	Flexible to create, edit and delete protocols
QR Code Scanning	With built-in barcode scanner, automatic scanning, identification and running protocols
Operation Monitoring	Visual monitoring of nucleic acid extraction progress
Program Storage	> 1000 programs can be stored
Contamination Control	1) Negative-pressure HEPA filtration; 2) UV disinfection ; 3) Anti-dripping design
Auto Power-off	Auto power-off after UV disinfection
Power failure protection	Choose freely whether or not to continue the experiment when the power is on again after cutting off
Connection Port Type	USB port
Network Connection	Ethernet port for remote control
Dimensions	710 mm×535 mm×515 mm (L×W×H)
Weight	55 kg
Power Supply	AC 100-240V, 50/60Hz
Certificate	IVDR CE

Questions & Answers

Product Enquiry

Description

Npex 192 Automatic Nucleic Acid Extractor

Why choose the Npex 192 Automatic Nucleic Acid Extractor?

Ultra-high throughput and rapid extraction: Npex 192 automatic nucleic acid extraction system can complete nucleic acid extraction of 192 samples in 12 min. Realizing high-throughput processing of parallel samples and providing high-quality nucleic acids for your downstream applications.
Compact in design and space-saving: With 8-unit deep-well plate layout and Z-axis mechanical motion, Npex 192 can realize rapid extraction DNA and RNA extraction automation with the shortest movement. It can meet your high-throughput needs but also save your lab space.
Easy to operate and visual monitoring: ● 7-inch full-color LCD screen for easy operation ● Integrated scanner for automatic protocol recognition ● Real-time visual monitoring of the extraction progress Efficient temperature control: ● Separate temperature settings for lysis and elution ● Precise range from room temperature to 120°C Certificate ● IVDR ● CE

Technical specifications

Model	Npex 192
Throughput	1 ~ 192
Certificate	CE; CB
Processing Volume	30~1000μl
Compatible Consumables	96 deep-well-plate (1 ml reaction volume); Vertical mixing sleeve
Magnetic Bead Residue	≤ 1%
Temperature Control Range	Temperature control separately for lysis and elution. Temperature ranges from room temperature to 120°C.
Vertical Mixing	8 gears adjustable
Operating Language	Built-in bilingual (Chinese and English) operating languages.
Operation Mode	7-inch color LCD touch screen operation
Protocol Management	Flexible to create, edit and delete protocols
QR Code Scanning	With built-in barcode scanner, automatic scanning, identification and running protocols
Operation Monitoring	Visual monitoring of nucleic acid extraction progress
Program Storage	> 1000 programs can be stored
Contamination Control	1) Negative-pressure HEPA filtration; 2) UV disinfection ; 3) Anti-dripping design
Auto Power-off	Auto power-off after UV disinfection
Power failure protection	Choose freely whether or not to continue the experiment when the power is on again after cutting off
Connection Port Type	USB port
Network Connection	Ethernet port for remote control
Dimensions	710 mm×535 mm×515 mm (L×W×H)
Weight	55 kg
Power Supply	AC 100-240V, 50/60Hz
Certificate	IVDR CE

Applications

Suitable for professional laboratories, hospitals, diagnostic centers, research facilities, and other qualified users requiring nucleic acid extraction systems.
