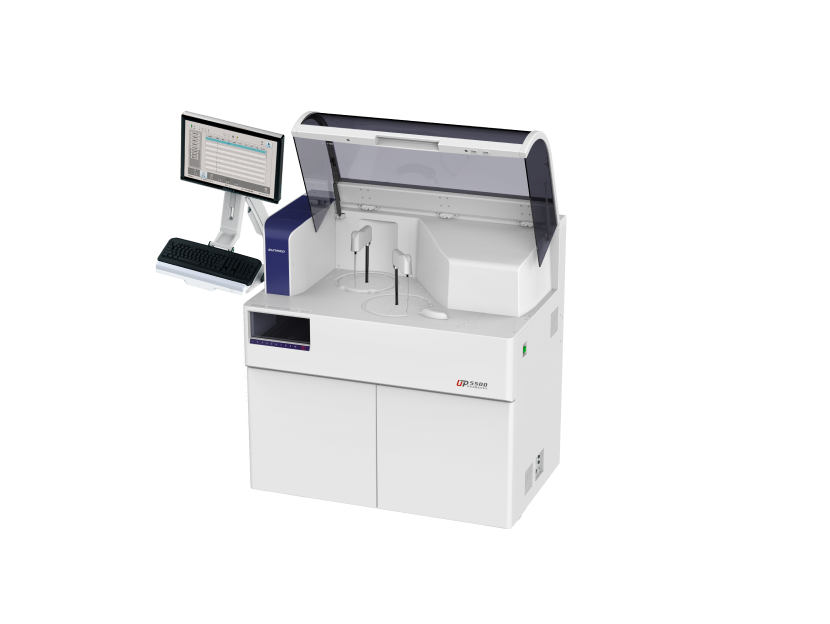

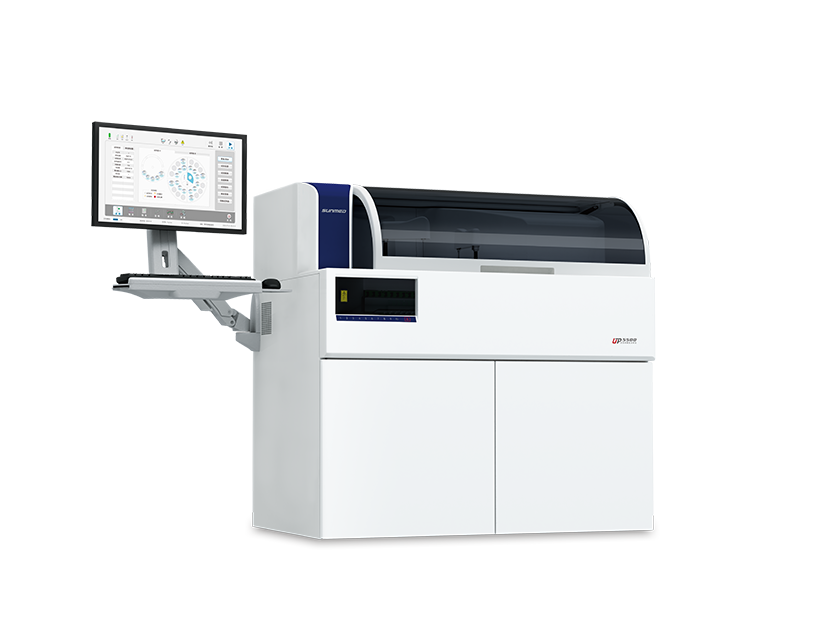

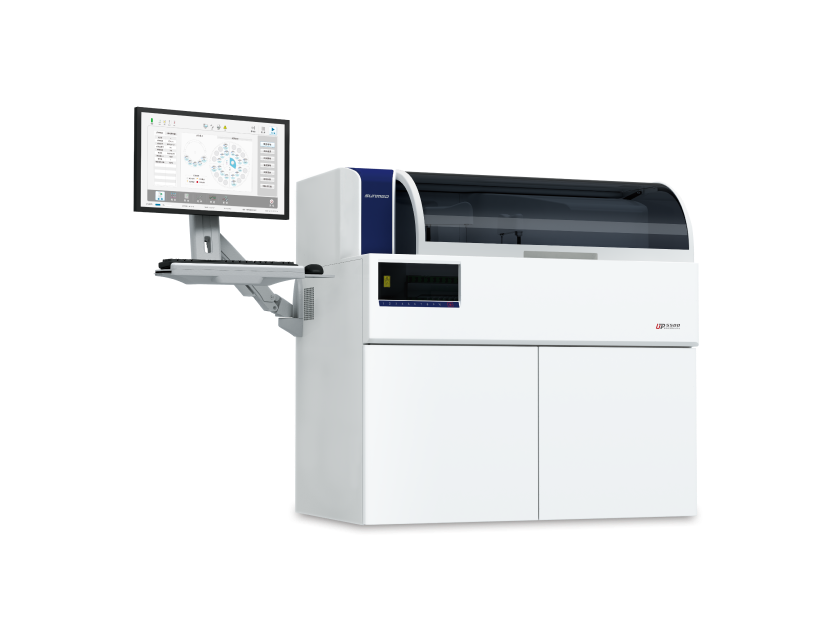

Sunbiote UP5500 coagulation analyzer

Sunbiote UP5500 coagulation analyzer

Product overview

The Sunbiote UP5500 coagulation analyzer is a professional coagulation analysis system designed for clinical hemostasis laboratories.

Key features

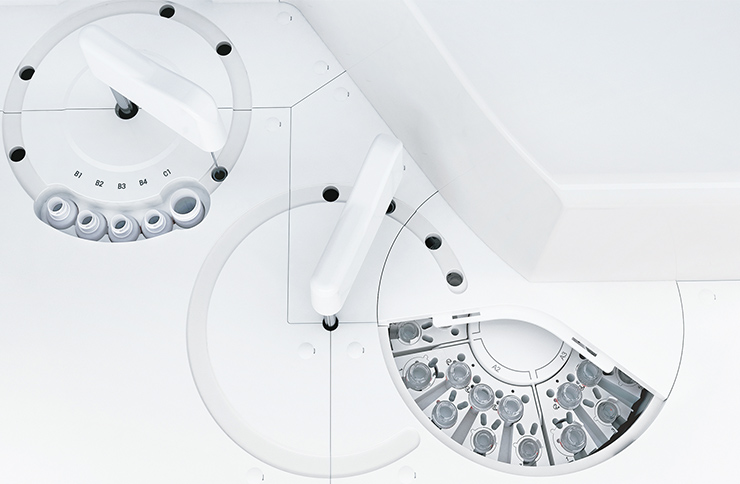

• Reagent Management System: 28 reagent positions with refrigeration function, 4 diluent positions, 1 rinse station, Reagent position tilt design
• Sample Management System: 100 sample positions; continuous loading and automatic injection
• Sample Adding Management System: Two reagent probes and 1 sample probe add reagents independently
• Measurement Management System: LED light source, With 20 full-wavelength detection channels for coagulation, immunoturbidimetry, chromogenic substrate assay, Multi-wavelength (405nm/570nm/660nm/800nm) design, realize HlL intelligent anti-interference
• Automatic Cuvette Selection and Transmission System: 2000 cuvettes capacity with continuous loading, Selection mechanism automatically selects and transmits them to the reagent position, Missing cuvette alarm function
• Barcode Management System: Automatically sample barcode reading, Automatically reagent barcode reading, Managing reagent and material reasonably
• Coagulation Method: PT, APTT, TT, FlB, APCR, LA1, LA2, PS…
• Immunoturbidimetric Assay: D-Dimer, FDP, VWF…
• Chromogenic Substrate Assay: AT-III, PC, HEP, PLG, Anti-Xa…
• Varieties of standard curve plotting
• PT/APTT/TT/FlB/D-Dimer throughput 420 Ts/H
• 32 independent incubation positions for batch pre-warming
• Excellent repeatable, accurate and linear test result
• Reliable auto-retest function
• Automatic APTT mixing study
• Meet emergency and outpatient service requirements by STAT function

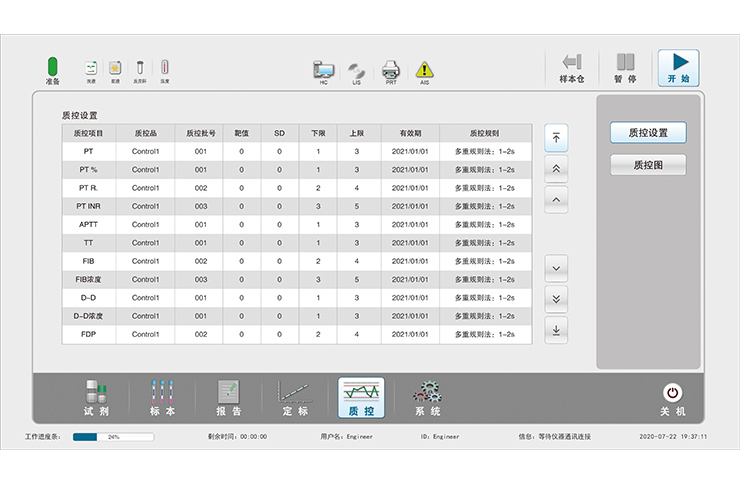

• Secure and stable Windows OS, with Chinese/English language interface
• Super data storage capacity
• Automatic dilution, calibration and screening analysis, Alarm function with real-time reflecting malfunction

Applications

• Routine and specialty coagulation testing
• Hospital, independent, and reference laboratory hemostasis workflows
• Testing with compatible reagents, controls, calibrators, and consumables

Technical specifications

Published instrument parameters are included in the official product image gallery. Final specifications depend on the selected model and configuration.

Ordering and configuration

Contact Scientific China to confirm compatibility, item number, package size, test method, included accessories or consumables, minimum order quantity, current price, lead time, storage and shipping requirements, documentation, regulatory availability, and international delivery terms.
