Shinva Liquid drier

Shinva Liquid drier

The Shinva Liquid drier is pharmaceutical extraction and process equipment developed for pharmaceutical, botanical-extract, food, and chemical production facilities. It can be specified around the required process, production capacity, container or material format, automation level, utilities, and facility layout. Scientific China supports international buyers with equipment selection, export coordination, and project-based quotations.

Typical applications

• Herbal or botanical extraction and concentration
• Controlled process preparation and material handling
• GMP-oriented production projects and line integration

Key features and process capabilities

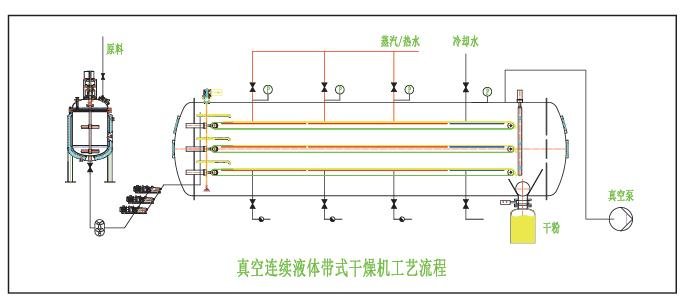

• Vacuum continuous belt liquid drier allows continuous feeding and discharging of liquid materials for drying under vacuum and low temperature environment, The liquid material is conveyed into the dryer by the feed pump and evenly distributed on the low-speed belt: the low-point component will be evaporated in the high vacuum and discharged by the vacuum system. The heat medium in that heating plate can be steam or superheated water. The heating plate is controlled separately in temperature by layer and adjustable in temperature. The unloading end is provided with a vacuum crushing device for outputting finished product of a required particle size.
• Liquid paste materials such as plant extracts, bioengineering material, food, health products and chemical raw materials;
• Especially suitable for high value-added, heat-sensitive and high viscosity materials; not suitable for spray drying materials;
• Typical materials: Chinese medicinal extract, herbal extract concentrate, herbal fermentation concentrate, malt extract,oligosaccharide, plant protein, condiment, etc.
• Main drying machine, feeding system, vacuum system, heating system, cooling system, discharging system,CIP(SIP optional) and control system.
• High vacuum low temperature oxygen-free drying eliminates the risk of degeneration for heat sensitive material;

Operational and procurement benefits

• Supports industrial batch-processing workflows
• Project configuration can be matched to process requirements
• Documentation, utilities, and installation scope can be quoted

Configuration and quotation

Final specifications, included modules, construction materials, control system, compliance documents, factory testing, installation, commissioning, training, warranty, and destination-market availability depend on the selected configuration. Contact Scientific China to confirm the appropriate model, minimum order quantity, price, lead time, and international delivery terms before purchase.
