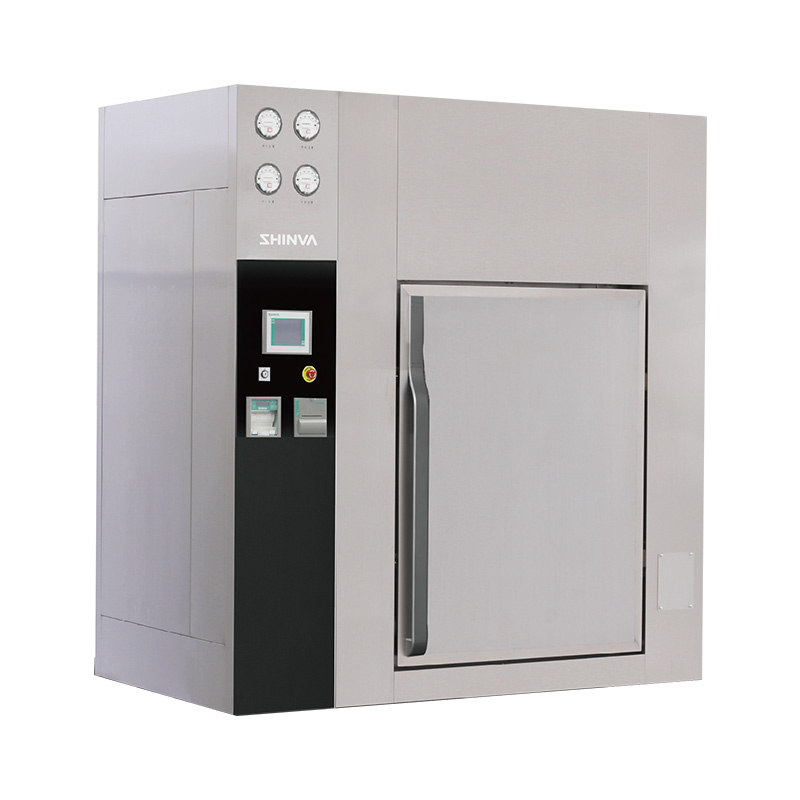

Shinva DHS series Dry Heat Sterilizer

Shinva DHS series Dry Heat Sterilizer

The Shinva DHS series Dry Heat Sterilizer is pharmaceutical sterilization equipment developed for sterile manufacturing plants, pharmaceutical factories, and biotechnology facilities. It can be specified around the required process, production capacity, container or material format, automation level, utilities, and facility layout. Scientific China supports international buyers with equipment selection, export coordination, and project-based quotations.

Typical applications

• Terminal or component sterilization
• Validated pharmaceutical production cycles
• Integration with cleanroom and material-flow systems

Key features and process capabilities

• Product Introduction
• With the help of circulation fan, the dry heat air flows into chamber by way of high temperature resistant HEPA and forms uniform air flow, The dry air flows in a directional circulation, removes moisture on the surface of the articles,and then comes out of chamber. With the gradual decrease of water vapor and intermittent fresh entering, the chamber presents positive pressure state. After sterilizing stage is ended, fresh air(or cooling water) entering valve is open for cooling. When temperature drops to the set value, automatic valves close,and sound and light alarm is generated for indicating to open door.
• High temperature resistant silicone rubber door gasket, good sealing effect and easy replacement;
• Three-dimensional software is adopted for design and assembly;The design temperature is 300’c, and both the front and back door can be bio-sealed;
• Frequency converter is used to control fan; Maintain a slight positive pressure in the chamber; Ensure the wind speed in the chamber reaches the standard;
• Unique ventilation plate and bottom air duct design make the temperature distribution more uniform.

Operational and procurement benefits

• Designed for controlled pharmaceutical processing
• Cycle and chamber options depend on the application
• Qualification and project services can be included

Configuration and quotation

Final specifications, included modules, construction materials, control system, compliance documents, factory testing, installation, commissioning, training, warranty, and destination-market availability depend on the selected configuration. Contact Scientific China to confirm the appropriate model, minimum order quantity, price, lead time, and international delivery terms before purchase.
