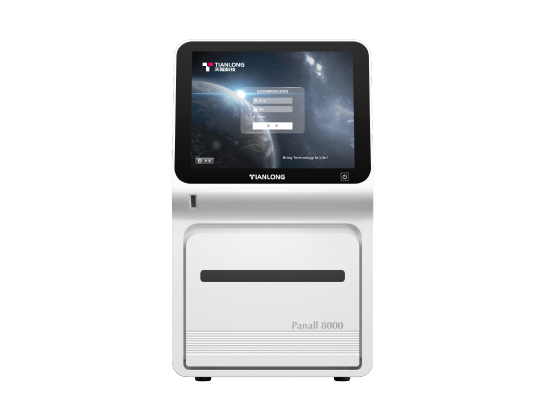

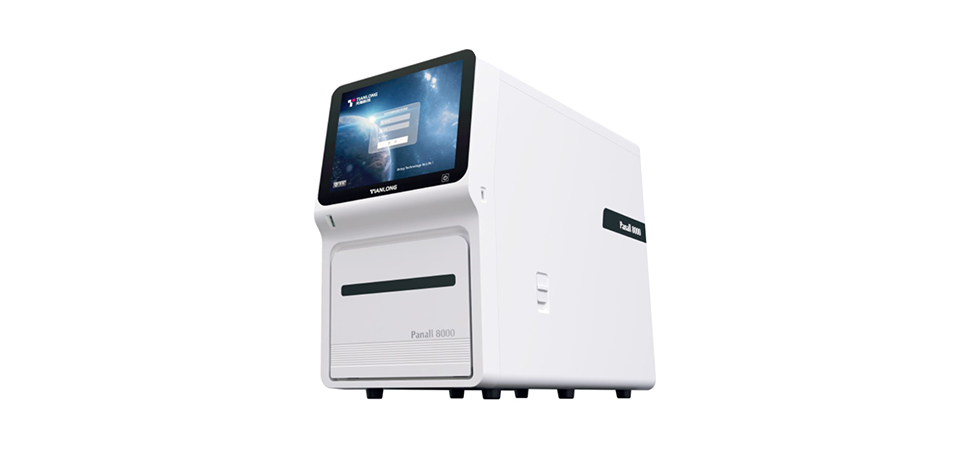

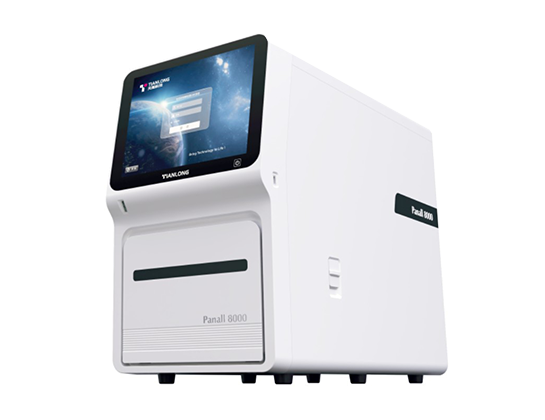

Panall 8000 All-In-One Molecular Diagnosis System

Name: Panall 8000 All-In-One Molecular Diagnosis System - Scientific China
SKU: TIANLONG-PANALL-8000-ALL-IN-ONE-MOLECULAR-DIAGNOSIS-SYSTEM

Available in stock

Features

Tianlong Panall 8000 is an all-in-one molecular diagnosis system that is both simple and secure. Integrates features of sample tube decapping/capping, sample loading, nucleic acid extraction, PCR setup, PCR detection, and result analysis. The Panall 8000 automated molecular diagnostic system helps achieve a true sample-in-result-out detection process and brings great convenience for professionals with only one-key operation.

SKU: TIANLONG-PANALL-8000-ALL-IN-ONE-MOLECULAR-DIAGNOSIS-SYSTEM Category: Diagnostic & Laboratory Instruments Tags: Diagnostic & Laboratory Instruments, laboratory products, Molecular Diagnostics, Tianlong Brand: Tianlong

Scientific China

Store

Scientific China

Store

People Also Viewed

Shipping

Additional information

Manufacturer	Tianlong
Model	Panall 8000
Sample Throughput	1~8 samples at the same time
Certificate	CE; CB; RoHS
Detection time	1~2 hours, relying on the reagent
Dimension	750mm(L) × 350mm (W) × 600mm (H)
Weight	80Kg
Pipetting Performance	20μL≤V<40 μ L: accuracy:A ≤ 5.0%, repeatability:CV ≤ 3.0% 40 μ L≤V<100 μ L: accuracy: A ≤ 3.0%, repeatability: CV ≤ 1.5% V≥100 μ L: accuracy:A ≤ 1.0%, repeatability:CV ≤ 1.0%
Extraction Heating Rate	Average heating rate: ≥ 1.5℃/s
Extraction Temperature Accuracy	≤1.0%
PCR Heating Rate	Average heating rate: ≥ 4.5℃/s Maximum heating rate: ≥ 6.1℃/s
PCR Cooling Rate	Average cooling rate: ≥ 3.5'℃/s Maximum cooling rate: ≥ 5.0℃/s
PCR Temperature Accuracy	≤0.1%
Sample Testing Linearity and Repeatabilit	Linear correlation: /r/≥ 0.998 Repeatability: CV ≤1.5%
Information Management	Sample information: with scanner inside Panall 8000 can scan and record the sample information Reagent information: visual system can automatically identify the kit information and run the corresponding program
Minimized contamination	Directional exhaust & negative pressure system HEPA fltration UV disinfection Shortest fixed path for sample operation
Data storage	1000 experiment files can be stored
Language	Chinese and English
Power supply and Power Consumption	AC 100~240V，50/60Hz:1200VA
Communication specification	Internet Port: TCP/lP protocol, Ethernet connection USB Port: USB 2.0
Pipetting Range	10μL ~250μL
Channel and Available Fluorescein	Channel 1: FAM, SYBR Green I, etc. Channel 2: VIC, HEX, TET, JOE, etc. Channel 3: ROX, Texas Red, etc. Channel 4: Cy5, etc.

Questions & Answers

Product Enquiry

Description

Panall 8000 All-In-One Molecular Diagnosis System

Why choose the Panall 8000 All-In-One Molecular Diagnosis System?

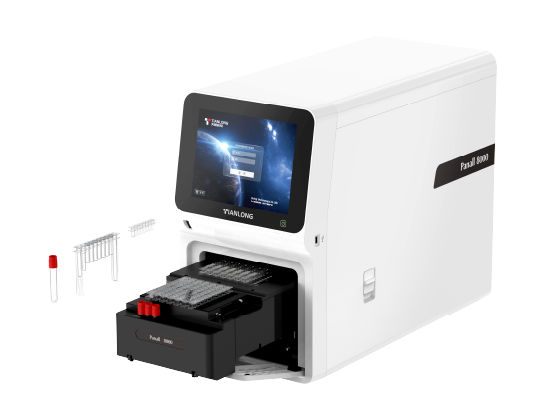

Sample in -result out system The Panall 8000 all-in-one molecular diagnosis system, features a closed system that minimizes contamination. 12.1-inch intuitive touchscreen No extra equipment needed No interpretation of results needed 8 samples can be tested at the same time Quality results you can rely on Certificate IVDR CE

Technical specifications

Model	Panall 8000
Sample Throughput	1~8 samples at the same time
Certificate	CE; CB; RoHS
Pipetting Range	20μL ~250μL
Detection time	1~2 hours,relying on the reagent
Channel and Available Fluorescein	Channel 1: FAM, SYBR Green I, etc. Channel 2: VIC, HEX, TET, JOE, etc Channel 3: ROX, Texas Red, etc. Channel 4: Cy5, etc.
Dimension	750mm(L) × 350mm (W) × 600mm (H)
Weight	80Kg
Pipetting Performance	20μL≤V<40 μ L: accuracy:A ≤ 5.0%,repeatability:CV ≤ 3.0% 40 μ L≤V<100 μ L: accuracy: A ≤ 3.0%,repeatability: CV ≤ 1.5% V≥100 μ L: accuracy:A ≤ 1.0%,repeatability:CV ≤ 1.0%
Extraction Heating Rate	Average heating rate: ≥ 1.5℃/s
Extraction Temperature Accuracy	≤1.0%
PCR Heating Rate	Average heating rate: ≥ 4.5℃/s Maximum heating rate: ≥ 6.1℃/s
PCR Cooling Rate	Average cooling rate: ≥ 3.5’℃/s Maximum cooling rate: ≥ 5.0℃/s
PCR Temperature Accuracy	≤0.1%
Sample Testing Linearity and Repeatabilit	Linear correlation: /r/≥ 0.998 Repeatability: CV ≤1.5%
Information Management	Sample information: with scanner inside Panall 8000 can scan and record the sample information Reagent information: visual system can automatically identify the kit information and run the corresponding program
Minimized contamination	Directional exhaust & negative pressure system HEPA fltration UV disinfection Shortest fixed path for sample operation
Data storage	1000 experiment files can be stored
Language	Chinese and English
Power supply and Power Consumption	AC 100~240V，50/60Hz:1200VA
Communication specification	Internet Port: TCP/lP protocol, Ethernet connection USB Port: USB 2.0
Pipetting Range	10μL ~250μL
Channel and Available Fluorescein	Channel 1: FAM, SYBR Green I, etc. Channel 2: VIC, HEX, TET, JOE, etc. Channel 3: ROX, Texas Red, etc. Channel 4: Cy5, etc.

Applications

Suitable for professional laboratories, hospitals, diagnostic centers, research facilities, and other qualified users requiring diagnostic & laboratory instruments.
