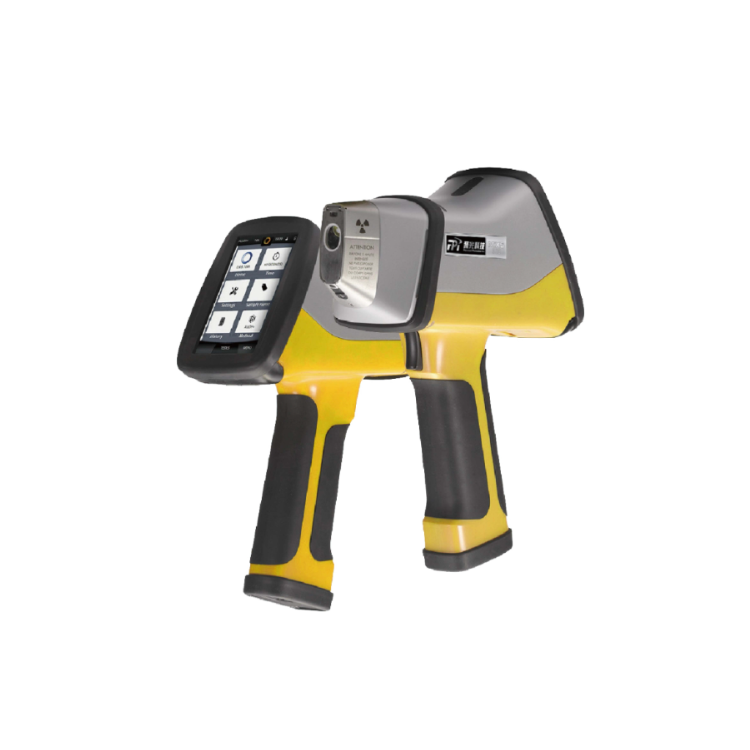

MiX5 Pro Series -Handheld XRF Analyzer

MiX5 Pro Series -Handheld XRF Analyzer

Product overview

The MiX5 Pro XRF analyzer series provideselemental analysis for fast alloy gradeidentification and sorting at an affordableprice. The MiX5 Pro 500/550 Element analyzerfor affordable alloy ID and MiX5 Pro 600analyzer for affordable light element detection.

• Feature fast grade ID and clear on-screengrade comparison on a smartphone-like userinterface. Easy to use and easy to learn.
• The MiX5 Pro series includes the mostcomprehensive grade library: the pre-installed,user selectable AISI, DIN, JIS and GB librariesinclude a total of over 1600 alloys. Providingaccurate, repeatable results.
• Easy to use：5-inch color capacitive touchscreen
  An optional Small-spot collimator：It can be used to isolate specific features(e.g. welds) from surrounding materials andmeasure them accurately.

Key features

• Fast Analysis, NDT, Accurate, repeatable results

1. MiX5 Pro series offers the best of versatile fundamental parameters (FP) method and empirical calibrations(traceable to certified reference materials) for superior precision and accuracy.

• Libraries include a total of over 1600 alloys Extensive, customizable grade library

1. Pre-installed, user selectable AIS, DIN, JIS and GB libraries incude a total of over 1600 alloys, or create theirown library (e.g. for specific welding material).

• Robust,Minutia

1. Comfortable for daily use, 1.5kg(with battery), Small Dimensions, Good balance
2. Li-ion rechargeable battery with 8-10 hours battery life
3. Opttional Window protection with safety grid. Avoids punctures from turnings.
4. IP54 compliant and Shock Producedure test by FPI Testing Laboratory
5. Bulge probe head for surface of curving and turning form

• Clear Display interface

1. Icon Navigation ,Easy to use and easy to learn
2. 5-inch color capacitive touchscreen with results easily viewed on a vibrant display and reversible light/dark forall lighting conditions, Large screen show more lines with element
3. The X Series is built on Google’s Android platform for real-time data exporting. The user interface has the feelof a smartphone
4. Optional aiming camera for capturing and displaying overview images of parts

• Powerful Data Management

1. Store up to 100,000 results including spectra
2. Download results and reports directly to a USB cable to PC with excel or txt format

Applications

• Positive Material Identification
  PMI is important for industrial plant operators and component suppliers. Alloy mix-ups can result in component failure, leading to plant downtime or even loss of life. Handheld XRF has become an essential tool to help prevent such failures through nondestructive alloy identification.
• Take control of material verification and accuracy
  The verification of metal alloys for manufacturing quality assurance and quality control has never been more important to satisfy reliability and safety product standards.From metal production to service centers and distributors, component fabrication to final product assembly, the potential for material mix-ups is very real, and the need for traceability is a top priority.
• MiX 5 Pro for soil
  MiX5 Pro It can detect the harmful heavy metal elements and contents in the soil, timely and accurately feedback the on-site detection results, provide scientific research data support, and promote the harmless development of environmental soil and the scientific management concept of healthy soil
• Take the Guesswork Out of Precious Metals Analysis
  When accuracy and confidence count, Mix5 Pro analyzers provide immediate, nondestructive elemental measurement and karat determination of metals, including gold, platinum,silver, and more.

Technical and application details

Ready to enhance your operations with industry-leading online analysis solutions? Get in touch for expert guidance, pricing, or a personalized demo.

Ordering and configuration

Contact Scientific China for current availability, configuration options, compatible accessories and consumables, documentation, minimum order quantity, shipping terms, and a formal quotation for this FPI product.
