LabTech Extrapid Manual Cartridge-Disk SPE
Available in stock
Solid-Phase Extraction (SPE) is a widely used and popular sample pretreatment technique. It involves using a solid adsorbent to selectively capture target compounds from a sample, separating them from the sample matrix and interfering substances. The target compounds are then eluted... Contact Scientific China for configuration, availability, MOQ and quotation.
SKU: LABTECH-070D421F6B
Category: Solid Phase Extraction (SPE)
Brand: LabTech
Report Abuse
Scientific China
Store
Scientific China
Store
Additional information
| Product Category | Sample Prep. Instruments / Organic Sample Prep. / Solid Phase Extraction (SPE) |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description

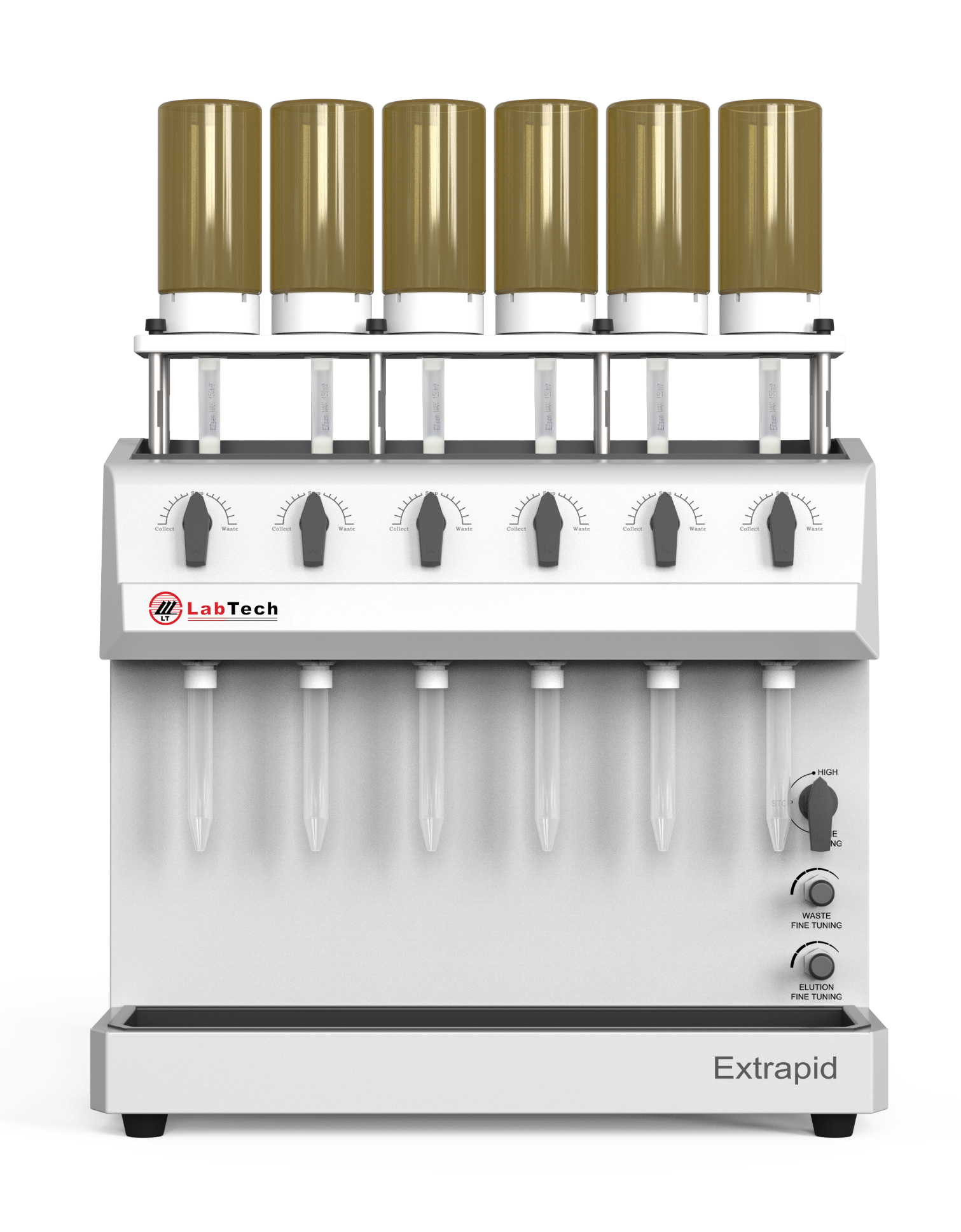

LabTech Extrapid Manual Cartridge-Disk SPE
Product overview
Solid-Phase Extraction (SPE) is a widely used and popular sample pretreatment technique. It involves using a solid adsorbent to selectively capture target compounds from a sample, separating them from the sample matrix and interfering substances. The target compounds are then eluted with a solvent to achieve separation and enrichment. Advantages of SPE include faster separation and enrichment, reduced use of organic solvents, and significantly improved stability and reproducibility of analytical results.
SPE methods are mainly divided into cartridge-based and disk-based formats. Disk SPE, with its smooth permeability and high adsorption capacity, is especially suitable for separating and enriching trace organic compounds in large-volume water samples. Traditional cartridge SPE is more suited for small-volume samples in fields such as food, pharmaceuticals, and life sciences.
LabTech Extrapid Manual Cartridge-Disk SPE System organically combines both cartridge and disk extraction formats in a single instrument, accommodating both large and small sample volumes and supporting a wider range of methods.
Key features
Flow Path Switching: Simplifies operation by easily switching between collection and waste liquids, improving method efficiency.
During Operation:
—— From condition to elution, no need to reopen the vacuum chamber.
—— No repeated turning off and on of the vacuum pump.
—— No waiting for vacuum release or removing/replacing collection bottles and racks.
—— No need to discard waste liquid or clean the vacuum chamber.
- Channels: 4 independent channels that can be used separately without interference.
- Cartridge-Disk Compatibility: Supports 1, 3, and 6 mL SPE cartridges and 47 mm, 90 mm SPE disks, suitable for a broad range of applications.
- Flow Control: Uses fine-tuning valves for precise vacuum flow control on each channel, enhancing control and reproducibility of SPE operations.
- Corrosion-Resistant Materials: Parts in contact with solvents are made of PTFE, stainless steel, and other corrosion-resistant materials, compatible with solvents such as dichloromethane.
Applications
Environmental
For the environmental sector, used for the purification of organic pollutants in soil, solid waste, water, and air samples.
EPA Method 533: Determination of Per- and Polyfluoroalkyl Substances (PFAS) in Drinking Water by Solid Phase Extraction and Liquid Chromatography/Tandem Mass Spectrometry (LC-MS/MS)
EPA Method 537.1: Determination of Selected Perfluorinated Alkyl Substances in Drinking Water by Solid Phase Extraction and Liquid Chromatography/Tandem Mass Spectrometry (LC/MS/MS)
EPA Method 506: Determination of Phthalate and Adipate Esters in Drinking Water by Liquid-Liquid Extraction or Liquid-Solid Extraction and Gas Chromatography with Photoionization Detection.
EPA Method 507: Determination of Nitrogen- and Phosphorus-containing Pesticides in Water by Gas Chromatography with a Nitrogen-phosphorus Detector
EPA Method 508.1: Determination of Chlorinated Pesticides, Herbicides, and Organohalides by Liquid-Solid Extraction and Electron Capture Gas Chromatography
EPA Method 515.2: Determination of Chlorinated Acids in Water Using Liquid-solid Extraction and Gas Chromatography with an Electron Capture Detector
EPA Method 525.2, Revision 1.0: Determination of Organic Compounds in Drinking Water by Liquid-Solid Extraction and Capillary Column Gas Chromatography/Mass Spectrometry
EPA Method 548.1 Rev. 1: Determination of Endothall in Drinking Water by Ion-Exchange Extraction, Acidic Methanol Methylation and Gas Chromatography/Mass Spectrometry
EPA Method 549.1& EPA Method 549.2: Determination of Diquat and Paraquat in Drinking Water by Liquid-Solid Extraction and High-Performance Liquid Chromatography with Ultraviolet Detection
EPA Method 550.1: Determination of Polycyclic Aromatic Hydrocarbons in Drinking Water by Liquid-Solid Extraction and HPLC with Coupled Ultraviolet and Fluorescence Detection
EPA Method 552.1: Determination of Haloacetic Acids and Dalapon in Drinking Water by Ion-Exchange Liquid-Solid Extraction and Gas Chromatography with an Electron Capture Detector
EPA Method 553: Determination of Benzidines and Nitrogen-Containing Pesticides in Water by Liquid-Liquid Extraction or Liquid-Solid Extraction and Reverse Phase High Performance Liquid Chromatography/Particle Beam/Mass Spectrometry
EPA Method 608 Alternate Test Method 3M0222: Determination of Polychlorinated Biphenyls (PCBs) in Liquid and Solid Samples by Gas Chromatography
EPA Method 1613 Revision B: Tetra- Through Octa-Chlorinated Dioxins and Furans by Isotope Dilution HRGC/HRMS
EPA Method 1664: n-Hexane Extractable Material (HEM; Oil and Grease) and Silica Gel Treated n-Hexane Extractable Material (SGT-HEM; Non-polar Material) by Extraction and Gravimetry
EPA Method 526: Determination of Selected Semivolatile Organic Compounds in Drinking Water by Solid Phase Extraction and Capillary Column Gas Chromatography/ Mass Spectrometry (GC/MS)
EPA Method 527: Determination of Selected Pesticides and Flame Retardants in Drinking Water by Solid Phase Extraction and Capillary Column Gas Chromatography/ Mass Spectrometry (GC/MS)
EPA Method 532: Determination of Phenylurea Compounds in Drinking Water by Solid Phase Extraction and High-Performance Liquid Chromatography with UV Detection
EPA Method 529: Determination of Explosives and Related Compounds in Drinking Water by Solid Phase Extraction and Capillary Column Gas Chromatography-mass Spectrometry (GC-MS)
EPA Method 535 Rev. 1.1: Measurement of Chloroacetanilide and Other Acetamide Herbicide Degradates in Drinking Water by Solid Phase Extraction and Liquid Chromatography/Tandem Mass Spectrometry (LC/MS/MS)
Proposed Quick Turnaround Method (QTM) for Polynuclear Aromatic Hydrocarbons (PAHs)
Proposed Quick Turnaround Method (QTM) for Pesticides and Polychlorinated Biphenyls (PCBs)
Proposed Quick Turnaround Method (QTM) for Phenols
Food & Beverage
Used for the purification of semivolatile organic pollutants in food samples.
Proposed Quick Turnaround Method (QTM) for Polynuclear Aromatic Hydrocarbons (PAHs)
Proposed Quick Turnaround Method (QTM) for Pesticides and
Polychlorinated Biphenyls (PCBs)
Proposed Quick Turnaround Method (QTM) for Phenols
Pharmaceutical & Medical
Used for the purification of semivolatile organic pollutants in pharmaceutical samples.
Proposed Quick Turnaround Method (QTM) for Polynuclear Aromatic Hydrocarbons (PAHs)
Proposed Quick Turnaround Method (QTM) for Pesticides and
Polychlorinated Biphenyls (PCBs)
Proposed Quick Turnaround Method (QTM) for Phenols
Geology & Mining
Used for the purification of semivolatile organic pollutants in geological soil samples.
EPA Method 3535A (SW-846): Solid-Phase Extraction (SPE)
Environmental
Food & Beverage
Pharmaceutical & Medical
Geology & Mining
Technical specifications
| Brand | LabTech |
|---|---|
| Product name | LabTech Extrapid Manual Cartridge-Disk SPE |
| Product category | Sample Prep. Instruments / Organic Sample Prep. / Solid Phase Extraction (SPE) |
| Configuration | Model, capacity, dimensions, power supply, compatible accessories and other specifications must be confirmed for the selected configuration. |
Ordering and configuration
Contact Scientific China to confirm the exact model, configuration, accessories, consumables, electrical requirements, minimum order quantity, lead time, shipping terms, warranty and formal quotation.
