Product overview

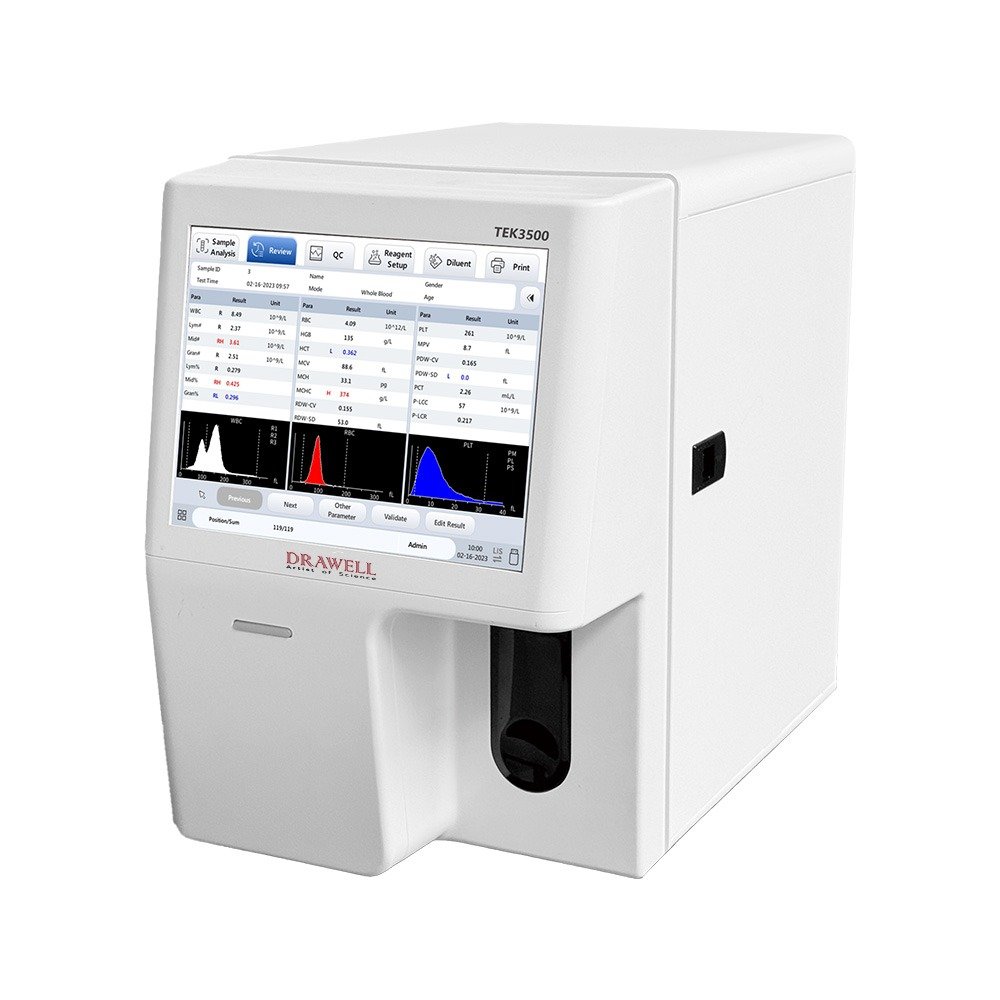

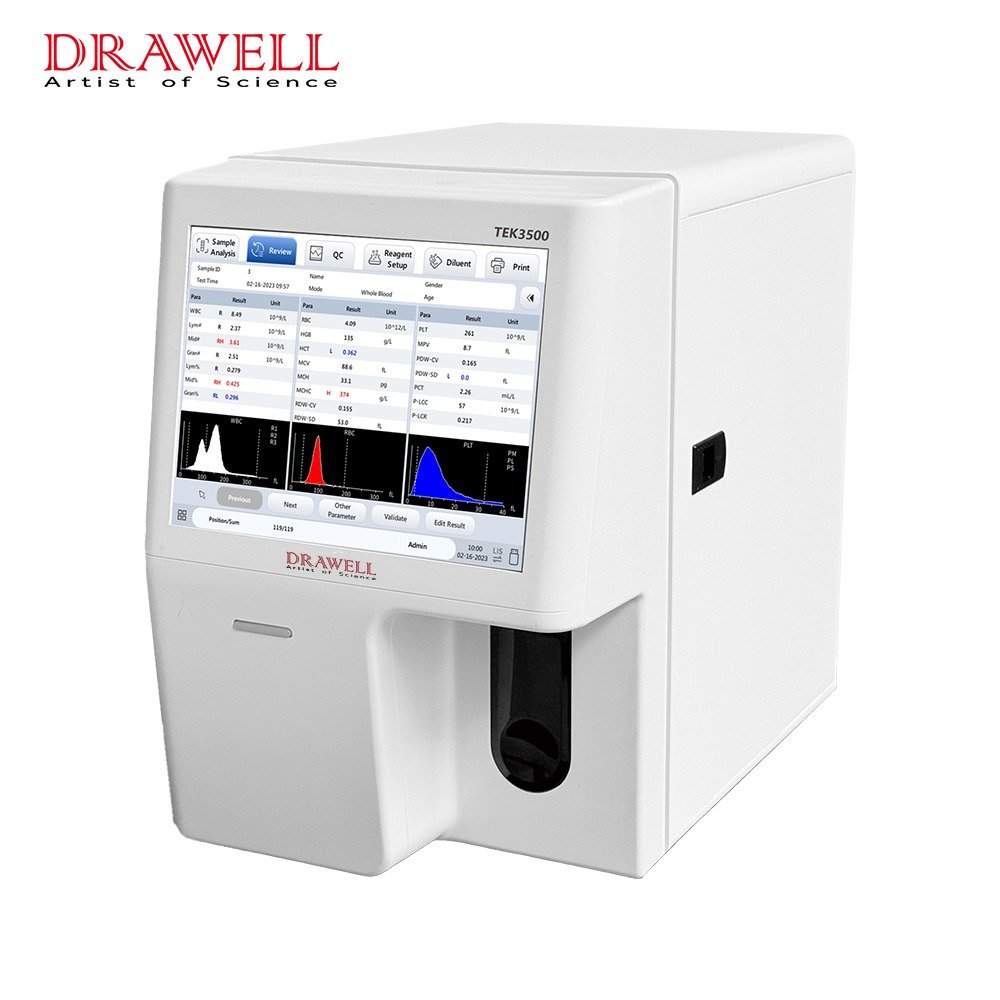

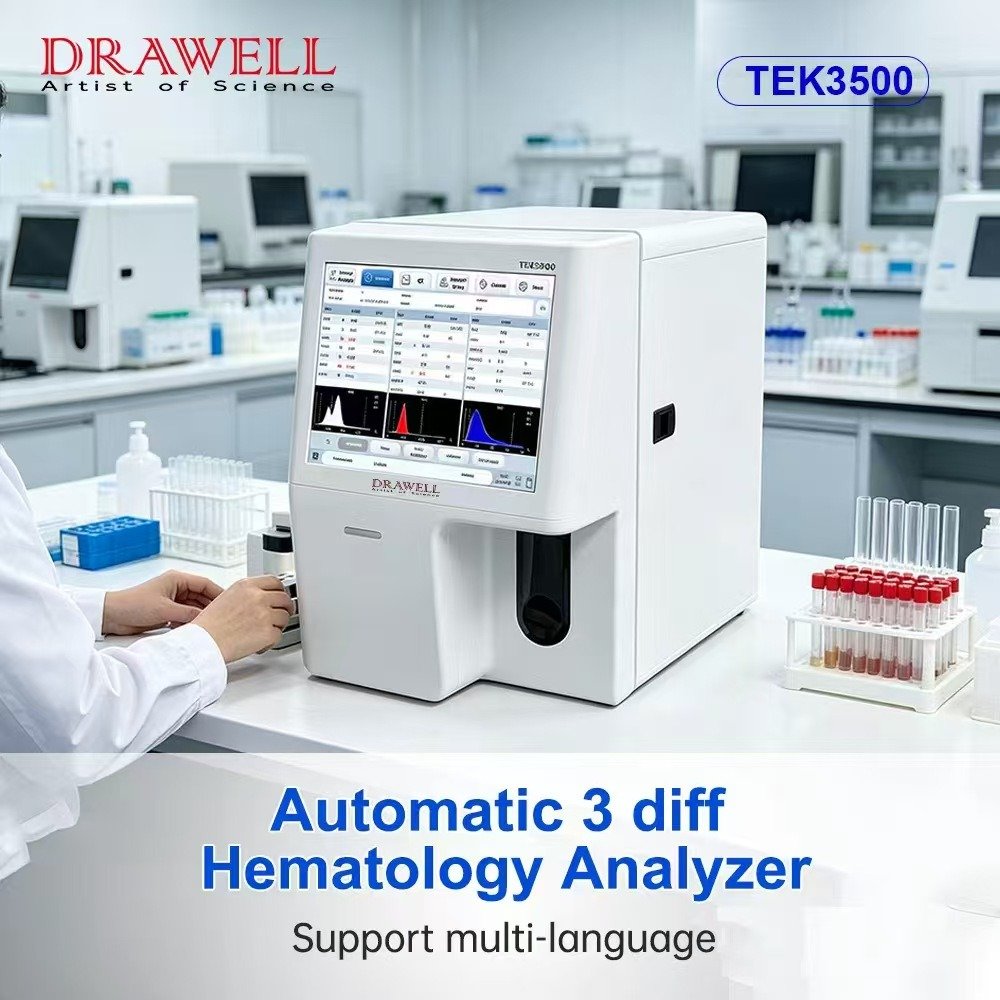

TEK3500 is a compact automatic 3-part hematology analyzer designed for routine whole blood and predilution testing. The system includes the main analyzer with a built-in thermal printer, while an external printer, software, peripherals, and consumables are available as optional configurations.

The Drawell TEK3500 Automatic 3 diff Hematology analyzer supports research, pharmaceutical, environmental, food, industrial, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

• 60 Samples/Hour : Processes up to 60 samples/hour and supports continuous operation with customizable sleep time.

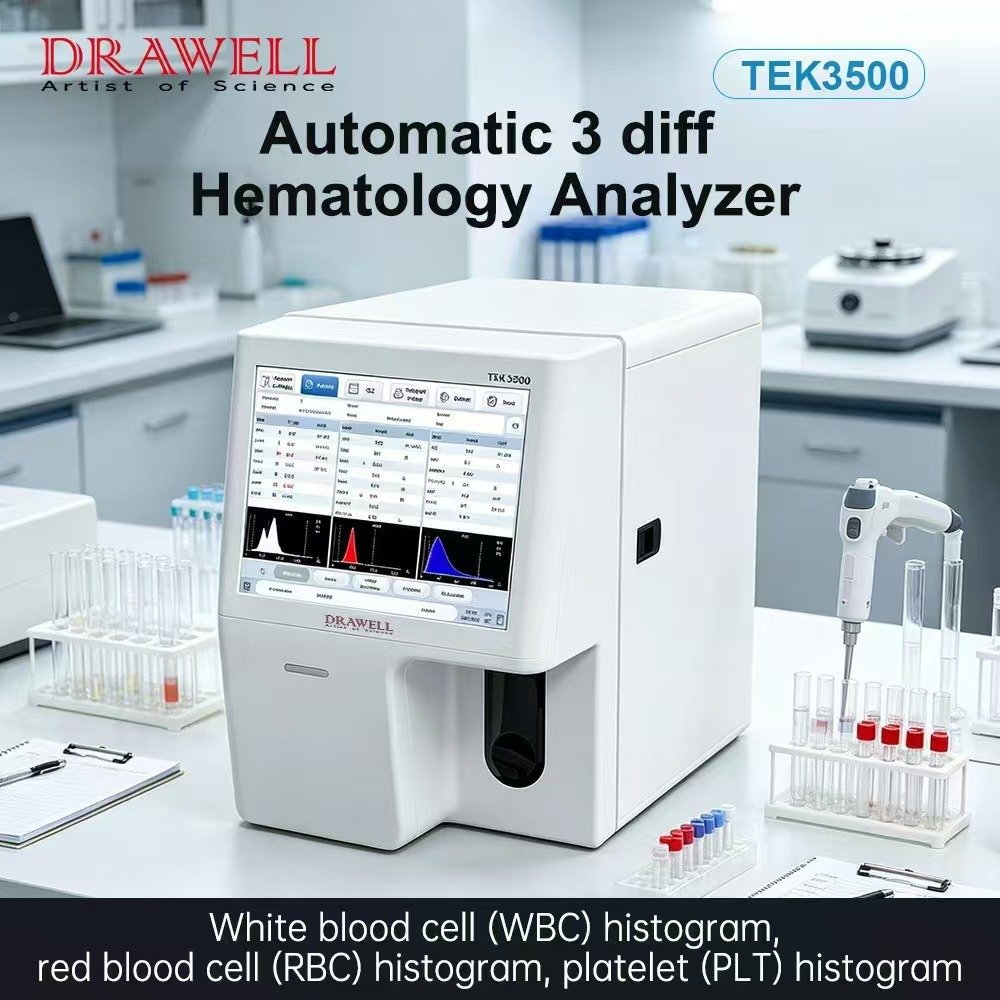

• 21 Parameters + 3 Histograms : Reports 21 hematology parameters with WBC, RBC and PLT histograms displayed on the same screen.
• Low Sample Volume : Requires 10 μL of venous or peripheral blood, with 20 μL for prediluted blood testing.
• Multiple QC Methods : Supports L-J, X-R and floating mean QC for routine quality-control management.
• Data & LIS Connectivity : Stores up to 200,000 sample results and supports bidirectional LIS communication and HL7 transmission.
• Compact & Easy to Integrate : Compact 265 × 380 × 420 mm body with a net weight of approximately 17 kg, suitable where bench space is limited.
• The TEK3500 reports 21 hematology parameters together with WBC, RBC and PLT histograms.
• The analyzer processes up to 60 samples per hour .

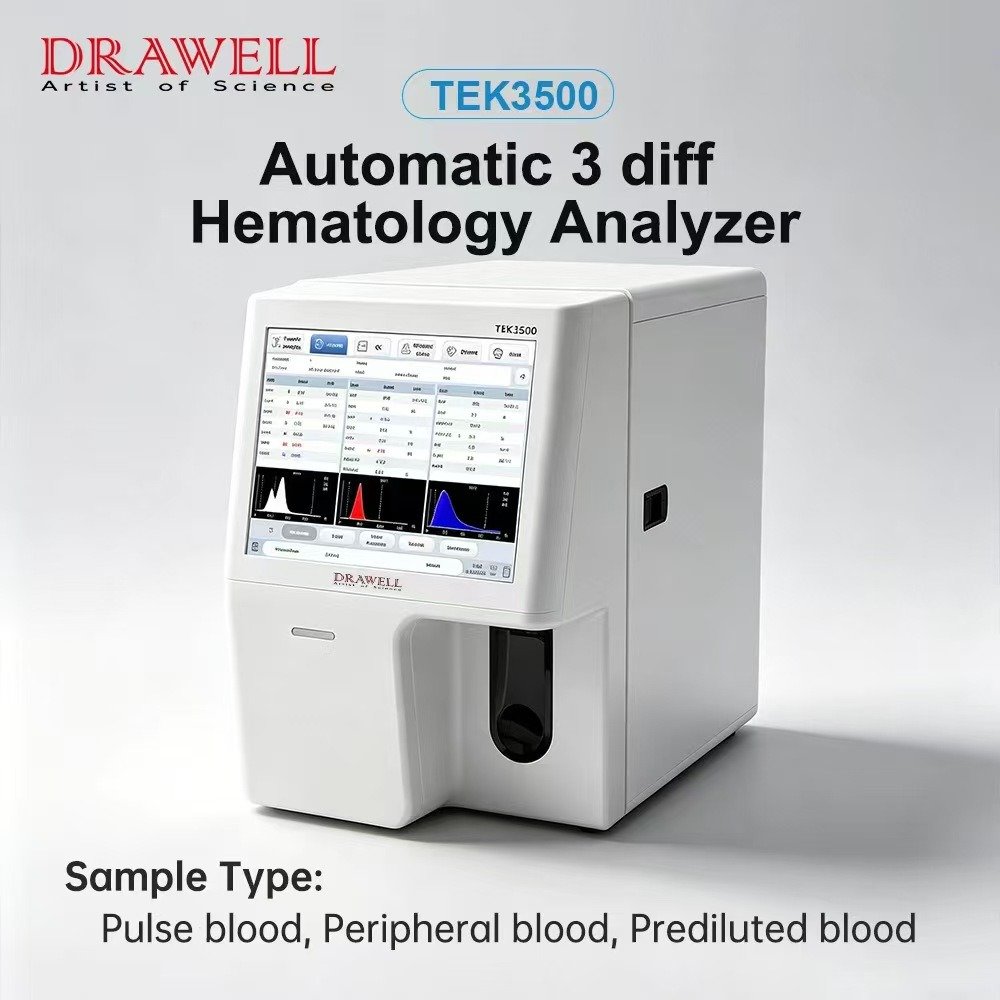

• The specified sample volume is 10 μL for venous and peripheral blood and 20 μL for prediluted blood .
• The TEK3500 supports whole blood and predilution modes .
• Up to 200,000 sample results , including sample information, can be stored automatically.
• Yes. It supports bidirectional LIS communication with HL7 and other transmission protocols.
• Yes. Stored data can be queried using multiple search methods and exported in Excel format .
• Yes. A built-in thermal printer is included, and an external printer can also be connected.

Applications

• Used for qualitative and quantitative analysis of formed elements in blood, providing relevant information.

Technical specifications

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
