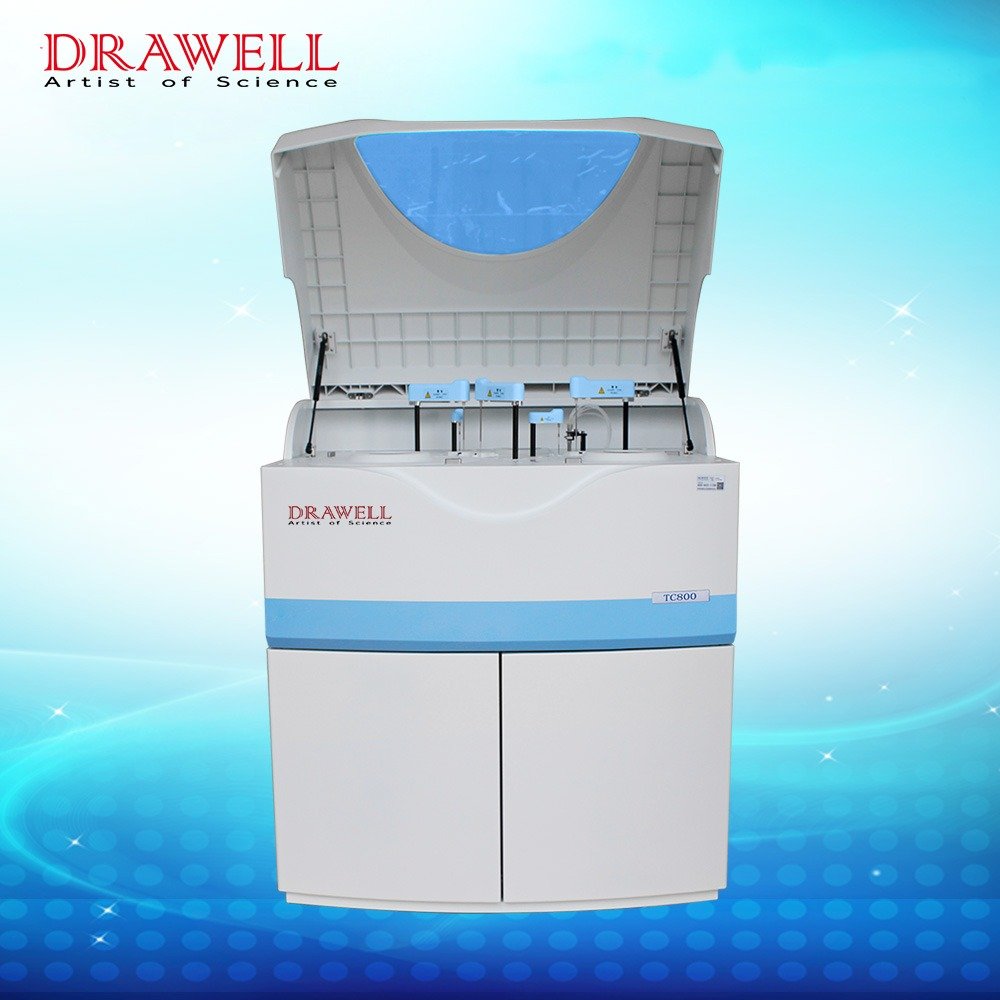

Drawell TC800 Automatic Chemistry Analyzer

Drawell TC800 Automatic Chemistry Analyzer

Product overview

TC800 is a fully automatic, discrete and random-access chemistry analyzer. The system supports end-point, kinetic, two-point, double-reagent, double-wavelength and multi-standard methods, with an open reagent design for flexible laboratory use.

The Drawell TC800 Automatic Chemistry Analyzer supports research, pharmaceutical, environmental, food, industrial, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

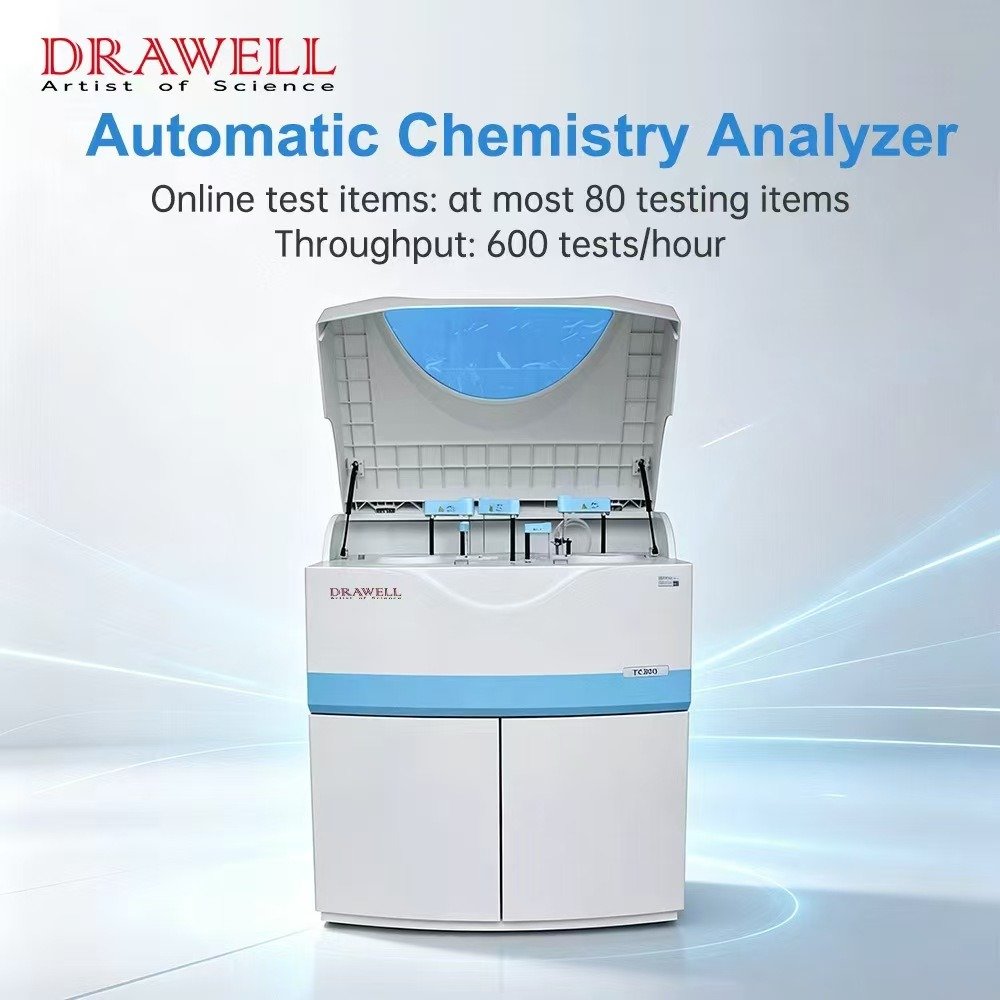

• 600 Tests/Hour & STAT Testing : Up to 600 tests/hour with fully automatic, discrete and random-access operation. Supports 80 online test items and 110/165 sample positions, including standard, QC and STAT positions.
• 80/120 Refrigerated Reagent Positions : Provides 80/120 reagent positions with 2–8°C refrigeration. Reagent volume is 10–400 μL in 1 μL steps, with automatic liquid-level detection and probe collision protection.
• Automatic Dilution & Re-Test : Supports 1–50 μL sample volume in 0.1 μL steps and automatic/manual pre-dilution up to 1:100. Automatic dilution and re-testing are available when results exceed the linear range.
• Wide-Range Photometric System : Covers 290–1100 nm across 12 wavelengths, with a test range of 0.0000–4.50000 Abs and 0.0001 Abs resolution.
• Stable Reaction & Automatic Washing : Uses 90 reaction cuvettes, maintains 37°C ±0.1°C, and provides two independent mixing probes. An 8-step automatic washing system with cuvette drying supports routine operation.
• QC, Calibration & Data Management : Supports linear/nonlinear multi-point calibration, QC management and random QC insertion, with storage for up to 2 million patients’ data.
• The TC800 provides a throughput of up to 600 tests/hour .

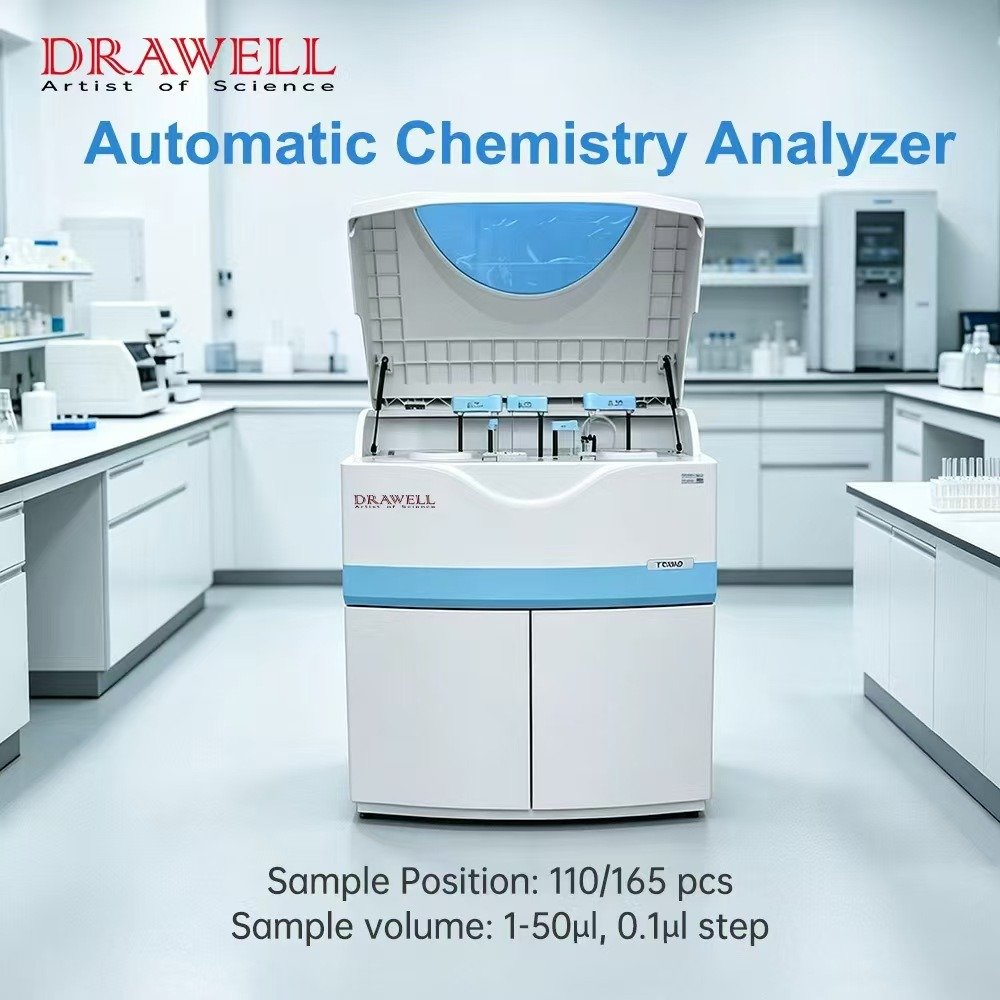

• It is available with 110 or 165 sample positions , including standard, QC and STAT positions.
• The TC800 provides 80 or 120 reagent positions with 2–8°C refrigeration .
• Sample volume ranges from 1 to 50 μL in 0.1 μL steps .
• Yes. Automatic and manual pre-dilution are supported with dilution ratios up to 1:100 .
• The photometric system covers 290–1100 nm with 12 wavelengths .
• Yes. An optional K, Na and Cl ISE module is available with a throughput of up to 300 tests/hour .
• Yes. An optional barcode reader can be used for sample and reagent programming.

Applications

• Quantitative or qualitative laboratory analysis
• Research, method development, and routine quality control
• Application-specific testing with suitable accessories and methods

Technical specifications

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
