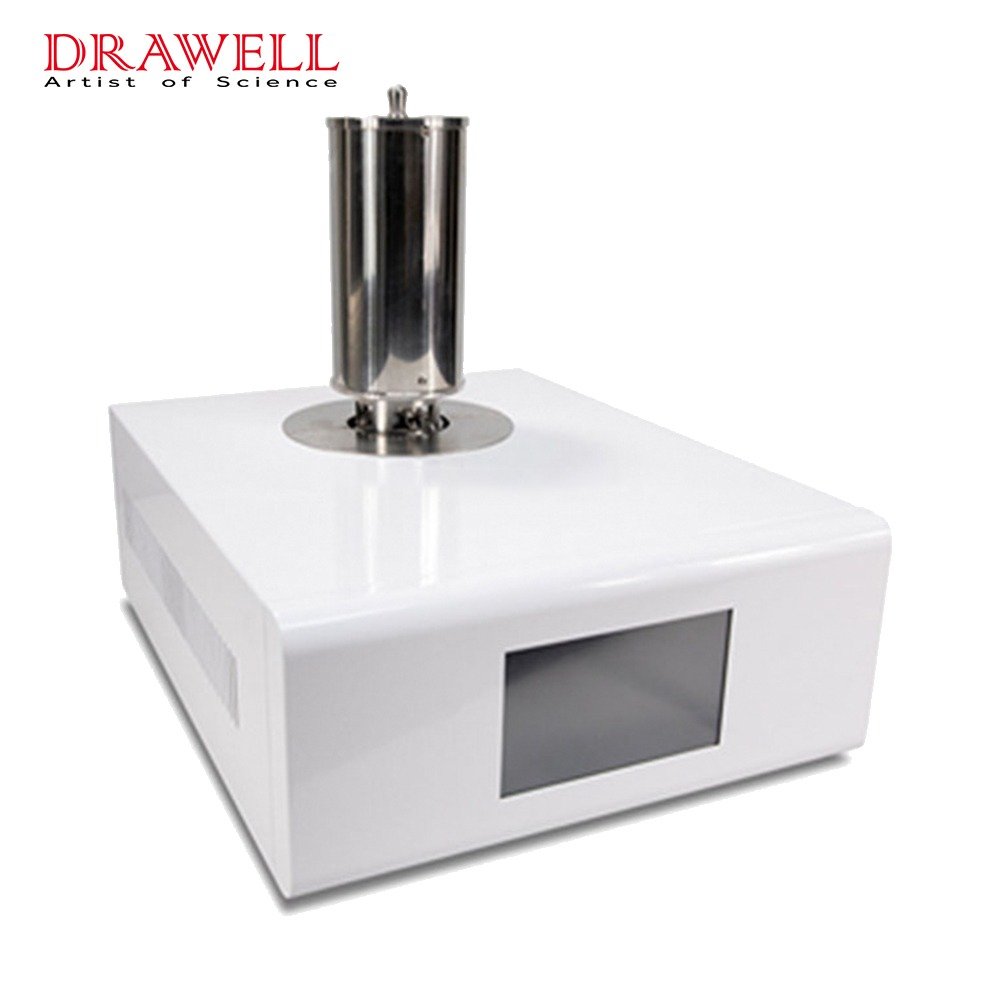

Drawell Synchronous Thermal Analyzer BXT-STA-200

Drawell Synchronous Thermal Analyzer BXT-STA-200

Product overview

Synchronous thermal analyzer combines thermogravi metric analyzer TGA with differential thermal analyzer DTA or differential scanning calorimeter DSC. The same sample can be used to obtain the information of TGA and DTA or DSC in the same measurement.

The Drawell Synchronous Thermal Analyzer BXT-STA-200 supports research, pharmaceutical, environmental, food, industrial, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

• The furnace body is heated by double-row winding of precious metal nickel-cadmium alloy wire, which reduces interference and is more resistant to high temperatures. Advanced control system. The temperature can be controlled quickly and stably.
• The tray sensor is made of precious metal nickel-cadmium alloy, which has the advantages of high temperature resistance, oxidation resistance, and corrosion resistance.

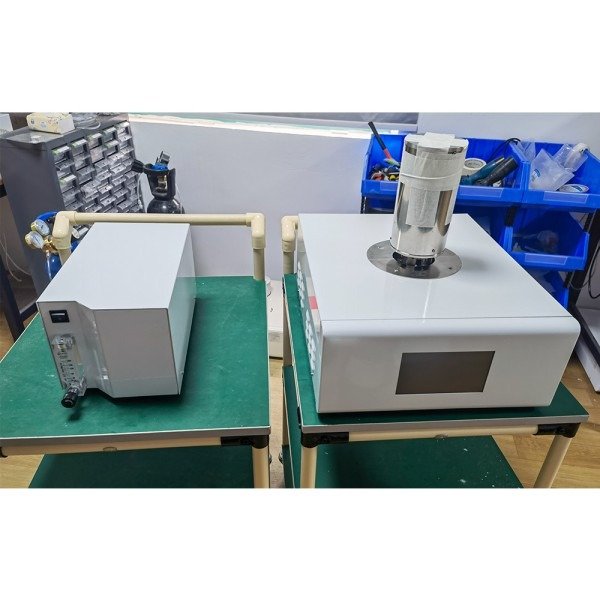

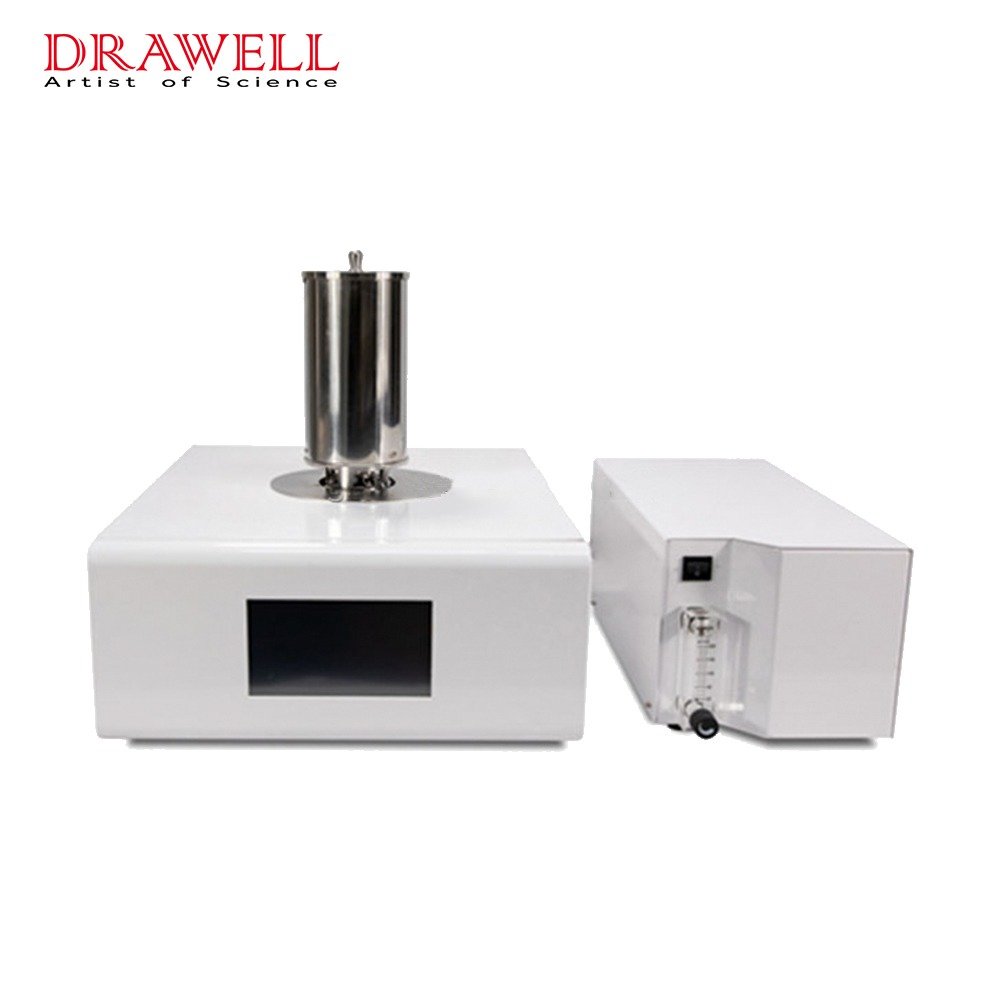

• The power supply and circulating heat dissipation part are separated from the main machine to reduce the influence of heat and vibration on the micro-thermal balance.
• Adopt top-opening structure, easy to operate. It is difficult to move the furnace body up to place the sample, and it is easy to damage the sample rod.
• The host adopts a water area constant temperature device to isolate the thermal influence of the heating furnace body on the chassis and the micro-thermal balance.
• Automatically generate and print test reports. The software has built-in test records, data processing and report formats, and automatically issues test reports.
• The furnace body can be replaced according to customer requirements
• Using imported 32bit ARM processor Cortex-M3 core, sampling speed and processing speed are faster.
• 24bit four-channel sampling AD collects DSC signal, TG signal and temperature T signal.
• The power supply and water circulation part are individually controlled by 8bit single-chip microcomputer to separate the host and the cooling part without interfering with each other, but the two are closely connected, and the cooling part is controlled by the host.
• The USB two-way communication is adopted between the software and the instrument, which fully realizes remote operation. The parameter setting of the instrument and the operation stop of the instrument can be carried out through the computer software.
• 7 inch full color 24bit touch screen, better man-machine interface. TG calibration can be achieved on the touch screen.
• ISO 11358 Plastics – Thermogravimetry (TG) of Polymers
• ASTM E793 Standard Test Method for Enthalpies of Fusion and Crystallization by Differential Scanning Calorimetry

Applications

• Quantitative or qualitative laboratory analysis
• Research, method development, and routine quality control
• Application-specific testing with suitable accessories and methods

Technical specifications

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
