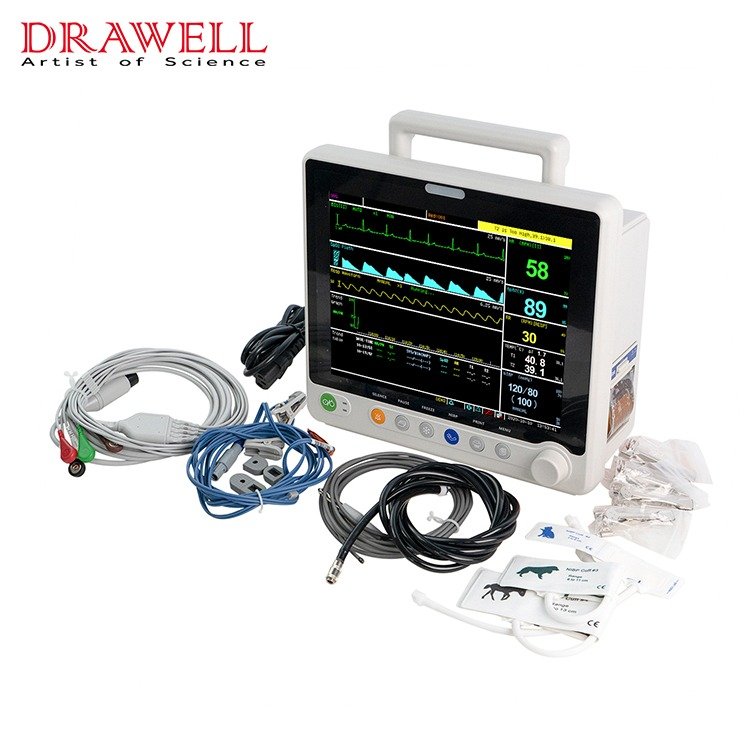

Drawell PM6000V Veterinary Pulse Oximeter
Product overview
The PM6000V is a cost-effective, multi-parameter patient monitor , providing a reliable measurement of the patient’s SpO 2 , pulse rate, non-invasive blood pressure, temperature, 5-lead/3-lead electrocardiography (ECG), and respiration rate. Integrated sidestream technology ensures that the monitor can be used with intubated and non-intubated patients. 12.1-inch large display assures easy viewing of waveforms, numeric values, and on-screen trending data for demanding veterinary facilities.
The Drawell PM6000V Veterinary Pulse Oximeter supports research, clinical, industrial, education, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.
Key features
- 12.1-inch large-sized screen with high-tech white and black color.
- Unique designed LOGO for veterinary use only.
- Veterinary specific accessories to accommodate a variety of species.
- Expanded heart rate range for the veterinary environment.
- Widely used in pet hospitals and animal clinics etc.
- Special designed SpO2 technology with adjustment emitting light and a wide range measurement for veterinary.
- Special designed ECG technology with high input impedance to fit different size of veterinaries.
- Special designed NIBP technology with different size of NIBP cuffs for veterinaries.
- Support both Mainstream and Sidestream technologies.
- 4.85kg (10.69lb), including1 battery
- 324mm Wx 324mm H x 155mm D
- (12.76in. Wx 12.76in. H x 6.10in. D)
- 307.3mm(12.1 in.), measured diagonally
- TFT LCD, white LED backlight,viewing cone of 60° and optimal viewing distance of 1 meter
Applications
- Professional laboratory testing or sample-processing workflows
- Routine research and quality-control applications
- Application-specific operation according to the selected model
Technical specifications
| Weight |
4.85kg (10.69lb), including1 battery |
| Dimensions |
324mm Wx 324mm H x 155mm D (12.76in. Wx 12.76in. H x 6.10in. D) |
| Display |
| Screen size |
307.3mm(12.1 in.), measured diagonally |
| Screen type |
TFT LCD, white LED backlight,viewing cone of 60° and optimal viewing distance of 1 meter |
| Resolution |
800x600pixels |
| Alarms |
| Categories |
Patient status and system status |
| Priorities |
Low, medium, and high |
| Notification |
Audible and visual |
| Setting |
Full storage, low battery and sensor off |
| Alarm volume level |
45 to 85 decibels |
| Alarm system delay |
<10seconds |
| Aturation range |
1% to100% |
| Accuracy |
70-100%(±2%), <70% undefined |
| Resolution |
1% |
| Display sweep speed |
10.00 mm/sec |
| Aturation range |
25bpm to 350bpm |
| Accuracy |
±2bpm/±2% take maximum |
| Resolution |
1bpm |
| Aturation range |
25bpm to 350bpm |
| Accuracy |
±2bpm/±2% take maximum |
| Resolution |
1bpm |
| Leads |
I,II,III,V,aVR,aVL or aVL |
| Display gain |
X1/4, X1/2, X1, X2, X4 |
| Display sweep speed |
6.25, 12.5, 25, 50mm/sec |
| Method |
Oscillometric |
| Aturation Range |
0-300mmHg |
| Accuracy |
Based on ANSI/AAMI SP10:1992 and 2002 Standards |
| Measurement Time |
30-50s typical, 180s maximum |
| AUTO Interval Times |
2, 3, 5, 10, 30 min, or 1, 2h |
| Aturation range |
0-130rpm |
| Accuracy |
±1 pm |
| Resolution |
1rpm |
| Aturation range |
0-50°C |
| Accuracy |
±0.2°C |
| Resolution |
0.1°C |
| Mode |
Sidestream or Mainstream |
| Aturation Range |
0-150mmHg |
| Accuracy |
0-40mmHg ±2mmHg 41-150mmHg±10%of reading |
| Resolution |
0.lmmHg |
| Flow rate |
50ml/min ±10ml/min |
| Battery |
Four new lithium batteries with 4,400mAh will typically provide 4.5 hours of monitoring with no external communication, no audible alarm sound, and at an ambient temperature of 25°C |
| Type |
Lithium Batteries, 4,400mAh, DC 11.1V |
| Voltage |
AC 100-240V, 50-60Hz, 80VA |
|
Transport and Storage |
Operating Conditions |
| Temperature |
-40°C to 75°C (-40°F to 167°F) |
0°C to 50°C (32°F to 122°F) |
| Altitude |
-500 to 5,000m (-1,640 to 16,404ft.) |
| Relative humidity |
15%to95%noncondensing |
|
Tabular |
| Memory |
Saves a total of 120 hours of data events; saves date and time, alarm conditions, measurements |
| Tabular format |
One table for all parameters |
| Standard |
SpO2+ECG+NIBP+RESP+TEMP |
| Optional |
Sidestream/Mainstream ETCO2 Module, Trolley, Recoder, Brace, IPMS8600 Central monitoring system |
Ordering and configuration
Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
