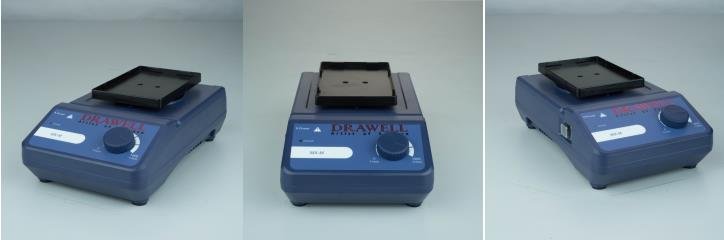

Drawell Microplate Mixer MX-M

Product overview

Microplate Mixer is used for holding single or double microplates. The compact shape of the MX-M Microplate Mixer occupies less bench space and makes storage easier. It is widely used in life sciences including microbiology, cell and molecular biology, immunology, and biotechnology.

The Drawell Microplate Mixer MX-M supports research, pharmaceutical, environmental, food, industrial, and educational laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

A wide range of speed is from 0 to 1500rpm.
Maintenance-free brushless DC motor.
Used for various mixing applications with optional adapters.
Shaking movement
Orbital diameter
Max. shaking weight(with accessory)
Brushless DC motor
Motor rating input
Motor rating output
Single microplate: 0-1500rpm Double microplate: 0-1000rpm
Speed Display
100-240V,50/60Hz
260×150×80mm
Permissible ambient temperature and humidity

Applications

Mixing, homogenization, extraction, digestion, separation, or concentration
Preparation of samples before analysis
Routine research and quality-control workflows

Technical specifications

Shaking movement	Orbital
Orbital diameter	4.5mm
Max. shaking weight(with accessory)	0.5kg
Motor type	Brushless DC motor
Motor rating input	18W
Motor rating output	10W
Speed Range	Single microplate: 0-1500rpm Double microplate: 0-1000rpm
Speed Display	Scale
Voltage	100-240V,50/60Hz
Power	20W
Dimension	260×150×80mm
Weight	3kg
Permissible ambient temperature and humidity	5-40 C,80%RH
Protection class	IP21

Cat. No.	P/N	Descriptions	Picture
18900067	PS1.1	Universal top plate(round)，used with VT1.3.1–5
18900020	VT1.3.1	Tube adapter, for 48 holes test tubes, Ø6mm (0.5ml), used with VT 1.3/ VT 1.2/PS1.1
18900021	VT1.3.2	Tube adapter, for 18 holes test tubes, Ø10mm (1.5-2.0ml), used with VT 1.3/ VT 1.2/PS1.1
18900022	VT1.3.3	Tube adapter, for 12 holes test tubes, Ø12mm (2-7ml), used with VT 1.3/ VT 1.2/PS1.1
18900023	VT1.3.4	Tube adapter, for 8 holes test tubes, Ø16mm (4-15ml), used with VT 1.3/ VT 1.2/PS1.1
18900024	VT1.3.5	Tube adapter, for 8 holes test tubes, Ø20mm (20ml), used with VT 1.3/ VT 1.2/PS1.1
18900042	PS1.2	Microplate clamp (default)
18900079	MXM-116	Double microplate clamps

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
