Drawell Micro Spectrophotometer DW-K5800 DW-K5800C

Name: Drawell Micro Spectrophotometer DW-K5800 DW-K5800C - Scientificchina.com
SKU: DRAWELL-1113F96674

Available in stock

Features

The Drawell Micro Spectrophotometer DW-K5800 DW-K5800C is a professional analytical laboratory instrument. Review features and technical specifications, then request configuration, MOQ, lead time, warranty, and a formal quotation.

Compare Wishlist

Compare

SKU: DRAWELL-1113F96674 Category: Micro/Nano Spectrophotometer

Scientific China

Store

Scientific China

Store

People Also Viewed

Shipping

Additional information

Product Category	Spectrophotometer > Micro/Nano Spectrophotometer

Questions & Answers

Product Enquiry

Description

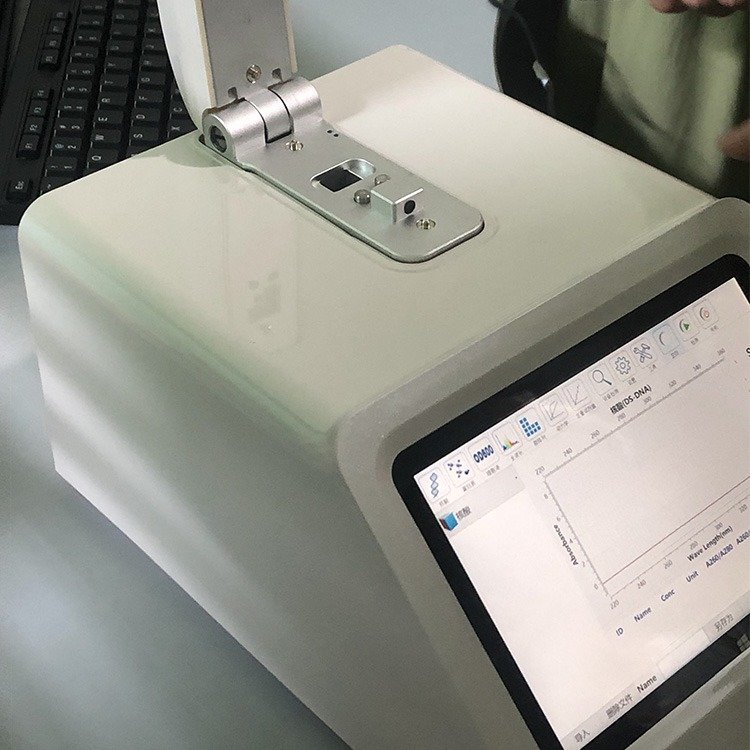

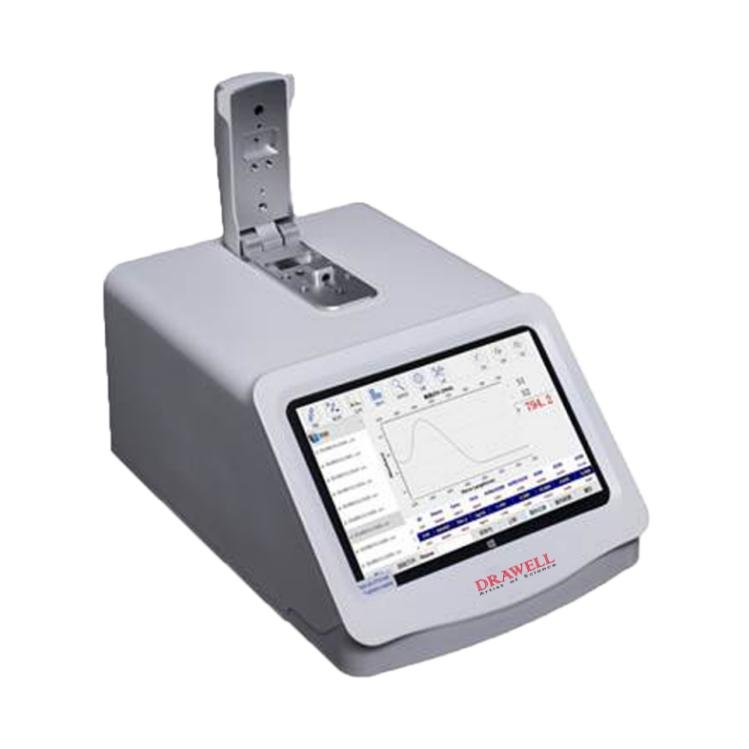

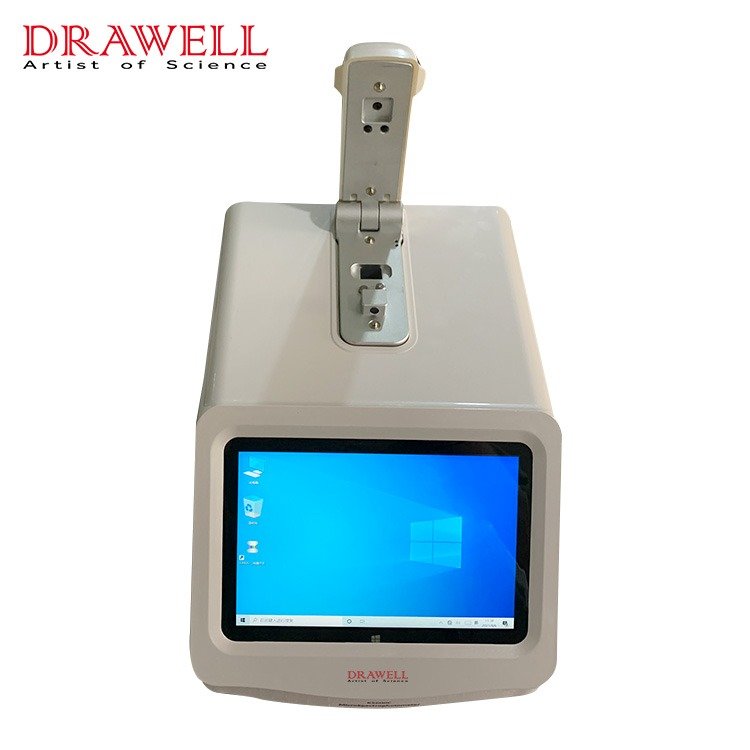

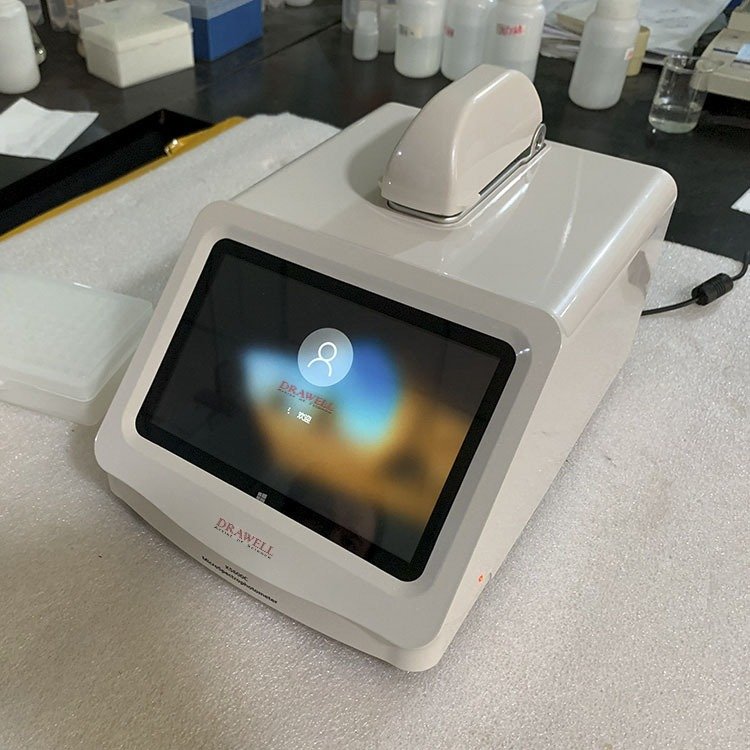

Drawell Micro Spectrophotometer DW-K5800 DW-K5800C

Product overview

The ultra-micro spectrophotometer is a new type of full-wavelength spectrophotometer, which can detect nucleic acid, protein, bacteria, cell bacteria, microarray samples, and conventional full-wavelength scanning, etc.

The Drawell Micro Spectrophotometer DW-K5800 DW-K5800C supports research, pharmaceutical, environmental, food, industrial, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

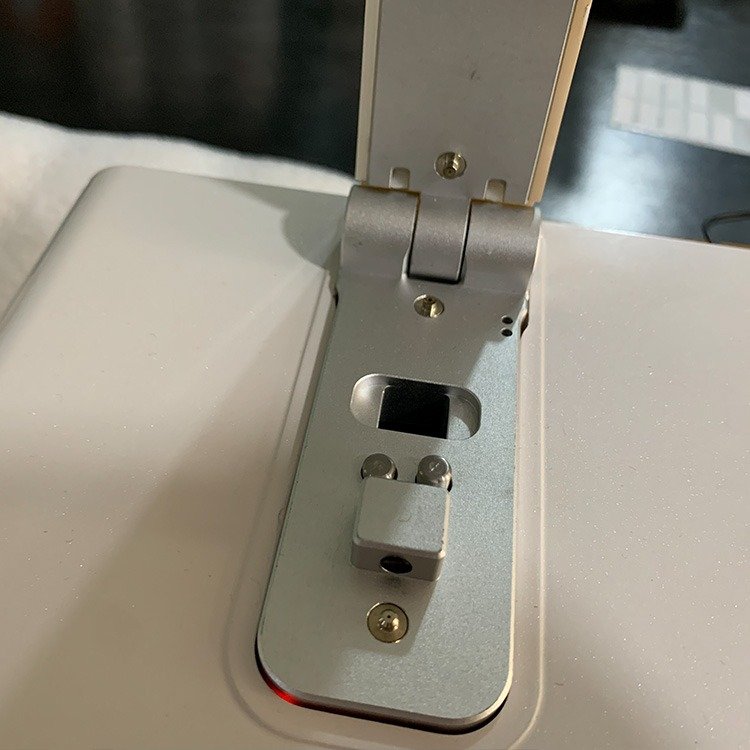

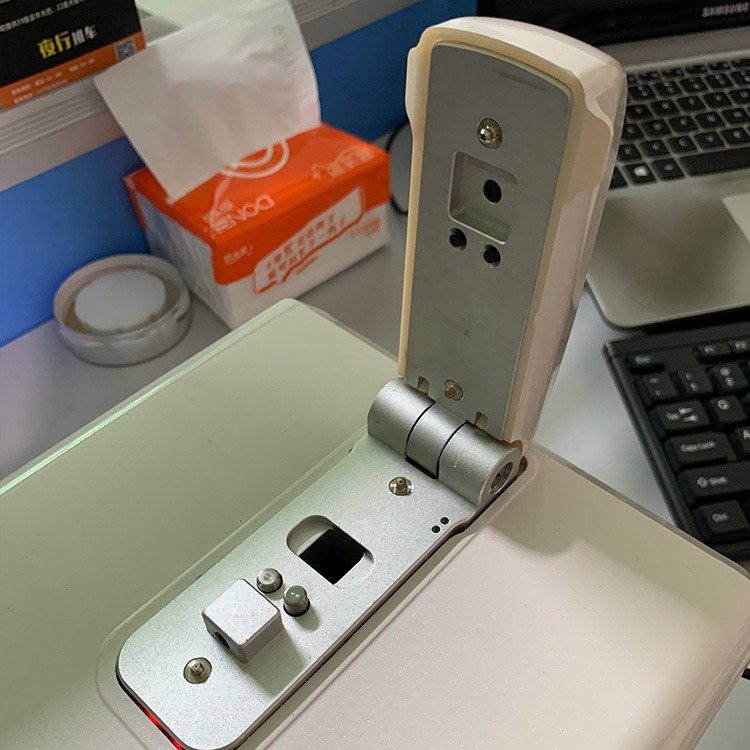

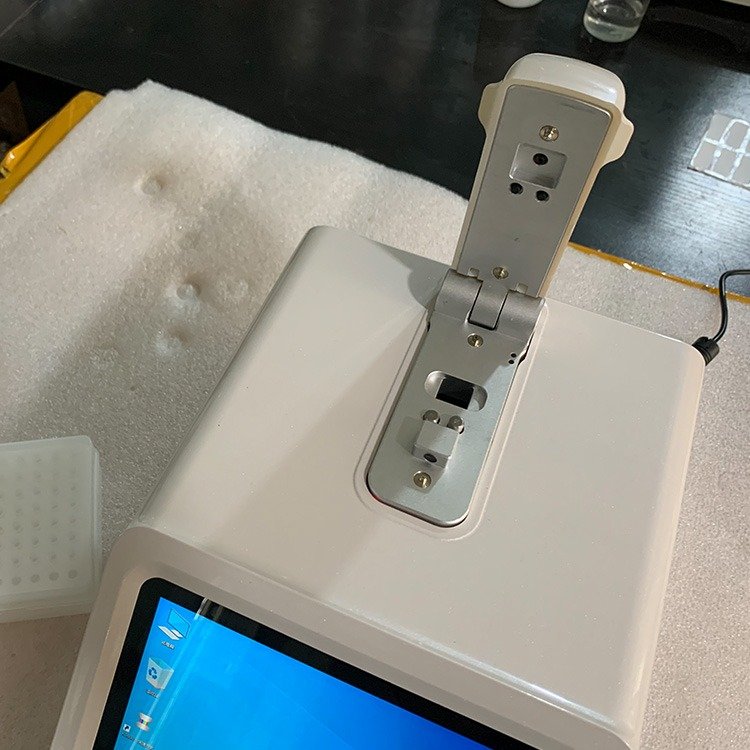

Platform material: stainless steel and quartz fiber.
No need to warm up, start testing at any time.
Built-in fiber to avoid fiber breakage caused by external force collision, resulting in chaotic measurement results

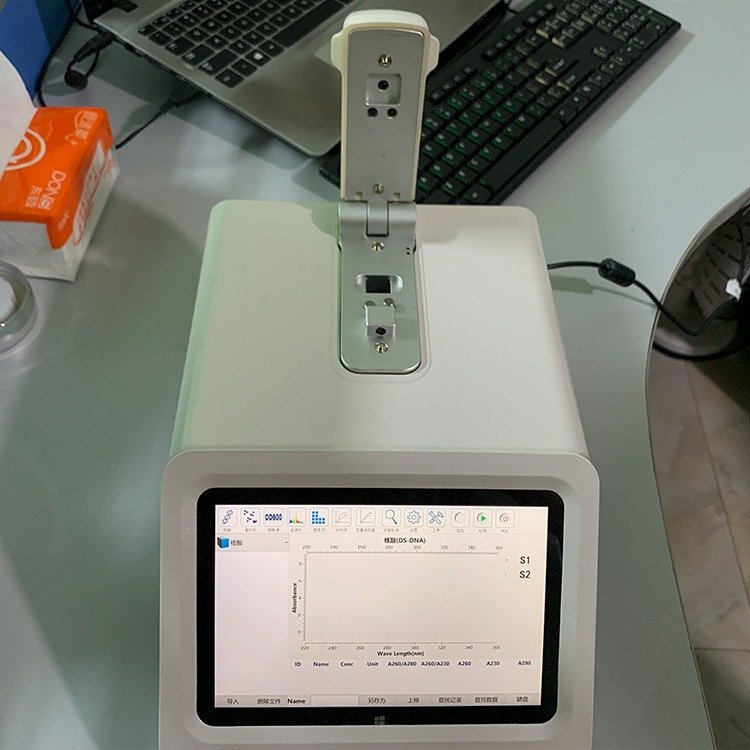

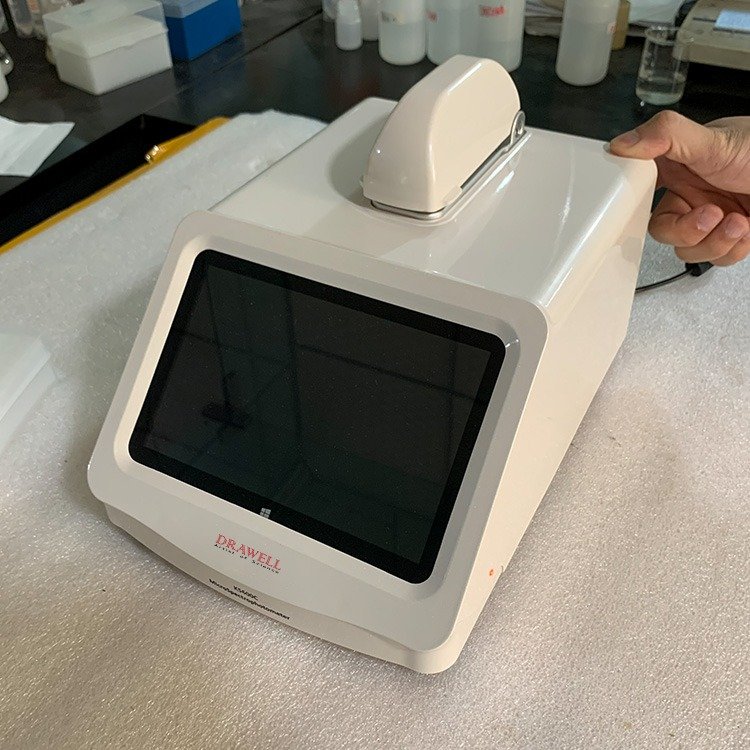

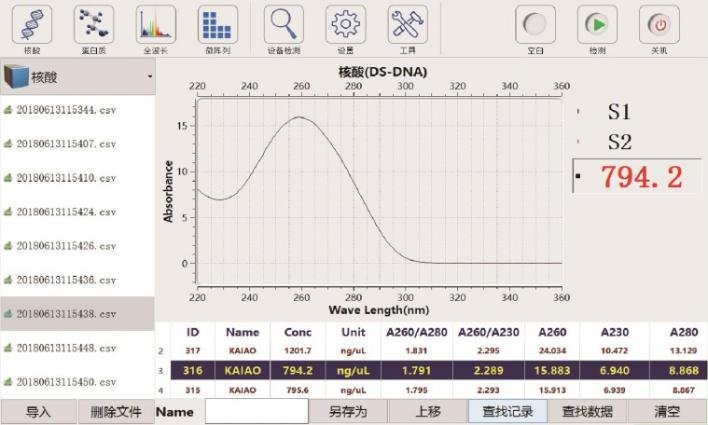

Instrument control and operation: built-in win10 system, built-in 7-inch high-definition display, full touch operation.
Data output method: Built-in ≥32GB storage space.Users can directly store measurement result data and custom methods,which can be automatically saved in spreadsheet mode. USB output or network transfer data, with electronic manual.

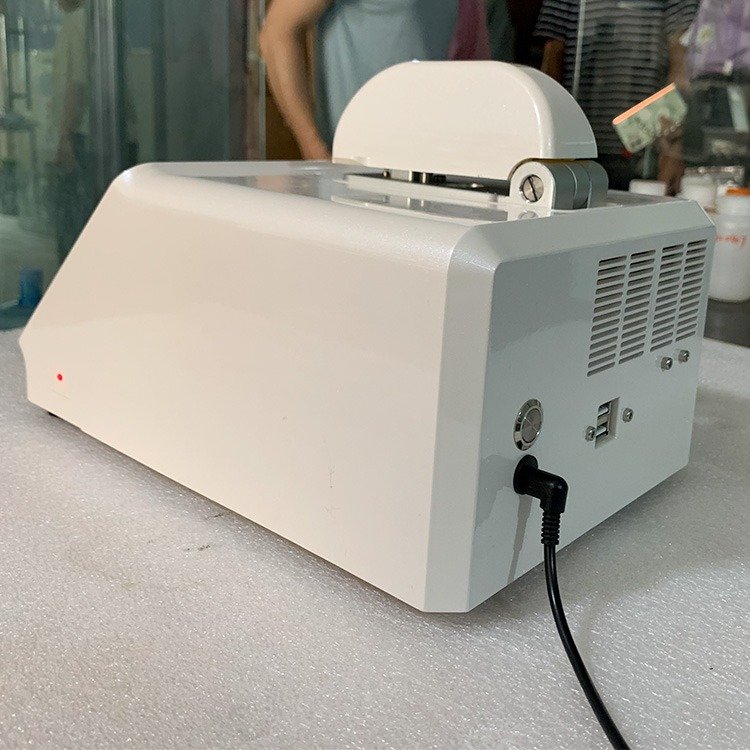

Data output port: 2 USB ports, which can be connected to various devices such as mouse, keyboards, desktop computers, etc.
Built-in Bluetooth, WIFI, available to remote operation and print results data wirelessly.
With a liquid column to determine abnormal function.
Through the USB port or network dump data
Without preheating, boot at any time detection
With a liquid column to determine abnormal function
With automatic measurement function, simplifying the operation process
Permanent preservation of data, at any time to export or delete data
Built-in wifi, remote operation can be achieved

Applications

Quantitative or qualitative laboratory analysis
Research, method development, and routine quality control
Application-specific testing with suitable accessories and methods

Technical specifications

Light source	long life pulsed xenon flash lamp
Detector	2048(CMOS) element linear silicide CCD array
Wavelength range	190 ~ 850nm
Wavelength accuracy	± 1nm
Wavelength resolution	2 nm (FWHM at Hg 546 nm)
Repeatability	<± 0.5nm
Light path	1mm, 0.05mm (optical path automatic conversion)
Nucleic Acid measurement range	0.2 ~ 37500ng / μl (dsDNA)
Protein measurement range	0.01 ~ 1120mg / ml (BSA)
sample volume requirements	0.3 ~ 2 μL
Absorbance Accuracy	1% (0.76 absorbance at 350 nm)
Absorbance range	0.002 – 300Abs (equivalent to 10mm path length)
Sample measurement time	less than 3s
Sample base material	stainless steel and quartz fiber

Cuvette Specifications (optical path)	1mm, 2mm, 5mm, 10mm
Min sample volume of the cuvette	20 μl
The minimum height of the cuvette sample	5mm
Cuvette Type	A cuvette with a traceable cuvette specification
Cuvette Anechoic Chamber	A standard cuvette darkroom with a wide variety of cuvettes
Mixing system	comes with mixing mixing system

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
