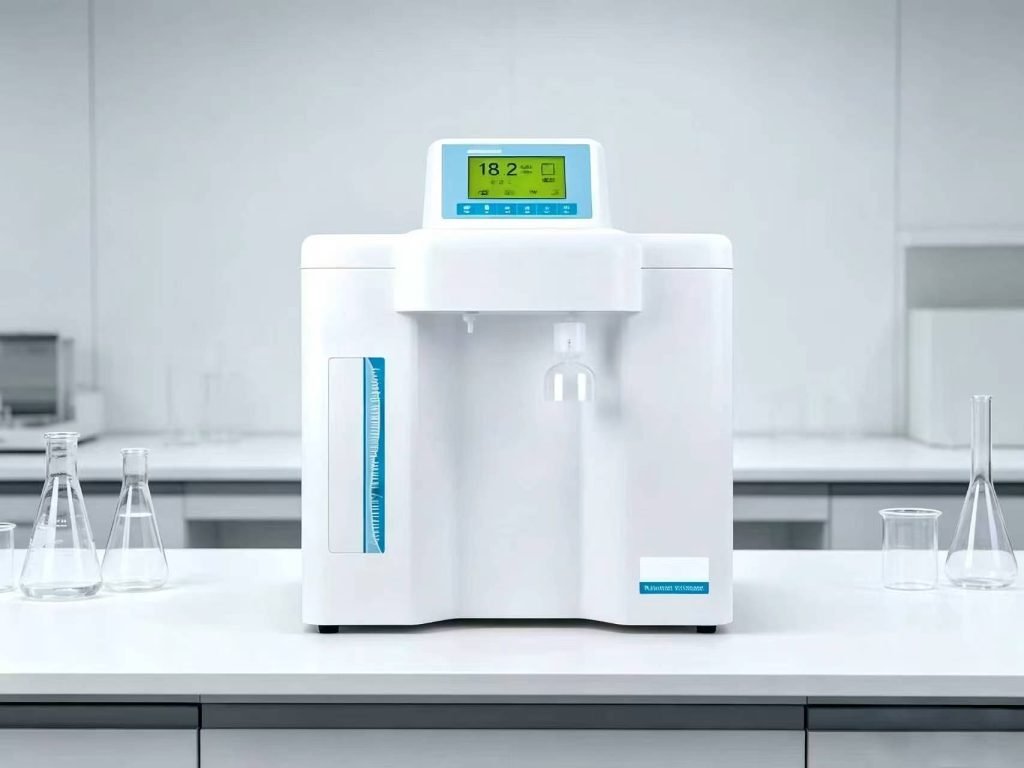

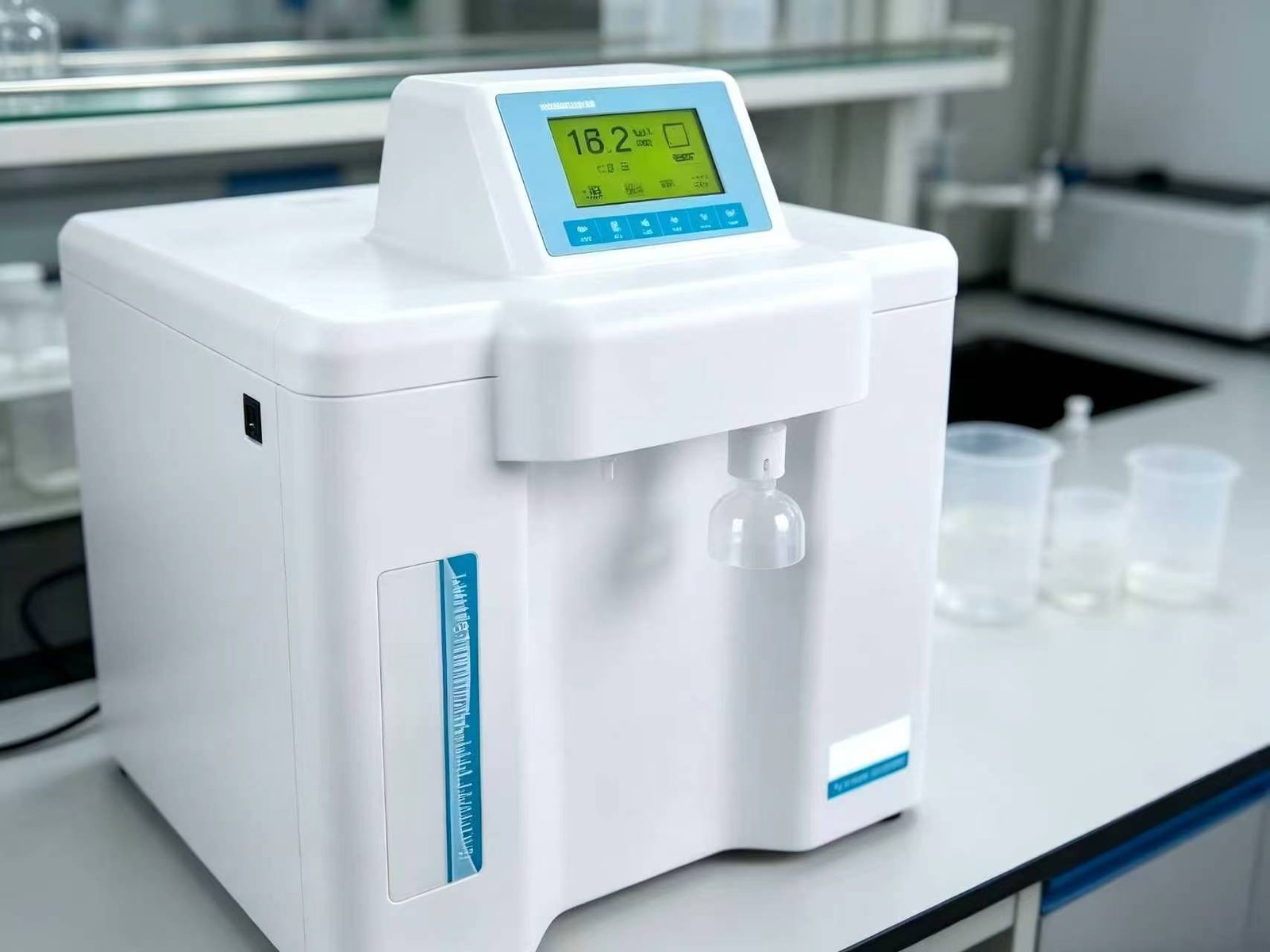

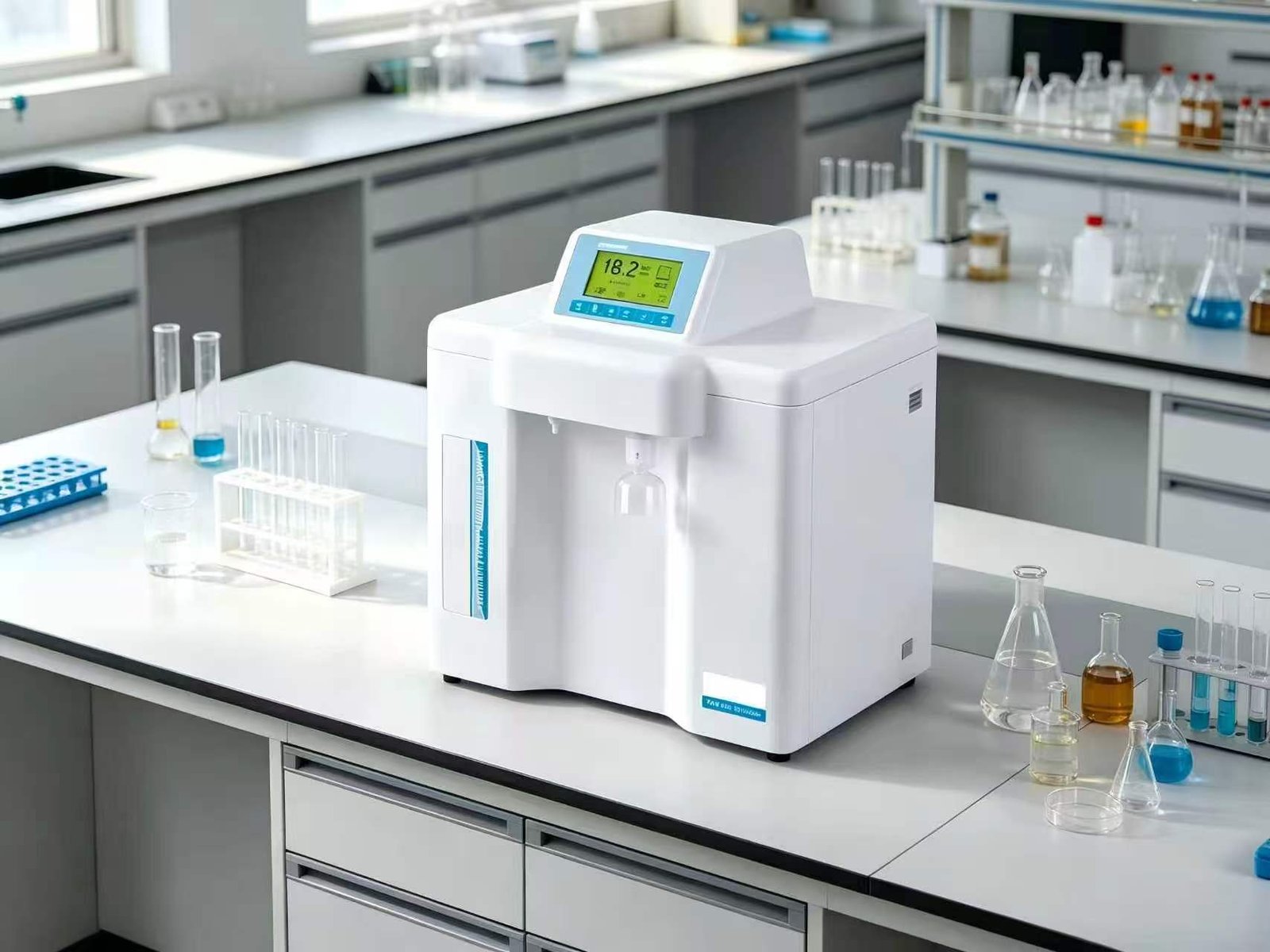

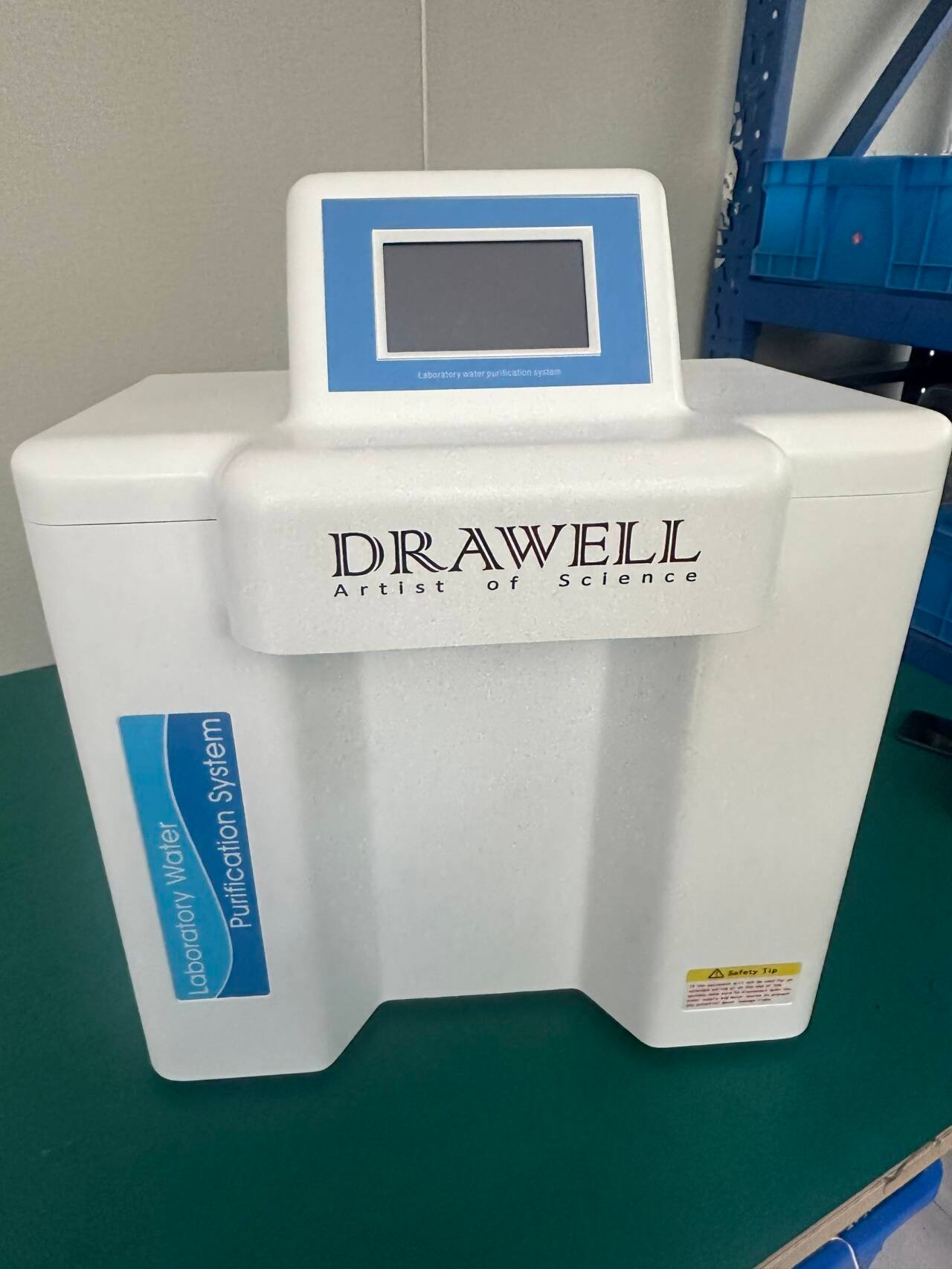

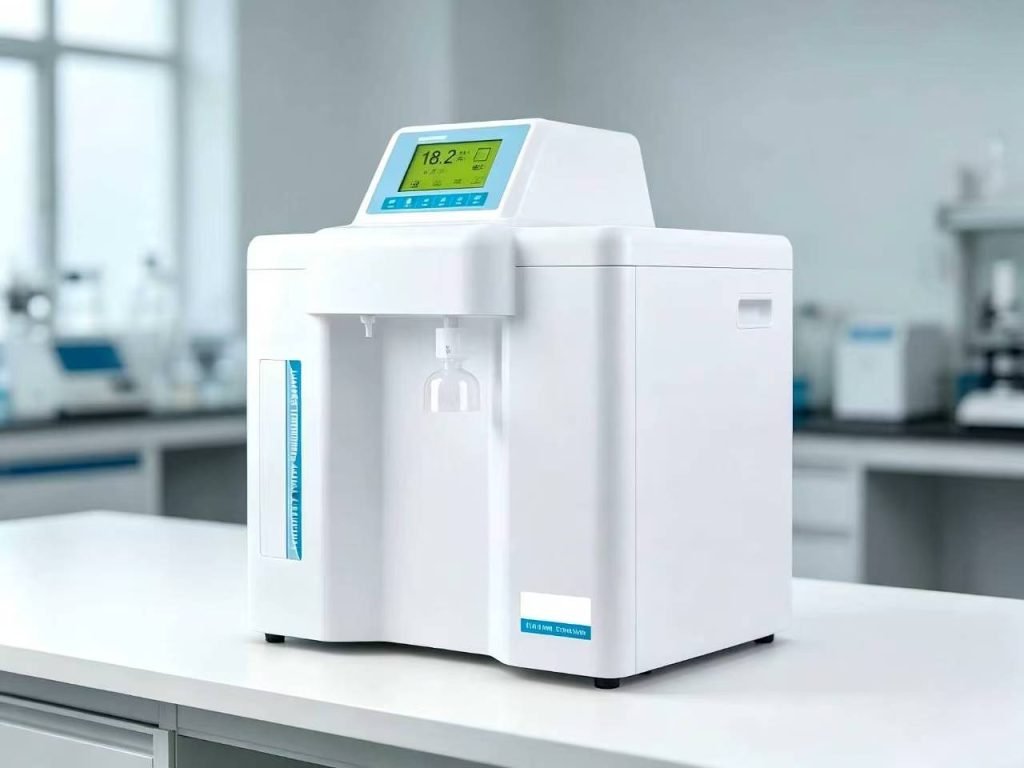

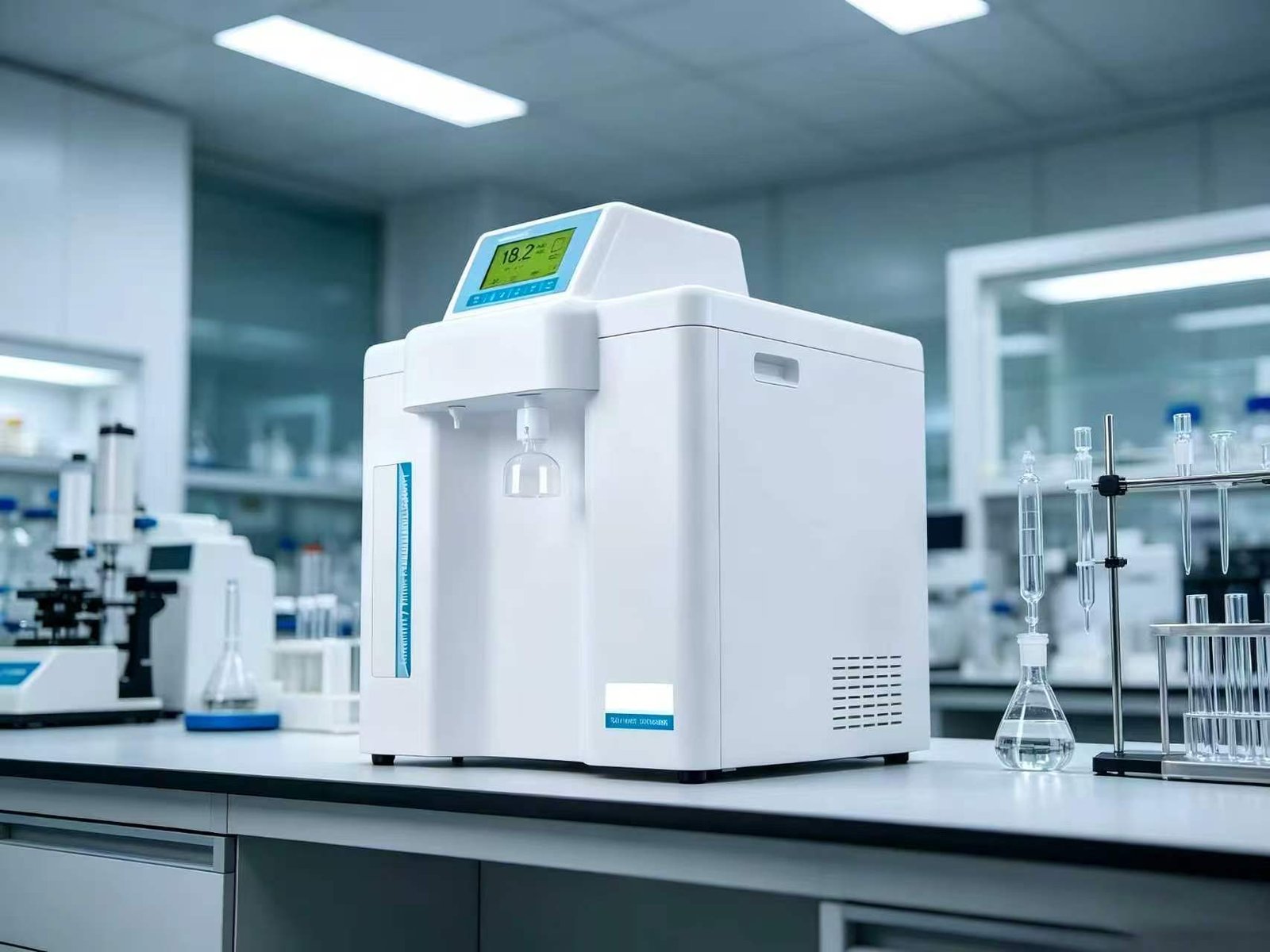

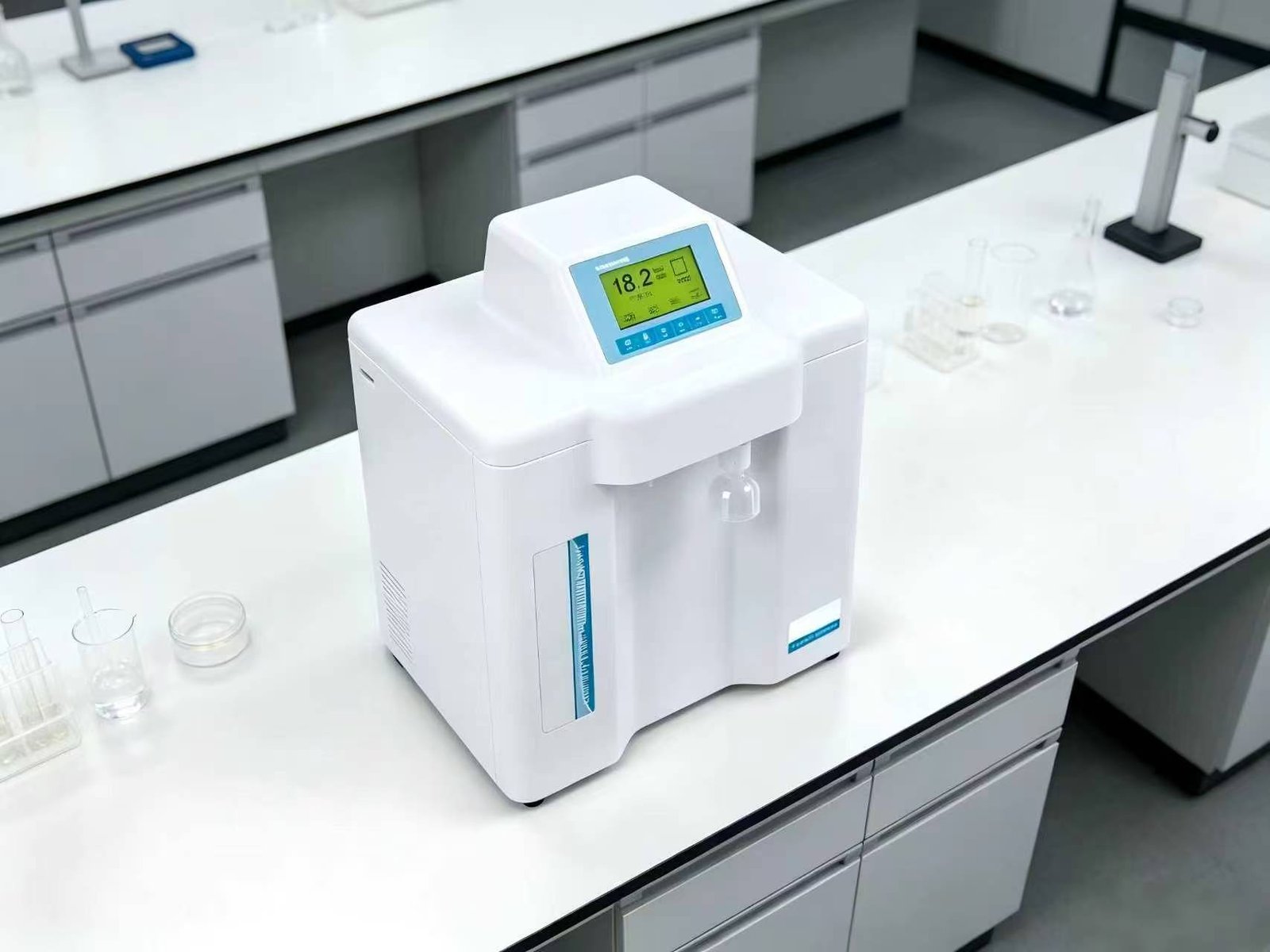

Drawell Master Series Ultrapure Water System (Tap water inlet)

Drawell Master Series Ultrapure Water System (Tap water inlet)

Product overview

Master Series Water Purification System provides a complete solution for producing high-quality pure and ultrapure water in laboratories. With intelligent control, real-time water quality monitoring, automatic system management, and advanced multi-stage purification technology, it delivers ultrapure water up to 18.2 MΩ·cm with excellent stability, low TOC, and reliable performance for various laboratory applications.

The Drawell Master Series Ultrapure Water System (Tap water inlet) supports research, clinical, industrial, education, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

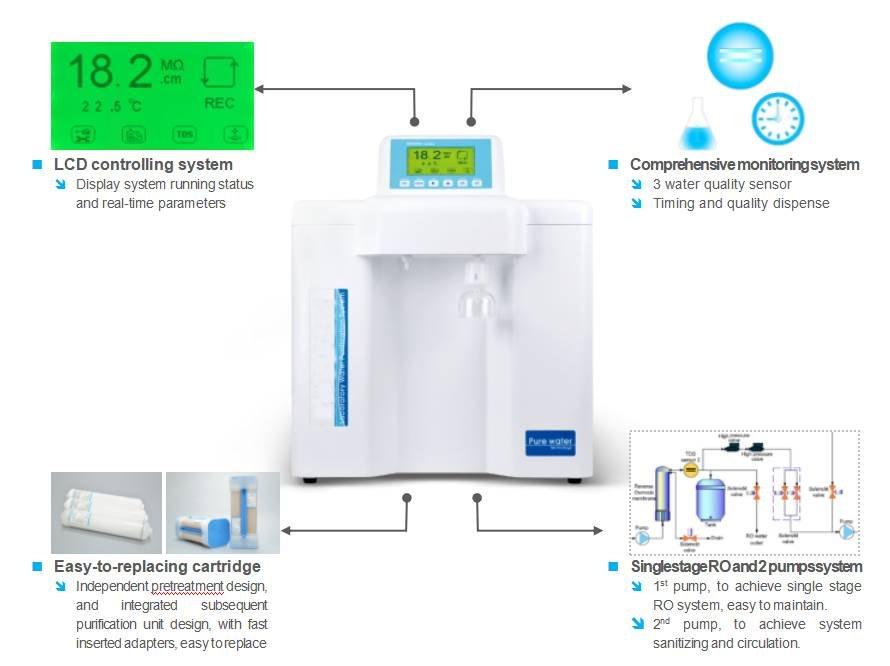

Key features

• Up to 18.2 MΩ·cm Ultrapure Water: 4-in-1 cartridge with DOW polishing resin ensures high resistivity and low TOC.
• 185/254 nm Dual-Wavelength UV: Inhibits microbial growth and reduces TOC.
• MWCO 5,000 Da Ultrafiltration: Removes endotoxins for cell culture, IVF, and other sensitive applications.
• 0.45 + 0.10 μm PES Final Filter: Provides high-efficiency terminal filtration for sterile water dispensing.

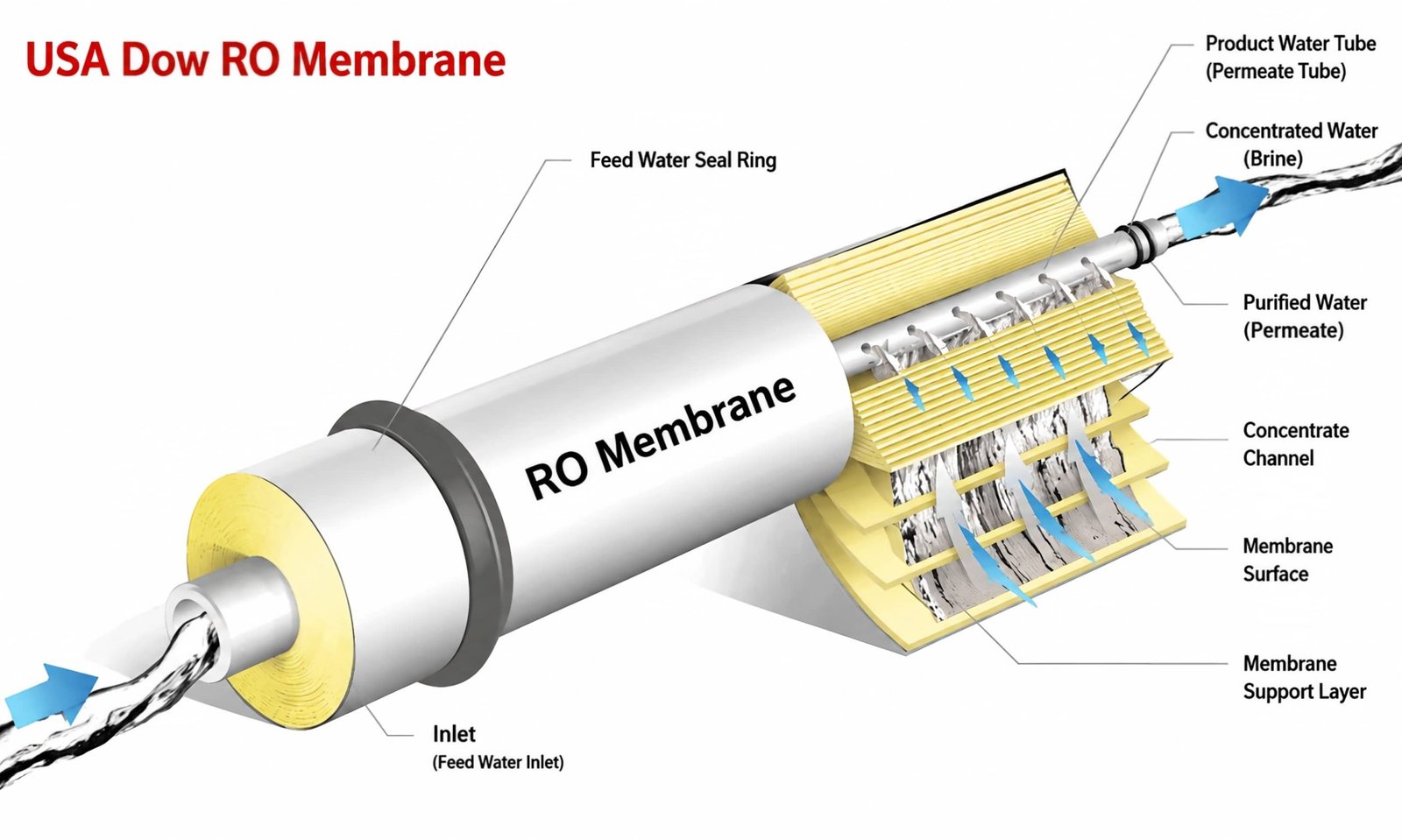

• DOW RO Membrane and Multi-Stage Pretreatment: PP fiber, KDF, and activated carbon protect the membrane and support stable desalination.
• 5.0-Inch HD Touchscreen: 16:9 color interface enables intuitive control and real-time system monitoring.
• 3-Point Water Quality Monitoring: Monitors feed, RO, deionized, or ultrapure water with automatic out-of-range alarms.
• Dual Flow Sensors: Enable quantitative dispensing of RO, deionized, or ultrapure water.
• Automatic Circulation, Sanitization and RO Flushing: Maintains water quality, disinfects internal tubing and valves, and extends RO membrane life through programmable flushing.
• Intelligent Cartridge and Alarm Management: Displays cartridge usage and remaining life, with alarms for no feed water, full tank, abnormal water quality, and cartridge expiration.
• Automatic Data Recording: Built-in SD card stores operating data, with USB export for documentation and traceability.
• Comprehensive System Management: Displays operating status, water quality, cartridge usage, and alarm records, with 0–60-minute standby and 0–24-hour scheduled shutdown.
• Level II Password Protection: Prevents unauthorized changes to operating parameters.
• Flexible Tank Configuration: Supports liquid-level PE tanks, pressure tanks, and optional external tanks.

Applications

• Professional laboratory testing or sample-processing workflows
• Routine research and quality-control applications
• Application-specific operation according to the selected model

Technical specifications

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
