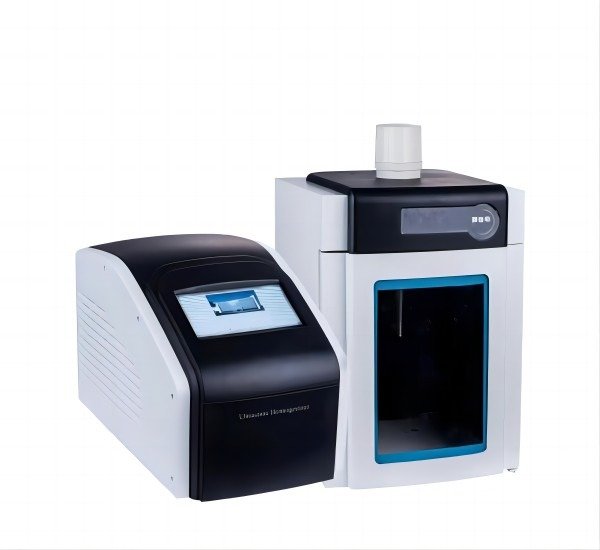

Drawell JY99-IIDN Ultrasonic Homogenizer
Available in stock
The Drawell JY99-IIDN Ultrasonic Homogenizer is a professional sample-preparation laboratory instrument. Review features and technical specifications, then request configuration, MOQ, lead time, warranty, and a formal quotation.
SKU: DRAWELL-CA9D240DB7
Category: Ultrasonic Homogenizer
Tags: Drawell, Homogenizer > Ultrasonic Homogenizer, JY99-IIDN Ultrasonic Homogenizer, laboratory equipment
Brand: Drawell
Report Abuse
Scientific China
Store
Scientific China
StorePeople Also Viewed
-
RayKol Vitae 60 PCR Setup Automatic System — Estimated Price US$25,000–US$65,000
-
RayKol Vitae M96S Semi-Automatic Liquid Handling Workstation — Estimated Price US$18,000–US$45,000
-
RayKol EVA Mini 96 96-Well Plate Sample Drier — Estimated Price US$8,000–US$22,000
-
RayKol SAP 20 Automatic Dried Blood Spot Puncher — Estimated Price US$15,000–US$40,000
-
RayKol Mini Lids Automatic Capping Machine — Estimated Price US$6,000–US$18,000
-
Sineo ECH-II Temperature-Controlled Heating Block
Shipping
Additional information
| Product Category | Homogenizer > Ultrasonic Homogenizer |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description
Drawell JY99-IIDN Ultrasonic Homogenizer
Product overview
JY99-IIDN Ultrasonic Homogenizer Main Technical Parameters： Other Ultrasonic Homogenizer DW08-III Uncontact Ultrasonic Cell Crusher JY88-IIN JY96-IIN Ultrasonic Homogenizer JY92-IIN JY92-IIDN Ultrasonic Homogenizer DW-IID Ultrasonic Homogenizer JY99-IIDN Ultrasonic Homogenizer JY98-IIIDN Ultrasonic Homogenizer DW08-II Uncontact Ultrasonic Cell Crusher
The Drawell JY99-IIDN Ultrasonic Homogenizer supports research, pharmaceutical, environmental, food, industrial, and educational laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.
Key features
- 19.5-20.5KHz
- 1800W (1%- 100%)
- 7” TFT Touch display
- Temperature alarm range
- Accessories (Φ)
- Working method
- Interval /continue
- Time, temperature, overload
- Optional Tip (Φ)
- Crushing Capacity
- Duty Ratio (%)
- 220/110V 50Hz/60Hz
- Host size& weight
- 430mm*245mm*300mm &11.8Kg
Applications
- Mixing, homogenization, extraction, digestion, separation, or concentration
- Preparation of samples before analysis
- Routine research and quality-control workflows
Technical specifications
| MODEL No | JY99-IIDN |
|---|---|
| Frequency | 19.5-20.5KHz |
| Power | 1800W (1%- 100%) |
| Display | 7” TFT Touch display |
| Temperature alarm range | 0-99.9C |
| Accessories (Φ) | Ф25 |
| Working method | Interval /continue |
| Alarm items | Time, temperature, overload |
| Optional Tip (Φ) | Ф15mm, 28mm |
| Crushing Capacity | 50- 1200ml |
| Duty Ratio (%) | 0.1-99.9% |
| Supply | 220/110V 50Hz/60Hz |
| Host size& weight | 430mm*245mm*300mm &11.8Kg |
| Sound chamber size & weight | 345mm*345mm*535mm &12kg |
Ordering and configuration
Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
