Drawell HBDV-1 60-320000000mPa·s High Viscosity Viscometer

Drawell HBDV-1 60-320000000mPa·s High Viscosity Viscometer

Product overview

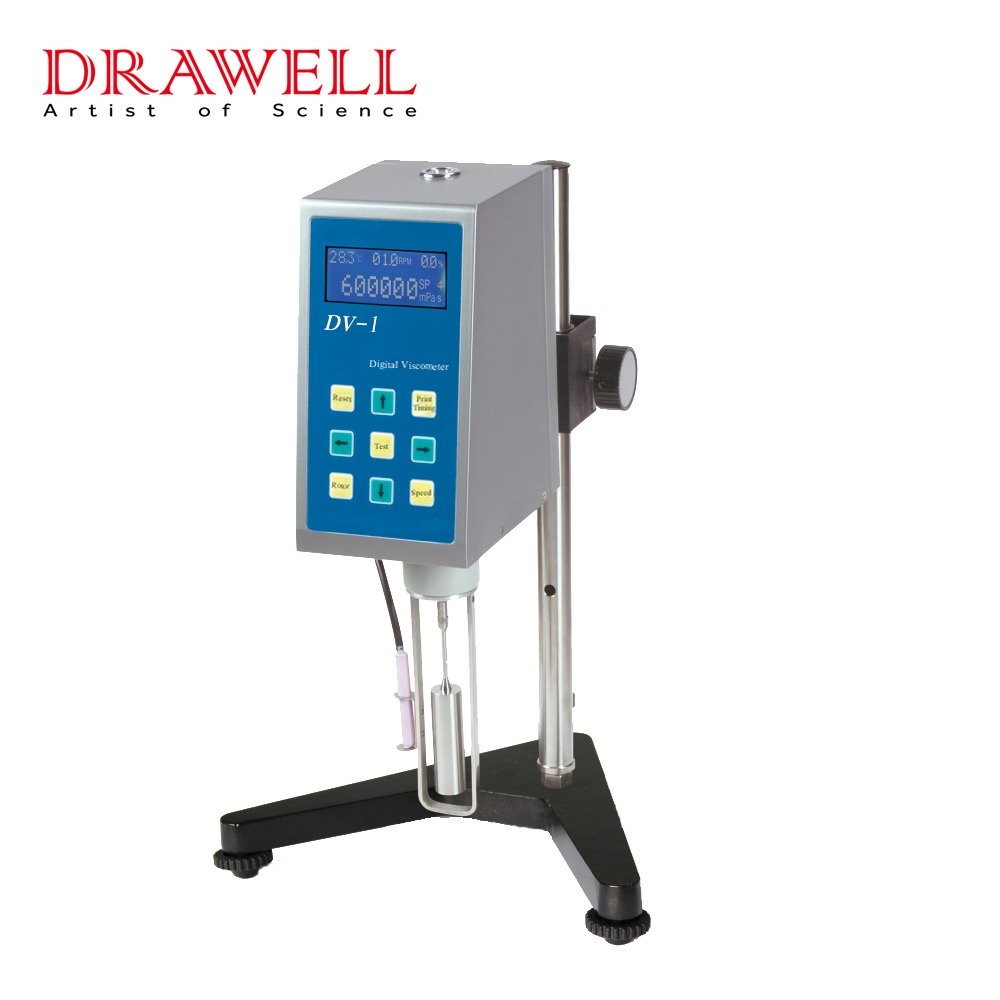

The HBDV-1 viscometer is a digital wide-range rotational viscometer. It can measure the viscosity of substances ranging from relatively thick liquids to ultra-high viscosity semi-solids.

The Drawell HBDV-1 60-320000000mPa·s High Viscosity Viscometer supports research, clinical, industrial, education, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

• Extreme low viscometer adapter (with one spindle L0)
• Small sample adapter (with spindle 21, 27, 28 and 29 each)
• Temperature-controlled heater (with spindle 21, 27, 28 and 29 each)
• Special software that can complete the function in collecting the data automatically
• DV program control download software
• Specially used printer
• HBDV-1 measures viscosity from 640 to 320,000,000 mPa.s. It can measure the viscosity of substances ranging from relatively thick liquids to ultra-high viscosity semi-solids.
• It is commonly used for adhesives, sealants, resins, polymers, honey, jams, skincare products, toothpaste, asphalt, etc. high-viscosity fluids, pastes, and even semi-solid substances.
• Yes. It typically offers higher measurement accuracy in the low to high viscosity range, making it more suitable for applications involving low viscosity, medium and high viscosity fluids.
• HBDV-1 provides 0.1 ~ 99.9 rpm(Stepless Gear).

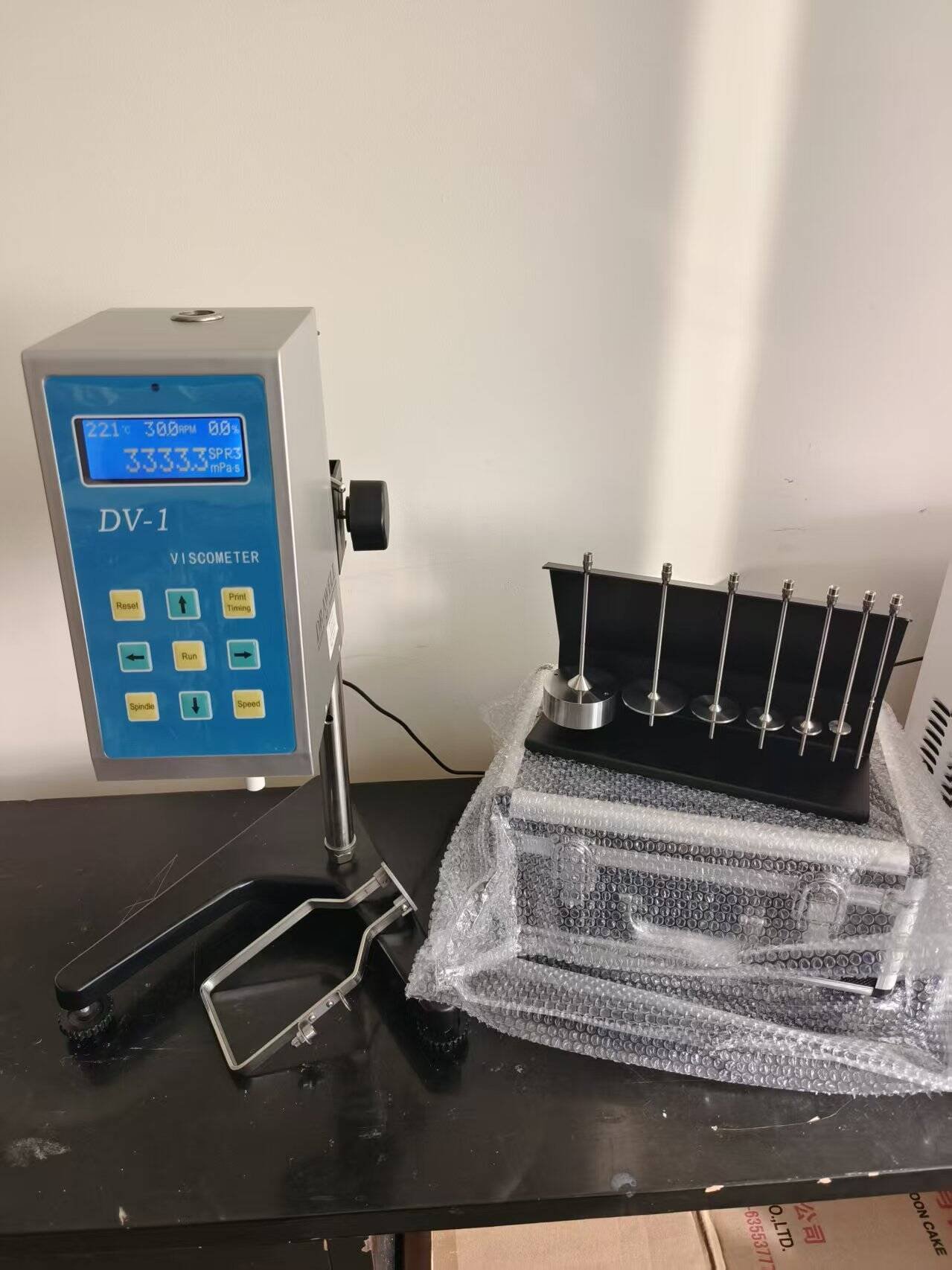

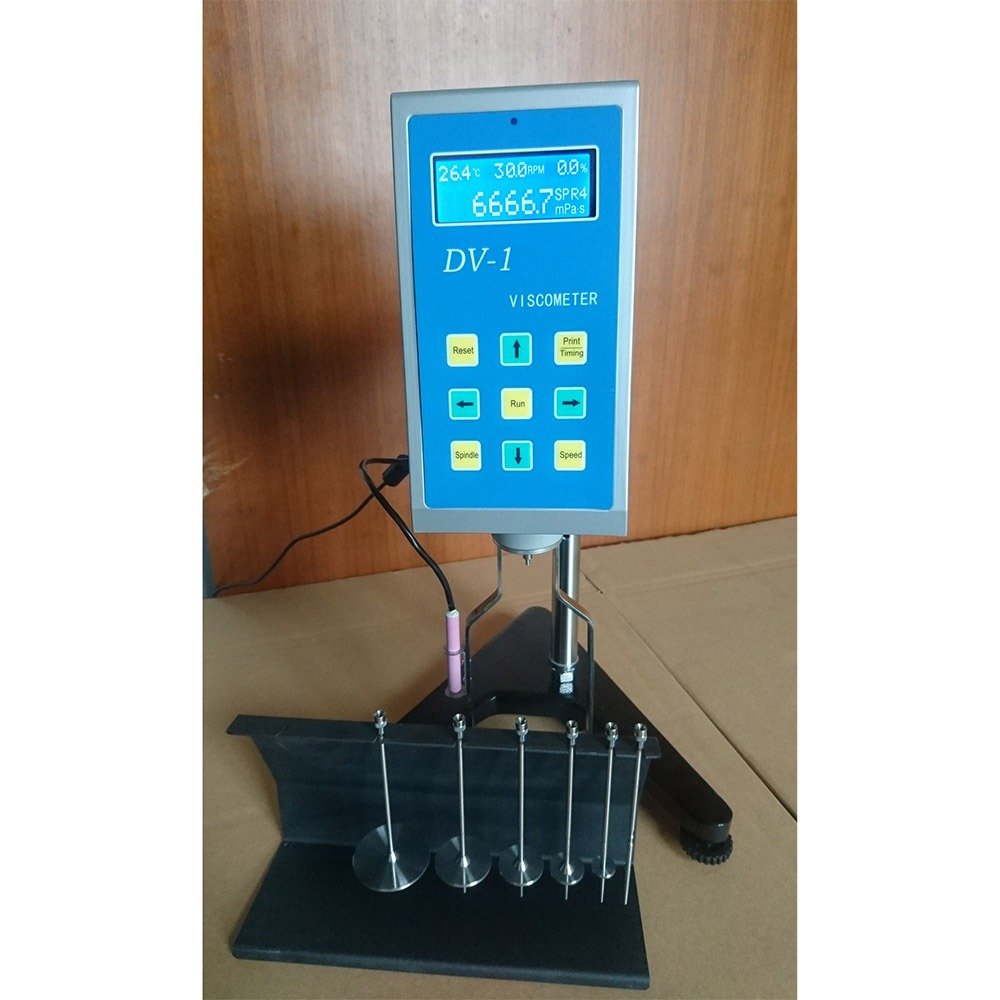

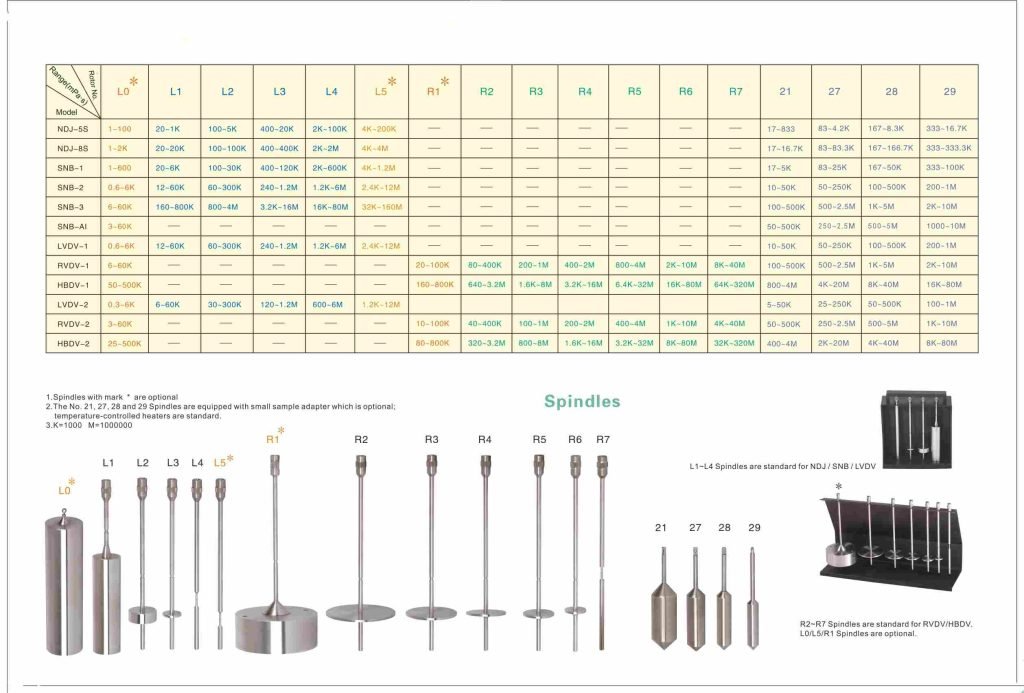

• The instrument is supplied with R2,R3,R4,R5,R6 and R7 spindles for different viscosity ranges.
• HBDV-1 offers ±1% full-scale accuracy and ±0.5% full-scale repeatability for reliable routine viscosity testing.

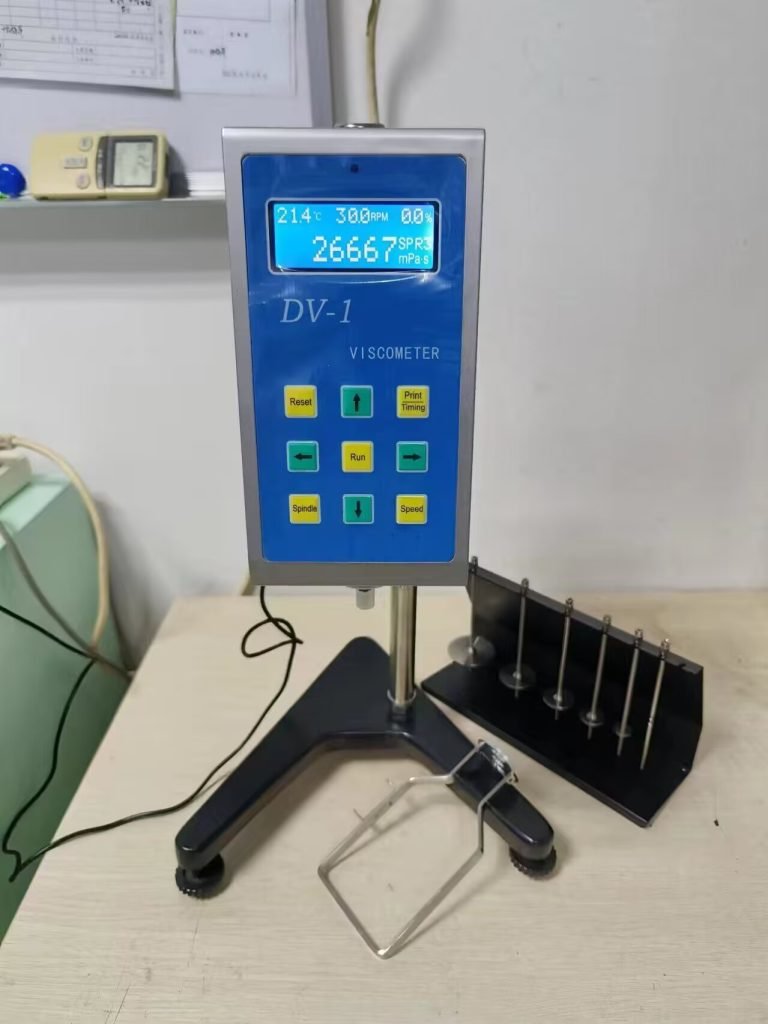

• The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value.
• Yes, we provide a user manual and installation videos, making installation very easy.

Applications

• Food and pharmaceutical industries

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
