Drawell Gentier 48E Real-time PCR System

Product overview

Gentier-48E is a 48-well real-time PCR system for fluorescence-based nucleic acid amplification and quantitative analysis. It combines four-channel fluorescence detection with Peltier thermal cycling and supports quantitative, genotyping, melting-curve and HRM analysis for routine molecular laboratory workflows.

The Drawell Gentier 48E Real-time PCR System supports hospitals, diagnostic laboratories, research centers, and healthcare facilities. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

DESIGN FOR FLEXIBLE USE

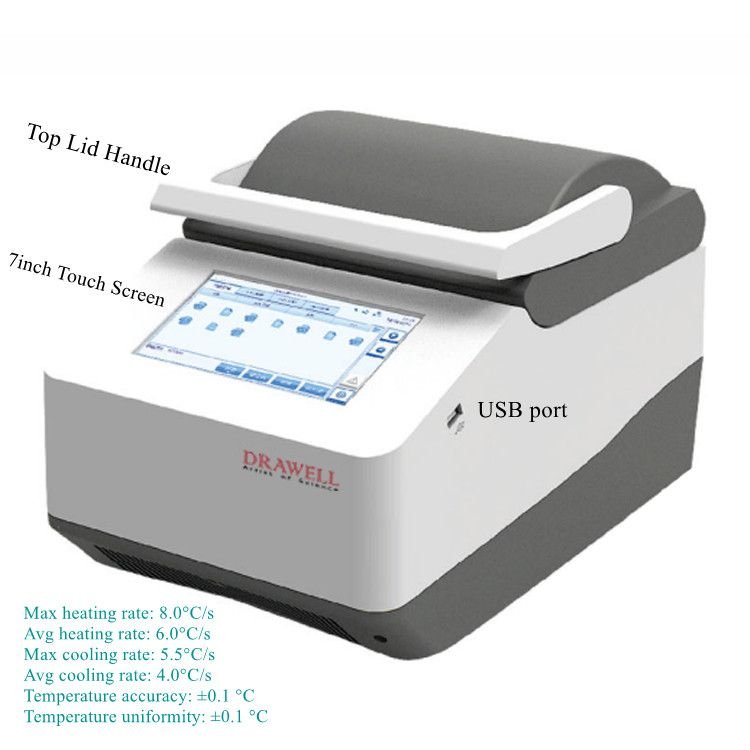

Standard with a 7″ LCD touch screen, functions quickly, accessible through simple, one-touch commands.
A unique power-off protection function can save all the setted configurations for sudden power outages, and allow the experiment continues when the power supply is restored.
FAST AND UNIFORM HEATING SYSTEM
A highly efficient PID&DSP control algorithm ensures faster response and stronger interference resistance, fast and uniform heating and heat sinking.
HIGH SENSITIVE AND PRECISE OPTICAL SYSTEM
High-sensitivity and wide dynamic range of fluorescence detection system, sample dynamic range could be from 10 1 to 10 10 copies.
A fast and precise mechanical scanning structure ensures the illumination uniformity of 96 wells, eliminates edge effects, and no need for ROX calibration.
EASY-TO-USE SOFTWARE
USB or WLAN easily transfers experiments data anywhere you needed.
Multi-options for experiments: New, New for Existed, Open data file, Double click data file.
Pre-installed templates can help users easier to edit the protocols.
RUN MONITORING
Users can define each model to see what they like on the screen: Real-time Fluorescence, Heat map, Run info, Sample Setting, and Sample info.

Applications

Clinical, molecular, or immunoassay laboratory workflows
Sample analysis and routine diagnostic testing
Research and application-specific laboratory testing

Technical specifications

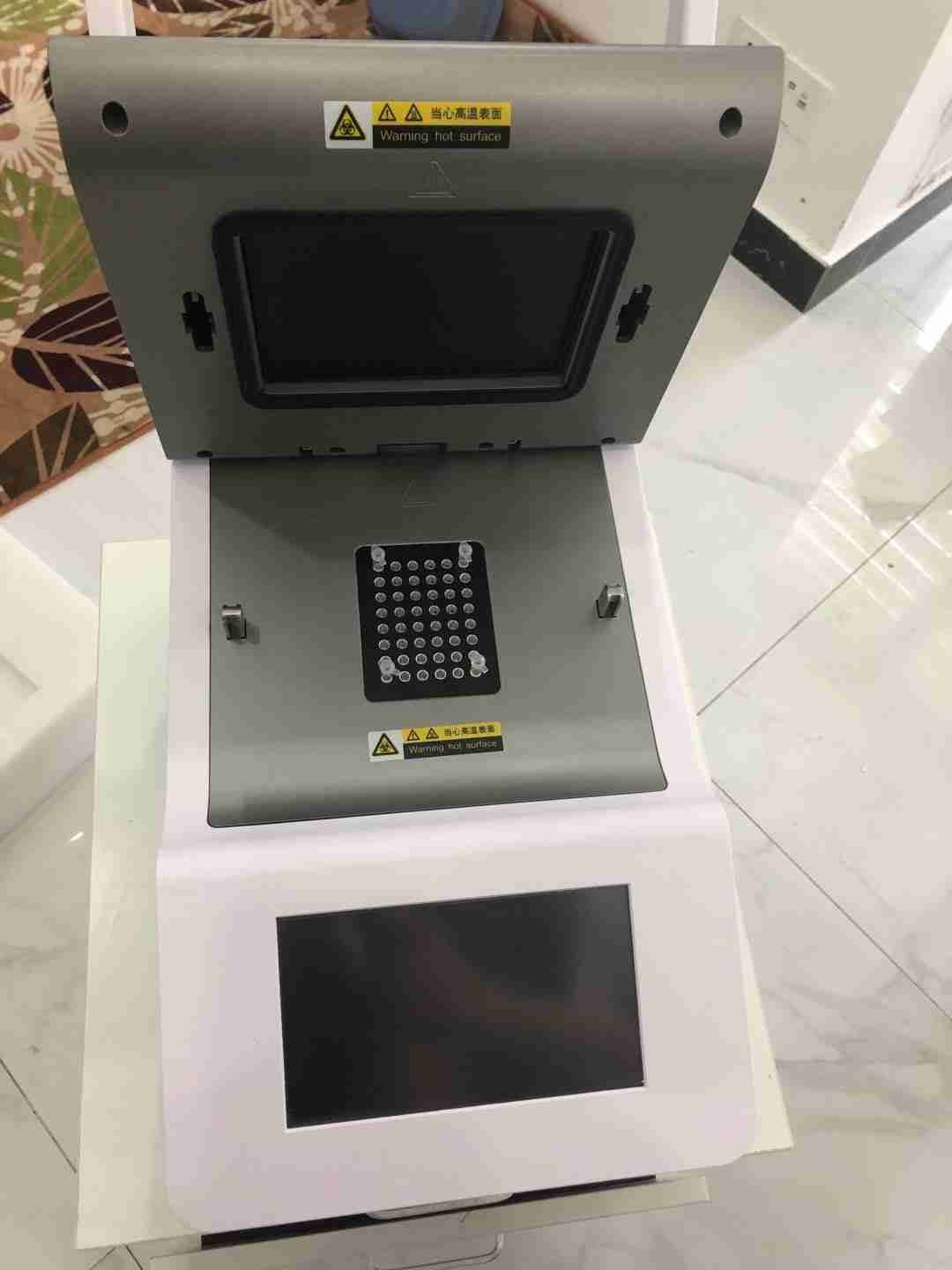

Thermal Block
Model	Gentier 48E
Sample capacity(wells)	48
Reaction Volume	5-100 μL
Consumables	0.2ml 8-strip tubes ,0.2ml PCR single tube(Optical flat cap,clear tube)
Temperature range	0°C-100°C
Heating/cooling method	Peltier
Heat Lid
Temperature range	Room Temperature–110°C
Optical System
Excitation Source	4LEDs
Detector	Photodiode
Detection Position	Excitation and scan from lateral
Detection method	4 channels scanning at the same time, no edge effect.
Detection time	2 seconds for 48 wells for all channels
Performance
Sample Linearity	/r/≥0.999
Sample repeatability	Ct value CV≤0.5%
Sample Dynamic Range	1-1010 copies
Software Funtions
Data Analysis modes	Qualitative analysis,
Absolute quantification,
Relative quantification,
Genotyping analysis,
Endpoint analysis，
Melt curve analysis,
High Resolution Melting
Others
PC operating system	Win 7, Win 10
Communication Port	1 ethernet and 2 USB
Footprint(WxDxH)	260mm X 400mm X 2605mm
Weight	11kg
Power usage	AC 100 to 125 V / 200 to 240 V (50/60 Hz).
power consumption	600VA
Work environment	Tempereture:10°C~30°C Humidity:20%~85%

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
