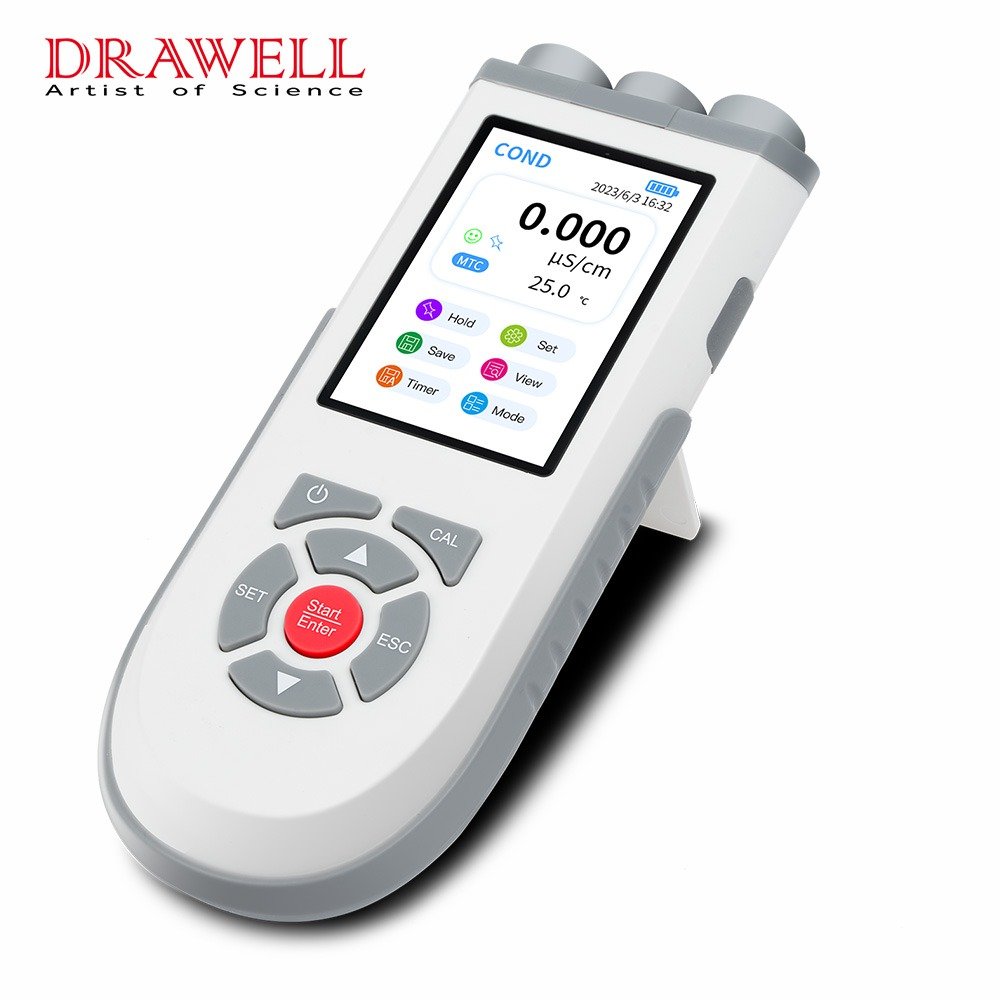

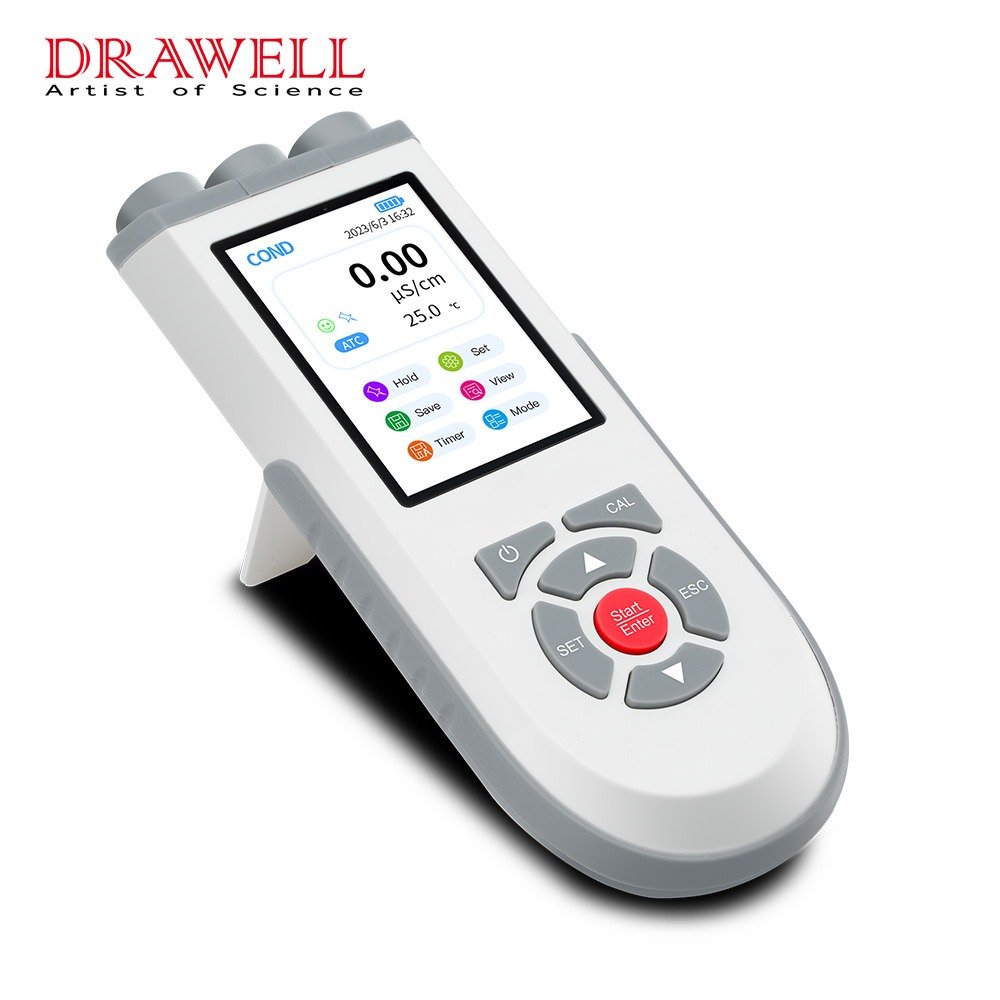

Drawell EC10 Portable Cond Meter

Product overview

EC10 portable conductivity meter measures the amount of electrical current or conductance in a solution. It has a LCD display and can record 3,000 sets of data. Drawell’s conductivity meter used in aquaculture, pharmaceuticals, food, industry, electric power, scientific research, environmental protection, chemical industry, metallurgy, etc.

The Drawell EC10 Portable Cond Meter supports research, clinical, industrial, education, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

3.7” Color screen, the user-friendly interface.
Data logging up to 3000 groups.
Calibration points: 1-pt.
Equipped with a USB Type-C charging port, conforms with the EU new law.
Ideal for use in harsh environments — IP57 Waterproof rating, silicone socket protector and grip cover protect the instrument from general impact.
Large backlit LCD displays conductivity/TDS/salinity and temp along with icons of stable readings.
Foldable stand allows use as a benchtop meter.

Applications

Professional laboratory testing or sample-processing workflows
Routine research and quality-control applications
Application-specific operation according to the selected model

Technical specifications

Cond	Range	0-2000.0mS/cm (auto divided by range)
Accuracy	±0.5%FS ± one digit
ATC range	（0 – 50）℃
Temperature	Range	0-100°C
Resolution/Accuracy	0.1℃; ±0.5℃±1digit
Data storage/content	3000 groups Serial number, Mode, Measuring value, Temp, Date: Y/M/D/H/M
Data export/Charging port	Type-C – USB
PC software function	GLP measurement management Two-level user management The user’s operation history log Meter usage management Automatically /manually timing data storage
Power supply	Rechargeable Lithium battery × 1
Packing including	Meter× 1; Plastic Cond electrode Con201T× 1 ; (K=1, PC housing, for general liquid test); Standard Cond solution: 84uS/1413uS/12.88mS/cm, 50mL, one for each; USB-C Charger Cable× 1; Hard carrying case×1.
