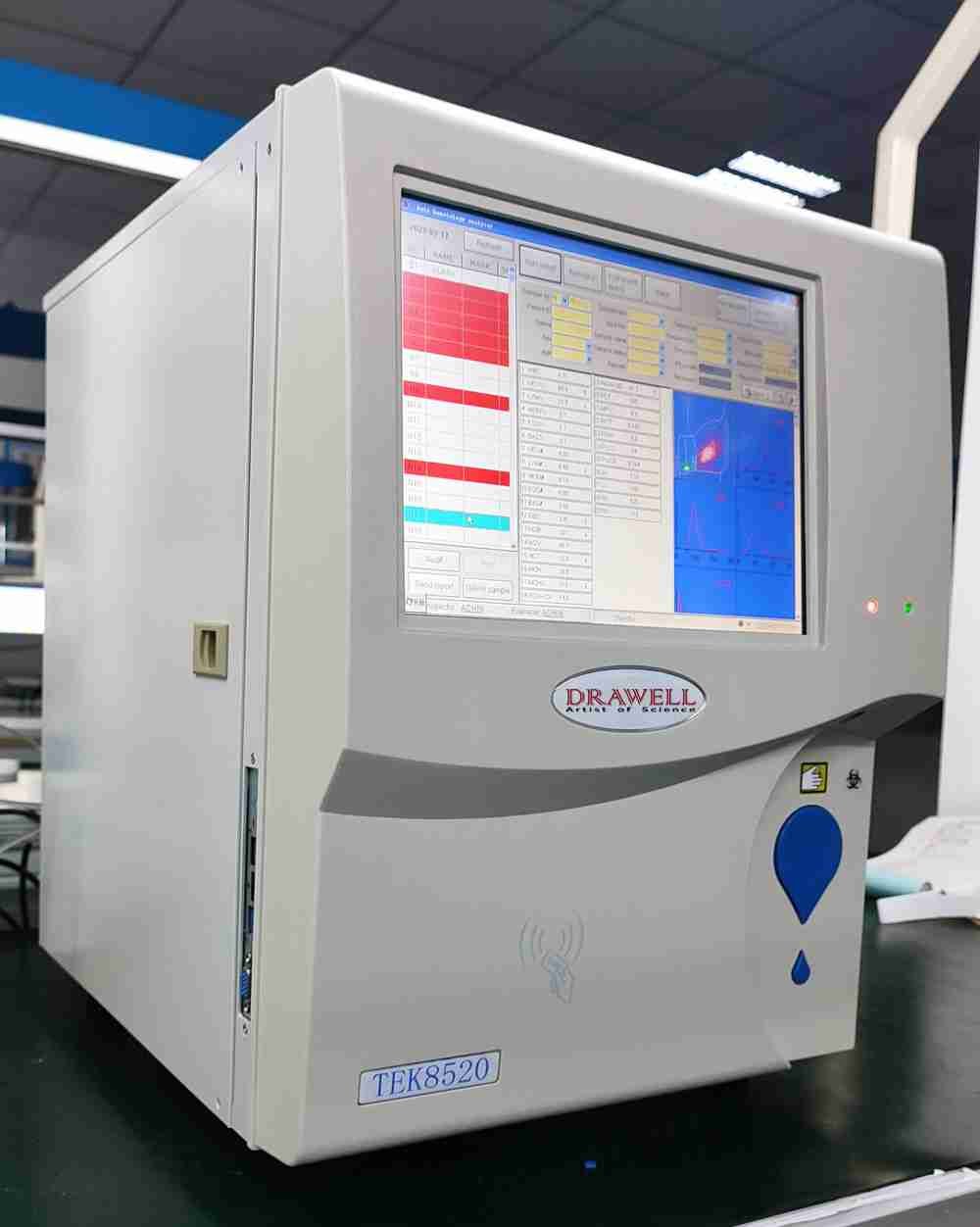

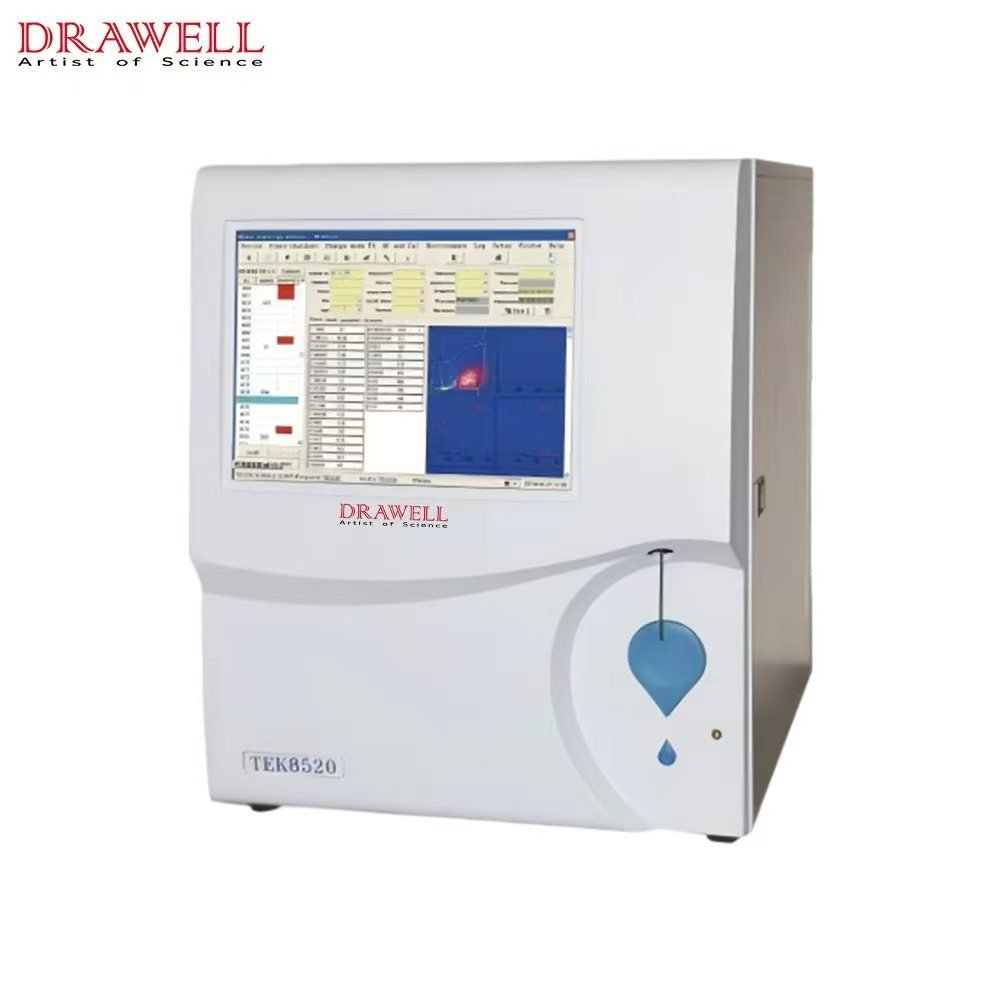

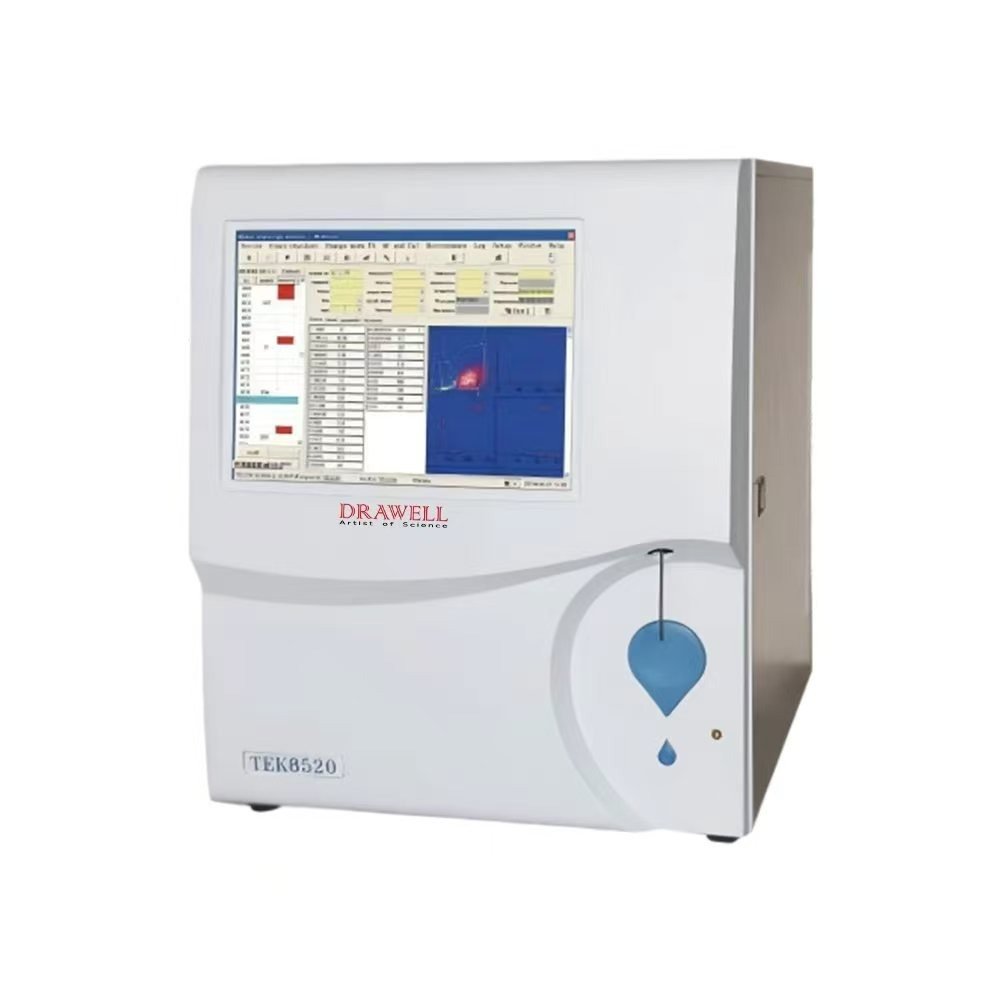

Drawell DW-TEK8520 Automatic Hematology Analyzer

Drawell DW-TEK8520 Automatic Hematology Analyzer

Product overview

DW-TEK8520 is a 5-part differential automatic hematology analyzer. WBC differentiation combines semiconductor laser flow cytometry, light scattering and cytochemical staining, while RBC and PLT are measured by electrical impedance and HGB by colorimetry.

The Drawell DW-TEK8520 Automatic Hematology Analyzer supports research, pharmaceutical, environmental, food, industrial, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

• Unique high-efficiency laser energy-focusing technology
• CombiningFresnel lens focusing laser signal
• Unique double sheath flow focusing fluid technology inner
• Sheath flow closely packed cells, so that the cell is arranged in sheath flow axis, make sure flow through the testing center one by one under the action of flow power
• Exceptional cellular alarm function
• Fragment、 plasmodium、cell tolerance、 PLT aggregation、 Low HGB in RBC、abnormal scatter diagram custom parameters alarm recheck. Provide multinomial research parameters: specific lymphocyte immature cell、unrecognized cell etc.
• Floating classification technology
• Automatically adapt to the change of scattergram, effectively identify the boundaries of various cells, to obtain more accurate WBC classification results
• Laser Light scatter and Cell Histochemistry method
• Semiconductor laser which has long service life and laser signal more stable. Through laser light scatter and cell histochemistry technology, provide the size of the cell, cell nucleus, and cell particle. Make classification and counting more accurate.
• Accurate blood dispensing system
• DW-TEK8520 utilizes an advanced ceramic sample rotator valve platform to accurately segment blood with high precision.
• Select Prediluted mode, automatic injection prediluted reagent
• Easy operation and avoid manual errors

Applications

• Routine CBC Testing : Routine WBC, RBC, HGB and platelet analysis.
• 5-Part WBC Differential : Differentiation of neutrophils, lymphocytes, monocytes, eosinophils and basophils.
• Whole Blood Testing : Direct whole-blood analysis with 10 μL sample volume .
• Capillary Predilution : Prediluted sample testing with 20 μL sample volume .

Technical specifications

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
