Product overview

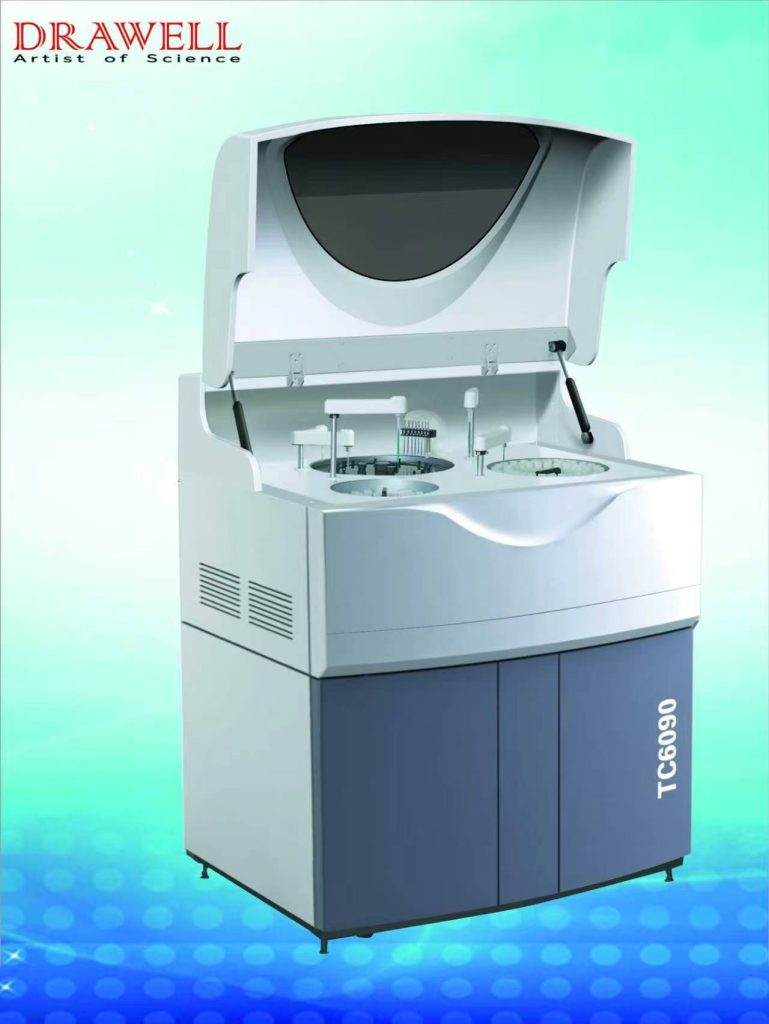

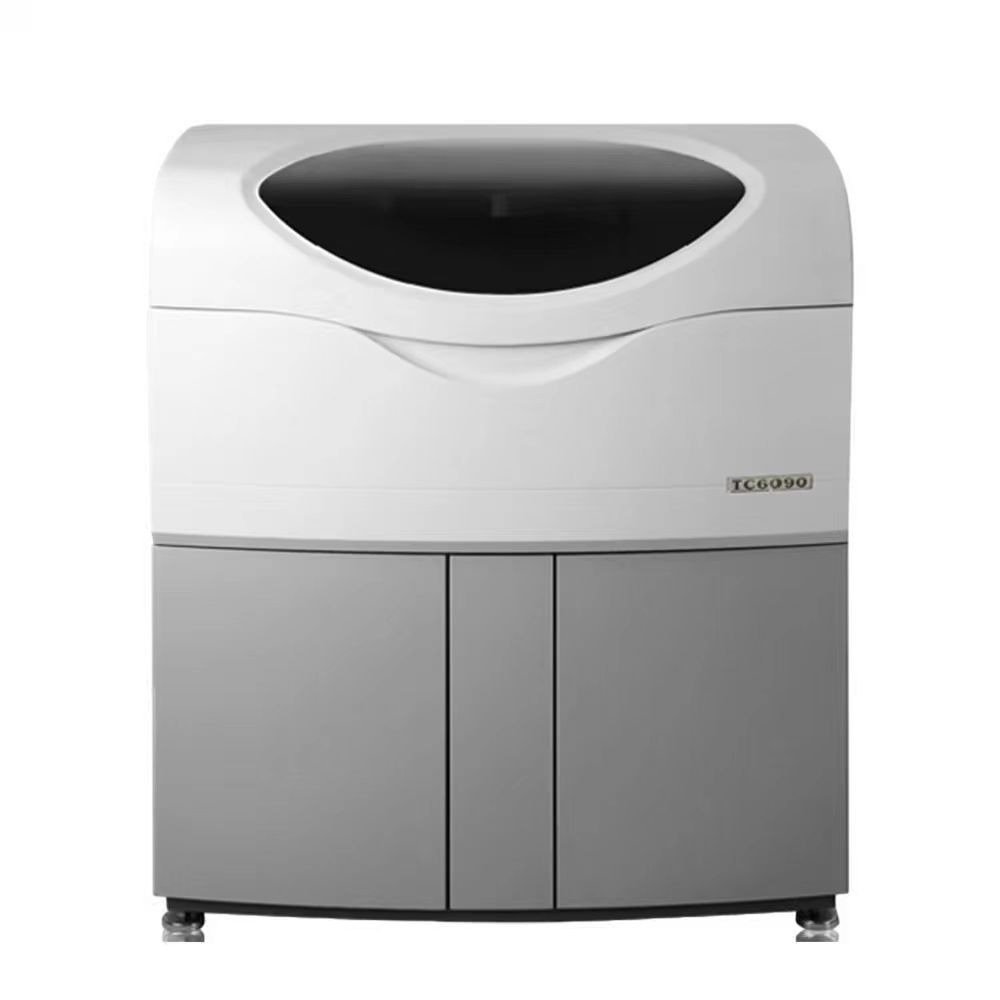

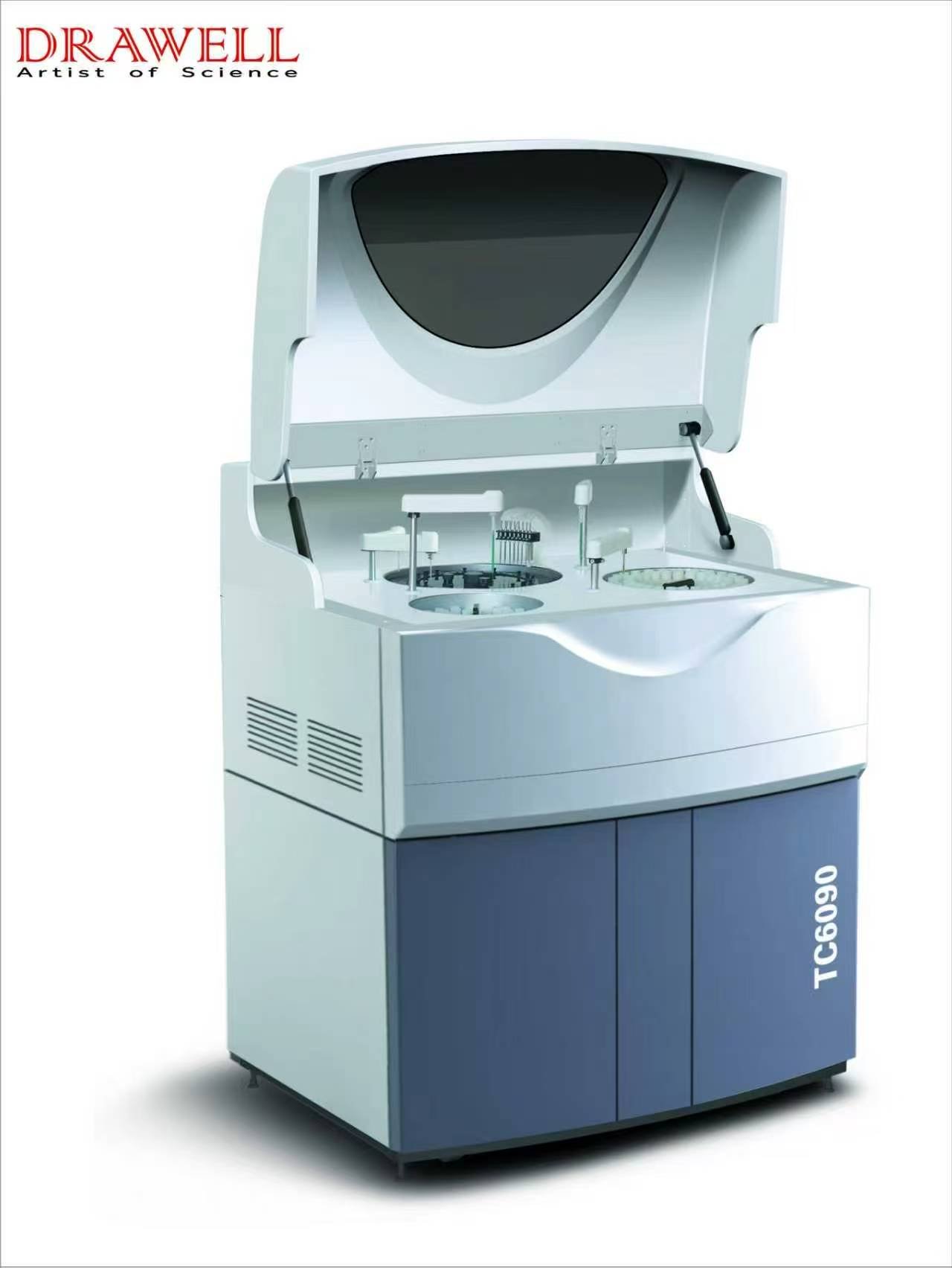

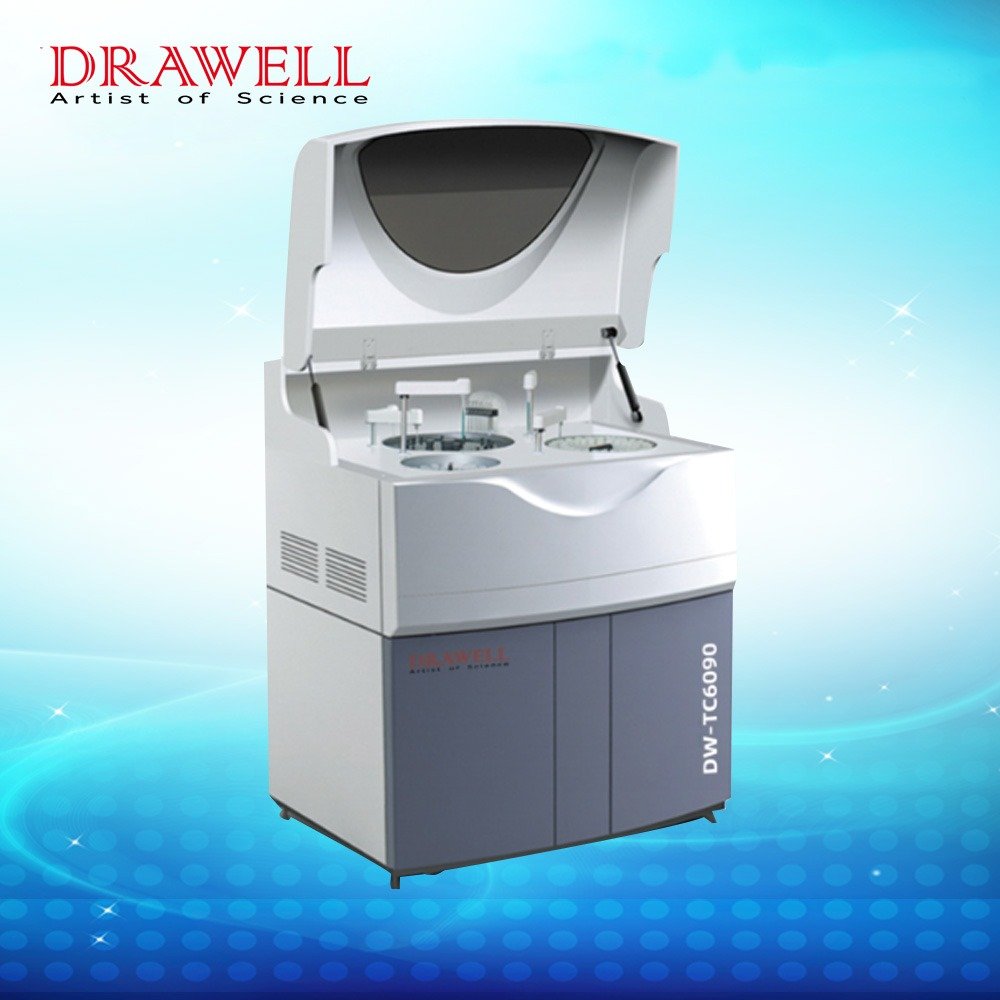

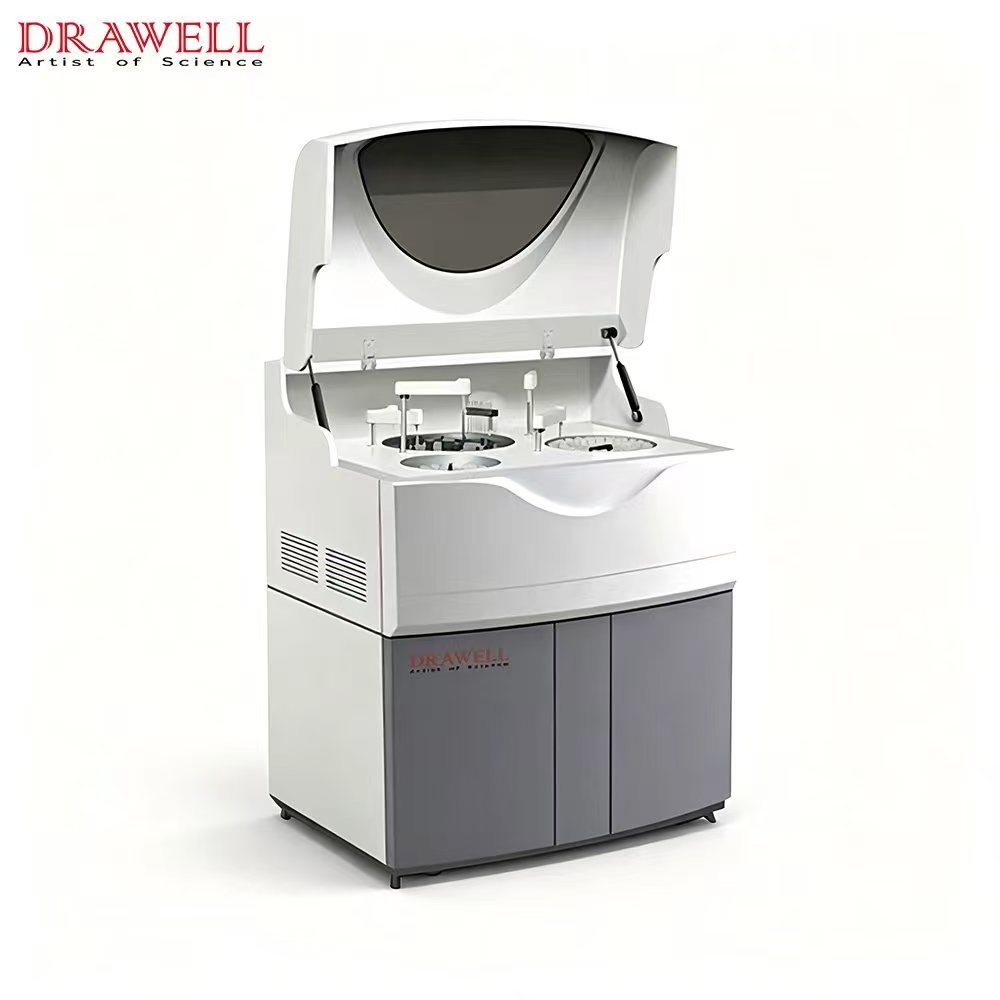

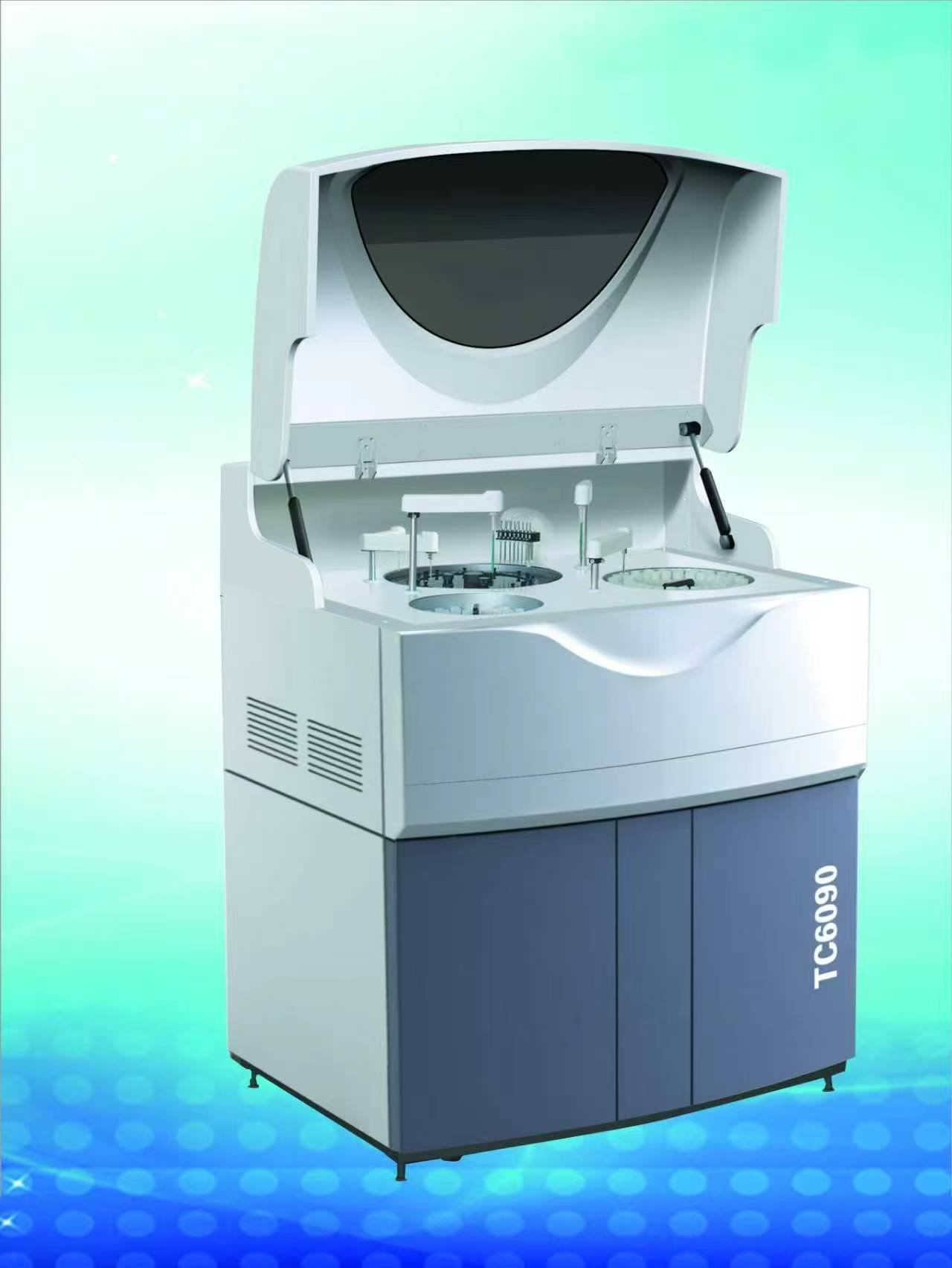

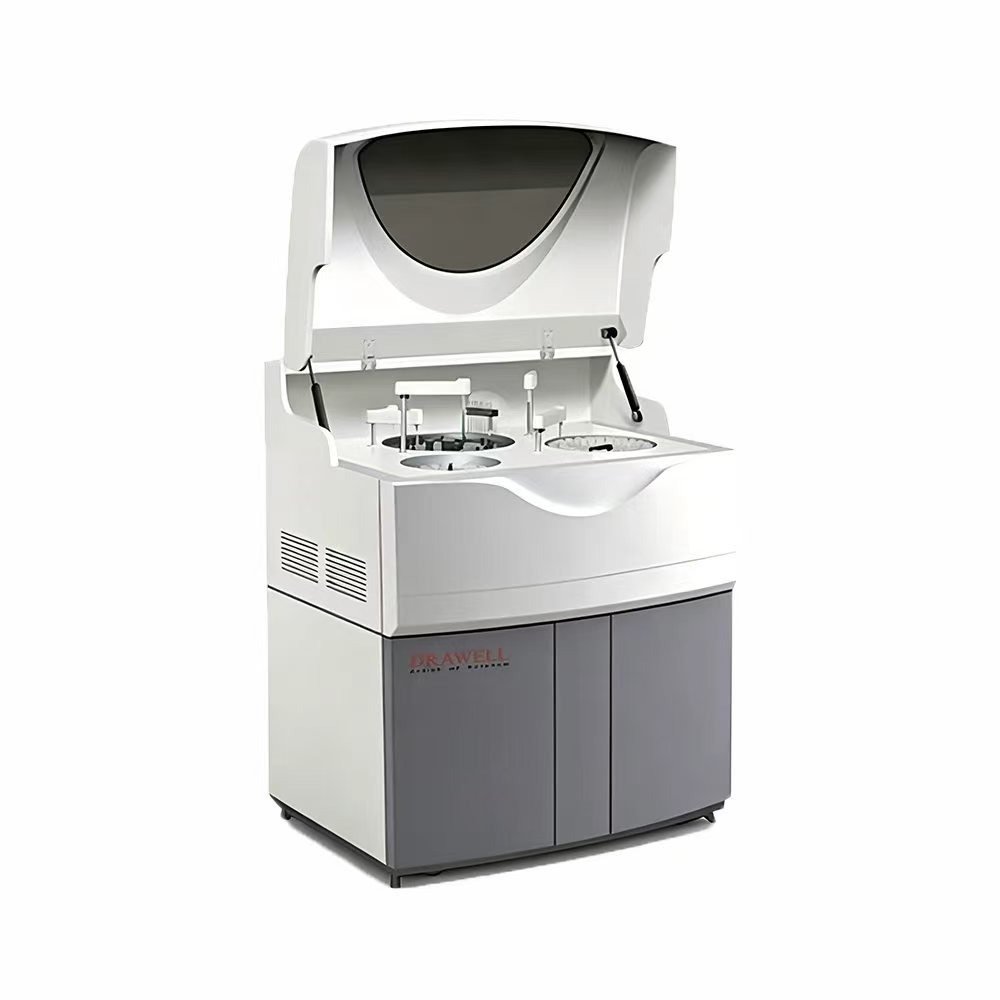

The DW-TC6090 is a fully automatic, discrete chemistry analyzer designed for medium-throughput clinical laboratories. It delivers up to 400 tests per hour and combines 93 sample positions with 80 refrigerated reagent positions for efficient routine and STAT testing.

The Drawell DW-TC6090 Automatic Chemistry Analyzer supports research, pharmaceutical, environmental, food, industrial, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

• 400 Tests/Hour & STAT Testing : Up to 400 tests/hour with fully automatic, discrete and random-access operation. 93 sample positions support standard, QC and STAT samples.
• 80 Refrigerated Reagent Positions : Provides 80 reagent positions (40 R1 + 40 R2) with continuous 2–8°C refrigeration and automatic reagent-volume detection.

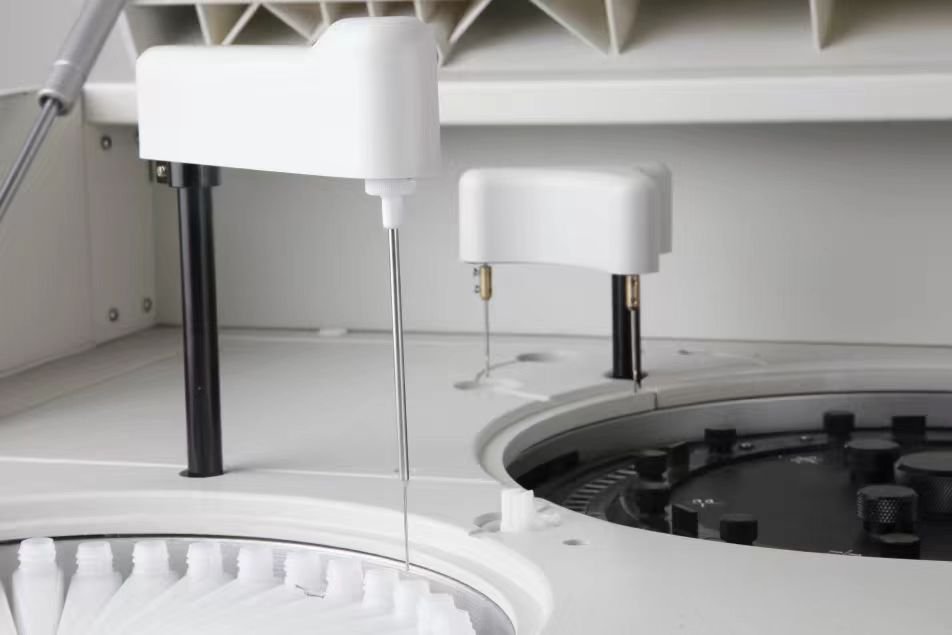

• Automatic Sample Dilution & Re-Test : Supports 2–50 μL sample volume in 0.1 μL steps and dilution up to 1:100 . Automatic dilution and re-testing are available for results exceeding the absorbance or linear range.
• Stable Reaction & Photometric System : Uses 90 reusable cuvettes with automatic blank testing and maintains 37°C ±0.1°C reaction temperature. Covers 340–750 nm / 12 wavelengths , with ±2 nm precision , 0–4.0 Abs range and 0.001 Abs resolution .

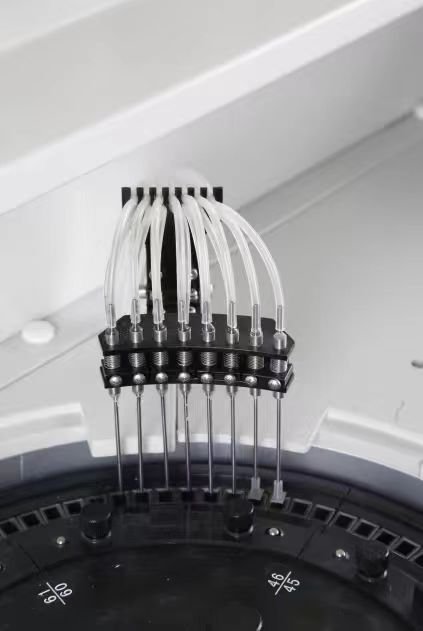

• 8-Step Automatic Washing : Features 8-step cuvette washing with automatic drying , plus internal and external probe washing to help reduce carry-over.
• Real-Time System Monitoring : Real-time monitoring of sample tray, reagent tray and cuvette status , including remaining reagent and waste volume .
• R1 Reagent Position
• 40 pcs R1 reagent positions
• Non-stop reagents refrigerating
• Auto detect of reagent volume

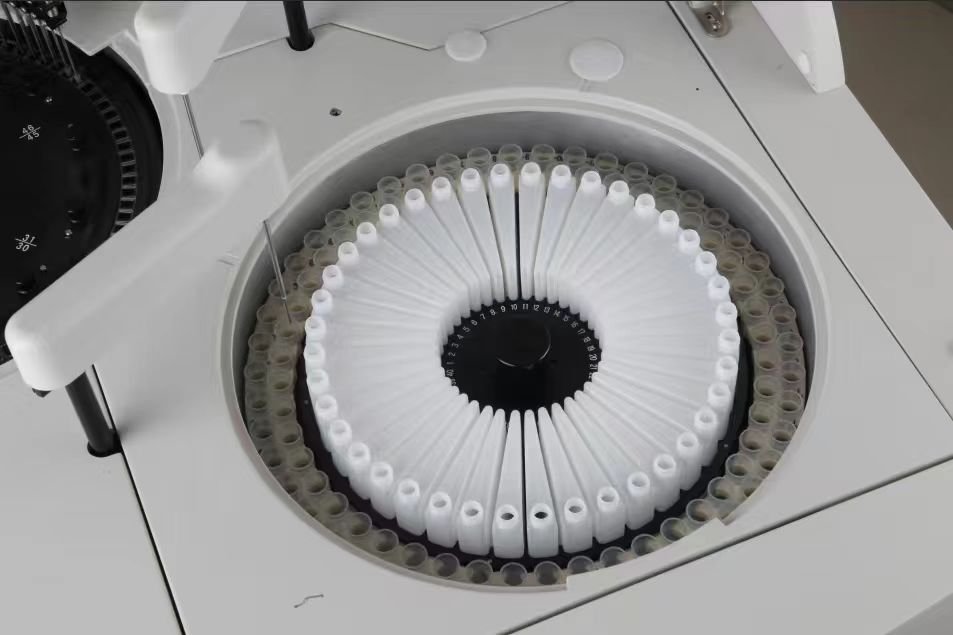

• R2 Reagent/Sample position
• 40 pcs R2 reagent positions
• 93 sample positions, suitable for
• primary tube abd serum cup

Applications

• Quantitative or qualitative laboratory analysis
• Research, method development, and routine quality control
• Application-specific testing with suitable accessories and methods

Technical specifications

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
