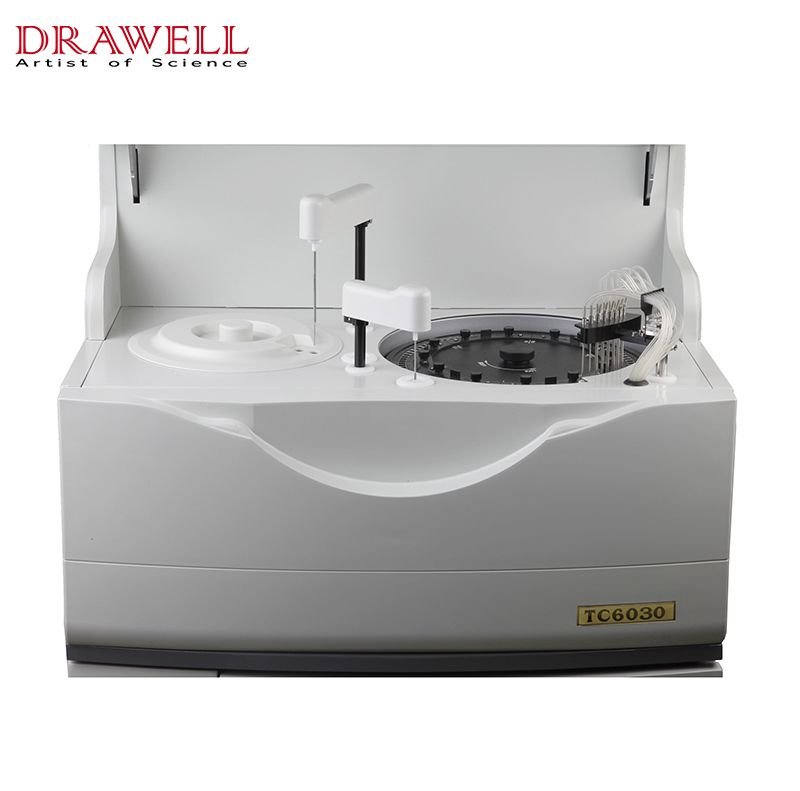

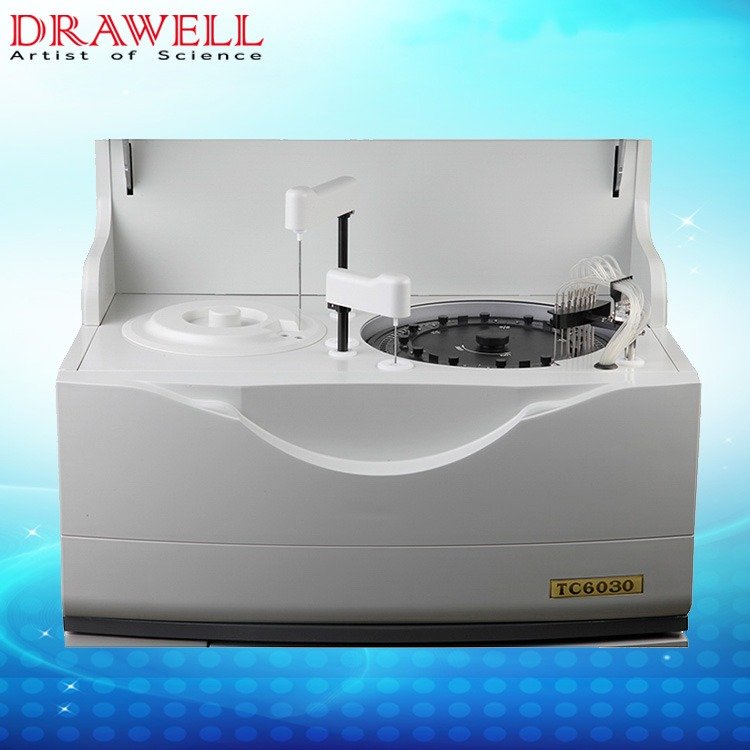

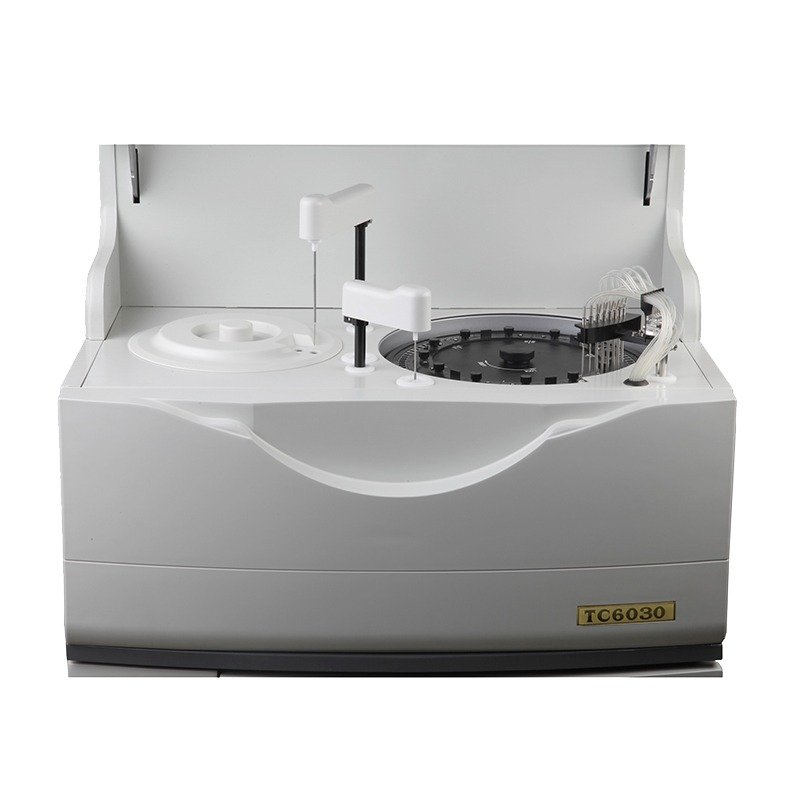

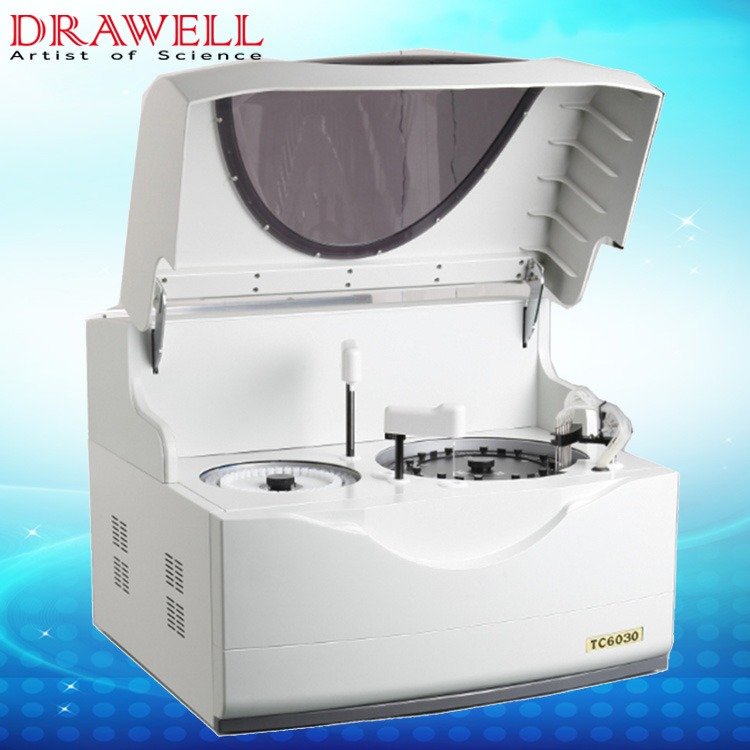

Drawell DW-TC6030 Automatic Chemistry Analyzer

Drawell DW-TC6030 Automatic Chemistry Analyzer

Product overview

The DW-TC6030 is a fully automatic, discrete and random-access chemistry analyzer. The open reagent system supports end-point, kinetic, two-point, double-reagent, double-wavelength and multi-standard methods, with automatic dilution, re-testing and QC management for routine laboratory workflows.

The Drawell DW-TC6030 Automatic Chemistry Analyzer supports research, pharmaceutical, environmental, food, industrial, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

• 260 Tests/Hour & STAT Testing : Up to 260 tests/hour with fully automatic, discrete and random-access operation. Supports 40 online test items and 40 sample positions , including standard, QC and STAT positions.
• 40 Refrigerated Reagent Positions : Provides 40 reagent positions with 2–8°C refrigeration . Reagent volume ranges from 10–500 μL in 1 μL steps , with automatic liquid-level detection.
• Automatic Dilution & Re-Test : Supports 2–50 μL sample volume in 0.1 μL steps and automatic/manual pre-dilution up to 1:100 . Samples can be automatically diluted and re-tested when the absorbance or linear range is exceeded.
• Stable Reaction & Optical System : Uses 90 reusable cuvettes with automatic blank testing and maintains 37°C ±0.1°C reaction temperature. The optical system covers 340–690 nm across 9 wavelengths , with ±2 nm wavelength precision .
• 8-Step Automatic Washing : Features 8-step automatic cuvette washing and drying , plus internal and external probe washing. Water consumption is approximately 4 L/hour .
• QC & Real-Time Monitoring : Supports linear/nonlinear multi-point calibration , random QC insertion and QC chart management. Operators can monitor the sample tray, reagent tray, cuvettes, reagent residual volume and waste volume in real time.

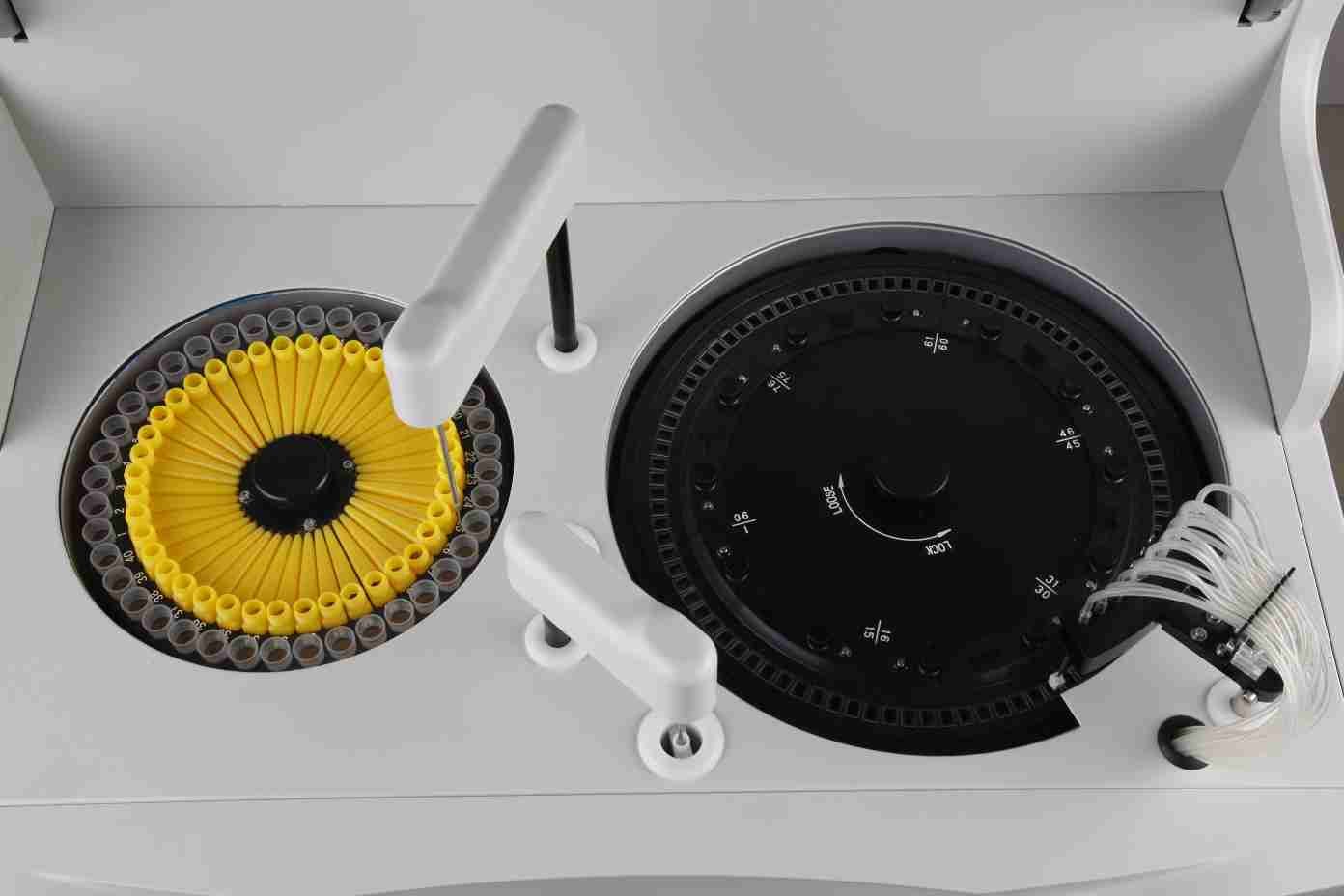

• Sample/Reagent Position
• 40 pcs sample position
• 40 pcs reagent position
• Reagents refrigerated function
• Primary tube and blood serum cup can be used

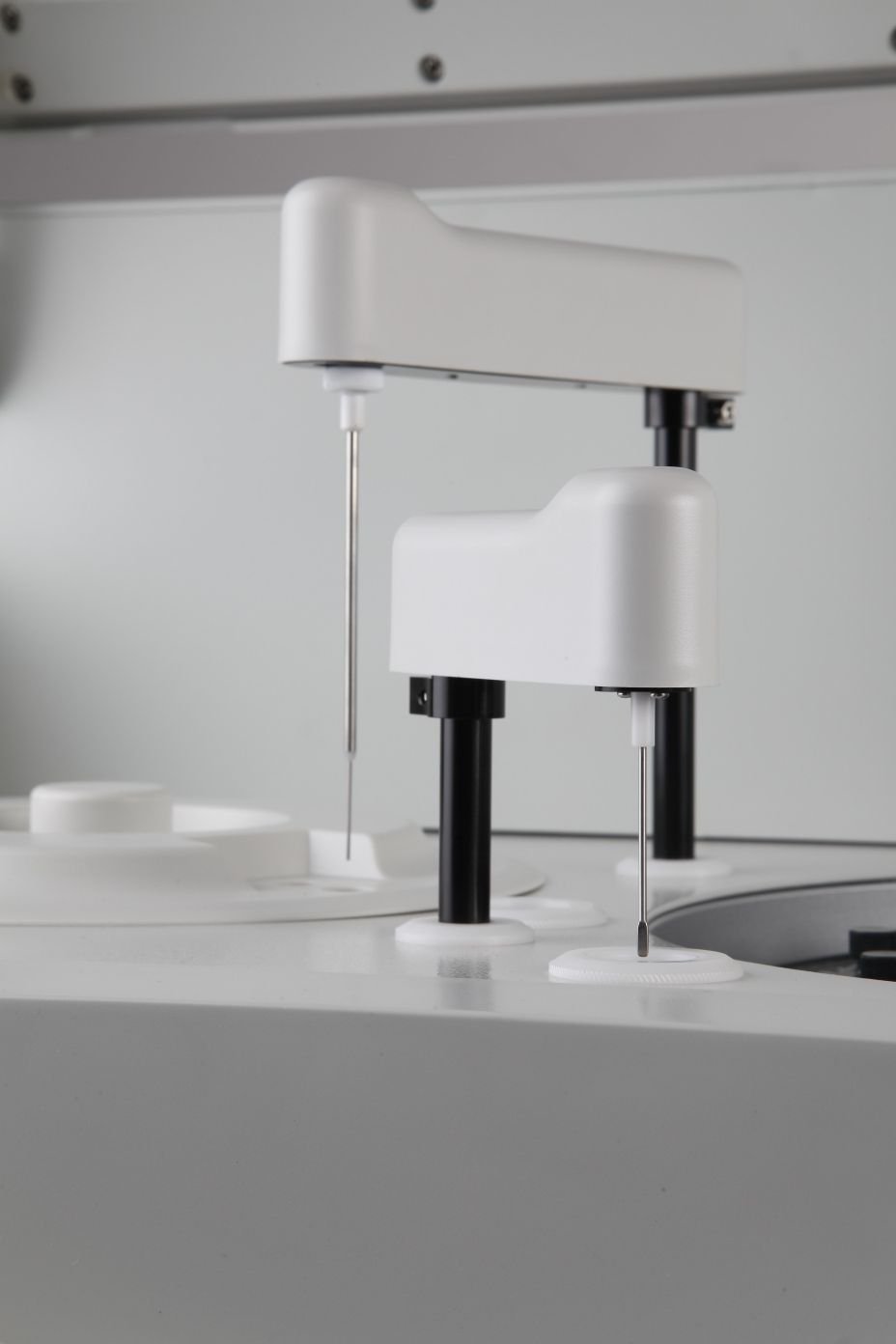

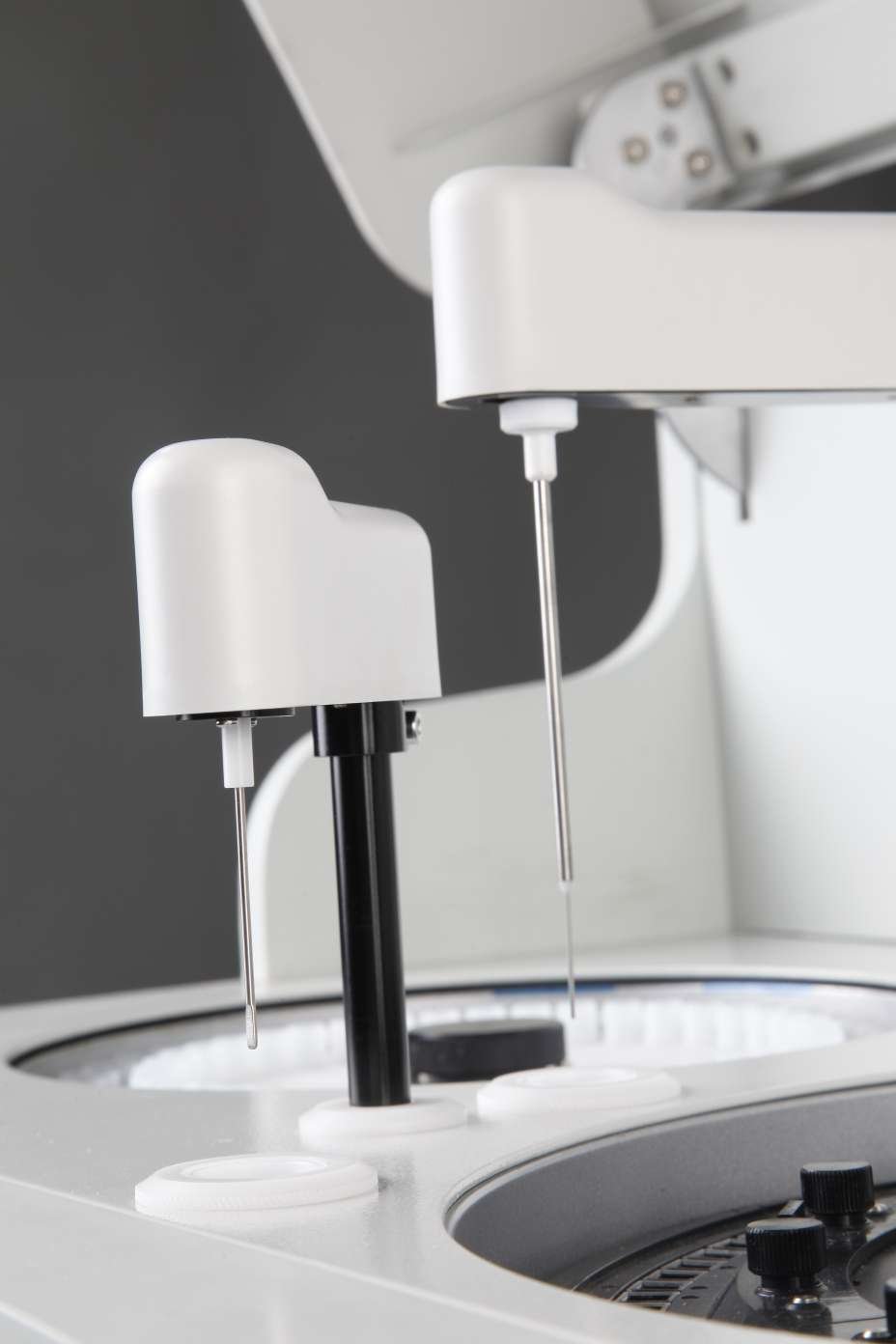

• Sample/Reagent/Mixing Probe
• Probe telflon coating technology
• Automatic liquid level detect

Applications

• Quantitative or qualitative laboratory analysis
• Research, method development, and routine quality control
• Application-specific testing with suitable accessories and methods

Technical specifications

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
