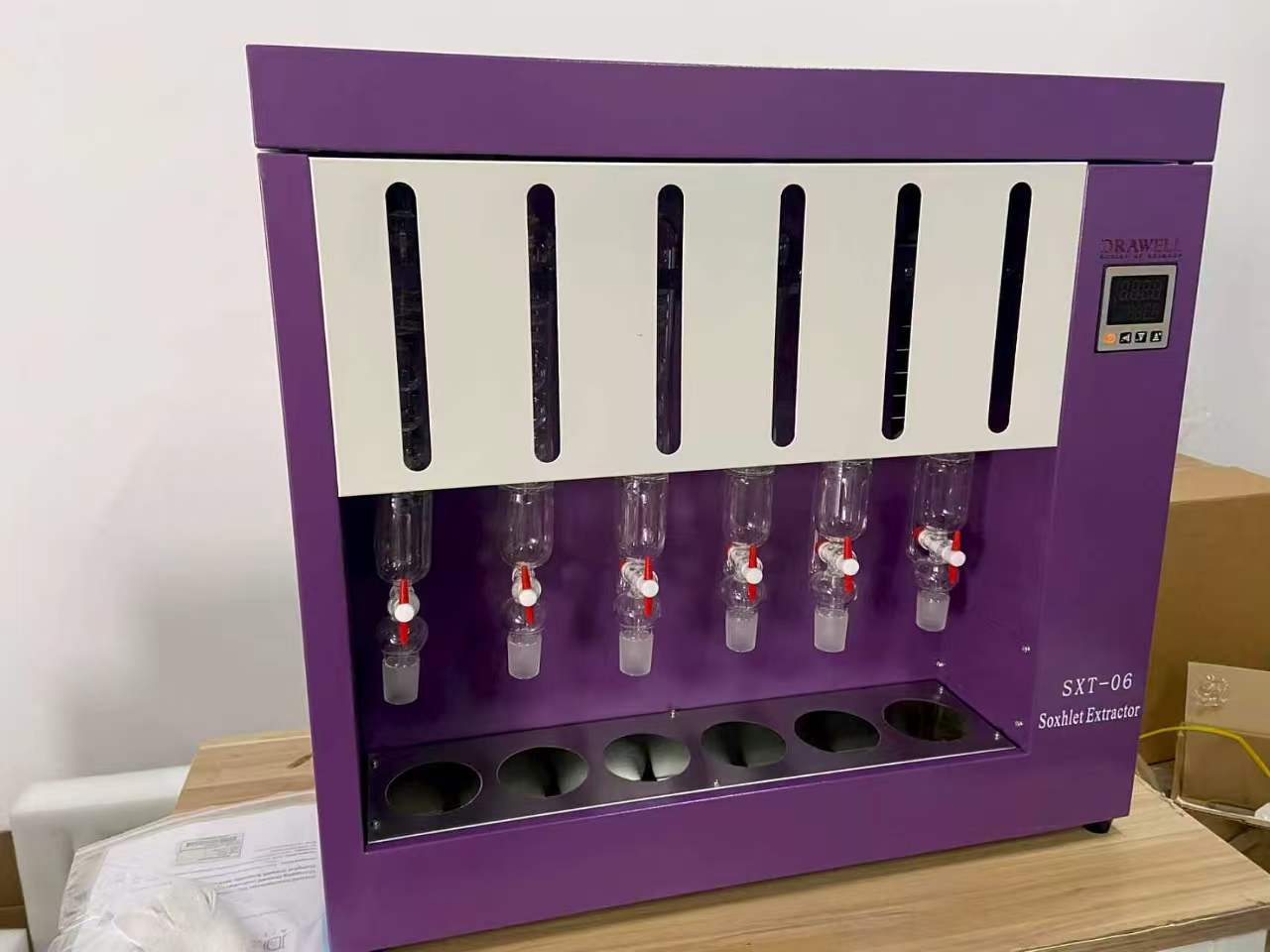

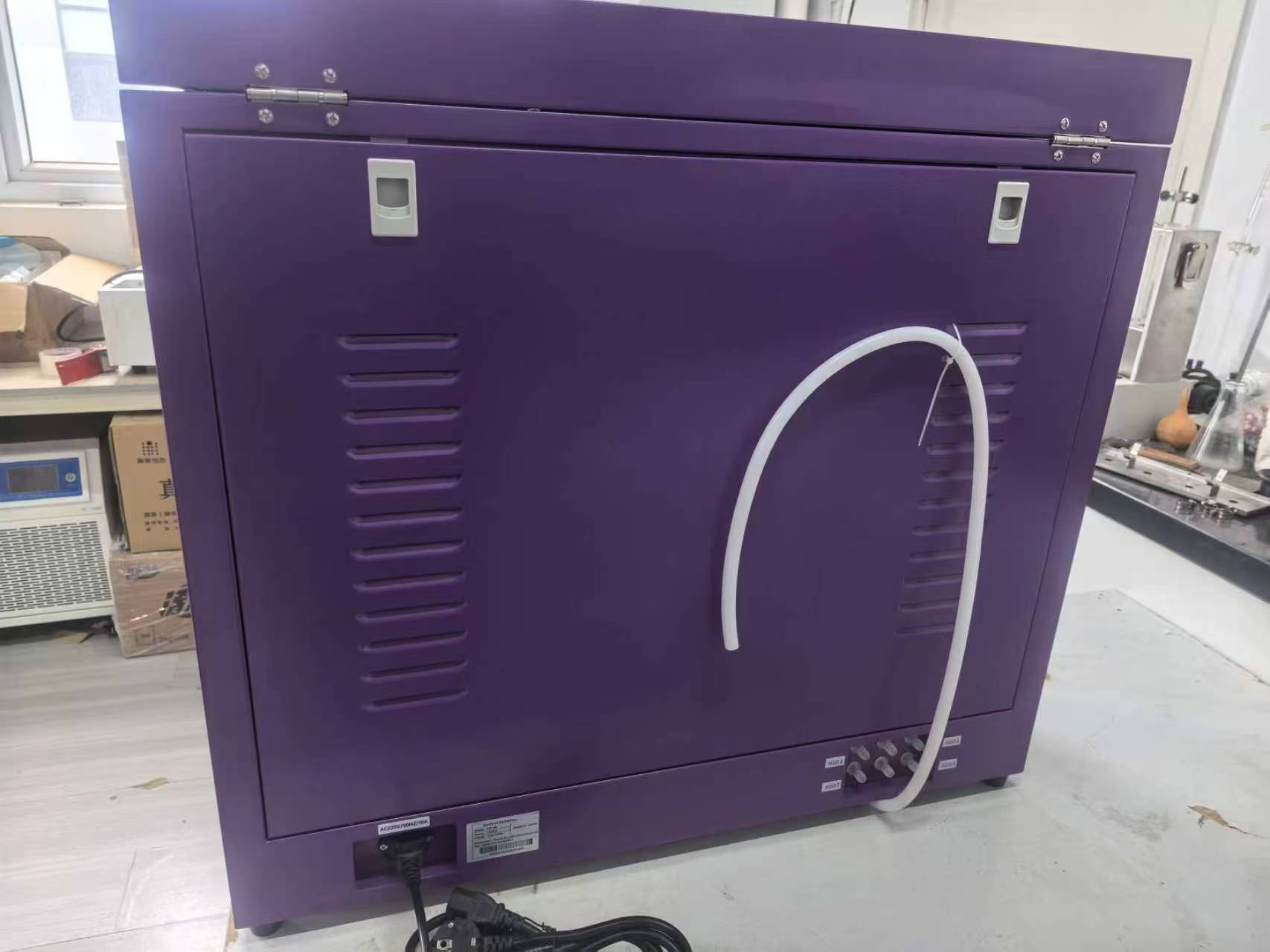

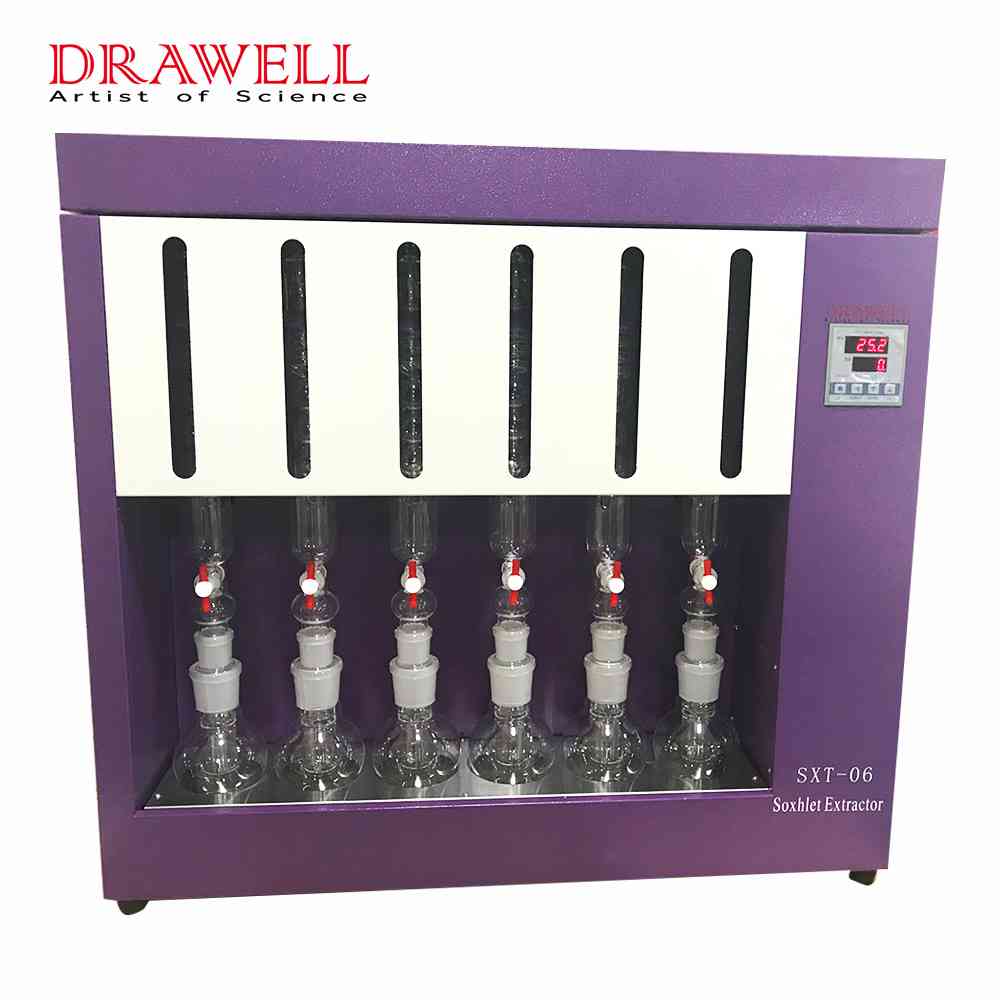

Drawell DW-SXT-06 Soxhlet Extractor

Drawell DW-SXT-06 Soxhlet Extractor

Product overview

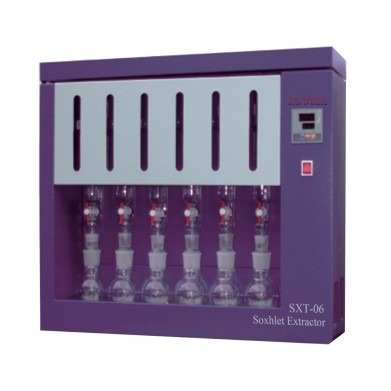

DW-SXT-06 Soxhlet Extractor is for labs to make Soxhlet extraction, designed in accordance with the classical Soxhlet extraction method. This apparatus is reasonably designed, provides stable performance, high precision, time-saving operation, is an ideal Soxhlet extraction apparatus for foodstuff, oil&fat, feedstuff and other industries.

The Drawell DW-SXT-06 Soxhlet Extractor supports research, pharmaceutical, environmental, food, industrial, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

• Take water bath to heat, providing more even warming;
• Solvent for extraction can be recovered and used repeatedly;
• Extraction duration can be set up at random, alarm when time is out.
• It relies on solvent reflux and siphon circulation. Solid samples are repeatedly exposed to pure hot solvent, delivering higher extraction efficiency. In conventional reflux extraction, solvent concentration keeps decreasing, leading to slower extraction and lower recovery rates.
• Common causes:
• Insufficient heating temperature leading to low solvent evaporation;
• Overfilled filter paper cartridge blocking the rising vapor path;
• Air leakage of the device or poor condensation performance;
• Blockage of the siphon tube by residual solid particles.
• The sample level must not exceed the overflow line of the cartridge, and the cartridge top shall be well folded and sealed. If powder sample leaks into the extraction flask, it will cause local overheating and bumping, as well as dissolution of impurities, which interferes with subsequent content measurement.
• Stop heating and cool down the device first. Continue distilling to recycle organic solvent until the liquid level is below the siphon tube, then take out the filter paper package. Remaining solvent can be dried in a low-temperature water bath. Open flames must be avoided throughout the whole process to prevent fire caused by volatile organic solvents.
• Samples prone to thermal decomposition or swelling/dissolving in organic solvents cannot be used. Main error sources include incomplete extraction, residual solvent, leaked sample powder, thermal degradation of target compounds under excessive temperature, and insufficient siphon cycles.

Applications

• Food And Grain Testing
• Extracting And Testing Crude Fat In Food And Feed; Also Used For Extracting Fat-Soluble Vitamins And Pesticide Residues.
• Pharmaceutical And Natural Drug Development
• Extracting Fat-Soluble Active Ingredients From Medicinal Herbs For New Drug Development Or Quality Control Of Medicinal Materials.
• Environmental Monitoring And Analysis
• Extraction Of Soil Pollutants.
• Chemical Engineering And Materials Science
• Extraction And Analysis Of Chemical Material Additives And Residual Monomers.

Technical specifications

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
