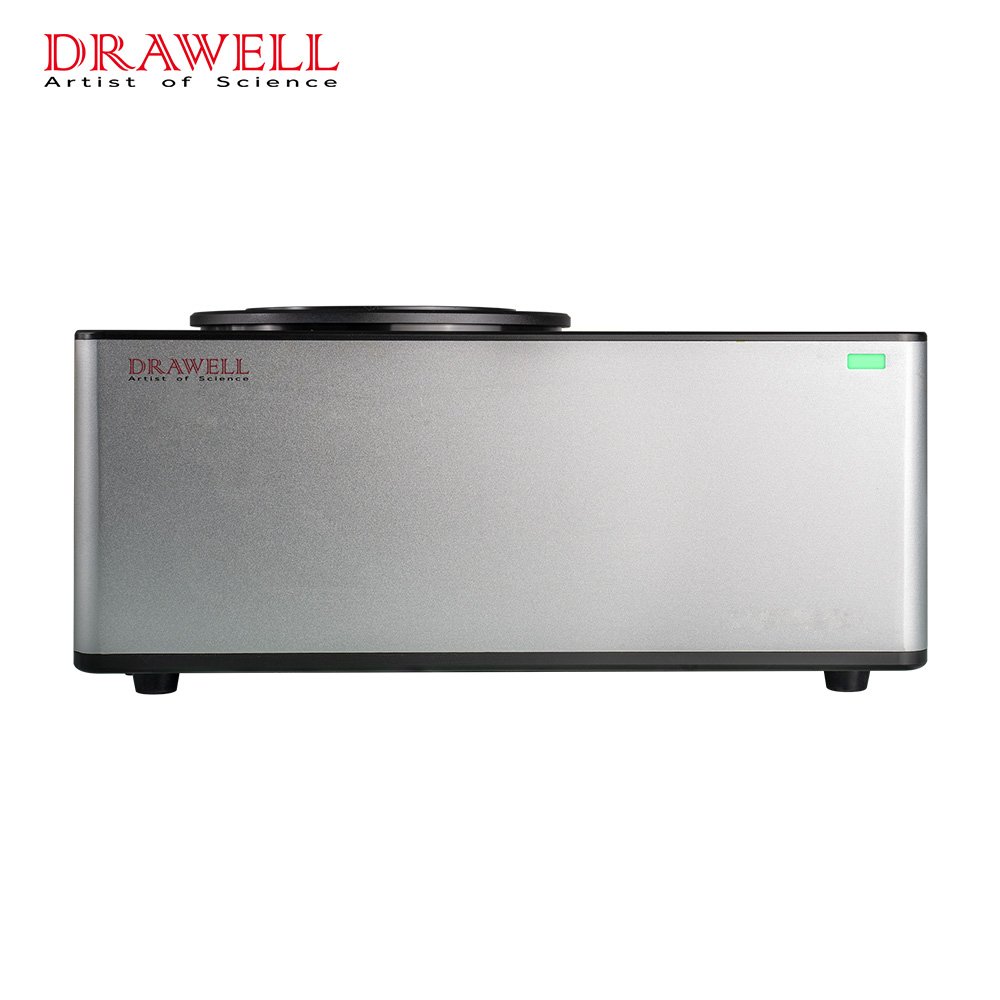

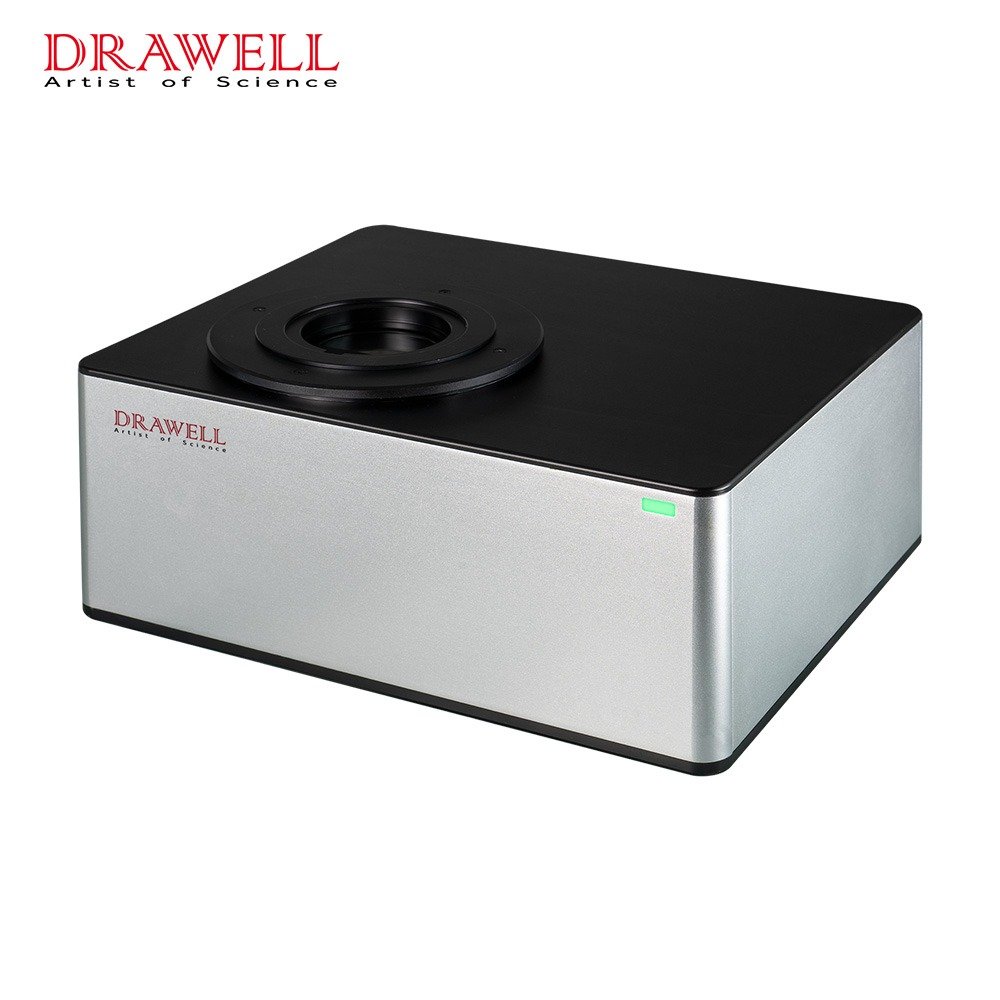

Drawell DW-S460 NIR Spectrometer
Product overview
The S460 NIR spectrometer provides calibration models for multi-domain and diversified applications. It can be widely used in agricultural feed, grain and oil food, wine and starch, soy sauce fermentation products.
The Drawell DW-S460 NIR Spectrometer supports research, pharmaceutical, environmental, food, industrial, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.
Key features
- Easy to operate, no sample preparation is required, and the sample is not damaged.
- 700nm – 2500nm ultra-wide spectral range, fast analysis. Multiple component indicators such as moisture, fat, protein and amino acids can be detected simultaneously in 1 minute.
- The core components of the instrument, such as tungsten lamps, filters, gold-plated gratings, and refrigeration indium gallium arsenide detectors, all adopt international leading brand products to ensure the high quality of the instruments from every aspect.
- The instrument is calibrated using NIST traceable standards to ensure good model transfer performance. Built-in PTFE reference module and polystyrene wavelength standard, automatic reference correction and wavelength correction to ensure wavelength accuracy and stable measurement results.
- The instrument is equipped with an integral sphere diffuse reflection sampling system, which collects diffuse reflection light at multiple angles, which is more conducive to improving the measurement reproducibility of uneven samples.
- A variety of sample cups and accessories are available for particle, powder, liquid and film testing.
- The instrument monitors the ambient temperature and humidity in real time and stores it in the spectrum file, which is convenient for users to check and optimize the measurement conditions.
Applications
- Quantitative or qualitative laboratory analysis
- Research, method development, and routine quality control
- Application-specific testing with suitable accessories and methods
Technical specifications
| Feed industry | Feed ingredients: (40 kinds), corn, soybean meal, DDGS, rapeseed meal, fish meal, meat meal, meat and bone meal, flour, wheat bran, rice bran, rice bran, cotton aphid, peanut meal, sorghum, wheat, zein, soybean concentrate Protein, fermented soybean meal, broken rice, shrimp shell powder, etc. | Raw material acquisition, production and processing monitoring. | Moisture, protein, fat, fiber, ADF, NDF, protein solubility, starch, acid value, VBN, amino acid, etc. |
|---|---|---|---|
| Finished feed: pig, chicken, duck, fish, shrimp, crab, rabbit, frog, special materials, etc. | Product testing | ||
| Livestock industry | Alfalfa, corn silage, all kinds of forage | Raw material acquisition, production processing monitoring | Dry matter, protein, fat, ash, starch, NDF, ADF, lignin, neutral washing, no protein, acid washing, protein, soluble protein, digestible protein, calcium, phosphorus, magnesium, sodium, sulfur, chlorine, non Fiber carbohydrate, monosaccharide, NH4, lactic acid, acetic acid, 24-hour dry matter digestibility, 24-hour NDF digestibility, relative feed value, etc. |
| Cattle, sheep supplement, TMR diet | |||
| Grain,oil and food processing | Soy, corn, wheat cottonseed, rapeseed, sesame, soybean oil, vegetable oil | Raw grain trading acquisition, grain storage, production processing monitoring | Moisture, protein, lactose, fat, fiber, ash, ADF, NDF, fatty acid peroxide value, acid value, iodine value, etc. |
| Milk powder, biscuits, whey powder, etc. | |||
| Breeding research | Wheat, corn, soybeans, rapeseed, peanuts, potatoes | Seed screening and evaluation | Protein, fat, fiber, starch, fatty acid composition, glucosinolate, erucic acid, etc. |
| Wine industry | Liquor, mixed wine, raw grain, fermented material | Raw grain and product evaluation, production process control | Moisture, starch, acid value, alcohol content, reducing sugar, total ester, methanol, ethyl lactate, ethyl hexanoate. ethyl acetate, etc. |
| Academic Research | Product development, calibration technology cooperation and development services |
| Instrument model | S460 |
|---|---|
| Measurement method | Integrating sphere |
| Spectral bandwidth | 12 nm |
| Wavelength range | 700 nm~2500 nm |
| Wavelength accuracy | ≤0.2 nm |
| Wavelength repeatability | ≤0.05 nm |
| Stray light | ≤0.1% |
| Absorbance noise | ≤50μA |
| Analysis time | 1 minute (adjustable) |
| Lifetime of Light Source | More than 5000 hours |
| Sample volume | Cup M7(Ф70) is about 60 gCup M9(Ф90) is about 120 g (optional) |
| Calibration Technology | Quantitative analysis: LPLS local partial least squares Qualitative analysis: DPLS digitized partial least squares |
| Size | 365x295x157(mm) |
| Weight | 18kg |
Ordering and configuration
Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
