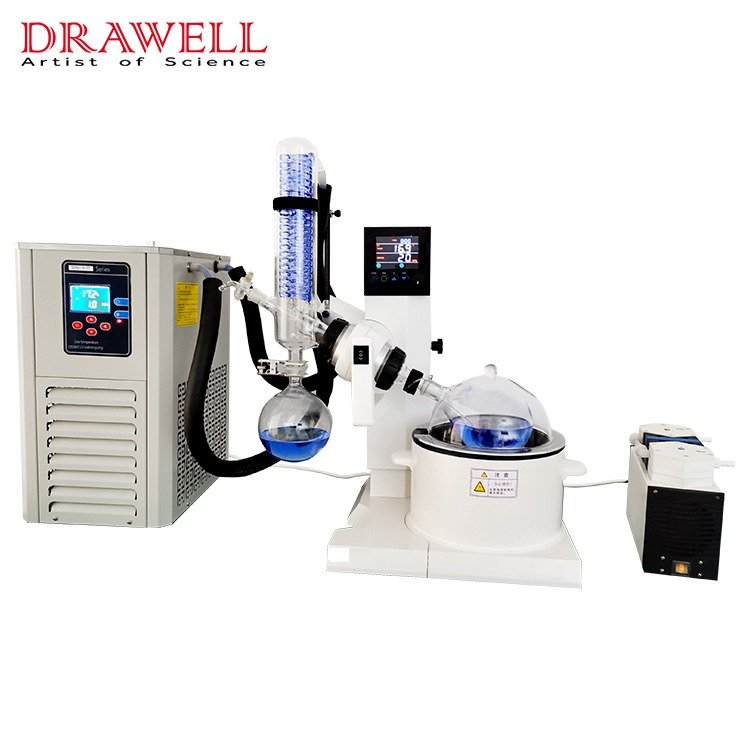

Drawell DW-RE Series Water Dual-Purpose Rotary Evaporator
Product overview
DW-RE Series Water Dual-Purpose Rotary Evaporator Features of DW-RE Series Water Dual-Purpose Rotary Evaporator Technical Parameter of DW-RE Series Water Dual-Purpose Rotary Evaporator Other Rotary Evaporator DW-RE Series Water Dual-Purpose Rotary Evaporator DW-ORE Series Oil Dual-Purpose Rotary Evaporator Why Is Your Rotary Evaporator Running Slower Than Before? 5 Common Causes DW-52 Series of Water Bath Rotary Evaporator DW-5210A Large Capacity Floor Type Rotary Evaporator DW-RE-52AA Water Bath Rotary Evaporator DW-ADQ Series Multi Manifold Rotary Evaporator SZ Series Automatic Pure Water Distiller
The Drawell DW-RE Series Water Dual-Purpose Rotary Evaporator supports research, pharmaceutical, environmental, food, industrial, and educational laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.
Key features
- Big LCD screen with menu interface displaying several data; rotary switch easy to operate.
- Heating bath with Teflon coating, which is easy to clean, anti-corrosive and high temperature resistant as well.
- Unattended mode with safe operation function, which is in automatic standby mode after the experiment.
- Special design of bottle pulling switch, which is easy to disassemble the evaporation flask.
- Sealing is made up of imported PTFE with special technique.
- Both screen touch control and button press automatic lifting are available, easy and safe to use.
- DC rotating motor of 70w power starts steadily.
- Vertical condenser with drip point design prevents backflow.
- Intermittent positive and negative rotating function with timer function for drying process.
- Optional: vacuum controller for precise control of vacuum degree.
- Oil and water heating bath with safe handle, which is heat insulated and prevents scald.
- Equipped with protection cap, which is heat preserved, energy saving and anti-spill and anti-boiling.
Applications
- Mixing, homogenization, extraction, digestion, separation, or concentration
- Preparation of samples before analysis
- Routine research and quality-control workflows
Technical specifications
| Model # | DW-RE-2000A | DW-RE-3000A | DW-RE-5000A |
|---|---|---|---|
| Rotating Speed | LCD Screen; 0~310rpm/min | LCD Screen; 0~200rpm/min | |
| Evap. Capacity | Max.25ml/min (H2O) | Max.27ml/min (H2O） | Max.43ml/min (H2O） |
| Temp. range/precision | Microcomputer PID controller; Water Bath：RT.-99℃±0.5℃ | ||
| Bath Material | Integral Teflon compound heating bath with safe handle, which prevents from scald; the medium sized bath volume makes distillation fast. | ||
| Bath Size | φ23×13cm | φ26×15cm | φ29×17cm |
| Positive&Negative Rotating | Intermittent positive and negative rotating function with timing function (0-60s) for drying process of powder samples. | ||
| Lift | Automatic balance lifting which can be controlled by either button-press or Color LCD screen; the lifting length is 150mm, with fixed safety distance of 60mm, which prevents crashing. | ||
| Temp. Set | Rotating switch coding for temperature setting with big LCD screen display. | ||
| Safety | Anti-dry prevention function which makes flask automatic lifting; instrument will stop at the set timing (0-999min); automatic lifting and standby alarm protection in abnormal or over temperature state. | ||
| Heater Power | 1.5KW | 1.5KW | 1.5KW |
| Flask Volume | 0.25–2L | 0.25–3L | 0.25–5L |
| Sealing | Imported PTFE and special complex compounded with special technique, which ensures good sealing and improves the anti-corrosion and durability property. | ||
| Condenser | Vertical 3-layered coil condenser with big condensation area, equipped with drip point and backflow prevention, which effectively increases the evaporation efficiency. | ||
| Condense Area | 0.18㎡ | 0.21㎡ | 0.31㎡ |
| Environment Temp. | 5℃~40℃ | ||
| Factory Configuration | 29#Eggplant Shaped Flask1L*1 29# Flange mouth Round Bottom Flask 2L*1 S35Ball mill mouth Receiving Flask 1L*1 | 29#Eggplant Shaped Flask1L *1 F50Flange mouth Round Bottom Flask3L*1 S35Ball mill mouth Receiving Flask 2L*1 | 29#Eggplant Shaped Flask1L *1 F50Flange mouth Round Bottom Flask5L*1 S35Ball mill mouth Receiving Flask:3L*1 |
| Input | AC220V/50HZ | ||
| Size&Weight | Pack Size 71×64.5×51cm/ Product Size 66×42×83cm/ G/W 30KG | Pack Size 71×64.5×79cm/ Product Size 70×43×86cm/ G/W 35KG | Pack Size 78×69×85cm/ Product Size 74×44×96cm/ G/W 42KG |
Ordering and configuration
Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
