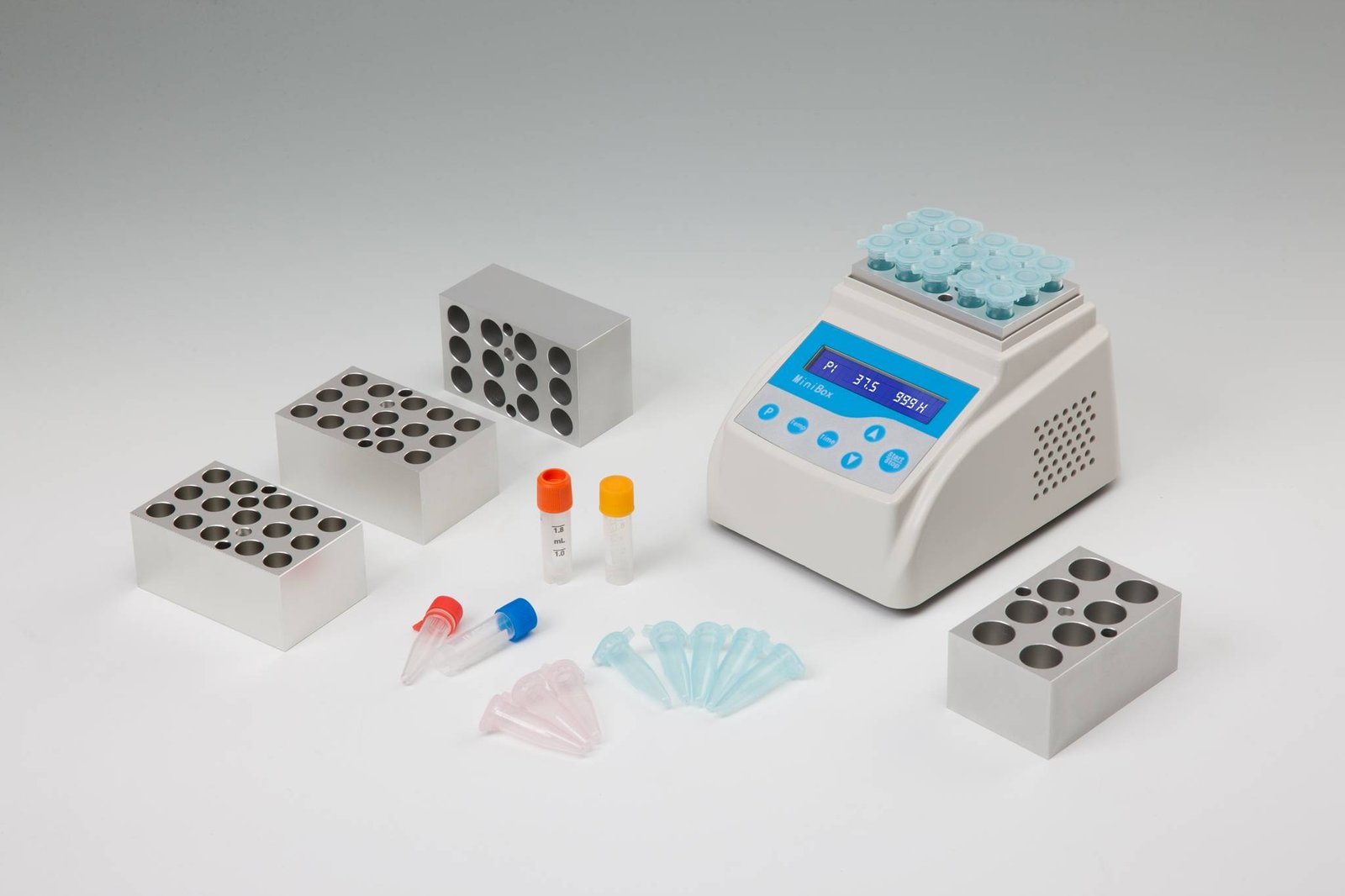

Drawell DW-MiniBox-C Mini Dry Bath Incubator
Product overview
DW-Minibox-C is a microprocessor-controlled product. It is widely used in preservation and reactions of sample, DNA amplification and initial denaturation of electrophoresis and so forth. It fits almost anywhere and can even be used in cars, boats or wherever a 12 volt power source is available.
The Drawell DW-MiniBox-C Mini Dry Bath Incubator supports research, clinical, pharmaceutical, industrial, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.
Key features
- Energy-efficient design.
- Applicable to 12V power adapter.
- Accurate to ± 0.3℃.
- Process of experiment is visible.
- Electronic calibration. User can reset to any local standard.
- Power supply provided is UL, CSA and CE approved.
- Custom blocks made to fit any sample holder.
- *Test condition：RT.25℃±2℃, use 15×1.5ml block, use mercurial thermometer, accuracy is ±0.1℃.
Applications
- Controlled heating, cooling, incubation, drying, or storage
- Sample preparation and temperature-sensitive laboratory workflows
- Routine research, testing, and quality-control applications
Technical specifications
| Parameters | DW- Minibox-C |
|---|---|
| Temperature range | 0℃～100℃ |
| Temp. control range | RT.-15℃～100℃ |
| Timing range | 1sec～5999sec/∞1min～5999min/∞ |
| Temp. accuracy | ≤±0.3℃* |
| Display accuracy | 0.1℃ |
| Temp. uniformity | ≤±0.3℃* |
| Heating time | ≤20min(from 25℃ to 100℃)* |
| Cooling time 1 | ≤20min(from 100℃ to 25℃)* |
| Cooling time 2 | ≤25min(from RT. to RT.-15℃)* |
| AUTO-4℃ | Yes* |
| Multi points running | Yes(Max. 5points) |
| Multi cycle | Yes(Max. 99times) |
| Auto heating | Yes |
| Auto running | Yes |
| Auto resume to run | Yes |
| Input power | DC12V |
| Max. power | 60W |
| Dimension(W×D×H) | 145×113×140mm |
| Net weight | 1.0kg |

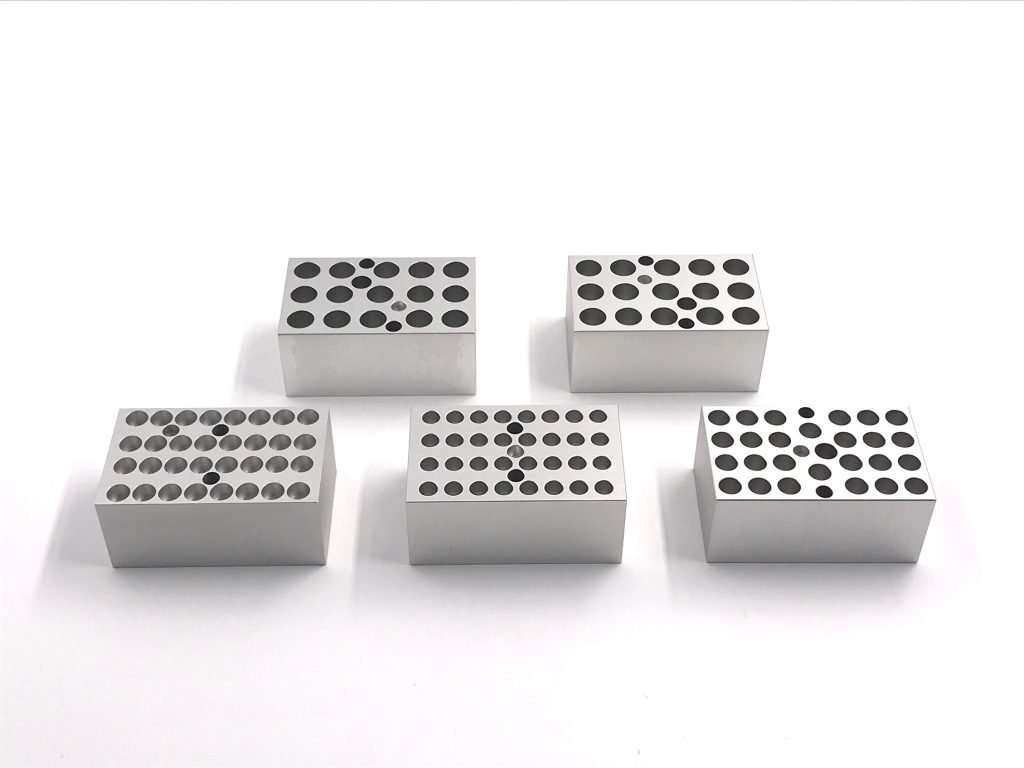

| Type | Description |
|---|---|
| MiniBoxA | 15×2.0ml |
| MiniBoxB | 15×1.5ml |
| MiniBoxC | 24×0.5ml |
| MiniBoxD | 32×0.2ml (for 0.2ml PCR 8-tube strip) |
| MiniBoxF | 32×0.2ml (for 0.2ml Elisa 8-well strip) |
Ordering and configuration
Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
