Product overview

DW-ICP-3000 inductively coupled plasma emission spectrometer , simultaneous full spectrum direct-reading spectrometer, is used for trace elemental analysis in diverse samples (soluble in hydrochloric acid, nitric acid, hydrofluoric acid, etc). It is currently widely applied in various fields of rare earth, geological, metallurgical, chemical, environmental, clinical medicine, petroleum, semiconductor, food, biological samples, criminal science and agricultural research etc..

The Drawell DW-ICP-3000 Inductively Coupled Plasma Emission Spectrometer supports research, pharmaceutical, environmental, food, industrial, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

• Full Automation Design : Computer-controlled operation except for the power switch, ensuring reliable, safe, and convenient use.
• Automatic Gas Flow Control : Carrier, plasma, and auxiliary gases are precisely controlled by mass flow controllers (MFCs) for stable sample introduction and plasma performance.
• Precise Wavelength Positioning : Intelligent automatic wavelength calibration eliminates additional peak calibration, saving solution and analysis time while ensuring accuracy.
• Fast Automatic Power Matching : Automatically optimizes RF output power to improve ignition efficiency, energy utilization, and instrument stability.
• Ultra-Fast Analysis : Supports flexible integration times, full-exposure intensity acquisition, and selected-line readout in less than 2 ms.
• Powerful Analysis Software : Provides qualitative, semi-quantitative, and quantitative analysis, instrument diagnostics, intelligent optimization, full-spectrum research, offline reprocessing, background correction, and interference removal.
• Flexible Sample Introduction System : Compatible with various nebulizers and spray chambers, including optional high-solids and HF-resistant nebulizers.
• Stable Solid-State RF Generator : Compact solid-state RF power system delivers stable output, reliable ignition, and enhanced operational safety.

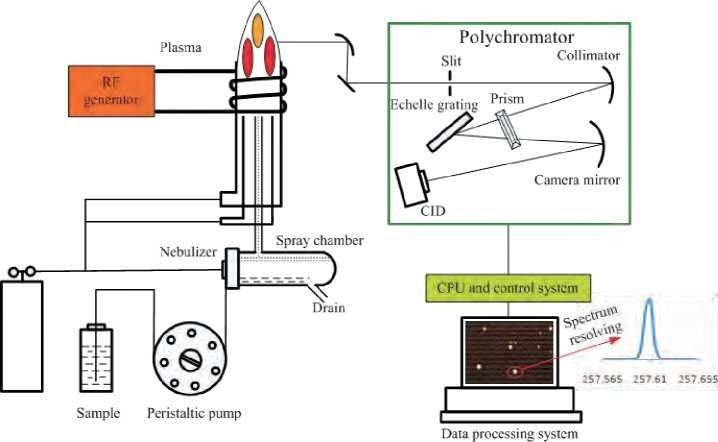

• High-Performance Optical System : Echelle-prism cross-dispersion optics provide high light throughput, excellent resolution, low stray light, and long-term stability. Efficient N₂ purging supports deep-UV analysis of elements such as P, S, and As.
• Advanced CID Detector : Large-area megapixel CID detector captures the full 165–900 nm spectrum. Non-destructive readout improves weak-signal SNR, measurement precision, and analysis speed.
• ICP-3000 Software ：
• ICP3000 operating software can control all functions of the instrument, including plasma ignition, gas flow control (Figure 1), and security monitoring (Figure 2), etc…
• Daily Analysis Software ：

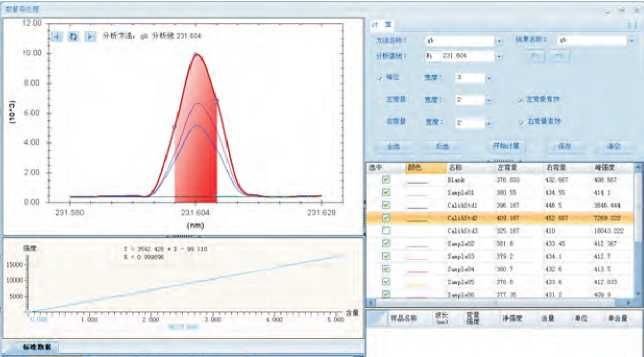

• specifying the individual pixel or pixel subarray region for quantitative analysis (Figure 3 & 4).

Applications

• 1. Silicon Industrial
• Test magnetic materials
• 2. Metallurgical
• Analyze As, Bi, Pb, Sb, Sn and other impurity elements, which effect greatly the metallic materials quality Water analysis: analyze 8 heavy metal elements
• 3. Geological, mineral
• Analyze Ca, Mg, Na, Fe, Cu, Mn, Zn, Co, M, Au, Ag and other elements in the rock samples
• 4. Petrochemical and Industrial
• Analyze over 30 elements in crude oil , mainly Fe, Na, Mg, Ni, V, Ca, Pb, Mo, Mn , Cr, Co, Ba, As, etc.
• 5. Pharmaceutical, health, agricultural and environmental and Food safety

Technical specifications

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
