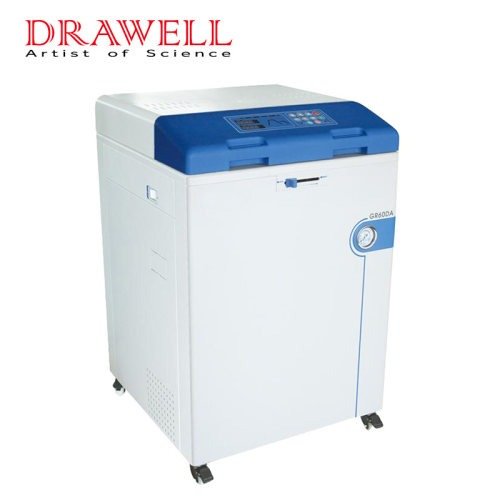

Drawell DW-GR Series Vertical Autoclave

Drawell DW-GR Series Vertical Autoclave

Product overview

DW-GR Series vertical autoclave is a configurable vertical steam autoclave for laboratories handling liquids, glassware, instruments, wrapped materials, agar media and laboratory waste. Designed for routine and higher-throughput laboratory sterilization, with 60 L, 85 L and 110 L capacities and DA, DF and DR configurations for different water-management and drying requirements.

The Drawell DW-GR Series Vertical Autoclave supports laboratories, hospitals, clinics, universities, and controlled production facilities. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

• Programmable Cycle Control : The microcomputer controller manages the sterilization process automatically and allows users to save frequently used programs.
• 6-Level Exhaust Control : Six exhaust-speed levels allow the operator to adjust pressure release according to different loads, particularly liquids and temperature-sensitive containers.
• Fast Cooling Fan : A cooling fan is standard across the DW-GR Series to help shorten the post-sterilization cooling stage.
• Cold-Air Discharge Monitoring : The system monitors cold-air removal during heating to support suitable saturated-steam conditions before sterilization.
• 20 / 60 Stored Programs : DA models store up to 20 programs , while DF and DR configurations store up to 60 programs .
• Agar Melting & Warming : Provides 60–115°C melting and 45–79°C warming , useful for agar and laboratory media preparation.
• Scheduled Start : Programs can be scheduled up to 15 days in advance for planned laboratory workflows.
• Optional Steam Condenser : The optional condenser converts exhaust steam into water, helping reduce visible steam and moisture released into the laboratory.
• Lid Interlock & Closing Check : Mechanical and electrical checks prevent the cycle from starting unless the lid is correctly closed and locked.
• Cooling Lock : The lid-opening temperature can be set separately for different programs, helping prevent opening while liquid or solid loads remain excessively hot.
• Low-Water & Dry-Heating Protection : Multiple monitoring methods detect insufficient chamber water and help protect the heating system against dry operation.
• Pressure & Temperature Protection : Mechanical and electronic monitoring continuously checks chamber conditions. Abnormal pressure or temperature can trigger heating shutdown, pressure release and alarm functions.
• Electrical & Fault Protection : The controller monitors operating status and reports fault information when abnormal conditions are detected. Electrical protection includes leakage, overcurrent and short-circuit protection.
• DA is the standard configuration with fast cooling and controlled exhaust. DF adds automatic water filling. DR additionally provides automatic drying.

Applications

• Sterilization, cleaning, or decontamination of laboratory materials
• Infection-control and reusable-instrument workflows
• Application-specific processing with suitable cycles and capacity

Technical specifications

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
