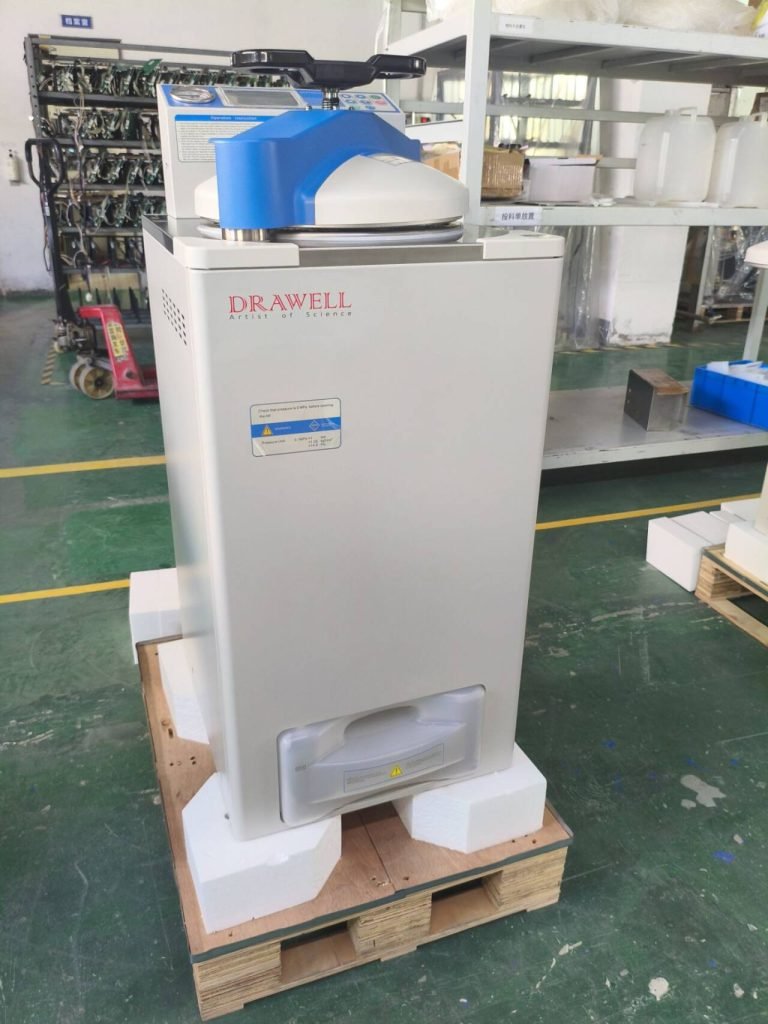

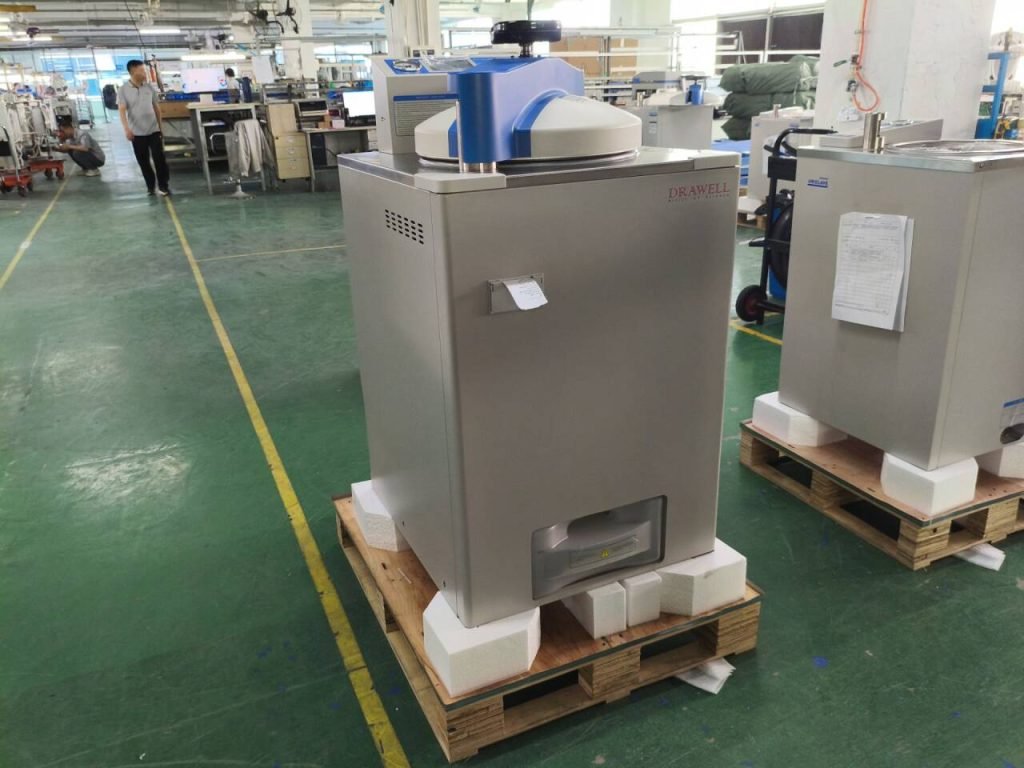

Drawell DW-GI Series Vertical Autoclave

Drawell DW-GI Series Vertical Autoclave

Product overview

The DW-GI Series covers 29–100 L chamber capacities for laboratory liquids, glassware, wrapped materials, media and waste. Four configurations are available for routine sterilization, drying, odor treatment and vacuum-assisted air removal.

The Drawell DW-GI Series Vertical Autoclave supports laboratories, hospitals, clinics, universities, and controlled production facilities. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

• Color LCD Interface : Displays cycle status, operating data and process information in a clear graphical interface.
• 6-Level Exhaust Control — TW / TR / TP : Six exhaust-speed settings allow pressure release to be adjusted according to different loads, particularly liquids.
• 60 Programmable Cycles : Users can store customized programs for different routine loads and sterilization requirements.
• 999 Cycle Records : Up to 999 sterilization cycles can be stored and transferred through USB for later review.
• Automatic F0 Calculation : The controller automatically calculates F0 during the thermal process. Data can be printed when the optional micro-printer is configured. F0 calculation supports process evaluation and documentation but does not replace validation of the specific load and cycle.
• Fast Cooling : Cooling fans help shorten the post-sterilization cooling stage. TX and TP configurations use dual cooling fans according to the current specification.
• Five-Level User Access : Five permission levels allow operating and parameter-setting rights to be assigned according to different user roles.
• Optional Steam Condenser : The condenser converts exhaust steam into water, helping reduce visible steam and moisture released into the laboratory during operation.
• Vacuum pump(TP only) : Vacuum Degree: ≤−80 kPa; Vacuum Leakage Rate: <0.13 kPa/min; Vacuum Pulses: 1–9
• Calibration port
• Offer temp. and pressure interface, together with the 3Q adapter joints, can insert max 15 sensors one time to do the calibration work.
• Program memory storage system
• User can set their own program, and save in system.
• Saturated steam monitoring

Applications

• Sterilization, cleaning, or decontamination of laboratory materials
• Infection-control and reusable-instrument workflows
• Application-specific processing with suitable cycles and capacity

Technical specifications

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
