Drawell DW-CZ-BL series Vertical Electrophoresis Tank
Available in stock
The Drawell DW-CZ-BL series Vertical Electrophoresis Tank is a professional sample-preparation laboratory instrument. Review features and technical specifications, then request configuration, MOQ, lead time, warranty, and a formal quotation.
SKU: DRAWELL-58E3EF5607
Category: Electrophpresis Tank
Tags: Drawell, DW-CZ-BL series Vertical Electrophoresis Tank, Electrophpresis Tank, laboratory equipment
Brand: Drawell
Report Abuse
Scientific China
Store
Scientific China
Store
Additional information
| Product Category | Electrophpresis Tank |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description
Drawell DW-CZ-BL series Vertical Electrophoresis Tank
Product overview
Vertical electrophoresis utilises potent protein and nucleic acid analytical tools for applications within all aspects of life science research, ranging from purity determination to analysis of complex protein lysates. DRAWELL provides a comprehensive range of vertical electrophoresis systems, complete with tanks, inserts and reagents to fulfil a variety of applications and techniques in different gel sizes and sample capacities.
The Drawell DW-CZ-BL series Vertical Electrophoresis Tank supports research, pharmaceutical, environmental, food, industrial, and educational laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.
Key features
- The installation of glass plates can be completed within 15s, easy and quick.
- With a gel casting in original position, no need to move the glasses from gel making to electrophoresis running. It is more convenient to observe gel preparing through both sides of the glasses.
- With a precast gel inner core, it can make gel casting and electrophoresis running at the same time.
- It’s more convenient to open the lid with the easy-open buttons
- An abundant buffer not only guarantees cooling effects, but also keeps the pH value stable during the whole experiment.
- Auto-switch-off when the lid is moved.
Applications
- Mixing, homogenization, extraction, digestion, separation, or concentration
- Preparation of samples before analysis
- Routine research and quality-control workflows
Technical specifications
| Model | DW-CZ-BL |
|---|---|
| Glass plate size (W×L) | 216 × 220(mm) |
| Gel size (W×L) | 186 × 205(mm) |
| Gel thickness | 1.0 (mm) |
| Number of gel | 1~2 pc(s) |
| No. of samples | 25~104 |
| Total buffer volume | 3500 (ml) |
| Gel making mode | Gel casting |
| Dimension(L×W×H) | 290×170×250(mm) |
| Weight | 6.2(kg) |

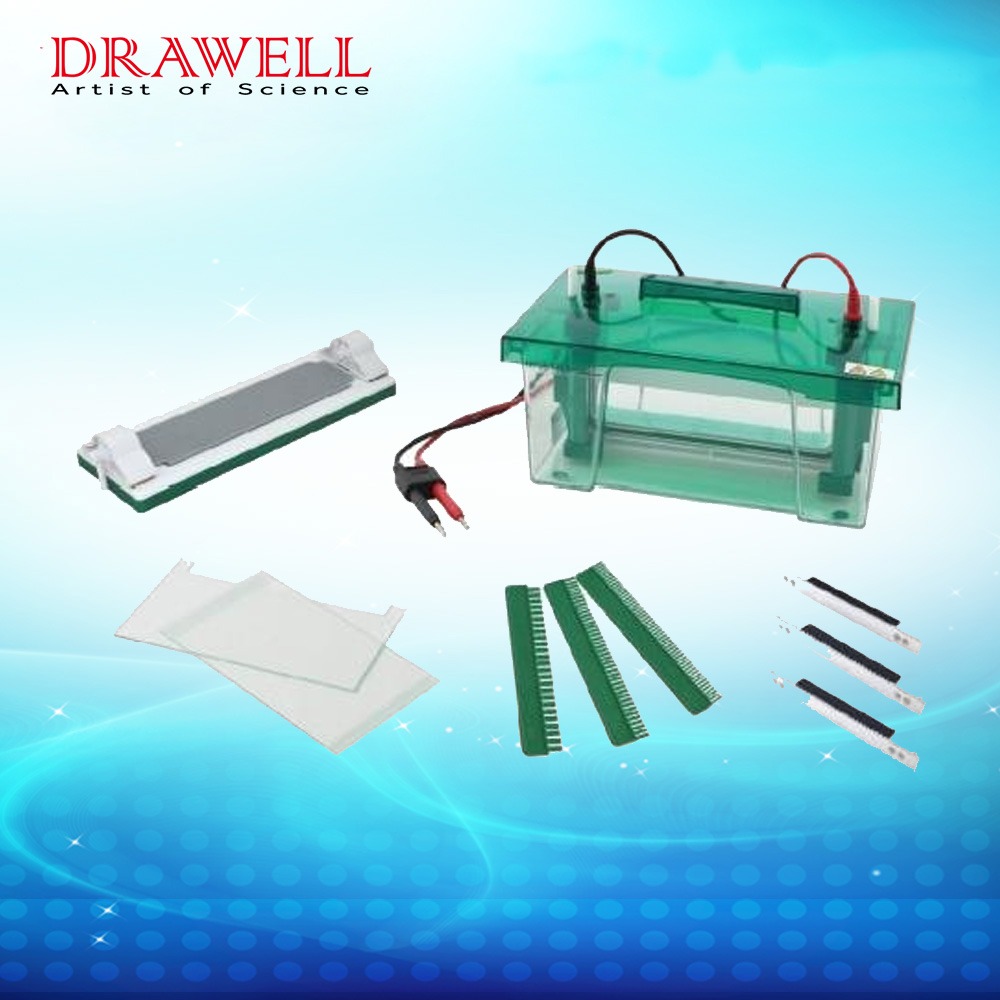

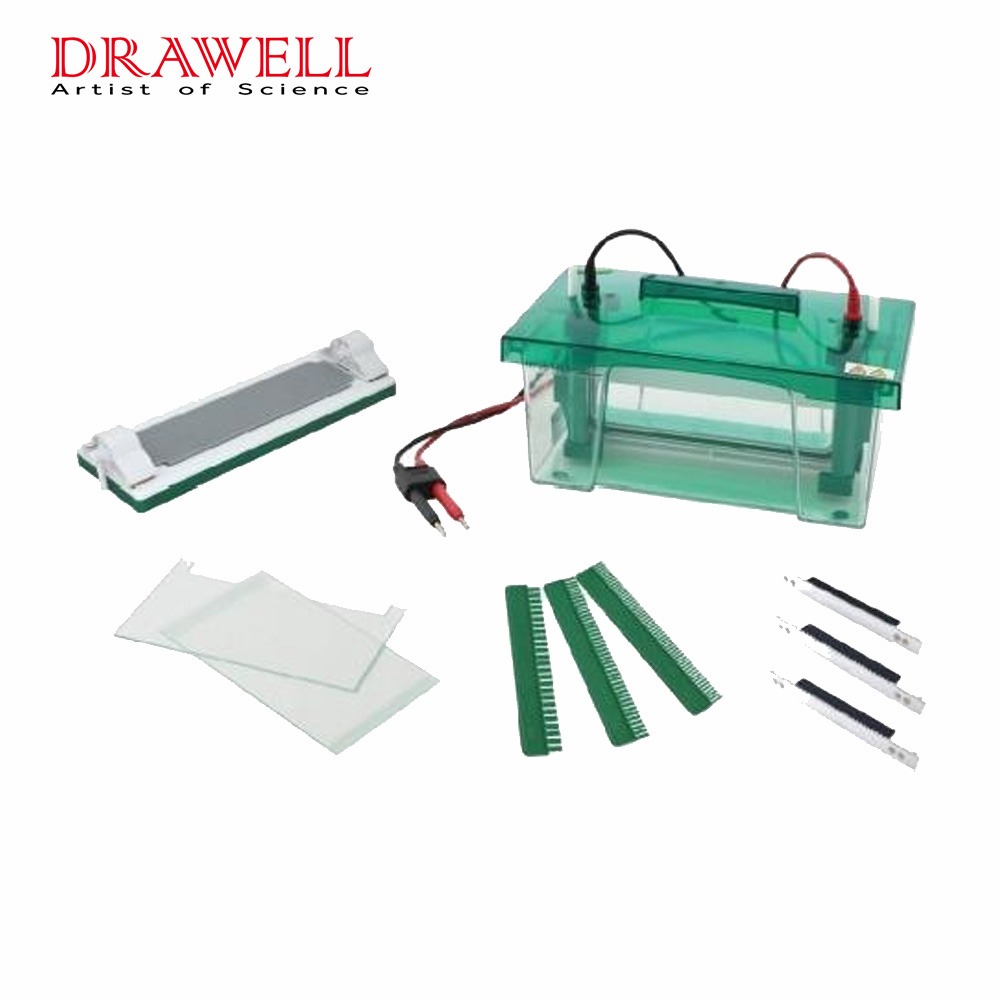

| Parts name | Quantity |
|---|---|
| Lid with cables | 1 |
| Body tank | 1 |
| Gel casting core with electrodes | 1 |
| Gel casting stand | 1 |
| Precast gel core | 1 |
| Notched glass plates | 4 |
| Spacer plate with 1.0mm glass spacer | 4 |
| 1.0mm thickness 25-well comb | 2 |
| 1.0mm thickness 40-well comb | 2 |
| 1.0mm thickness 52-well comb | 2 |
Ordering and configuration
Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
