Drawell DW-B Vertical Autoclave

Drawell DW-B Vertical Autoclave

Product overview

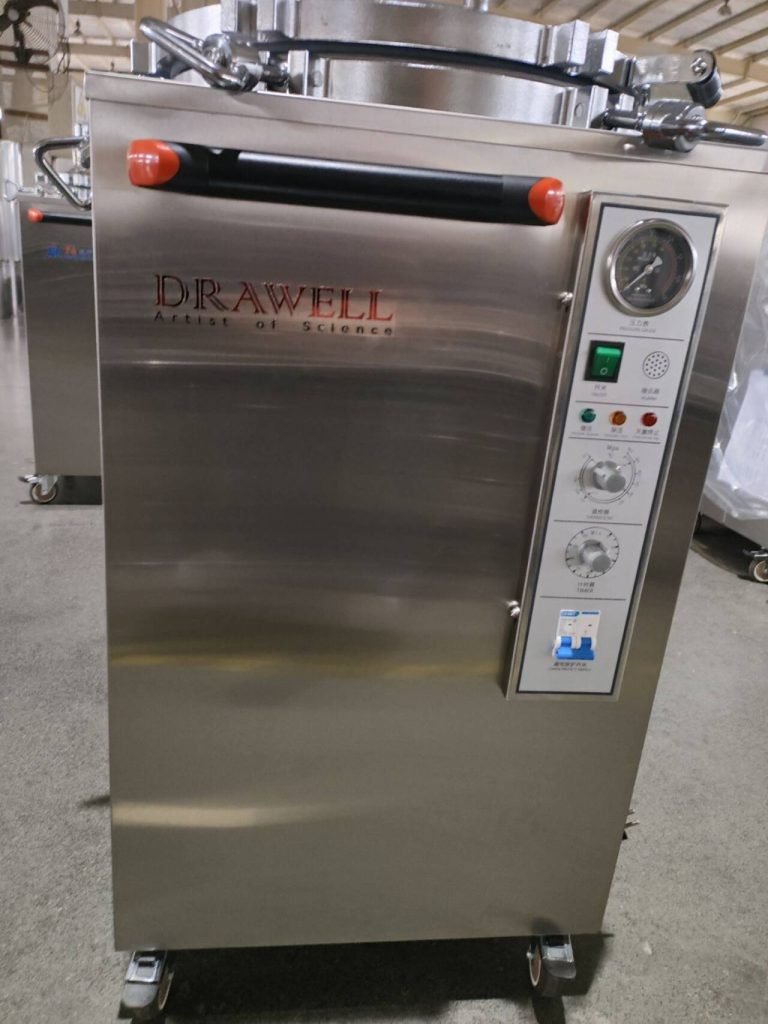

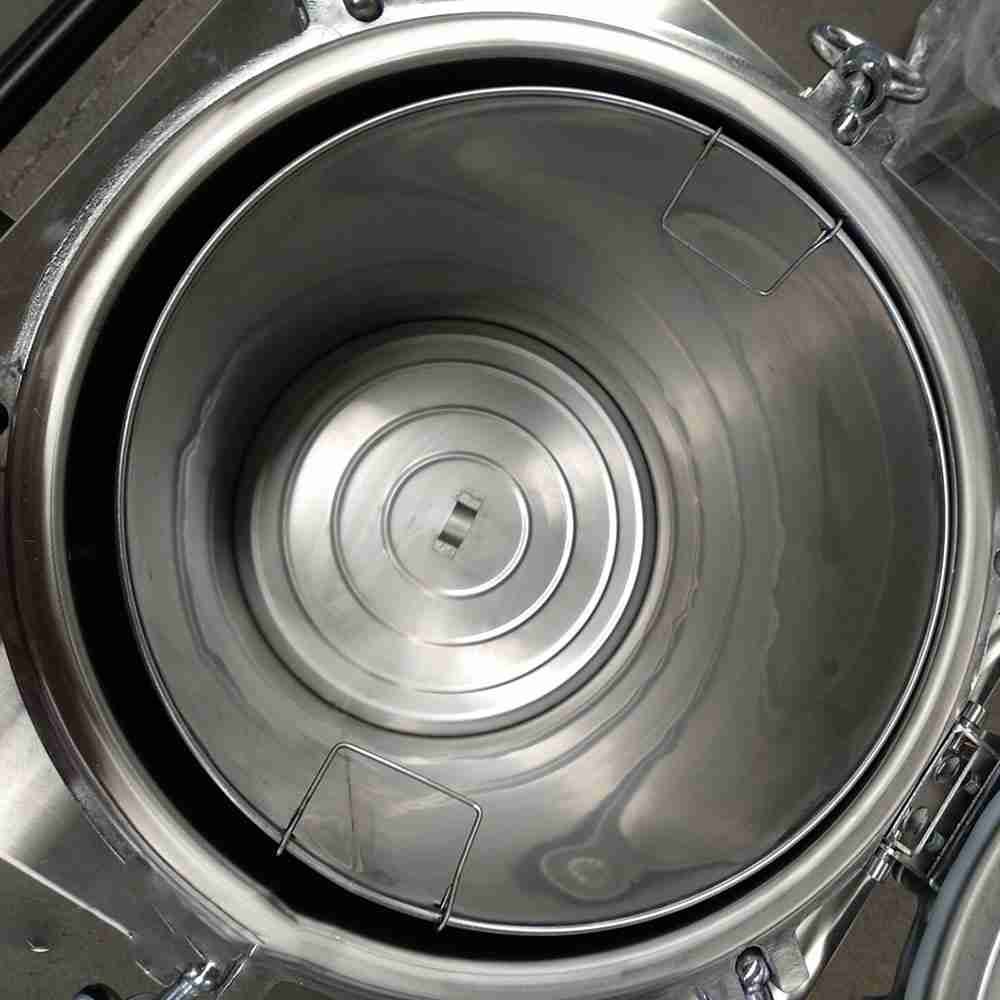

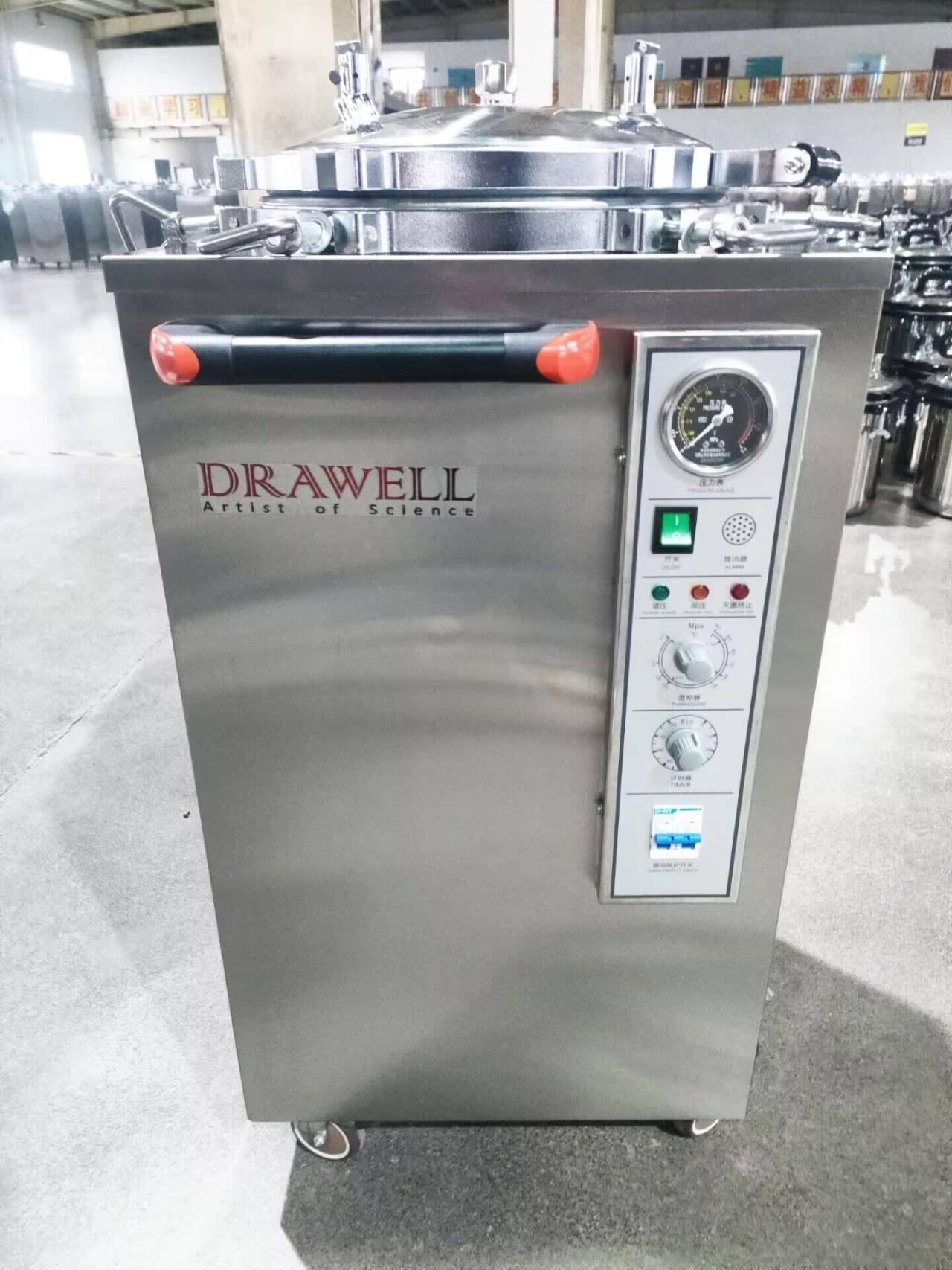

The DW-B Vertical Autoclave is designed for routine steam sterilization in laboratories, research facilities and other applications requiring a practical 35–150 L chamber capacity. The series is available in six sizes and provides adjustable sterilization temperature and time settings for different batch requirements.

The Drawell DW-B Vertical Autoclave supports laboratories, hospitals, clinics, universities, and controlled production facilities. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

• High-quality SUS304 stainless steel material

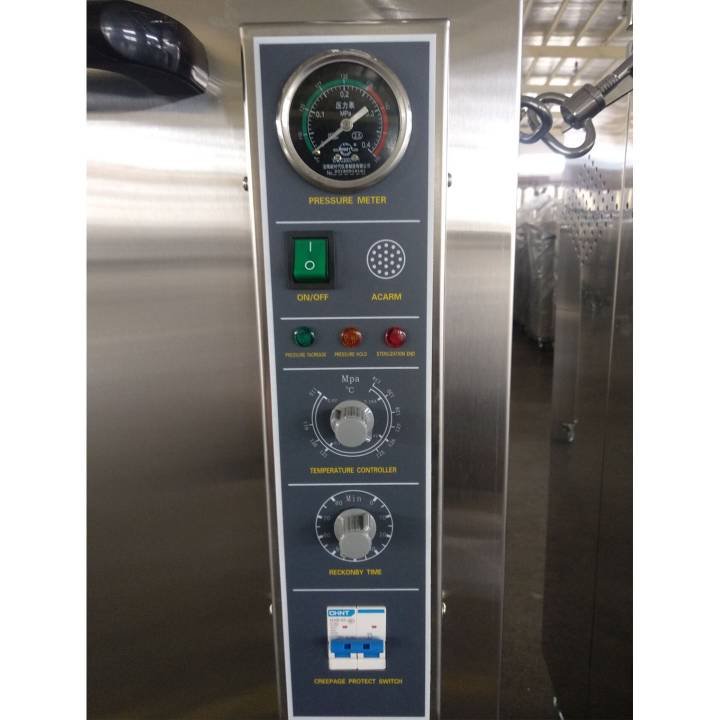

• Dual scale indicate pressure gauge
• Light indicate working status
• Temperature and time of sterilization can be set.
• Water lack auto-protection
• Overpressure auto-discharging
• Over-current auto-protection
• Over temperature auto-protection
• A drying function can be added (best large than 75L）
• Tips: Choose the DW-B for straightforward routine sterilization. Consider the DW-B Digital when a wider temperature range, longer timer range or microcomputer-based operation is required.
• The standard DW-B Series operates from 115°C to 129°C .
• The specified working pressure range is 0.145–0.165 MPa .
• Yes. The standard DW-B provides an adjustable timer range of 0–80 minutes .
• The system includes water-shortage protection, over-temperature protection, over-current protection and automatic pressure relief .

Applications

• Sterilization, cleaning, or decontamination of laboratory materials
• Infection-control and reusable-instrument workflows
• Application-specific processing with suitable cycles and capacity

Technical specifications

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
