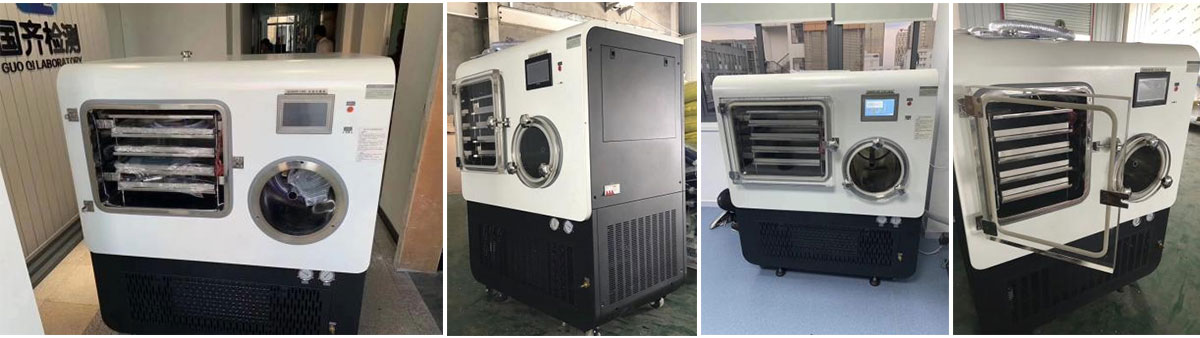

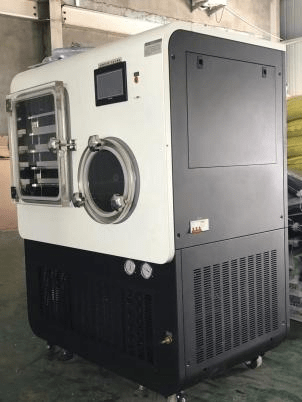

Drawell DW-30F In-situ Silicone Oil Heating Freeze Dryer

Drawell DW-30F In-situ Silicone Oil Heating Freeze Dryer

Product overview

F series freeze-dryer is Silicone Oil Heating type, Pre-freeze drying process at in situ situations, reduce the complicate operation from the drying process, become automatically; This series has two types: ordinary type and Top-Press type.

The Drawell DW-30F In-situ Silicone Oil Heating Freeze Dryer supports research, clinical, industrial, education, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

• Shelf temperature differences ± 1 ℃, dry effect uniform;
• Intermediate medium circulation technique, the shelf can refrigeration, heating, temperature adjustable, controllable, pilot-scale test and production process;
• Due to the drying chamber and cold trap for fission structure, a special gas circuit designed, to capture water ability is strong, and drying time is short;
• Embedded touch screen, PLC controlled and PID temperature-controlled display lyophilized curve and history curve;
• The Control system can be stored 40 freeze-dry process programs, each program can have 40 temperature settings, and can choose the manual operation and automatic operation, the Top-Press type is equipped with an automatic defrost function;
• Optional eutectic point test device;
• U disk data available;
• Equipped with PC software can print curve, browsing curve, and modify data;
• The square tray is shaped not easily to deformed, easy to operate and clean;
• Can be configured charging valve, rechargeable dry inert gas.
• The drying chamber adopts high light colorless transparent organic glass door, in the operation process can be observed clearly the change of material process;
• Refrigeration system using overlap refrigeration technology, low refrigeration temperature, large refrigerating capacity, and adopt imported closed compressor, high efficient and reliable, low noise.

Applications

• Professional laboratory testing or sample-processing workflows
• Routine research and quality-control applications
• Application-specific operation according to the selected model

Technical specifications

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
