Description

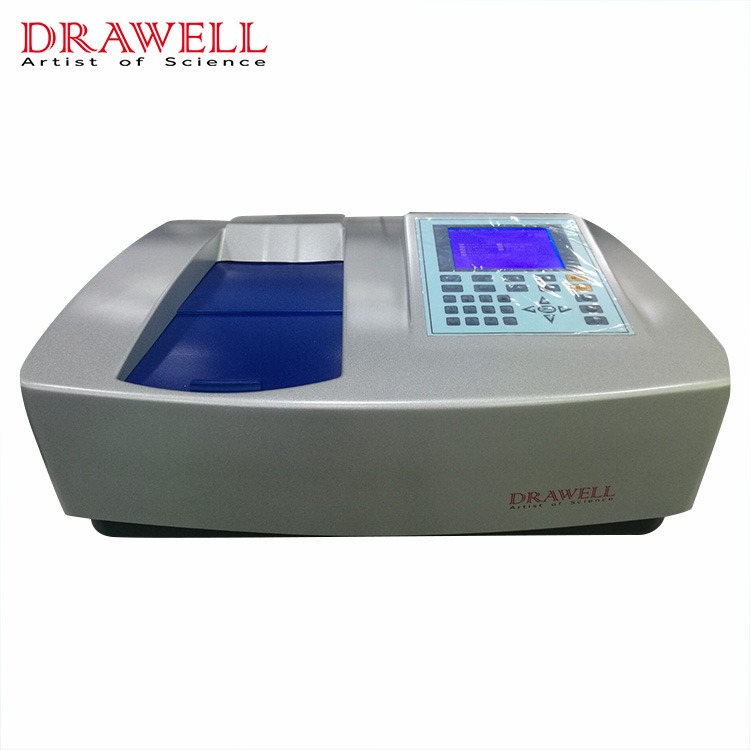

Drawell DU-8800DS Double Beam UV/VIS Spectrophotometer
Product overview
DU-8800DS Spectrophotometer is an advanced double beam optical system.
The Drawell DU-8800DS Double Beam UV/VIS Spectrophotometer supports research, pharmaceutical, environmental, food, industrial, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.
Key features
- Double beam ensure low drift, low noise and Low stray light
- High-speed MCU, high precision AD, large storage capacity

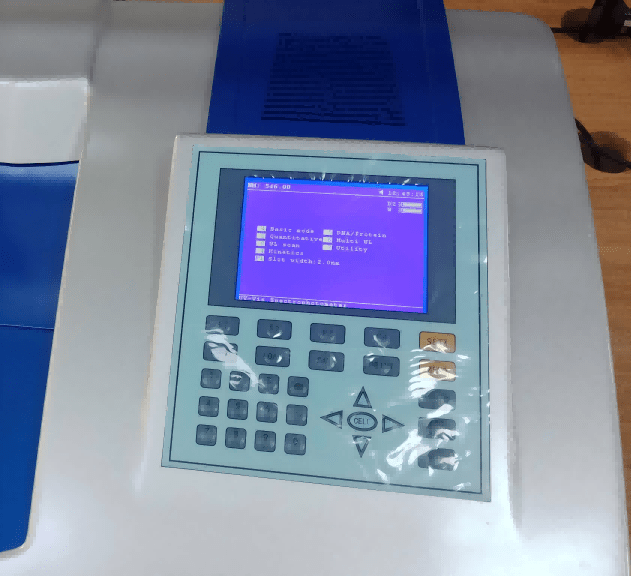

- Large LCD display (320*240 Dots)
- 8 nm Bandwidth meet Pharmacopoeia
- Data and Curve can be stored in real-time
- Online software upgrade capability
- Lamps can be turned on/off individually
- Easy to change Pri-aligned lamps
- Quantitative(Standard Curve)
- WL Scan(Spectrum Scan)
- Time Scan(Kinetics)
- DNA/Protein Test
- Multi-WL Test
- System Utility
Applications
- Quantitative or qualitative laboratory analysis
- Research, method development, and routine quality control
- Application-specific testing with suitable accessories and methods
Technical specifications
| Model | DU-8800DS |
|---|---|
| Wavelength Range | 190-1100nm |
| Spectral Bandwidth | 0.5/1/1.5/2/4/5nm adjustable |
| Optical System | Double Beam , Blazed Holographic Grating (1200 lines/mm) |
| Wavelength Accuracy | ±0.3nm |
| Wavelength Repeatability | ≤0.2nm |
| Wavelength Setting | Auto, Resolution 0.1nm |
| Photometric Range | 0~200%T, -0.3Â~3A, 0~9999C |
| Photometric Accuracy | ±0.002A (0~0.5A), ±0.003A (0.5~1A), ±0.3%T (0~100%T) |
| Photometric Repeatability | ≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T) |
| Stray Light | ≤0.05%T(220/360nm) |
| Scan Speed | High, Medium, Low. Max.2000nm/minute |
| Baseline Flatness | ±0.001A |
| Stability | ±0.001A/h (500nm,0A) |
| Noise | ≤0.2%T/3min (250/500nm,0%T); ≤0.3%T/3min (250/500nm,100%T) |
| Sample Compartment | Accommodate 5-100mm Pathlength Cuvette |
| Detector | Silicon Photodiode |
| Lamps | Tungsten Lamp & Deuterium Lamp (Pre-aligned) |
| Display | Graphic LCD (128×64 Dots) |
| Keypad | 30-key Alphanumeric Membrance Keypad |
| Output Port | USB Port & RS232 Port |
| Printer | Mini Serial Printer; PC Printer |
| PC Software | PC Scanning Software |
| Power Requirements | AC 90-250V，50/60Hz |
| Dimension | 545x468x245mm |
| Net Weight / Gross Weight | 21kgs / 25kg |
Ordering and configuration
Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
