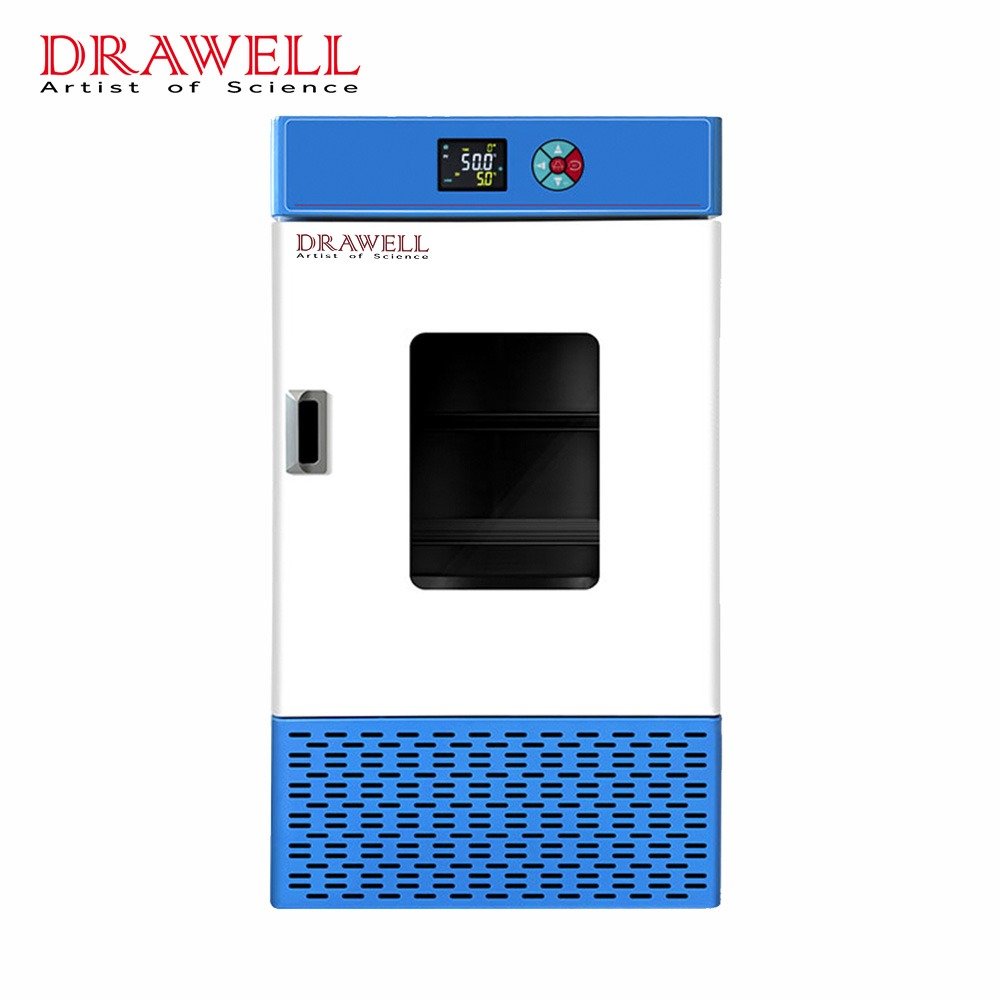

Drawell DPX-BF Series Precision Biochemical Incubator
Available in stock
The Drawell DPX-BF Series Precision Biochemical Incubator is a professional temperature-controlled laboratory equipment. Review features and technical specifications, then request configuration, MOQ, lead time, warranty, and a formal quotation.
SKU: DRAWELL-9D16952C8D
Category: BOD Incubator
Tags: DPX-BF Series Precision Biochemical Incubator, Drawell, Incubator > BOD Incubator, laboratory equipment
Brand: Drawell
Report Abuse
Scientific China
Store
Scientific China
StorePeople Also Viewed
-
RayKol Vitae 60 PCR Setup Automatic System — Estimated Price US$25,000–US$65,000
-
RayKol Vitae M96S Semi-Automatic Liquid Handling Workstation — Estimated Price US$18,000–US$45,000
-
RayKol EVA Mini 96 96-Well Plate Sample Drier — Estimated Price US$8,000–US$22,000
-
RayKol SAP 20 Automatic Dried Blood Spot Puncher — Estimated Price US$15,000–US$40,000
-
RayKol Mini Lids Automatic Capping Machine — Estimated Price US$6,000–US$18,000
-
Sineo ECH-II Temperature-Controlled Heating Block
Shipping
Additional information
| Product Category | Incubator > BOD Incubator |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description
Drawell DPX-BF Series Precision Biochemical Incubator
Product overview
DPX-BF Series Precision Biochemical Incubator Features of DPX-BF Precision Biochemical Incubator Upgrade content: (9-point test temperature) Specifications of DPX-BF Precision Biochemical Incubator DPX-BF Precision Biochemical Incubator Display
The Drawell DPX-BF Series Precision Biochemical Incubator supports research, clinical, pharmaceutical, industrial, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.
Key features
- The box body shell is made of high-quality galvanized sheet, and its surface is treated by electrostatic spraying technology.
- The design is elegant and practical, with excellent corrosion resistance and durability. The inner liner is made of high-quality stainless steel. The four corners smoothly transition into semi-circular arcs, which is convenient for cleaning. The height of the shelves can be adjusted freely.

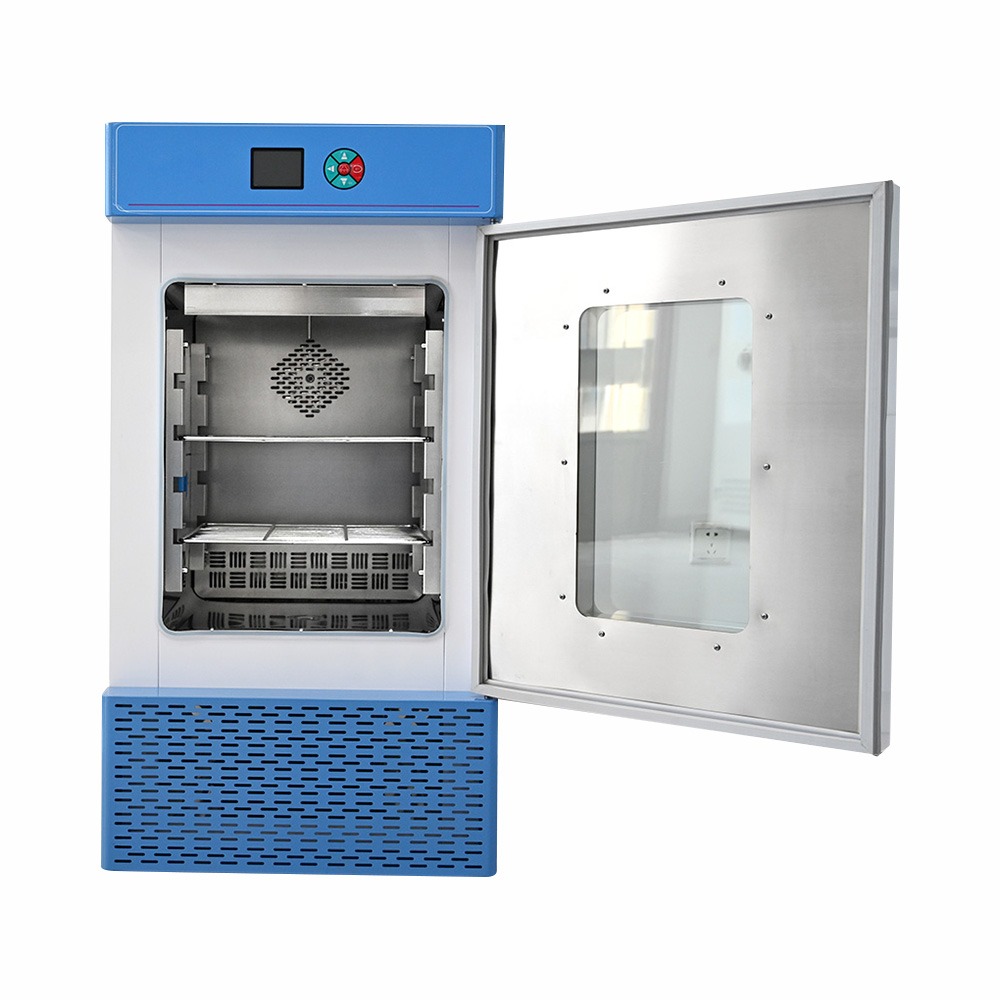

- Single-door structure design: An tempered glass observation window is installed, and it is sealed with magnetic rubber strips. The working area is equipped with lighting, facilitating observation.
- Microcomputer control system, large-screen LCD display, touch-type operation buttons, easy to operate;
- Using high-end compressors and circulating fans, it achieves low energy consumption and energy savings.
- A temperature alarm system is provided, with automatic temperature limit and automatic power cut-off to ensure the safety of the experiment. Excellent insulation design is adopted to ensure good sealing performance and prevent temperature loss.
- Inner liner thickness upgrade: The original thickness was 0.8mm, and the upgraded thickness is 1.0mm.
- Increased automatic defrosting capability, improving the operational efficiency of the equipment, reducing energy consumption and extending the service life.
- Fan upgrade, from capacitor fan to axial brushless fan, ensuring uniform temperature distribution in the box.
Applications
- Controlled heating, cooling, incubation, drying, or storage
- Sample preparation and temperature-sensitive laboratory workflows
- Routine research, testing, and quality-control applications
Technical specifications
| Model | DPX-80BF | DPX-150BF | DPX-250BF | DPX-350BF | DPX-460BF |
|---|---|---|---|---|---|
| Capacity | 80L | 150L | 250L | 350L | 460L |
| Power supply | 220V 50Hz | ||||
| Temperature control range | 5℃-65℃ | ||||
| Temperature distribution accuracy | ±1.5℃（set temperature 37℃，ambient temperature 25℃） | ||||
| Temperature resolution | 0.1℃ | ||||
| Temperature fluctuation degree | High temperature ±0.5℃, low temperature ±1℃ | ||||
| Inner liner material | 201 stainless steel inner liner | ||||
| Shell material | Galvanized sheet (electrostatic spraying) | ||||
| Insulation layer | Polyurethane | ||||
| Compressor | Air-cooled hermetic compressor | ||||
| Refrigerant | R134a | ||||
| Heater | Stainless steel heating tube | ||||
| Defrost function | Intelligent control for automatic defrosting | ||||
| Temperature control | Single-stage liquid crystal intelligent PID controller | ||||
| Timer function | 0-9999min | ||||
| Operating mode | Fixed-value operation, timed operation, automatic stop | ||||
| Test hole | Standard configuration – one | ||||
| Sensor | PT100 | ||||
| Power | 600w | 800w | 1000w | 1200w | 1400w |
| Inner liner dimensions (mm) (Depth x Width x Height) | 400×400×500 | 400×500×750 | 500×550×910 | 600×600×1000 | 650×650×1100 |
| Overall dimensions (mm) (Depth x Width x Height) | 610×560×1070 | 600×660×1400 | 700×720×1590 | 790×760×1640 | 850 ×805×1630 |
| Packaging dimensions (mm) (Depth x Width x Height) | 690×620×1150 | 770×735×1520 | 820×800×1660 | 870×860×1800 | 990× 1040×1970 |
| Standard/Maximum number of partitions | 2/4 | 2/7 | 2/9 | 2/10 | 2/11 |
| Partition spacing | 75mm | 80mm | 80mm | 83mm | 80mm |
| Partition load-bearing capacity | 20kg | ||||
| Additional functions | Lighting fixture | ||||
| Optional functions | Waterproof socket |
Ordering and configuration
Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
