Drawell DO400F Benchtop DO Meter
Available in stock
The Drawell DO400F Benchtop DO Meter is a professional professional laboratory instrument. Review features and technical specifications, then request configuration, MOQ, lead time, warranty, and a formal quotation.
Scientific China
Store
Additional information
| Product Category | Electrochemistry Instruments > Dissolved Oxygen Meter |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description

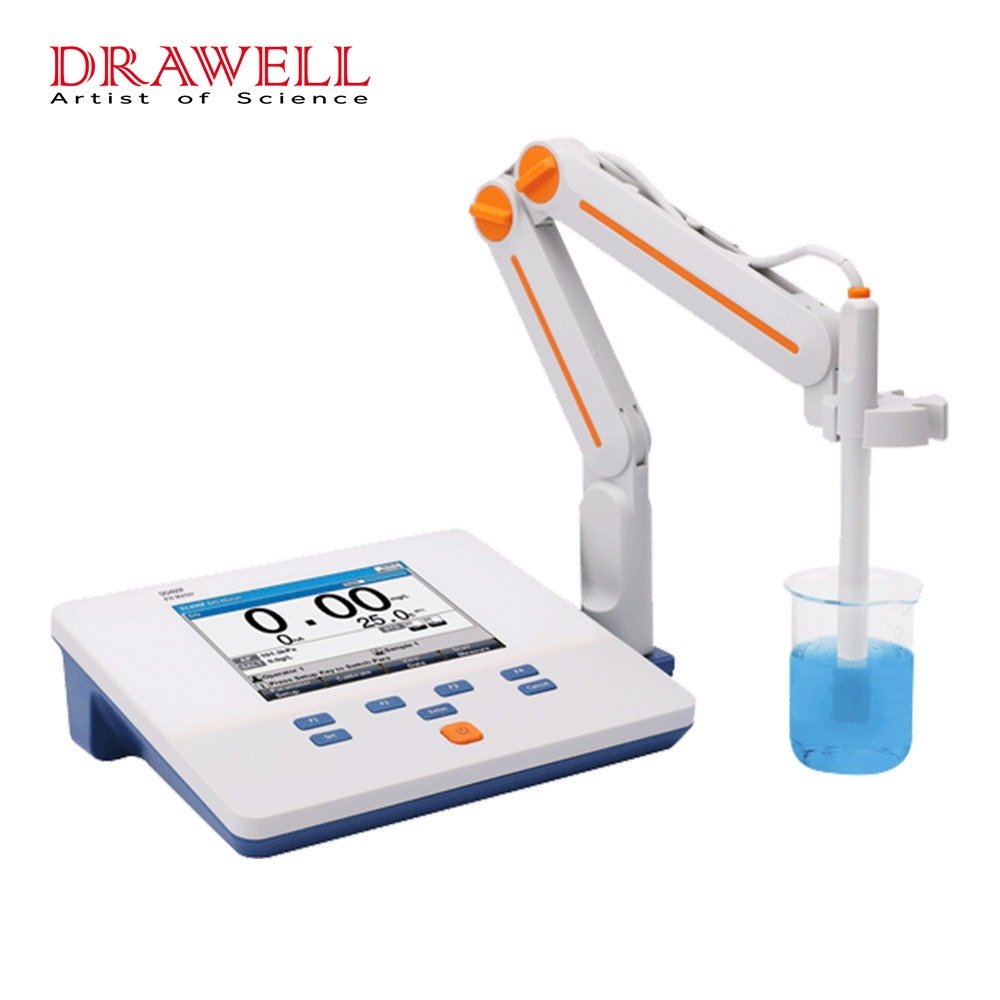

Drawell DO400F Benchtop DO Meter
Product overview
Multi-reading feature allows auto-read, timed-read and continuous-read.
The Drawell DO400F Benchtop DO Meter supports research, clinical, industrial, education, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.
Key features
- DO-958-Q polarographic DO electrode（zero oxygen calibration solution, dissolved oxygen electrolyte, 3 pcs electrode membrane cover）
- REX-5 electrode stand
Applications
- Professional laboratory testing or sample-processing workflows
- Routine research and quality-control applications
- Application-specific operation according to the selected model
Technical specifications
| Model | DO400F | |
|---|---|---|
| Parameters | DO/Temp(DO Saturation). | |
| DissolvedOxygen Concentration | Sensor Type | Polarographic |
| Range | 0.00 to 99.99 ppm | |
| Resolution | 0.01ppm | |
| Accuracy | ±0.1 ppm | |
| Calibration Points | Air-saturated water or zero point | |
| Barometric Compensation | Yes | |
| Manual Salinity Factor Correction | Yes | |
| DO Saturation | Range | (0.0 to 600.0)% |
| Resolution | 0.1% | |
| Accuracy | ±2.0% | |
| Temperature | Range | -10 to 135 ºC, 14 to 275 ºF |
| Unit | ºC, ºF | |
| Resolution | 0.1 | |
| Accuracy | ±0.1ºC | |
| Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked | |
| Temp. Compensation | ATC, MTC | |
| Data management | Data Storage | 500 results each |
| GLP Features | Yes | |
| Inputs | DO with Temp. Probe | 4-pin aviation connector |
| Outputs | USB | PC |
| RS 232 | printer | |
| Display options | Backlight | Yes |
| Auto Shutdown | 1~60 min, off | |
| IP Rating | IP54 | |
| Date and Time | Yes | |
| General | Power | AC Adapter, 100-240V AC input, DC9V output |
| Dimensions | 242×195×68 mm | |
| Weight | 900g (1.98 lb) | |
| Dimensions (Carton) | 370×320×220 mm | |
| Weight (Gross) | 2.5 kg |
Ordering and configuration
Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
