Drawell Class II B2 Biological Safety Cabinet
Available in stock
The Drawell Class II B2 Biological Safety Cabinet is a professional laboratory workspace or containment equipment. Review features and technical specifications, then request configuration, MOQ, lead time, warranty, and a formal quotation.
Scientific China
Store
Additional information
| Product Category | Lab Furniture > Biosafety Cabinet |
|---|
Questions & Answers
Loading...
Product Enquiry
Product Enquiry
Description
Drawell Class II B2 Biological Safety Cabinet
Product overview
Clean biological safety cabinet is necessary in animalcule lab, espedally in the condition needing protection measure, such as medicine, pharmacy, scientific research and so on.
The Drawell Class II B2 Biological Safety Cabinet supports clinical, research, pharmaceutical, industrial, and educational laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

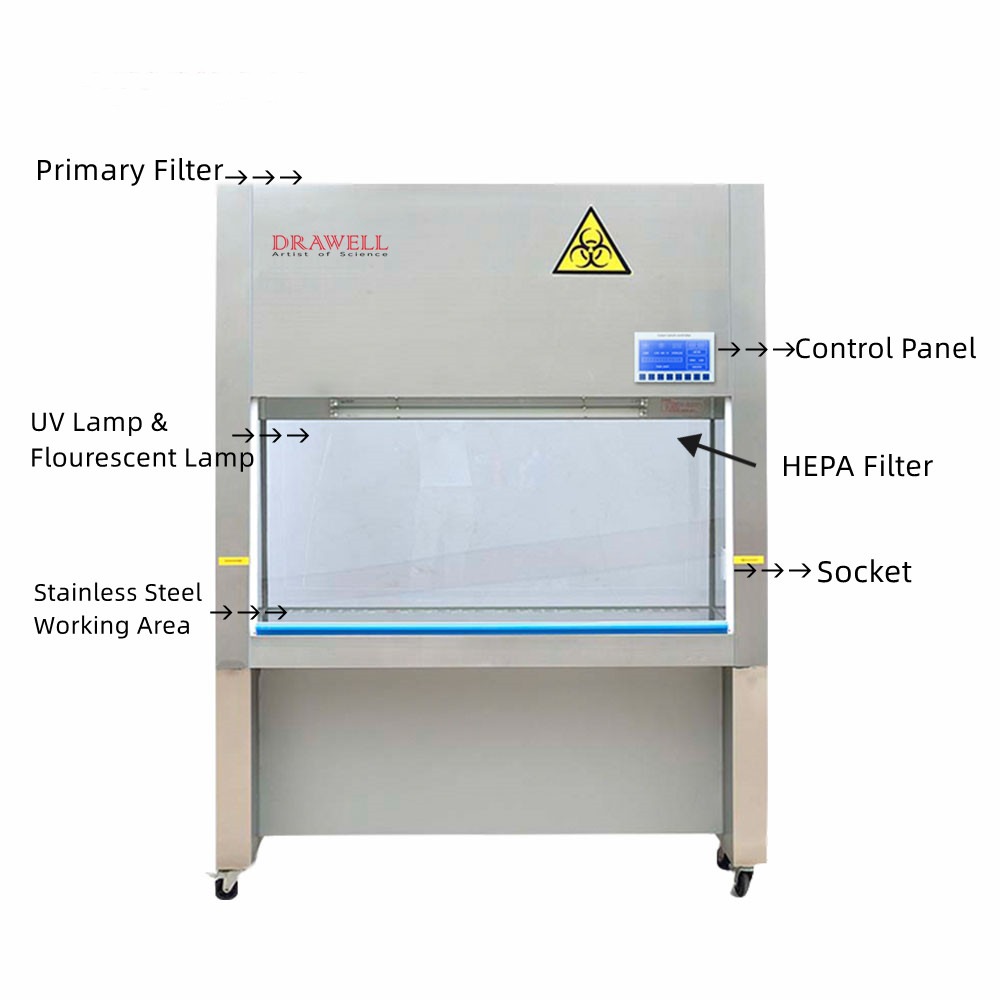

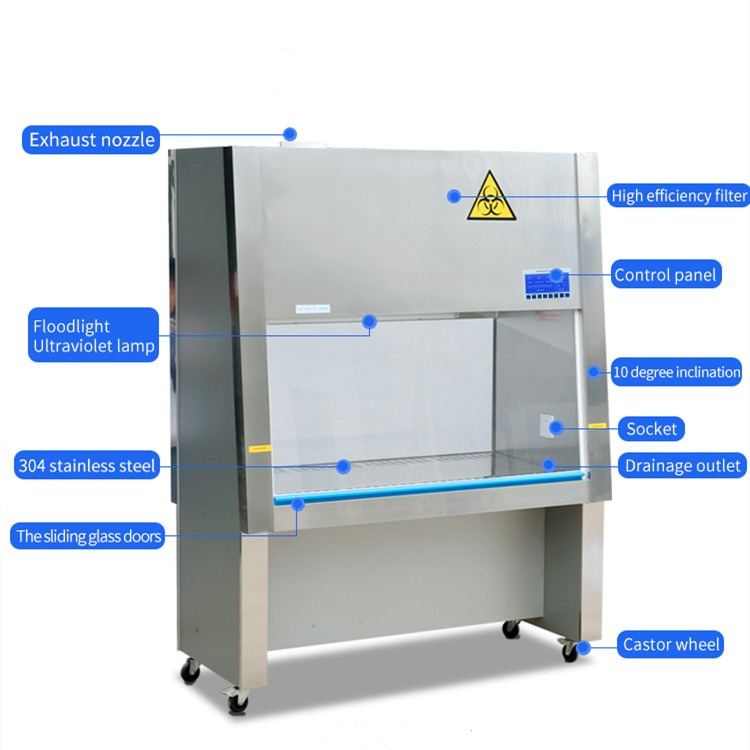

Key features
- Air curtain isolation design prevents internal and external cross-contamination, 100% air flow is discharged .
- The glass door can be moved up and down, can be positioned arbitrarily, is easy to operate, and can be completely closed for sterilization, and the positioning height limit alarm prompts.
- The power output socket in the work area is equipped with a waterproof socket and a sewage interface to provide great convenience for the operator
- HEPA filter is installed at the exhaust air to control emission pollution.
- The working environment is made of high-quality 304 stainless steel, which is smooth, seamless, and has no dead ends. It can be easily and thoroughly disinfected and can prevent the erosion of corrosive agents and disinfectants.

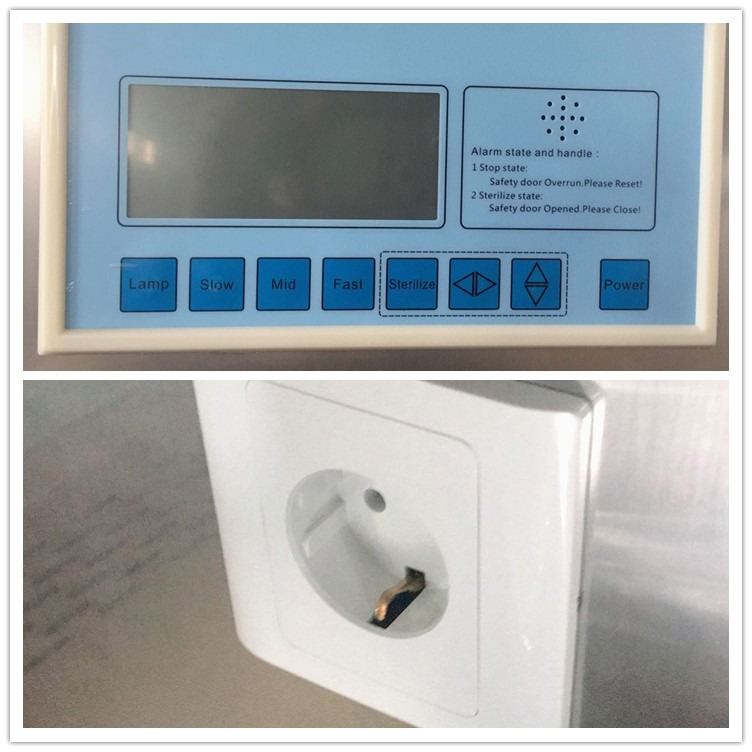

- It adopts LCD control panel and built-in UV lamp protection device, which can only be opened when the safety door is closed.
- With DOP detection port, built-in differential pressure gauge.
- 10° tilt angle, in line with the human body design concept
Applications
- Protected handling, ventilation, containment, or laboratory workspace setup
- Facility-specific laboratory safety and workflow applications
- Research, testing, and sample-preparation environments
Technical specifications
| Model | BSC-1000IIB2 | BSC-1300IIB2 | BSC-1600IIB2 |
|---|---|---|---|
| Clean level | Grade 100(209 E U.S. Federal) | ||
| Number of bacteria | ≤0.5per utensil.hour(90mm utensil) | ||
| Average wind speed | Inside the door | 0.38±0.025m/s | |
| Middle | 0.26±0.025m/s | ||
| Inside the cabinet | 0.27±0.025m/s | ||
| Inflow velocity | 0.55m±0.025m/s | ||
| Noise | ≤65dB(A) | ||
| illumination | ≥650LX | ||
| Power | AC 220V/50HZ | ||
| Work area size (W*D*H) | 1040*650*620mm | 1340*650*620mm | 1640*650*620mm |
| Overall dimension (W*D*H) | 1200*800*2270mm | 1500*800*2270mm | 1800*800*2270mm |
| HEPA filter size | 980*490*50×①520*380*70×①| 1280*490*50×①820*380*70×①| 1580*490*50×①1120*380*70×①|
| Fluorescent/UV lamp specifications and quantity | 20W×②/20W×①| 30W×②/30W×①| 30W×②/30W×①|
Ordering and configuration
Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
