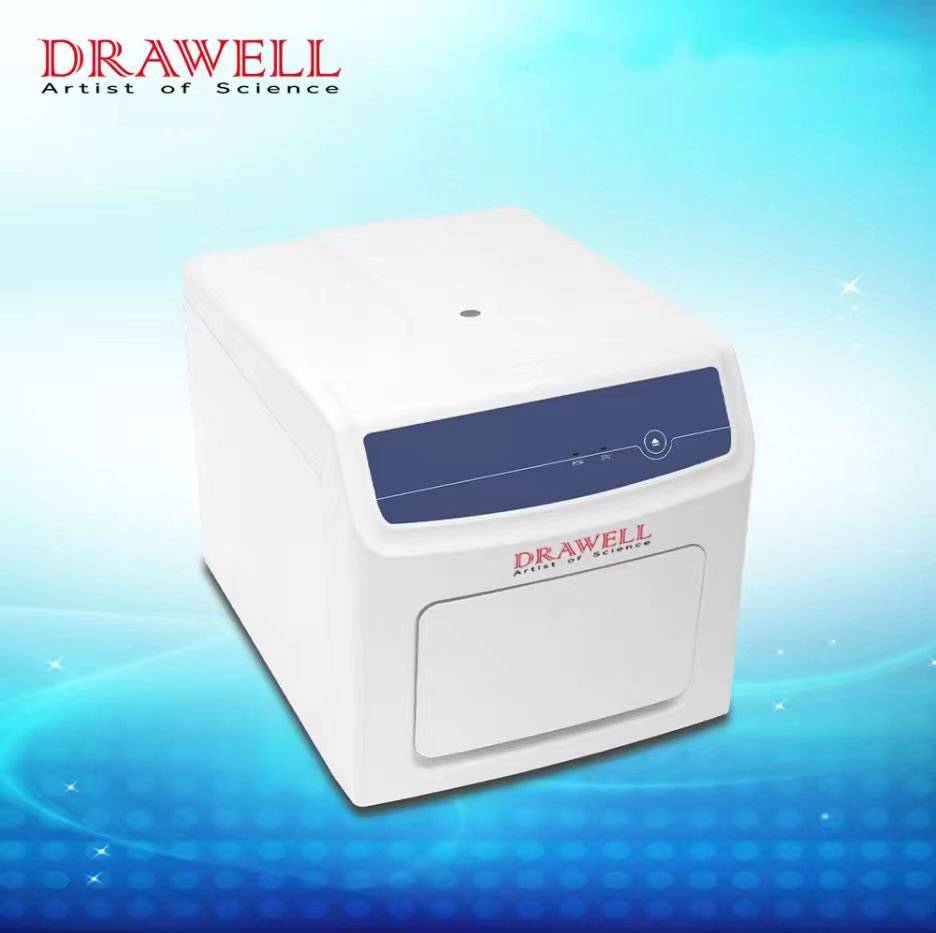

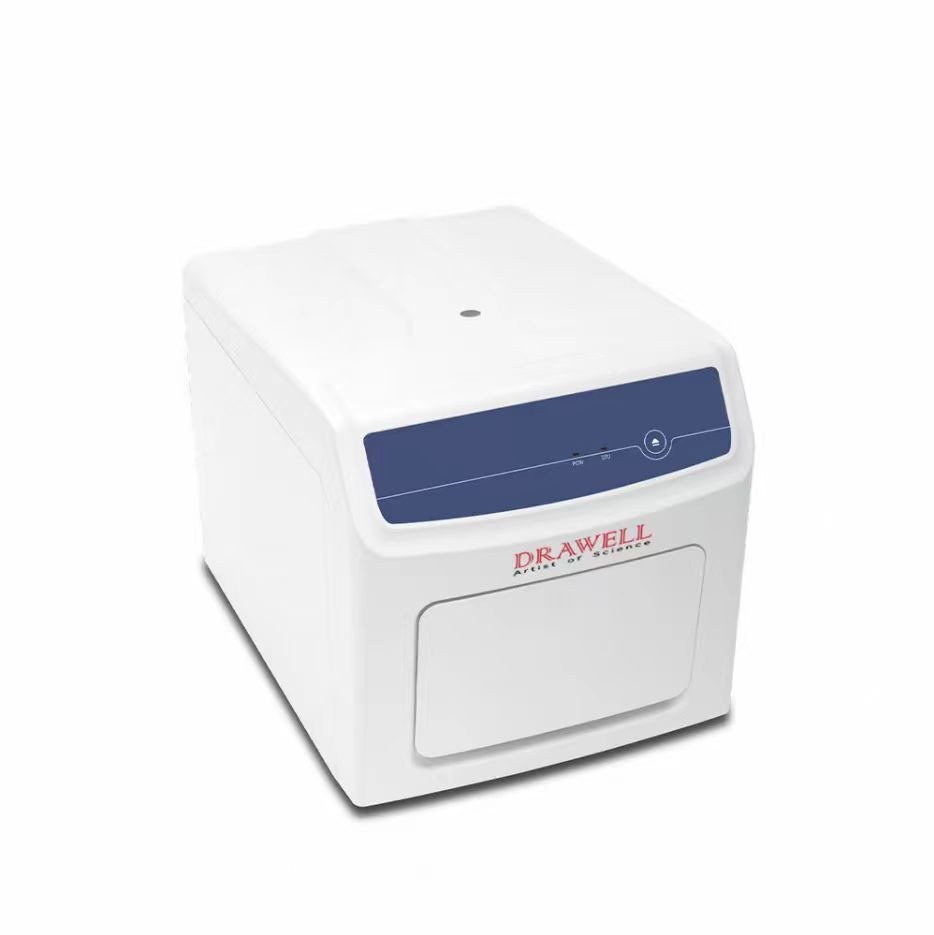

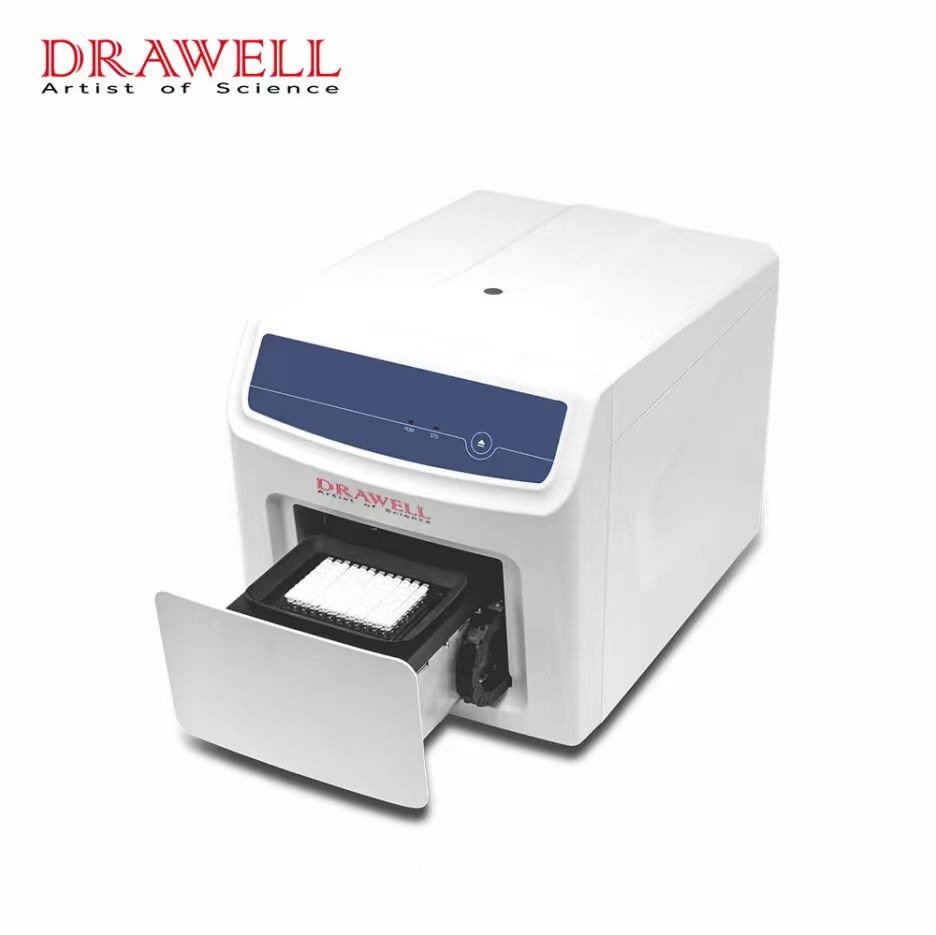

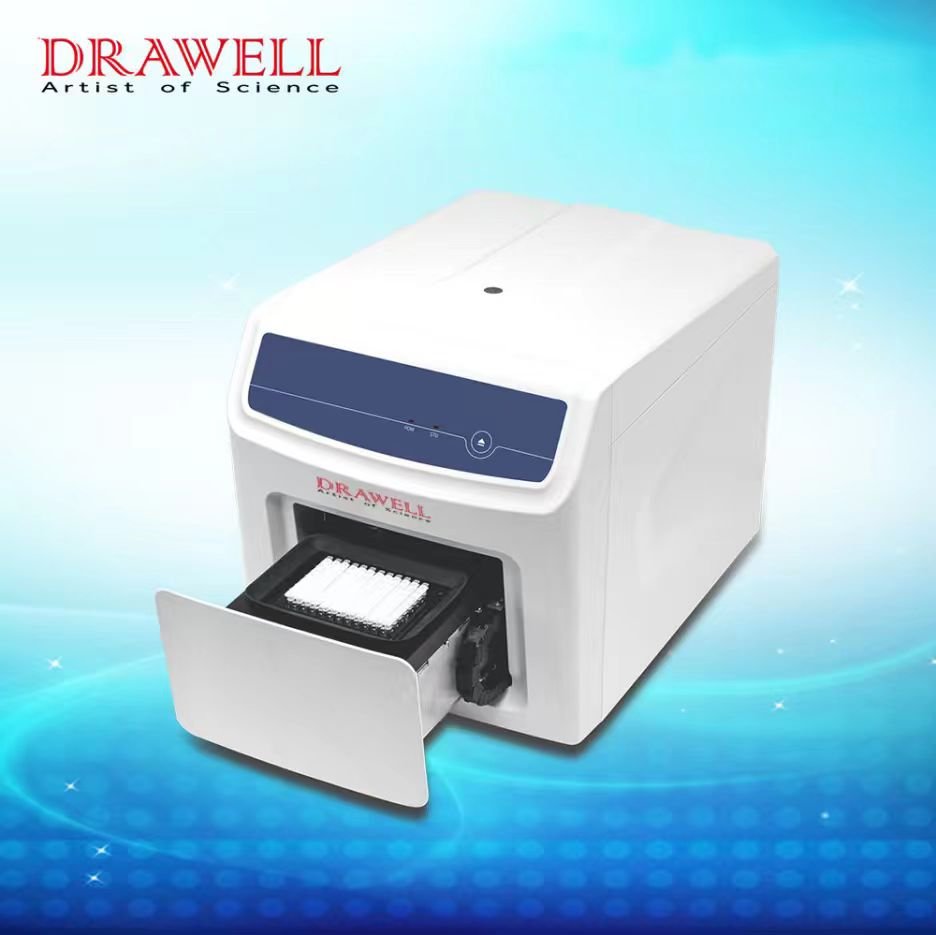

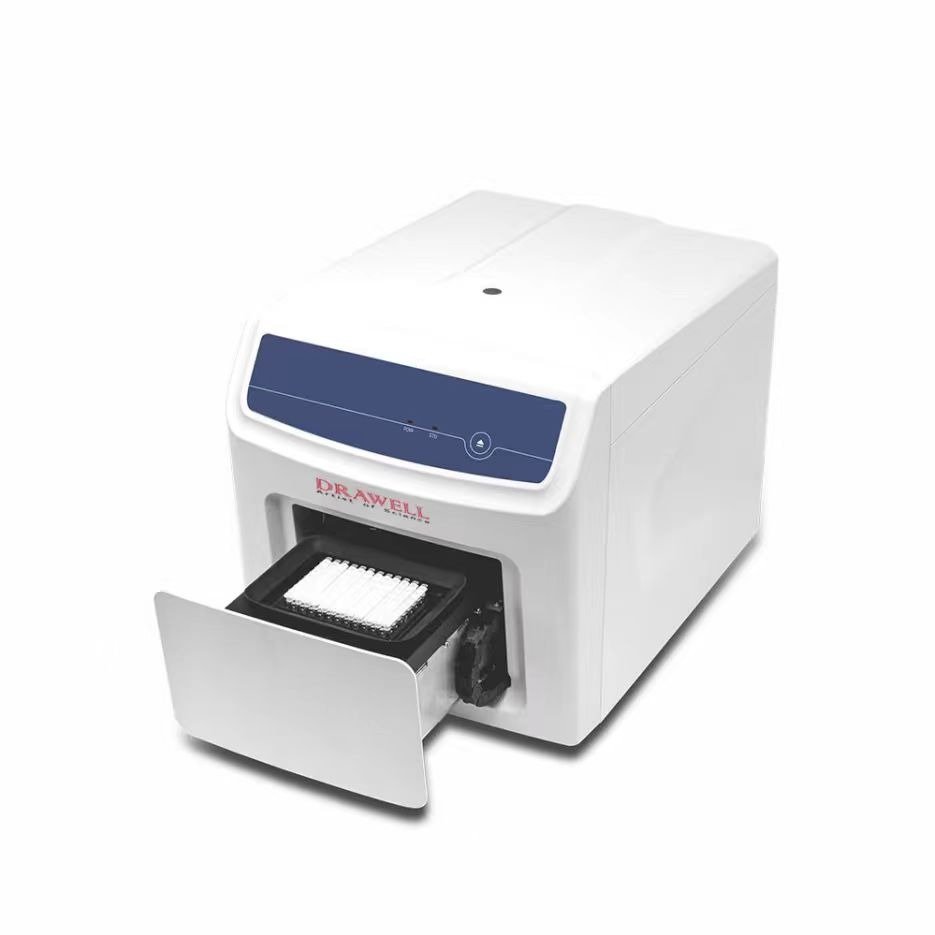

Drawell Accurate 96 Real-Time PCR System

Product overview

Accurate 96 is a real-time PCR system for fluorescence-based nucleic acid amplification and quantitative analysis, suitable for molecular biology research, clinical testing, quality and safety testing, and forensic applications. It supports multiplex PCR, amplification analysis and melting-curve workflows.

The Drawell Accurate 96 Real-Time PCR System supports hospitals, diagnostic laboratories, research centers, and healthcare facilities. Scientific China provides model selection, configuration review, export coordination, and formal quotations.

Key features

Up to 6 fluorescence detection channels allowing multiplex PCR.
Effectively reduce multi-color crosstalk and edge effect, no ROX correction required to reduce sample and reagent use
Innovative scanning method and time-resolved signal separation technology to improve detection sensitivity
Unique edge temperature compensation technology to minimize “edge effect”
User-friendly software
Innovative technology with long-lasting LED light provides reliability results
Real-time PCR amplification and quantitative nucleic-acid analysis.
Multi-target fluorescence detection using up to six channels.
Quantitative PCR workflows for gene-expression studies.
PCR-based molecular testing in quality-control and safety-related laboratories.
Real-time PCR workflows in applicable clinical laboratory research and testing settings.
PCR-based DNA analysis workflows for forensic laboratory applications.
Accurate 96 supports 96 reactions with a reaction volume of 10–50 μL .
The system is available with 4 or 6 fluorescence channels .

Applications

Clinical, molecular, or immunoassay laboratory workflows
Sample analysis and routine diagnostic testing
Research and application-specific laboratory testing

Technical specifications

Temperature control system
Model	Accurate 96
Sample capacity	0.1ml PCR tubes×96, 8×12 PCR plate or 96 well plate ×1
Reaction volume	10-50μl
Thermal cycle technology	Peltier
Max. Heating/Cooling rate	6.0° C/s
Heating temperature range	4-100°C
Temperature accuracy	± 0.2°C
Temperature uniformity	±0.2°C @60°C，±0.2°C @95°C
Temperature gradient setting range	30-100°C
Temperature gradient difference setting range	1-36°C
Detection system
Excitation light source	5/6 monochrome high efficiency LEDs
Detection device	MPPC
Detection mode	Time-resolved signal separating technology
Excitation/detection wavelength range	455-650nm/510-715nm

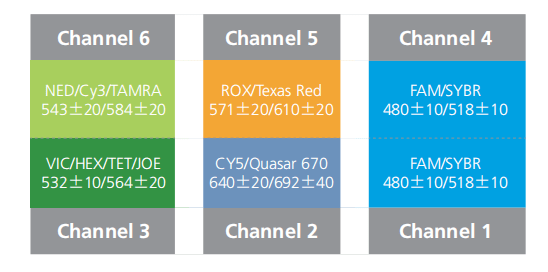

Fluorescent channels	4/6 channels
Supported dye	FAM/SYBR Green,VIC/HEX ROX,Cy5,Cy3(only for x6)
Sensitivity	Single copy gene
Resolution	1.33 folds copy number difference can be distinguished in single-plex qPCR
Dynamic range	10 orders of magnitude copies

Power Condition		220 V, 50/60 Hz, Voltage fluctuation <10%, the instrument must be well grounded. Warning: Improper grounding may cause electric shock or damage to the instrument.
Data cable		Must use the original cable in the package.
Lock and Unlock		Machine need to be unlocked with the M4 hex wrench upon arrival before other operation. The instrument must be locked before being transported over long distances. See the unlock/lock operation video for details.
Applicable Consumables	Both 100ul white, clear, the equivalent heights 100μl strip/plate tube are applicable with flat cap or optical sealing film. Warning: Forbidden to use consumables of the following two specifications: 1) tubes or 96-well plates higher than 100μl standard height; 2) convex caps. Manufacturer will not take responsible for the damage caused by wrong tubes. If user has demand to use some special consumables, please check with the distributor/ manufacturer before use.
100ul-White	100ul-Clear	200ul	200 ul-Convex caps
Consumables placement	Only the same specification PCR tube can be used in same run and tubes should be correctly placed in the corresponding well position. When use few tubes or few strips, place empty 8strips on both sides of block to balance the hot lid is Must.
Strips on both sides	Place tubes at corners	No support tube	Not in the hole	Use different kind of Tube
Computer requirements		1. The computer system requires win10 system. 2. Both the “Screen Off Settings” and “Sleep Settings” of the computer must be turned off .
Software Installation		1. The software needs to be installed on the D drive. 2. Install the USB driver first, and then install the software.
Program settings	The program stage is displayed below the program. ‘None’ means that there is only heating /cooling, and no fluorescence signal is collected; Set it as ‘Amplification’ means machine will collects fluorescence signal once per cycle at amplification stage, and “End point” must be set. Set it as‘Melting’ means machine will collects fluorescence throughout the heating process at melting stage. “All point” must be set. Type of the program phase must correspond to the fluorescence collection setting.
Sample setting		The fluorescence channels corresponding to different wells position must be set before the experiment. The settings of well position, channel, gene name, and sample name all need to correspond to each other.

Ordering and configuration

Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
