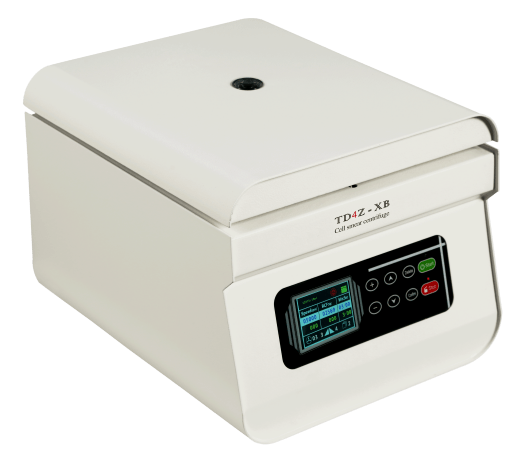

Drawell 3000r/min TD4Z-XB Cell Smear Centrifuge
Product overview
Cell smear centrifuge is the special equipment for liquid-based cell production, It is mainly used for exfoliated cell examination of clinical and basic laboratory specimens, including secretions, cerebrospinal fluid, hydrothorax, ascites, etc.
The Drawell 3000r/min TD4Z-XB Cell Smear Centrifuge supports clinical laboratories, hospitals, universities, blood centers, and research facilities. Scientific China provides model selection, configuration review, export coordination, and formal quotations.
Key features
- Stainless steel chamber , compact structure, with microprocessor control.
- Safety Interlock system that prevents opening the centrifuge lid during running.
- Easy operation , with a professional cell smear rotation program.
- With Emergency lid lock release , in case of power off.
- Samples after separation, cells are separated from the liquid suspension by centrifugal force and thrown onto the slide. The dye solution is sprayed onto each smear on the rotary disc of the automatic sprayer, and the excess dye solution is removed by centrifugation. The cells and bacteria are evenly distributed without overlapping, and with a good dyeing effect.
- Electric Supply
- 125W AC220V &110V/50-60Hz
- Speed Accuracy
- Max Capacity
- 275x390x300mm(LxWxH)
- Noise level at max speed

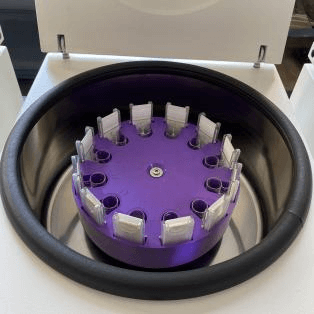

- No.1 Cyto Spin Rotor
Applications
- Separation and preparation of clinical or research samples
- Routine laboratory centrifugation workflows
- Application-specific processing with compatible rotors and adapters
Technical specifications
| Model | TD4Z-XB | ||
|---|---|---|---|
| Electric Supply | 125W AC220V &110V/50-60Hz | ||
| Speed Accuracy | ±10rpm | ||
| Power | 90W | ||
| Max Capacity | 12X0.5ml | ||
| Max Speed | 3000r/min | ||
| Max RCF | 2300xg | ||
| Timer Range | 0-99min | ||
| Dimensions | 275x390x300mm(LxWxH) | ||
| Net Weight | 20kg | ||
| Noise level at max speed | ≤ 50dB (A) | ||
| Rotor | |||
| Number | Max Speed | Max RCF | Capacity |

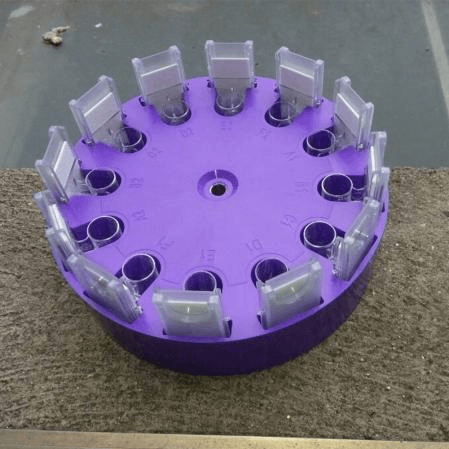

| No.1 Cyto Spin Rotor | 3000r/min | 2300xg | 12×0.5ml |
Ordering and configuration
Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
