Drawell 1200°C Chamber Muffle Furnace STM-12
Product overview
1200°C Chamber Muffle Furnace STM-12 Features Specifications Other Muffle Furnace 1400°C Chamber Muffle Furnace STM-14 1200°C Chamber Muffle Furnace STM-12 1700°C Chamber Muffle Furnace STM-17 High-Temperature Muffle Furnace T/TP Series
The Drawell 1200°C Chamber Muffle Furnace STM-12 supports research, clinical, pharmaceutical, industrial, and quality-control laboratories. Scientific China provides model selection, configuration review, export coordination, and formal quotations.
Key features
- Table of Contents
- Features Specifications Other Muffle Furnace 1400°C Chamber Muffle Furnace STM-14 1200°C Chamber Muffle Furnace STM-12 1700°C Chamber Muffle Furnace STM-17 High-Temperature Muffle Furnace T/TP Series
- Other Muffle Furnace 1400°C Chamber Muffle Furnace STM-14 1200°C Chamber Muffle Furnace STM-12 1700°C Chamber Muffle Furnace STM-17 High-Temperature Muffle Furnace T/TP Series
- 1400°C Chamber Muffle Furnace STM-14
- 1700°C Chamber Muffle Furnace STM-17
- High-Temperature Muffle Furnace T/TP Series
- Integrated Structure with elegant design.
Applications
- Controlled heating, cooling, incubation, drying, or storage
- Sample preparation and temperature-sensitive laboratory workflows
- Routine research, testing, and quality-control applications
Technical specifications
| Model | STM-1-10 | STM-3-12 | STM-6-12 | STM-8-12 | STM-12-12 | STM-18-12 | STM-30-12 | OEM |
|---|---|---|---|---|---|---|---|---|
| Inner Dimmensin （WxDxH）mm | 100x100x100 | 150x150x150 | 180x230x150 | 200x300x120 | 200x300x200 | 250x300x250 | 300x500x200 | Any size |
| Outer Dimension （WxDxH）mm | 250x240x350 | 430x465x620 | 460x570x660 | 480x630x630 | 480x630x710 | 550x635x780 | 600x870x735 | |
| Type | Benchtop | |||||||
| Furnace structure | Alumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell, Main Electric Parts, and other relative accessories. | |||||||
| Max temperature | 1000℃ | 1200℃ | ||||||
| Continue Temp. | 950℃ | 1100℃ | ||||||
| Power Supply | 220V/1.2KW | 220V/2.5KW | 220V/3KW | 220V/3KW | 220V/4KW | 220V/6KW | 380V/7.5KW | |
| Heating Element | High quality alloy resistance wire (HRE) | |||||||
| Chamber Material | High temperature polycrystal alumina ceramic fiber plate | |||||||
| Temp Precision | ±1℃ | |||||||
| Thermocouple | N type | |||||||
| Temp controller | SHIMADEN (Japan) brand intelligent microcomputer PID controller can program 4 groups 32 segments | |||||||
| Electronic Parts | SCHNAIDER (France ) electronics brand | |||||||
| Heating rate | ≤ 25℃/min ( suggest 15-20℃/min for longer life using of furnace ) | |||||||
| Safety protection | Overheat and Thermocouple-break Alarm | |||||||
| Certification | ISO9001 /CE/ SGS | |||||||
| Furnace shell | High quality cold-rolled steel sheets CNC processing | |||||||

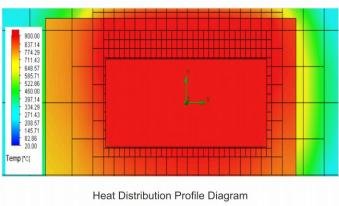

| Insulation | High quality thermal insulation material to ensure a good uniformity | |||||||
| Standard Packing | One pair of high temperature gloves , One pc crucible tong , one catalog and operation manual | |||||||
| Optional | Paperless recorder , Stainless steel exhaust chimney , Quartz /Alumina crucible |
Ordering and configuration
Final specifications, included accessories, consumables, software, certifications, power requirements, installation, warranty, and regulatory availability depend on the selected model and destination. Contact Scientific China to confirm the suitable configuration, minimum order quantity, price, lead time, documentation, and international delivery terms before purchase.
